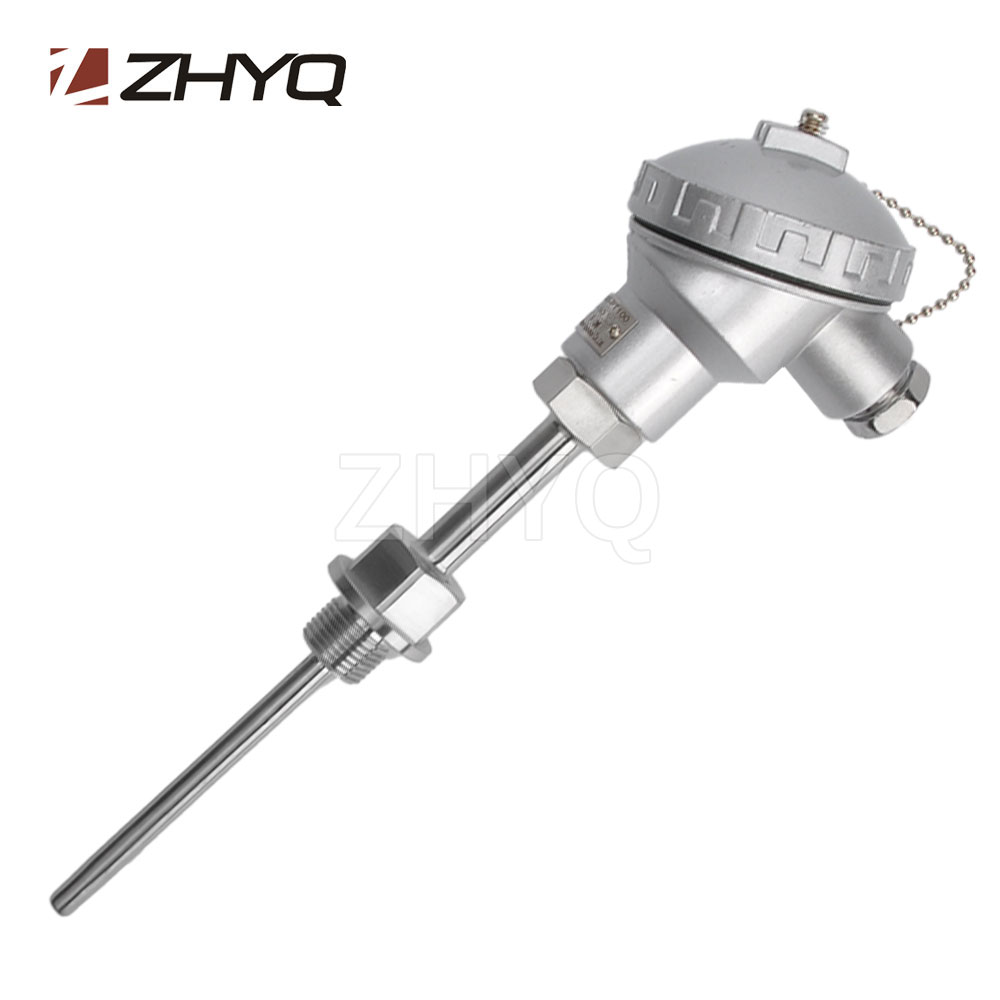

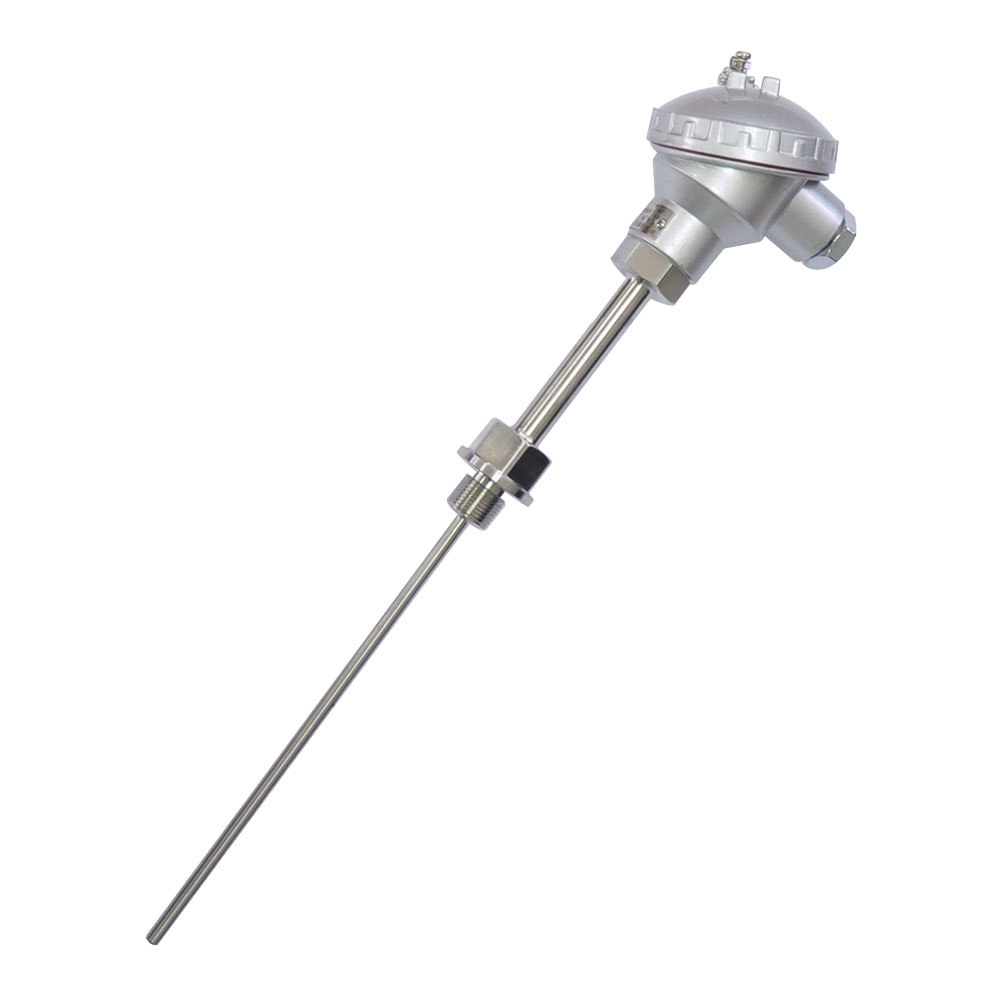

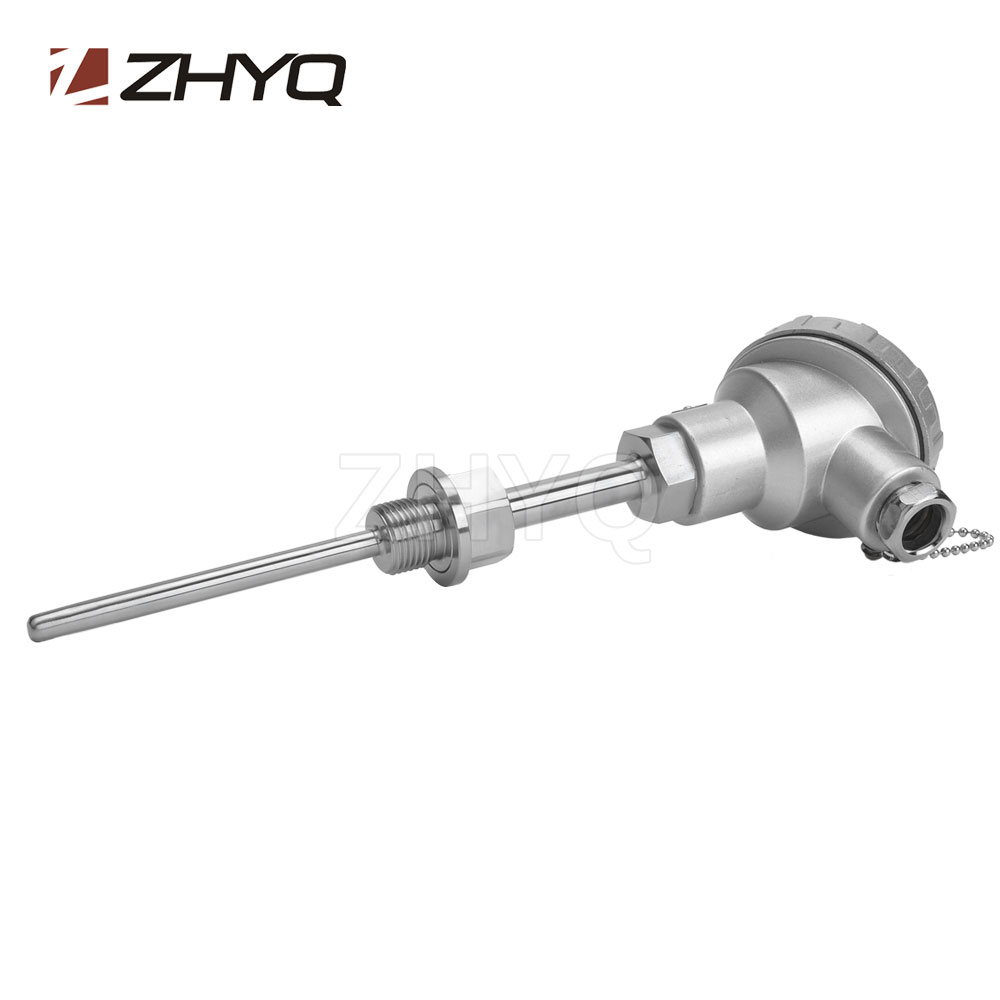

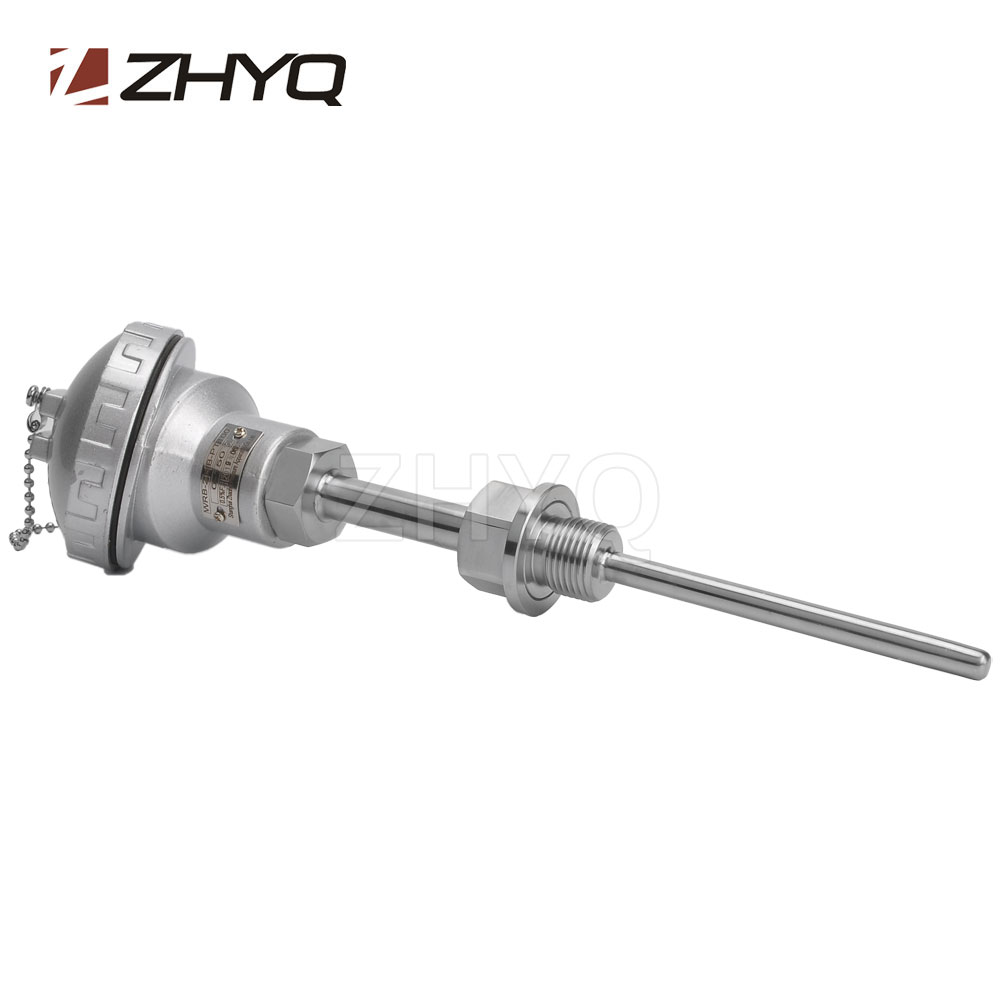

Thread head mounted thermocouple temperature sensor
Model:WR-202
Description:
Thread head mounted thermocouple temperature sensor adopts thermocouple or resistance as the temperature measuring element, it is normally matched with display, recording and regulating instrument.
Send inquiry Download PDFTags: thermocouple temperature sensor, thermocouple sensor, PT100 temperature sensor

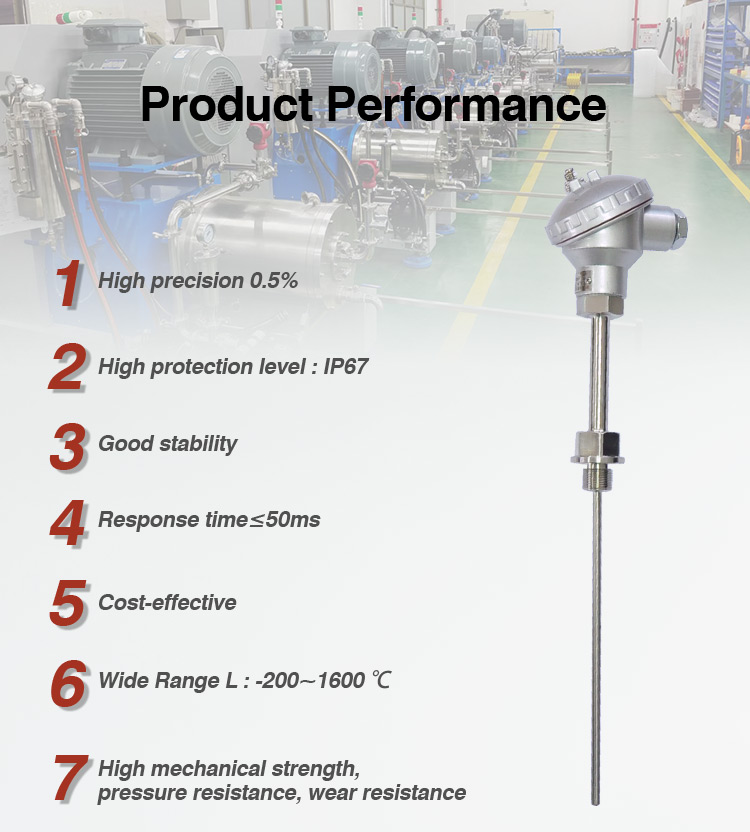

- Widely temperature measurement -50~600℃
- Temperature measurement element as J, K,E, PT100
- 4-20mA signal output optional

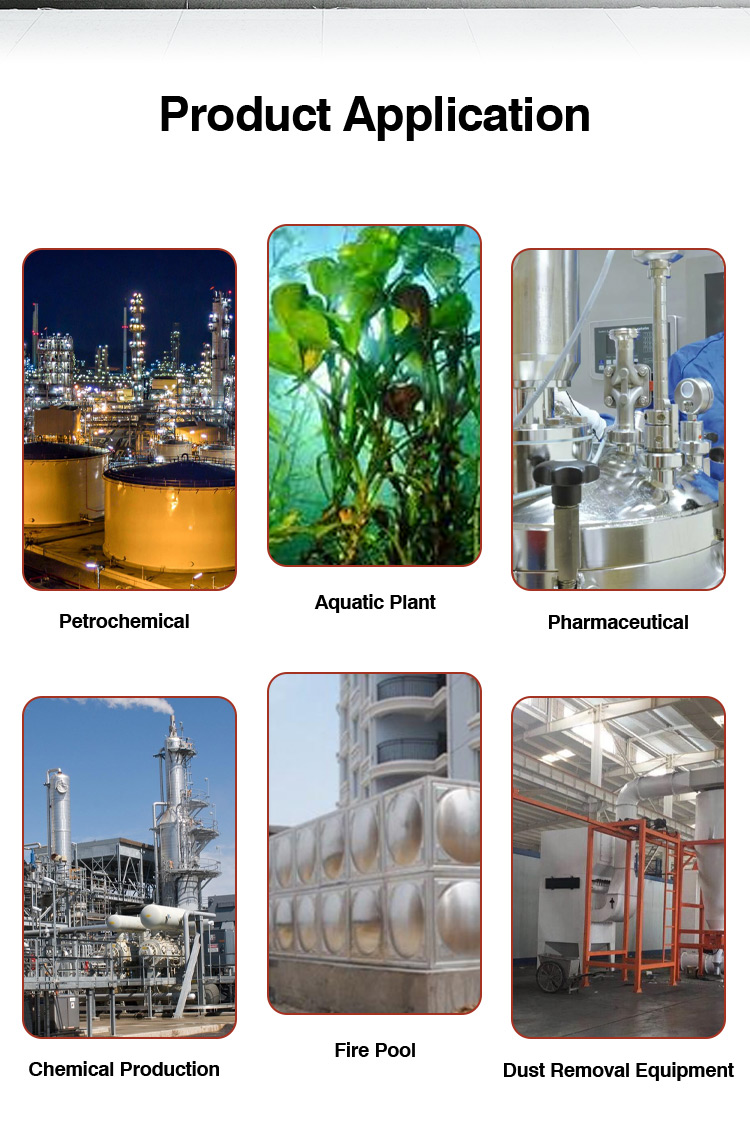

- Typical application: General industrial gas and liquid temperature measurement.
| Temperature range | -50 to +600℃ |
| Output | 4-20mA or PT100 |
| Power supply | 10～30VDC |
| error | 0.1%FS, 0.3%FS, 0.5%FS |

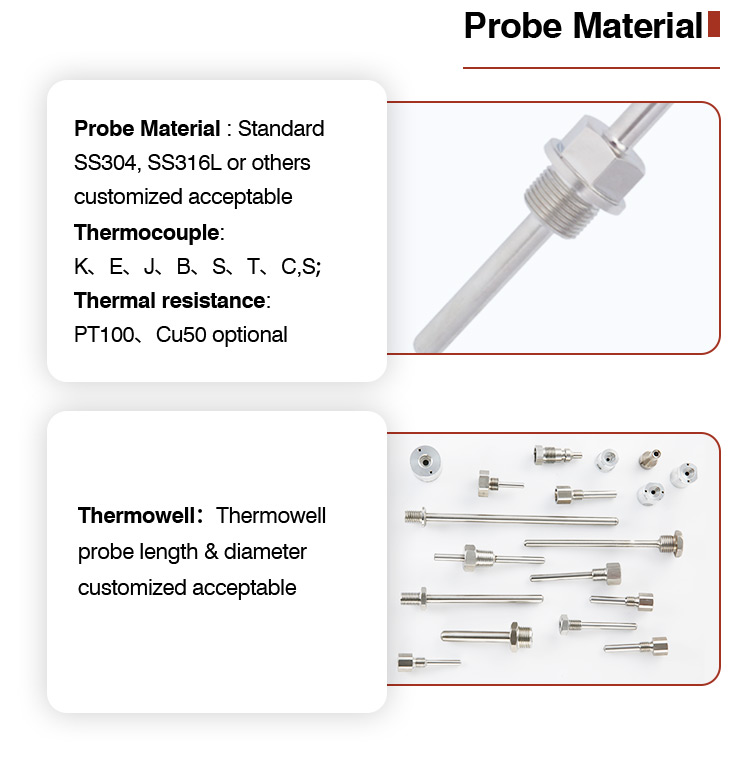

| Media compatibility | 316L stainless steel |

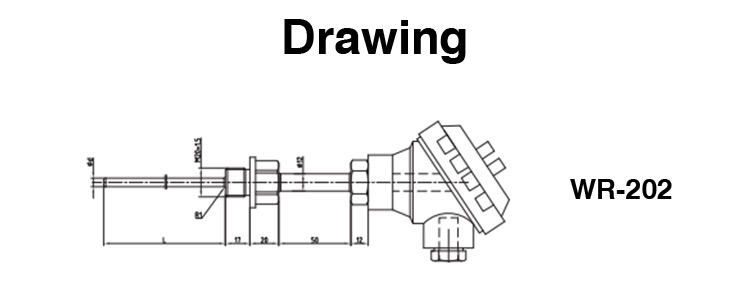

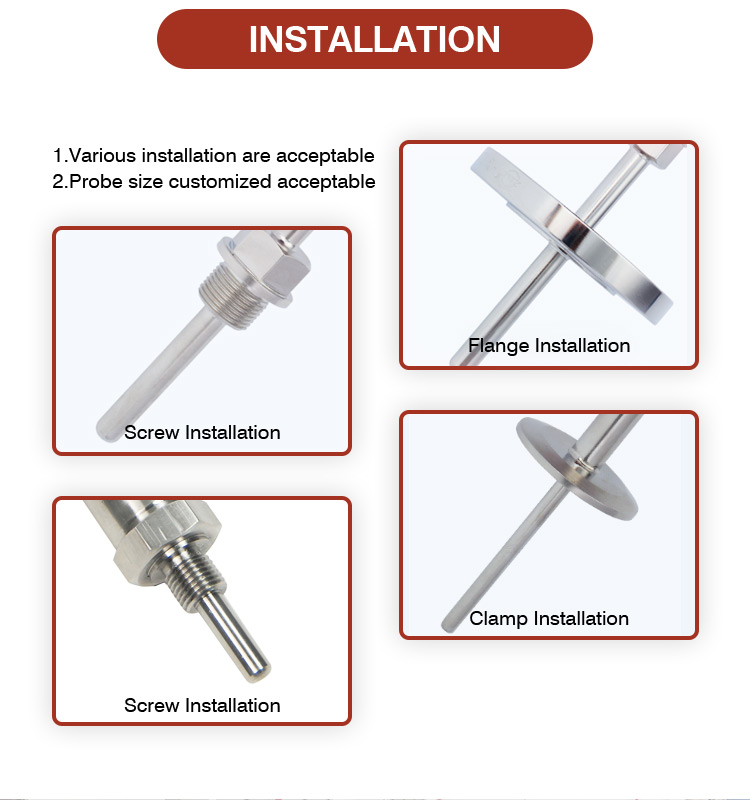

| Pressure connection | Thread M20, M18*1.5 |
| Protection tube | Stainless steel 6mm and 8mm dia. |
| Insert length (L) | 30mm <L<500mm |
| Sensing element | J, PT100 temperature sensor |
| Electrical connector | Waterproof junction box |
