explosion proof pressure transmitter
Smart explosion proof pressure transmitter
explosion proof pressure transmitter
Smart explosion proof pressure transmitter

Smart explosion proof pressure transmitter

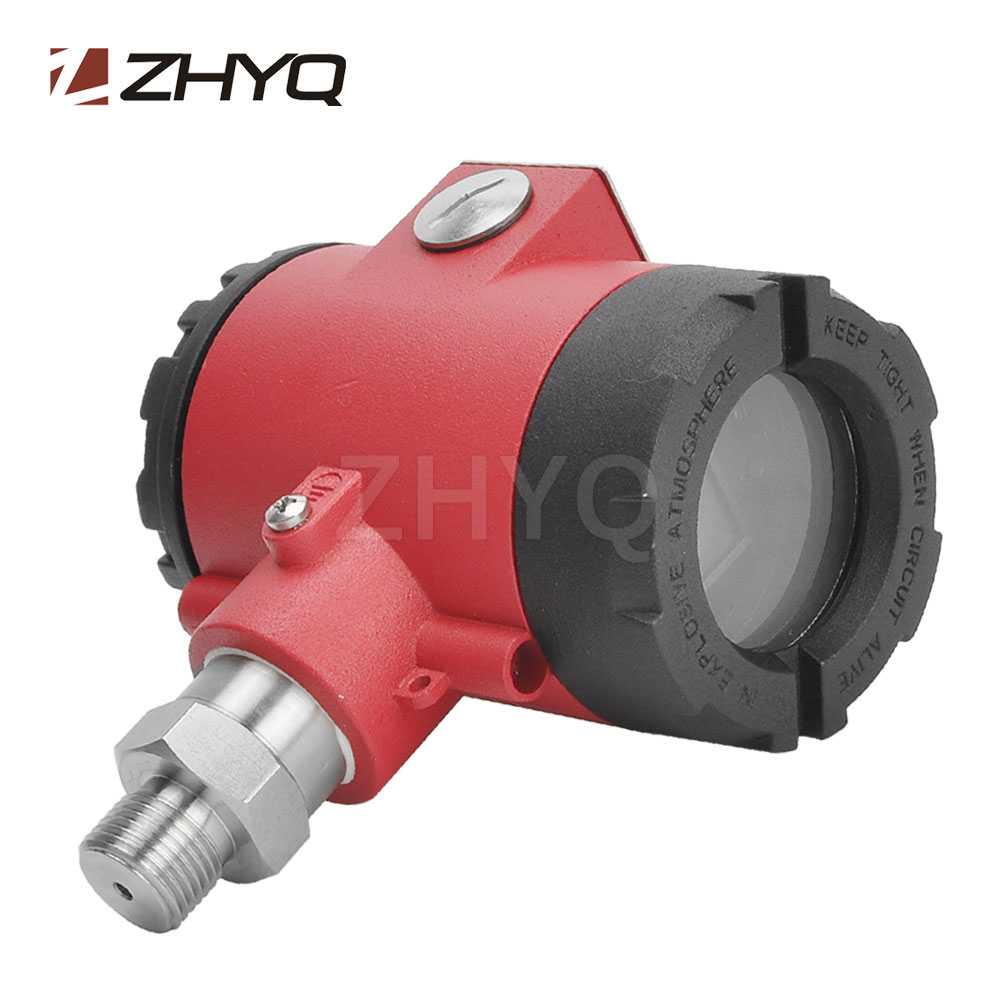

Model:PT124B-282

Description:

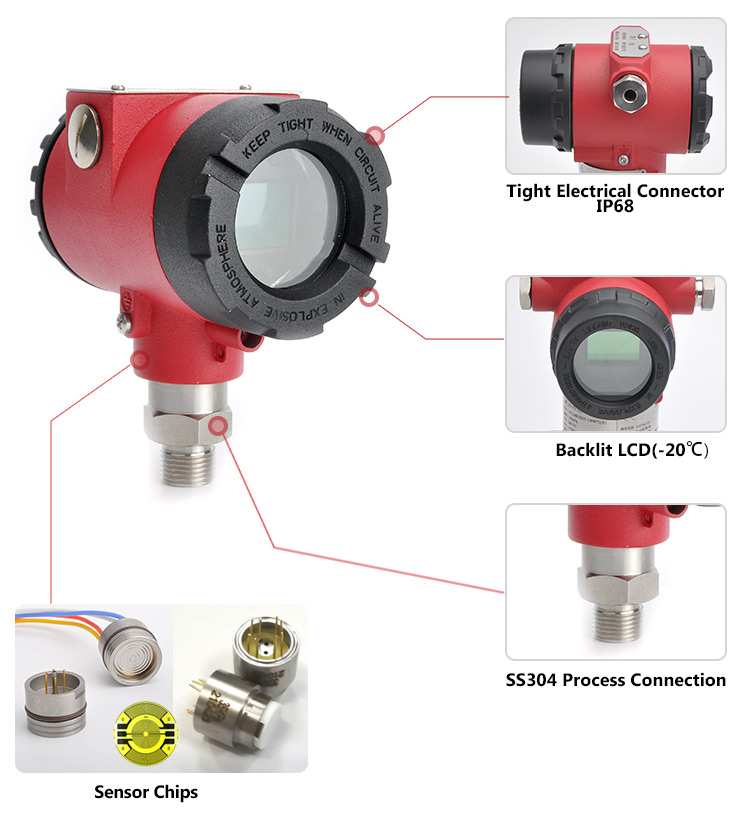

The smart explosion proof pressure transmitter designed with flameproof structure, it passed EXibIICT4 certificate. This series pressure transmitter adopts high-performance pressure sensor chip, with advanced circuit processing and temperature compensation technology, it converts the pressure changes to current or voltage signal. This transmitter comes with HART communication, it has the function of communication and self-diagnostic. The customer can long distance transmission, reading, display and input all the work information and additional data of the transmitter with handheld terminal or field bus.

Send inquiry Download PDF

Tags: Smart pressure transmitter,Flameproof pressure transmitter,Explosion proof pressure

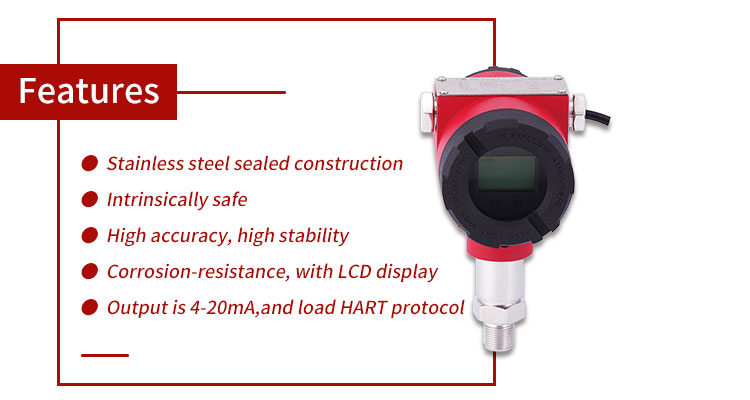

  • High accuracy, high stability
  • Explosion proof grade ExibllCT4

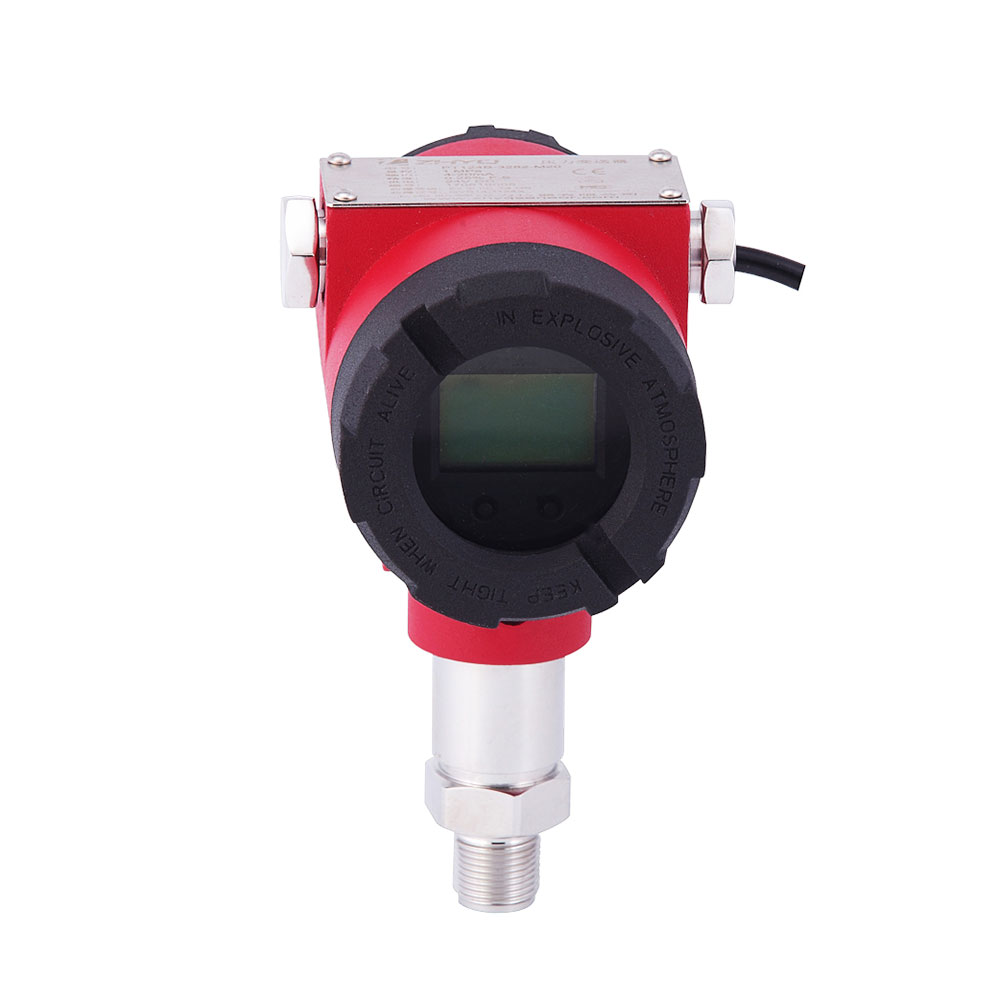

  • Local LCD display

This product is used to measure and control the fluid pressure under harsh environment, such as liquid level, oil field, mine, chemical fiber, electric power, furnace, natural gas and so on.

Pressure range -1~0~1bar; 0~1bar~2000bar
Over load 150%FS
Burst pressure 300%FS
Output 4-20mA
Power supply 12~36VDC
Response time <5ms
Combine error 0.5% FSO(Including Linearity, Repeatability & Hysteresis)

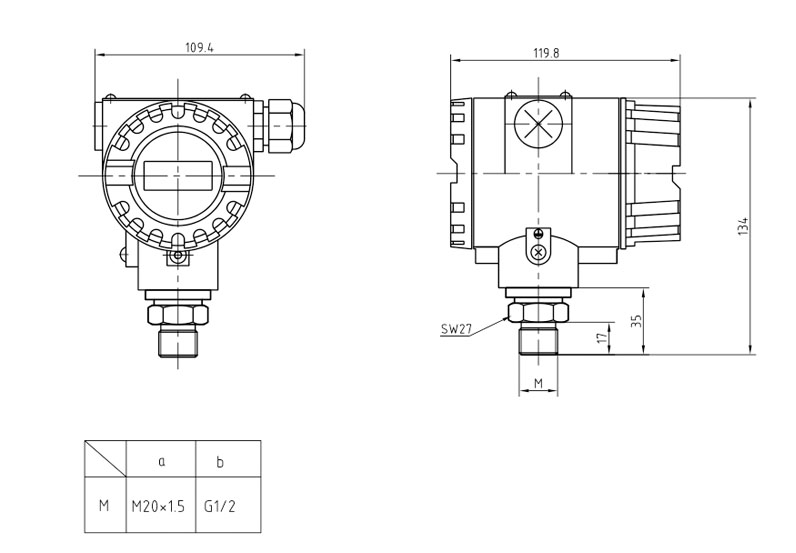

Pressure connection M20×1.5, G1/2 ,G1/4, 1/2NPT(customer tailor)
Operating temperature -20℃ ~ 85℃
Temperature compensation 0℃ ~ 60℃
Electrical connector Terminal Block
Explosion proof grade ExiallCT4
