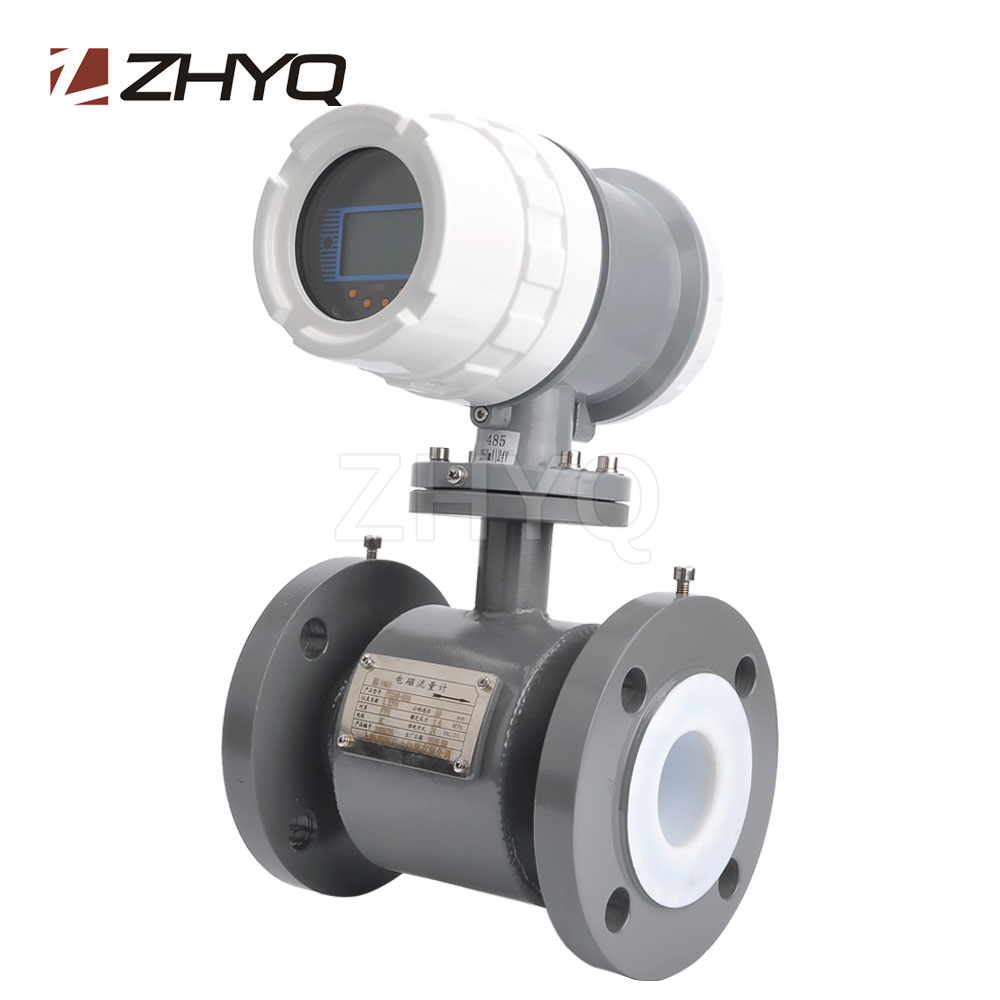

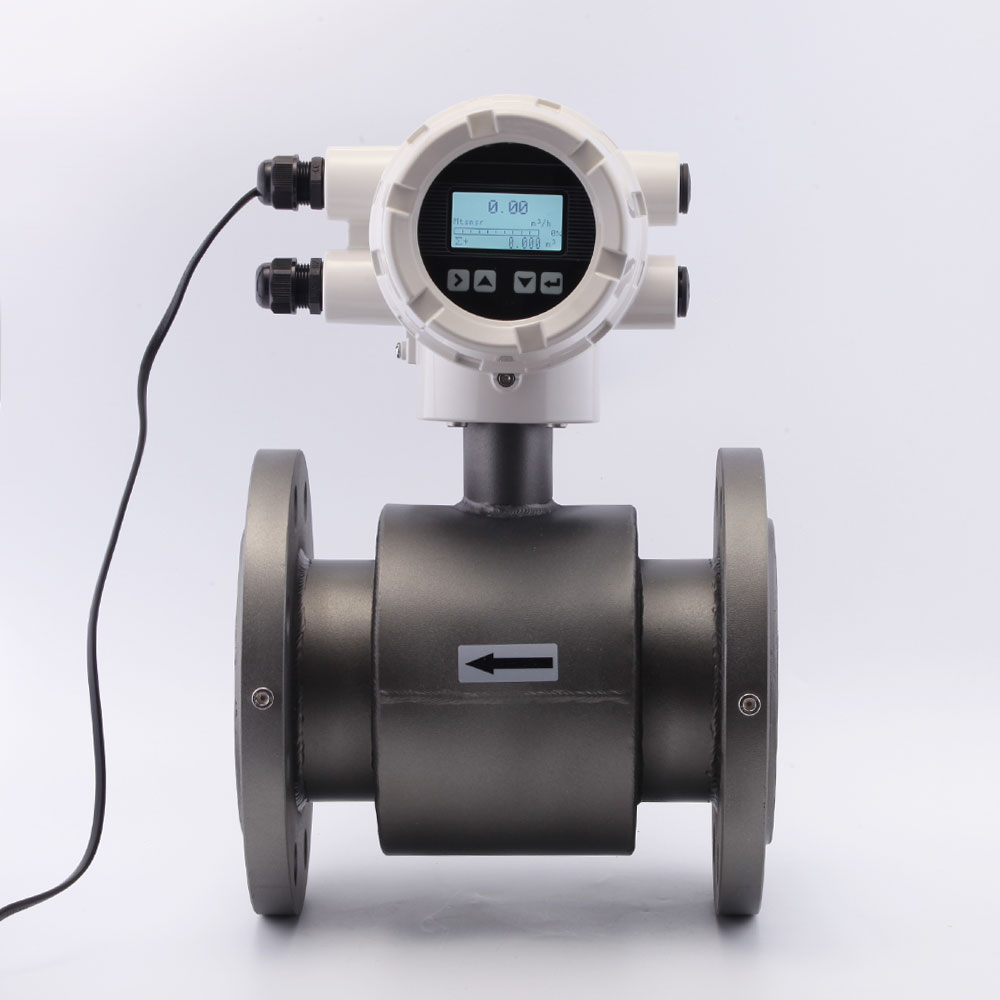

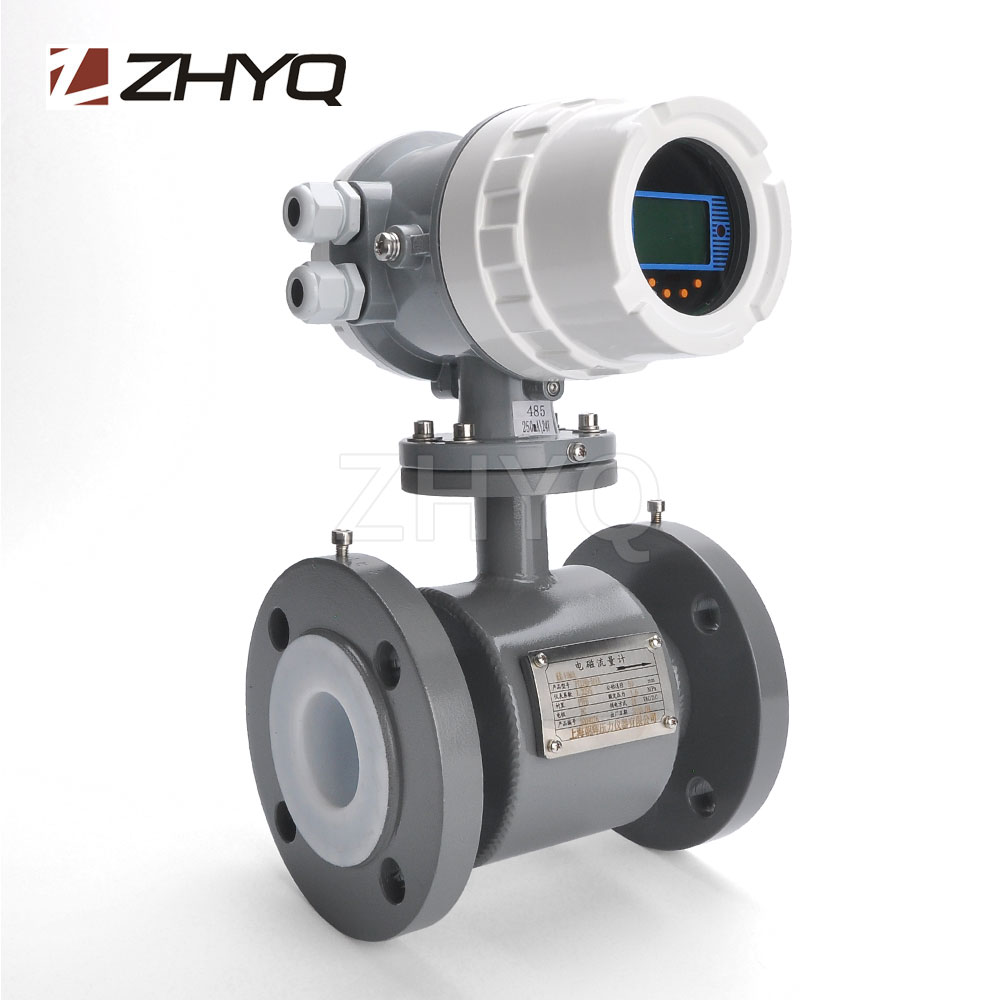

Electromagnetic flow meter
Model:PT124B-501
Description:
The model electromagnetic flow meter for sale possesses a variety of power supply methods and signal output using the standard RS-485 serial communication interface, as well as supports the international standard MODBUS-RTU protocol and GPRS and other wireless or wired communication network method.
Send inquiry Download PDF
- Excellent measurement repeatability and linearity
- Good reliability and anti-interference performance
- Good pressure resistance sealing ability
- Low pressure loss measurement tube
- High intelligentization

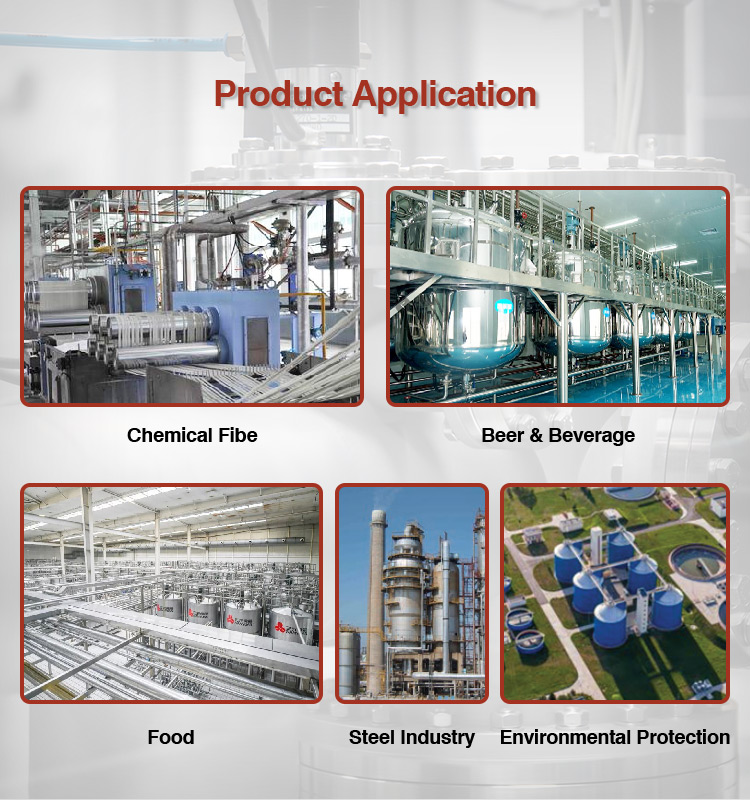

- Electromagnetic flowmeter is a kind of speed meter which has a high accuracy and reliability and is widely used in petroleum, chemical engineering, steel, food, electricity, paper, water treatment, water supply, heat supply, environmental protection and other industries.

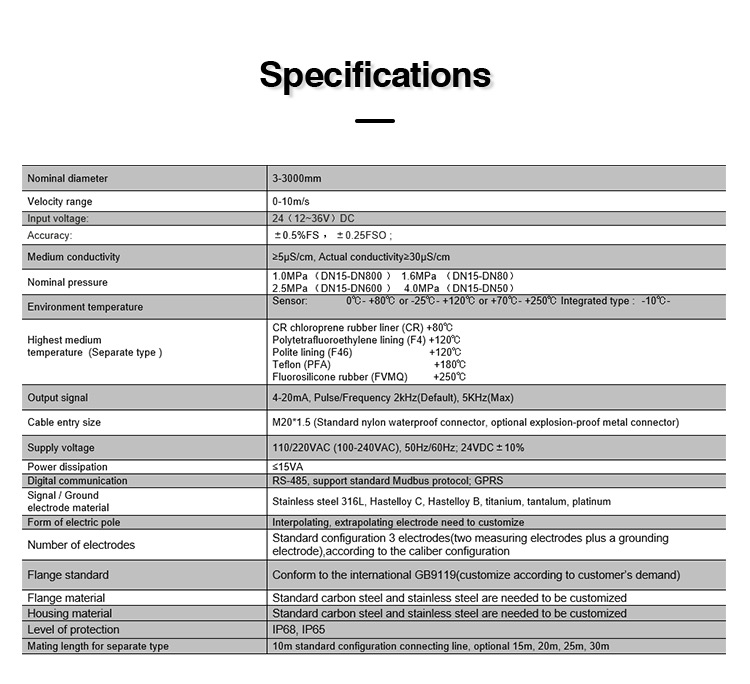

| Parameter | Value |
| Nominal diameter | 15-2000mm |
| Velocity range | 0-10m/s |
| Degree of accuracy | ±0.5%R, ±1%R ( < DN20) |
| Nominal pressure | 1.0MPa, 1.6MPa, 2.5MPa, 4.0MPa |
| Output signal | 4-20mA, Pulse/Frequency 2kHz(Default), 5KHz(Max) |
| Supply voltage | 110/220VAC (100-240VAC), 50Hz/60Hz; 24VDC±10% |
| Digital communication | RS-485, support standard Mudbugs-RTU protocol; GPRS |

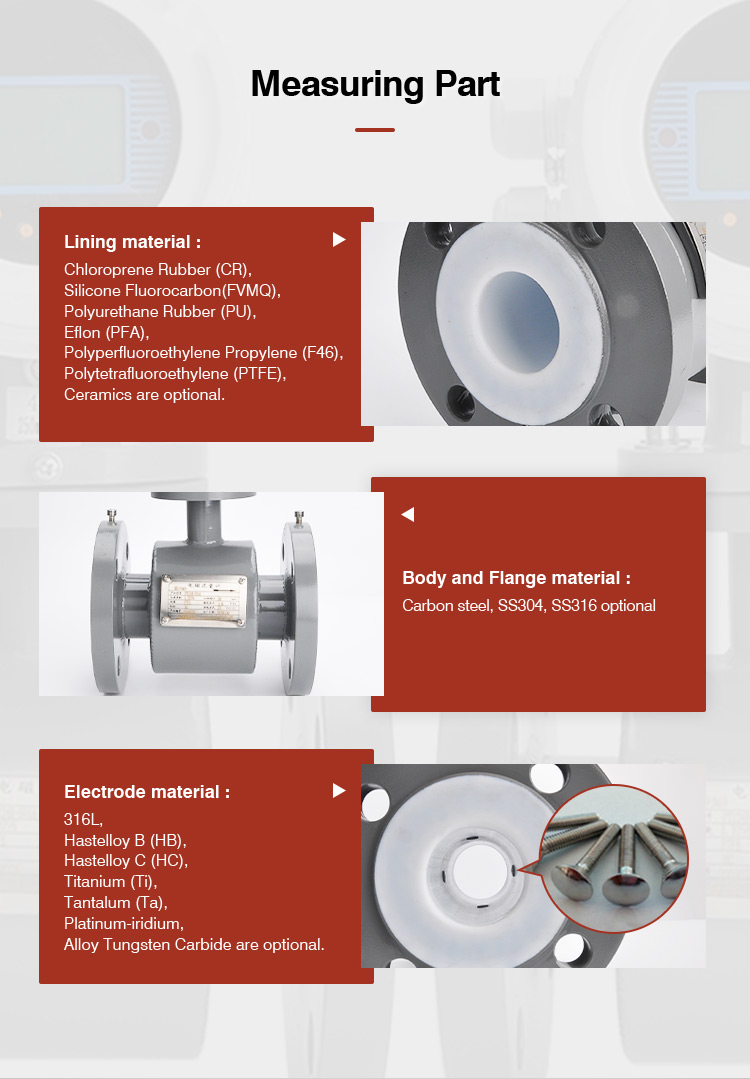

| Housing material | Standard carbon steel and stainless steel are needed to be customized |
