Submersible liquid level transmitter
submersible liquid level transmitter
Submersible liquid level transmitter
submersible liquid level transmitter

Submersible liquid level transmitter

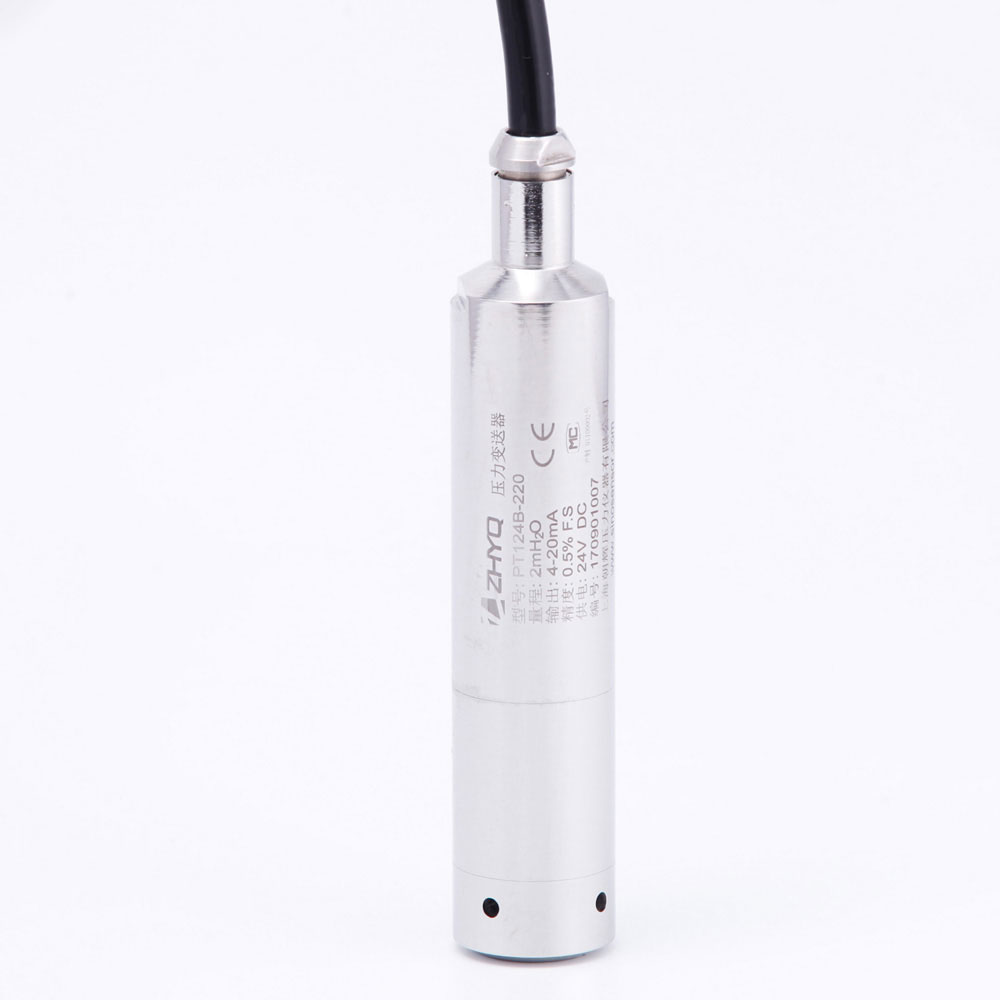

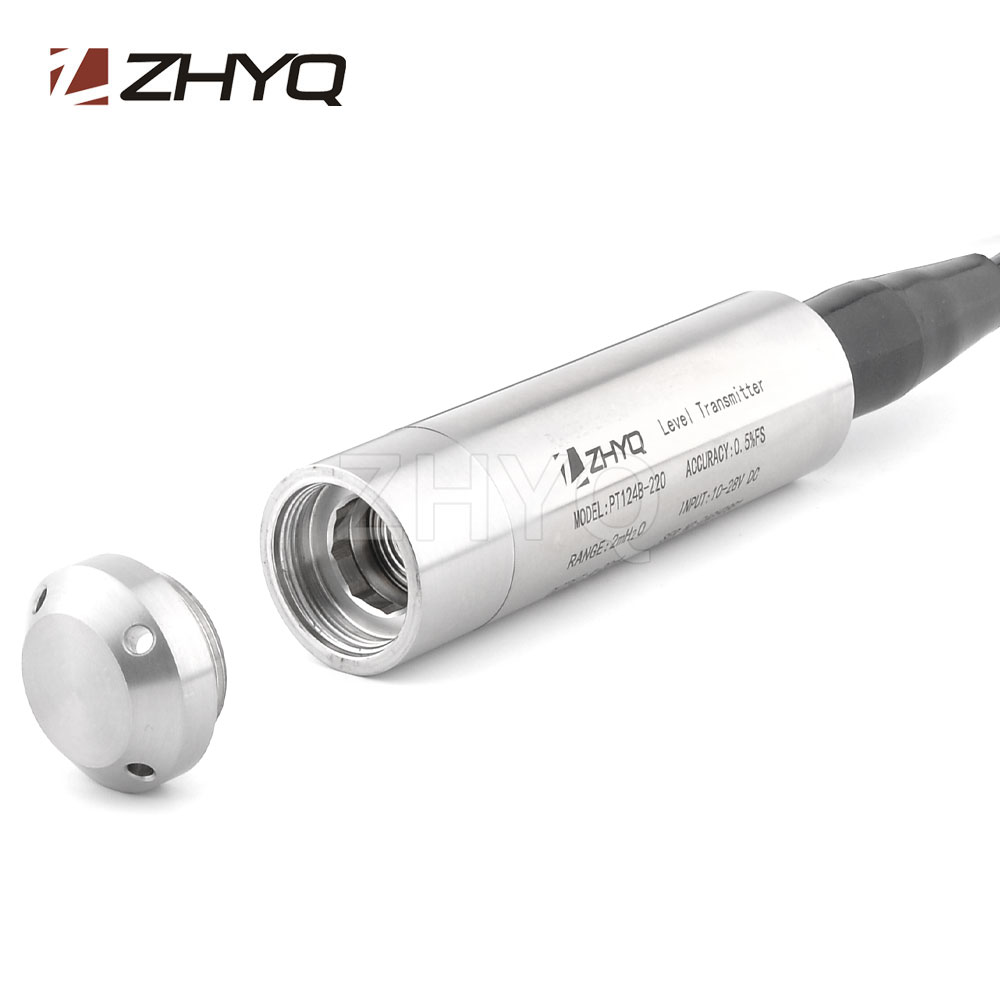

Model:PT124B-220

Description:

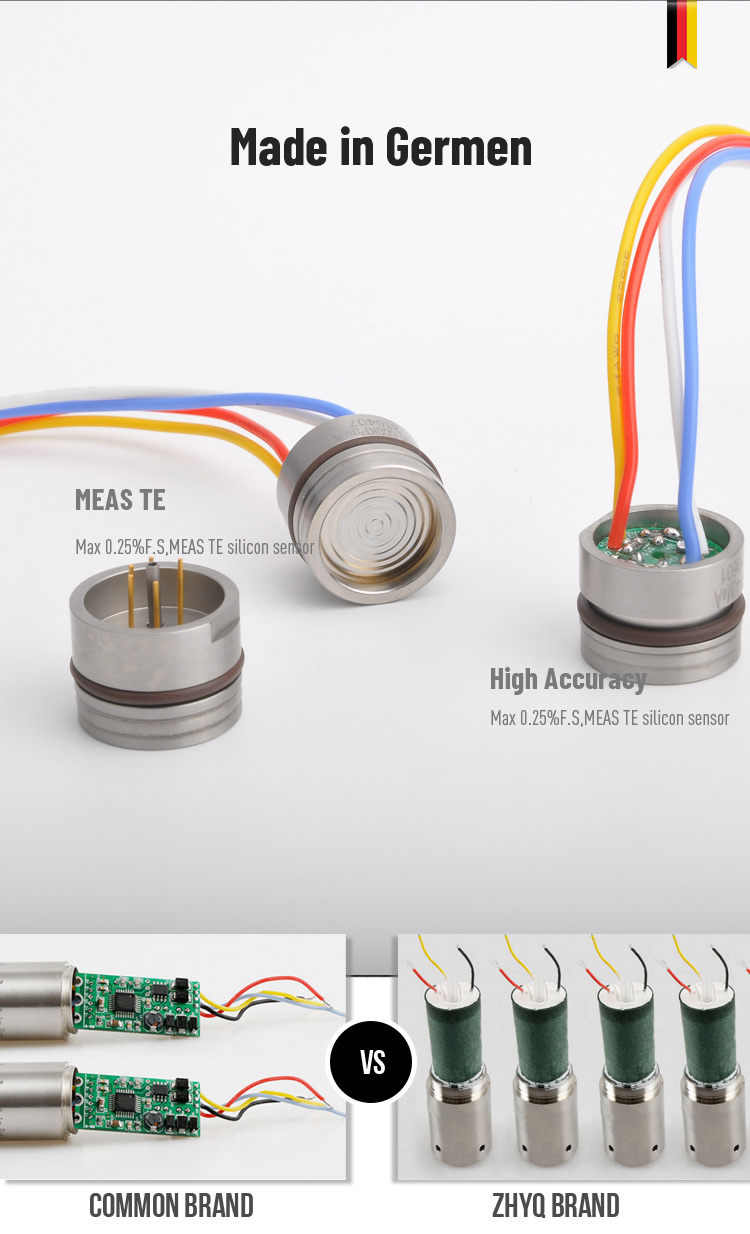

PT124B-220 series submersible liquid level transmitter adopts high performance diffused silicon piezoresistive pressure sensor as the measuring element, with the reliable amplified circuit and precision temperature compensation.

Send inquiry Download PDF

Tags: Water level transmitter, Tank level transmitter, Tank level transmitter

  • Measurement range from 1m to 50m H2O

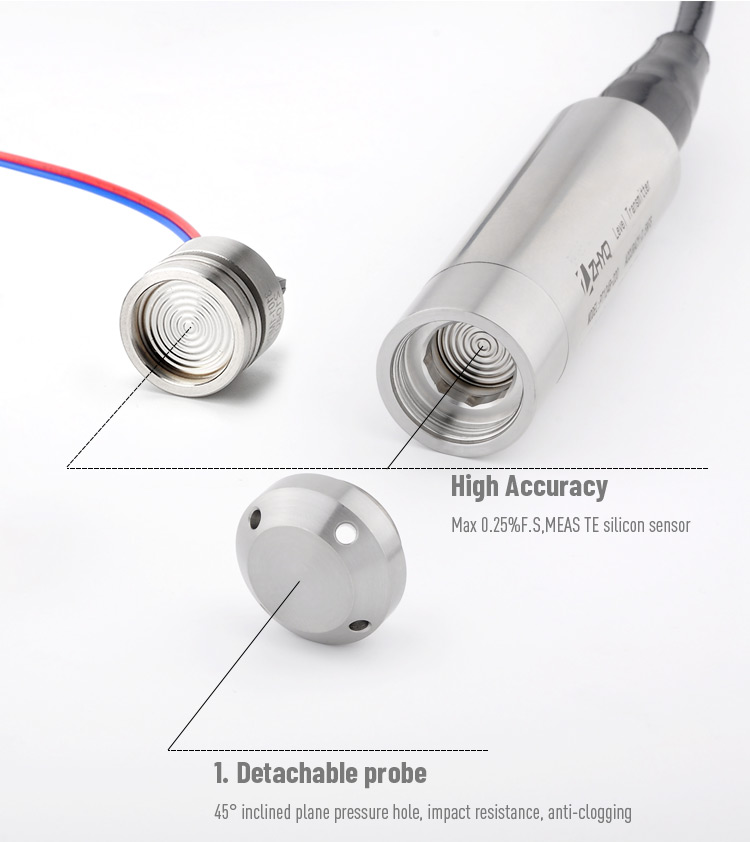

  • Easy to install, immersion type measurement
  • Various signal output for industrial standard
  • High accuracy, good stability
  • It can be used for liquid measuring for petroleum, metallurgy, hydraulic, city water supply, sewage treatment, hygrometry and etc.
Pressure range 0~1mH2O~50mH2O
Over load 150%FS
Output 4-20mA, 0-5V, 0.5-4.5V
Power supply 12~36VDC
Combine error ±0.5% FSO (Including Linearity, Repeatability & Hysteresis )
Response time <10ms
Repeatability ≤ +/- 0.2%FSO
Long term stability ≤ +/-0.2%FS/year
Pressure connection screw thread, throw-in type
Operating temperature -20℃ ~ 85℃
Temperature compensation -10℃ ~ 60℃

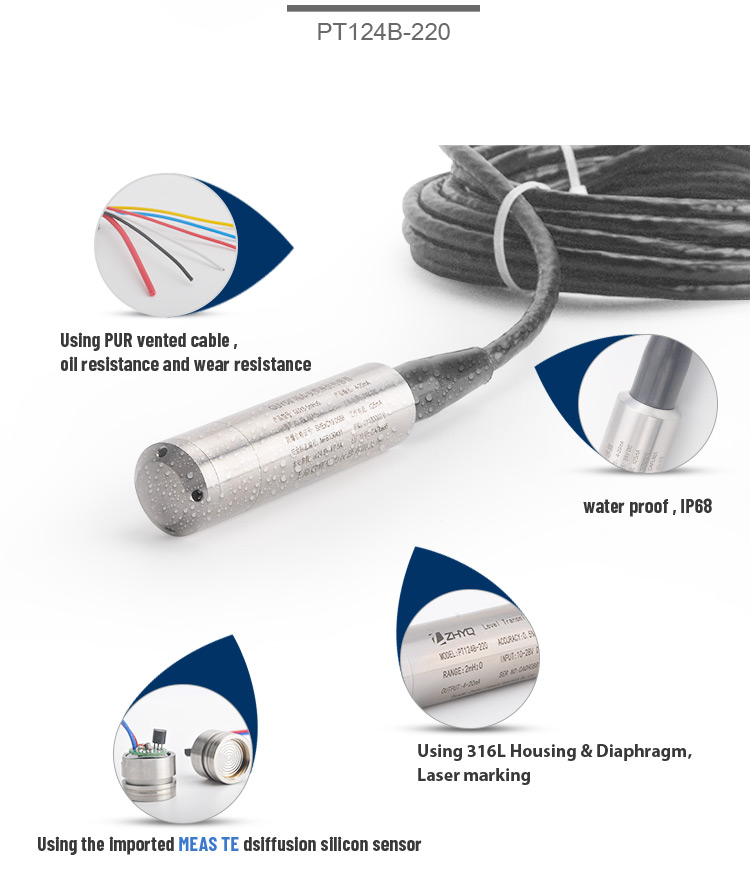

Protection grade IP68
