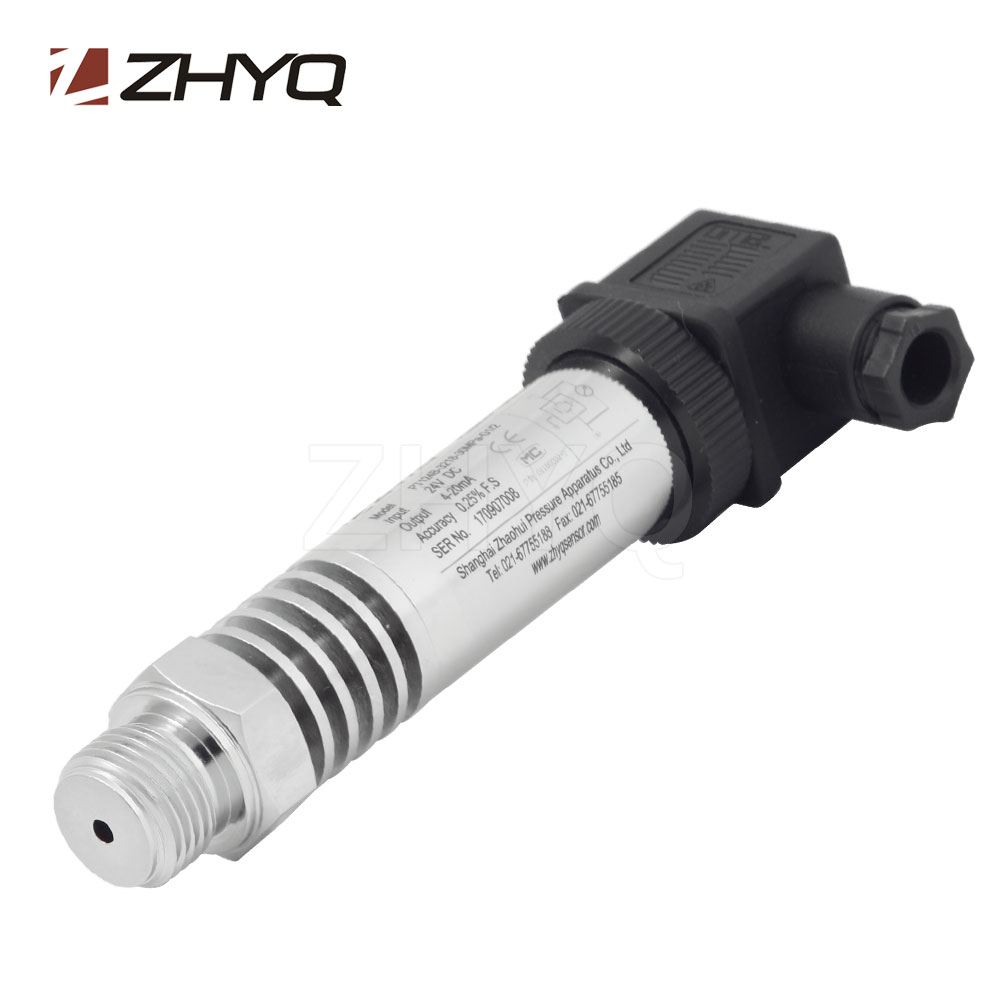

Moderate temperature industrial pressure transmitter

Model:PT124B-218

Description:

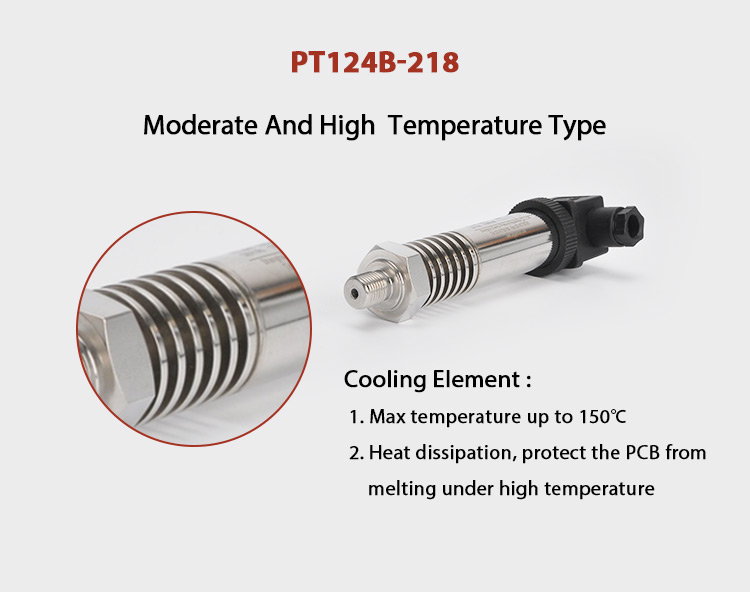

PT124B-218 series pressure transmitter adopts imported thermo stability sensing element, make the transmitter work stability under 150℃. And it welds with cool lasing technology, there are cooling ribs between the pressure sensor chips and amplifier electrical circuit, it avoids the heat conduction efficiently.

Send inquiry Download PDF

Tags: water pressure sensor, Moderate and high temperature industrial pressure sensor, Moderate and high temperature pressure transmitter 4-20mA

  • Various industrial standard signal output
  • Various electrical connector available
  • Certain stock for shortening delivery time
  • High accuracy, free of calibration
  • compact dimension design
  • This item is suitable for measuring and controlling the pressure of moderate and high temperature (up to 150℃) fluid and steam.
Pressure range -1~0~1bar; 0~1~2000bar
Over load 150%FS
Burst pressure 300%FS
Output 4-20mA, 1-5V/0-5V, 0-10V
Power supply 12~36VDC
Response time <5ms
Combine error 0.25%FS; 0.5% FSO (Including Linearity, Repeatability & Hysteresis)
Repeatability ≤ +/- 0.2%FSO
Long term stability ≤ +/-0.2%FS/year

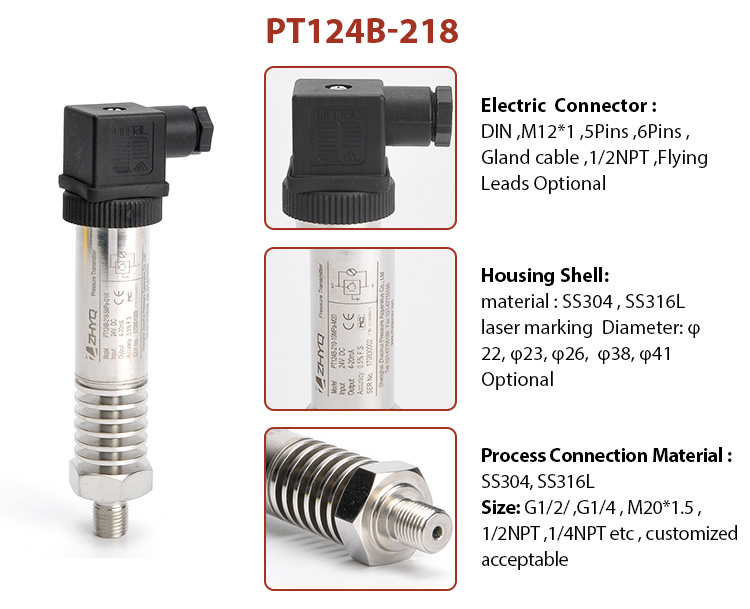

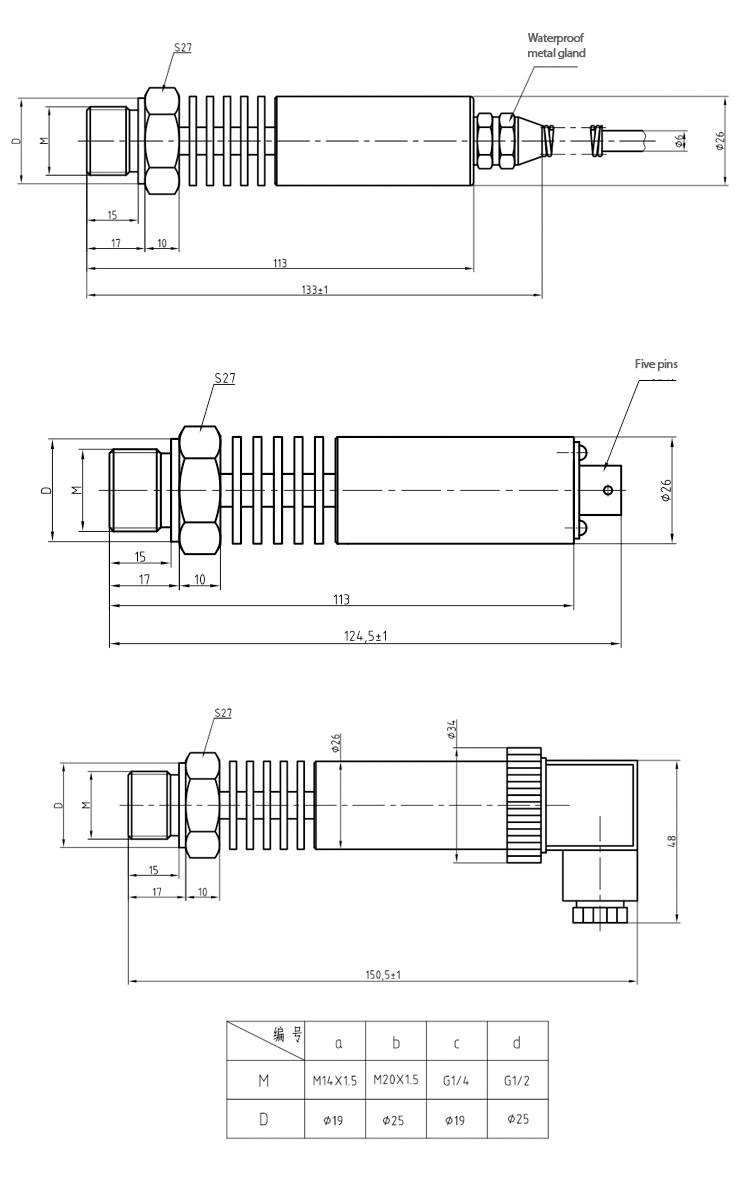

Pressure connection M20×1.5, G1/2,G1/4, 1/2NPT ( customer tailor )
Operating temperature -20 ℃ ~ 150 ℃
Temperature compensation 0℃ ~ 60℃
Electrical connector Bendix connector,Hirschman DIN4365 and Gland lead
