BP1010-1
BP1010-1

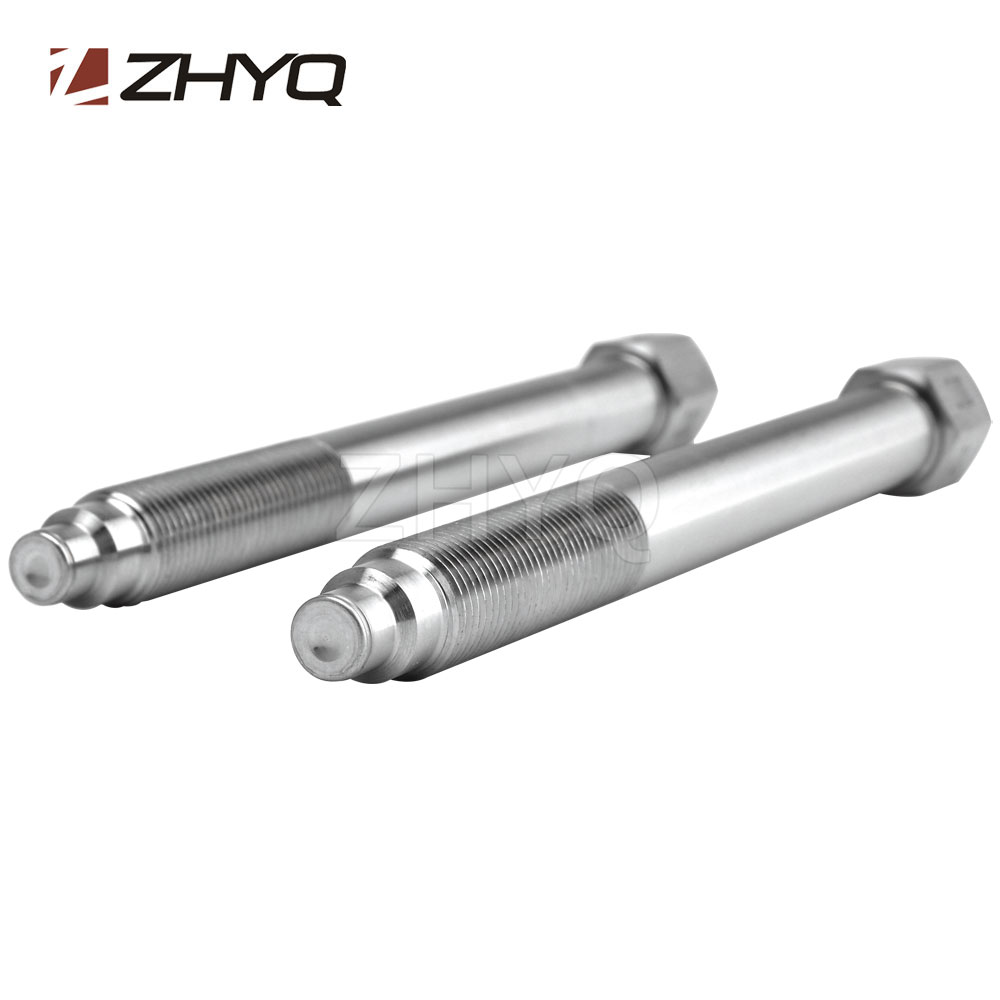

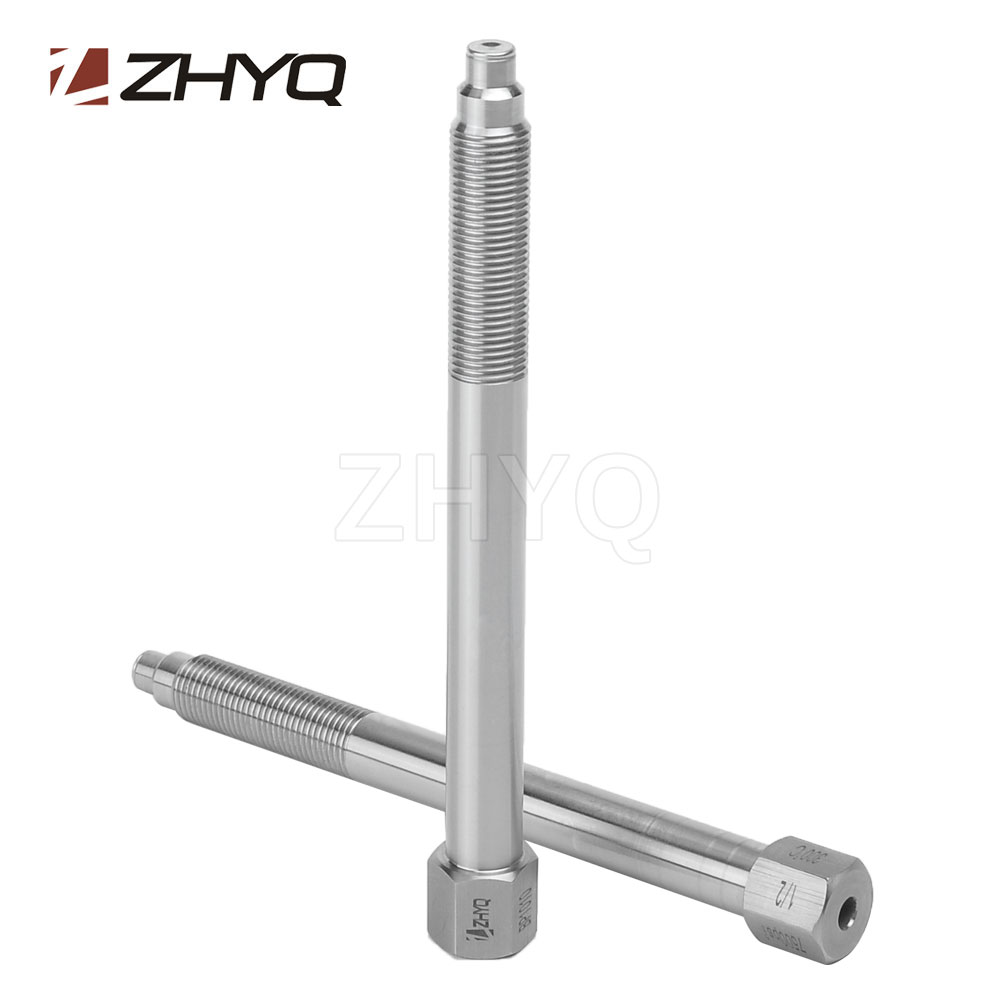

Rupture disk for plastic extruder machine

Model:BP1010

Description:

The rupture disks designed for extrusion applications of reliable emergency relief of excess pressure since they instantaneously rupture at a specific predetermined pressure range.

Send inquiry Download PDF

Tags: Rupture disk,Burst plug

  • Standard burst pressure range
  • Simple, intrinsically safe design
  • Protection over wide pressure range
  • Accuracy of +/-5%
  • Up to 400℃ (750℉) melt temperatures
  • Chemical Fribre equipment
  • Plastic & rubber process machine
  • Other melt fluid process control
Ranges 3500psi, 5500psi, 7500psi, 9500psi
Combined error ±5%FS
Diaphragm temperature 400℃(750℉) Maximum
Stem length 1.81″, 3″,6″, 9″
Process connection 1/2″-20UNF, M18×1.5, G3/4 or customized
