LCD melt pressure transmitter
LCD melt pressure transmitter

LCD local display flexible melt pressure transmitter

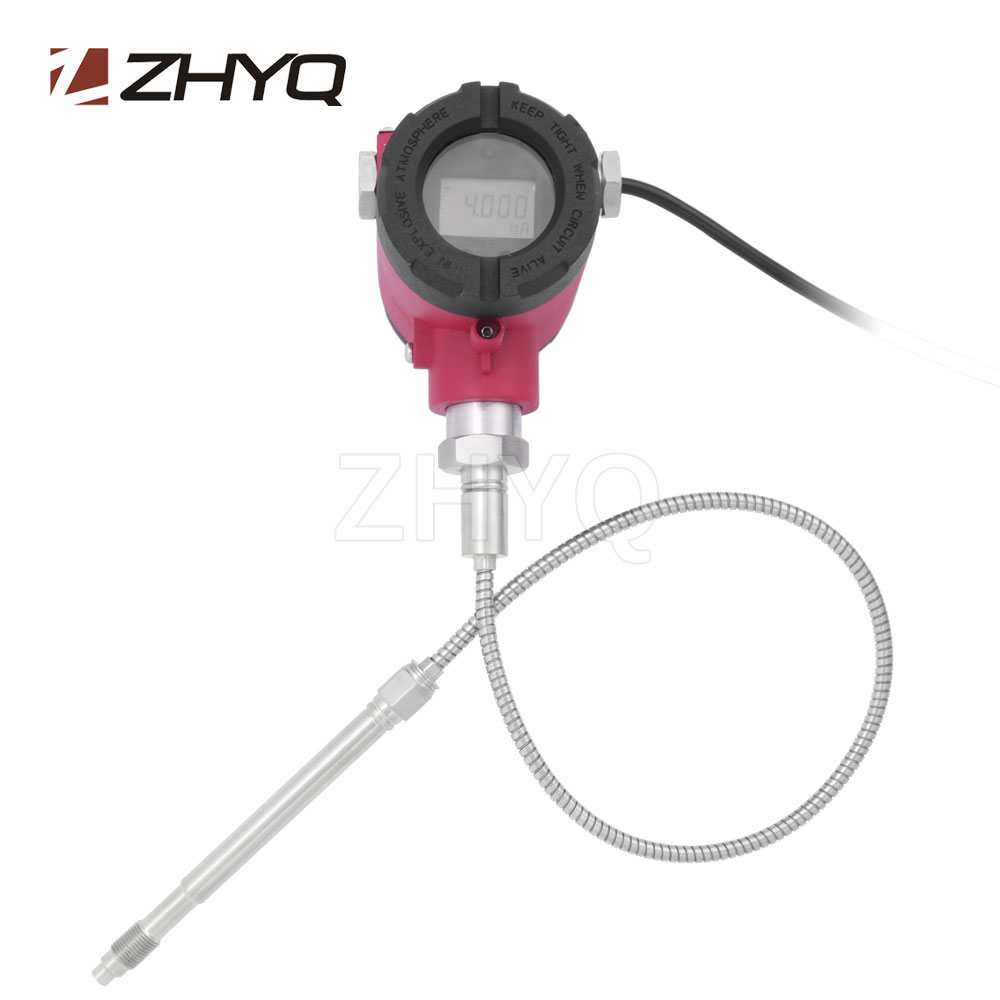

Model:PT124B-129/129T

Description:

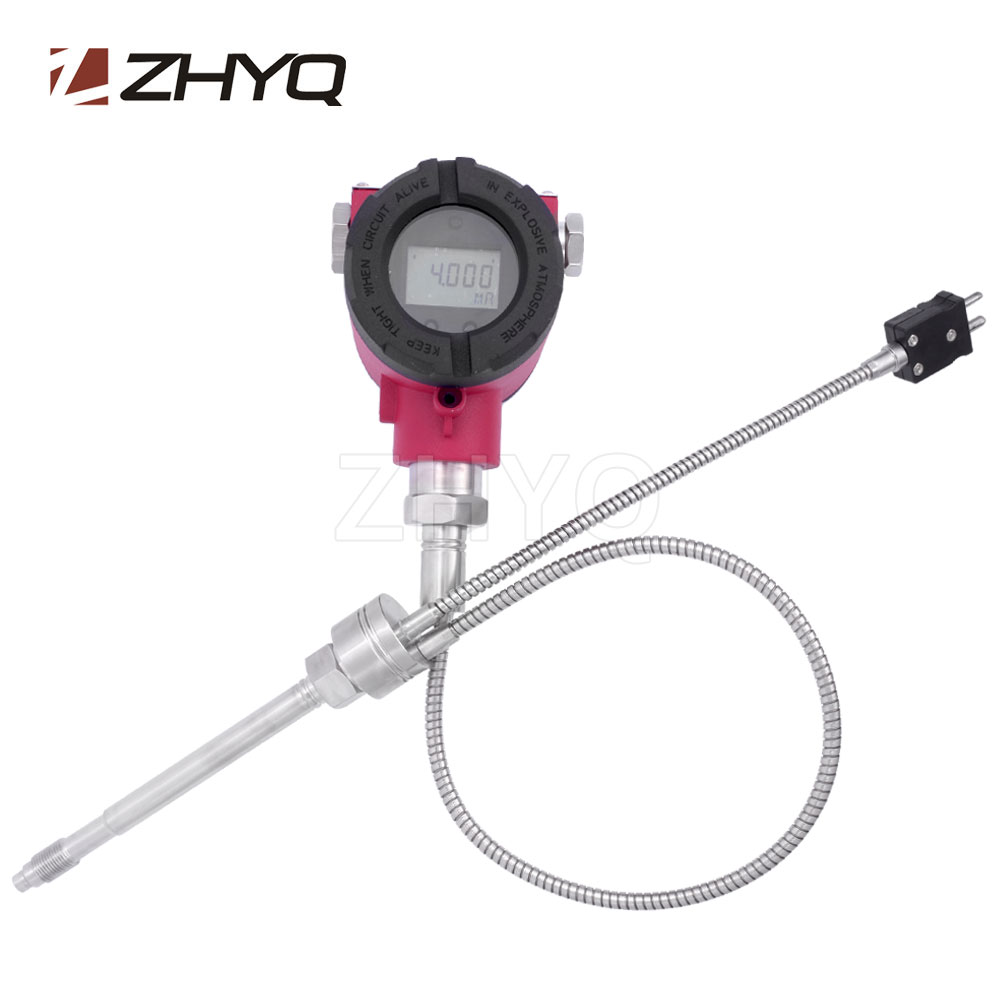

PT124B-129/129T Series smart melt pressure transmitter, designed with flexible stem construction. It adopts LCD display indicator, built in programmable amplifier electrical circuit, output 2-wire 4-20mA signal, and HART protocol optional, to realize remote control. And PT124B-129T adds thermocouple, it can measure and control the pressure and temperature at one point.

Send inquiry Download PDF
  • High-standard quality
  • Explosion-proof housing ,
  • With LED Local display
  • Simple installation
  • Internal 80% calibration
  • Excellent stability and repeatable
  • It has the wide application in plastic extrusion, chemical & fiber industry, polyester industry, etc.
Pressure range 0-2MPa…0-150MPa (0-300psi…0-20000psi)
Over Pressure 1.5 X FSO
Combined Error ± 0. 5% FSO (Including Linearity, Repeatability & Hysteresis)
Output 4-20mA (HART)
Input Voltage 24VDC
Repeatability +/- 0.2%FSO
Internal Shunt Calibration (R-Cal) 80% FSO +/- 1%
Insulation Resistance 200 megohms @ 100 Vdc
Max Diaphragm Temperature 350 ℃
Mounting Torque 500 inch/lbs. max.
Standard Wetted Parts Diaphragm coated 15-5 PH SST
Electrical connector Terminal cable
Process connector 1/2 ″ -20UNF, M14×1.5, M18×1.5 Optional
