PT124Y-614- Flexible stem melt pressure gauge
PT124Y-614- Flexible stem melt pressure gauge

Flexible stem melt pressure gauge

Model:PT124Y-614

Description:

The flexible stem melt pressure gauge, adopts the original packaging machine core, and designed with all stainless steel structure, with dial plate’s step-up and stem-down versions.

Send inquiry Download PDF

Tags: melt pressure gauge,Flexible stem melt pressure gauge,Flexible stem diaphragm pressure gauge

  • Direct, local reading
  • Step-up and stem-down version
  • Customer defined pressure gauge
  • Install easily, high reliability

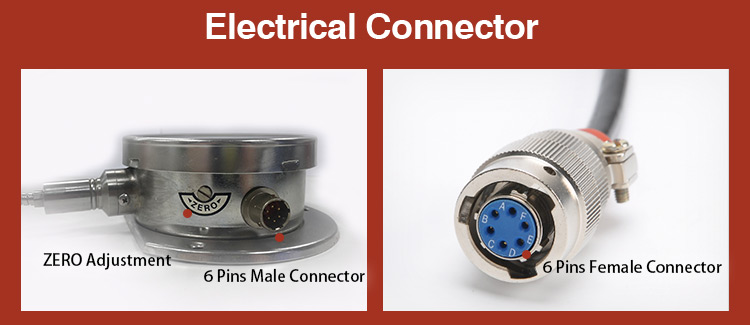

  • Zero adjustment
  • Chemical fiber and filature
  • Rubber & plastic machinery
  • The equipment of high temperature steam

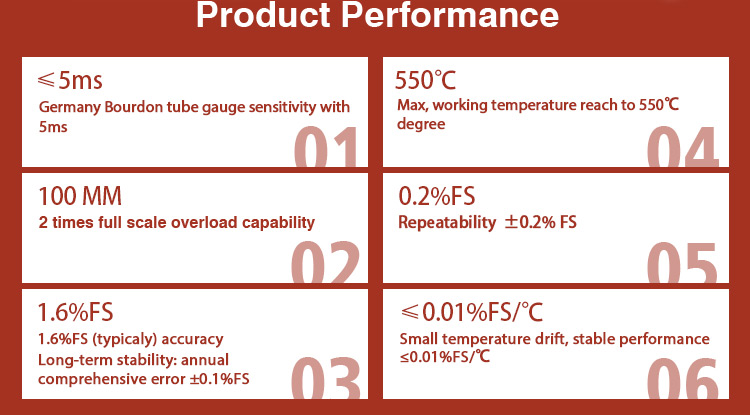

Range 0~16MPa~150MPa
Accuracy ±1.6%FS;
Configuration Bourdon tube
Over Pressure 1.5×FS

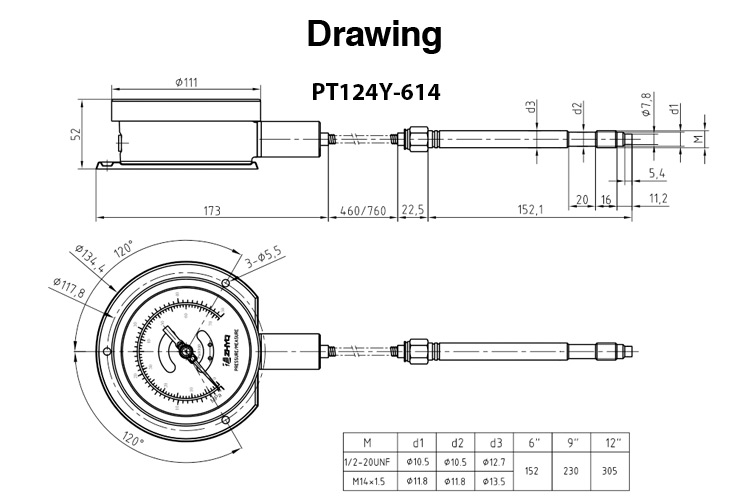

Dial Diameter 100mm
Flexible Length 0.5…5m

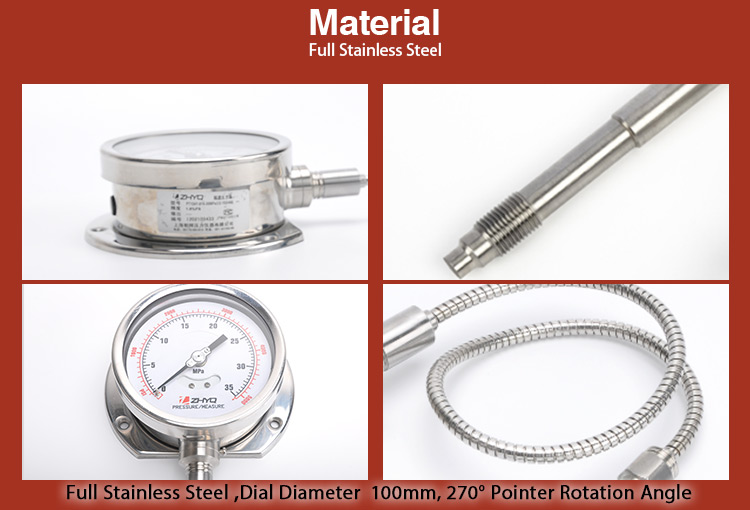

Case material Stainless steel with safety glass

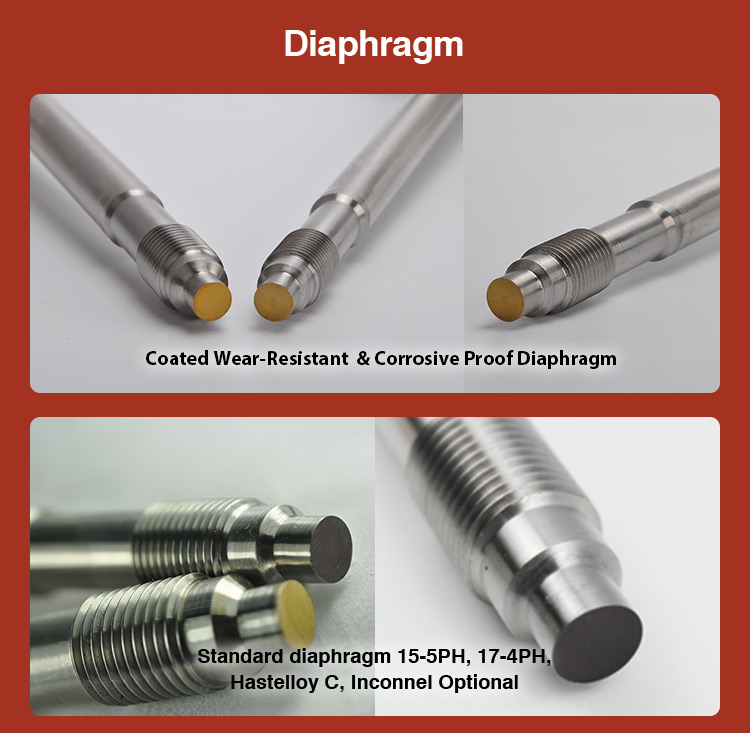

Max Diaphragm Temp. 350℃
Process Connector 1/2″-20UNF, M14×1.5, M18×1.5(Optional)
