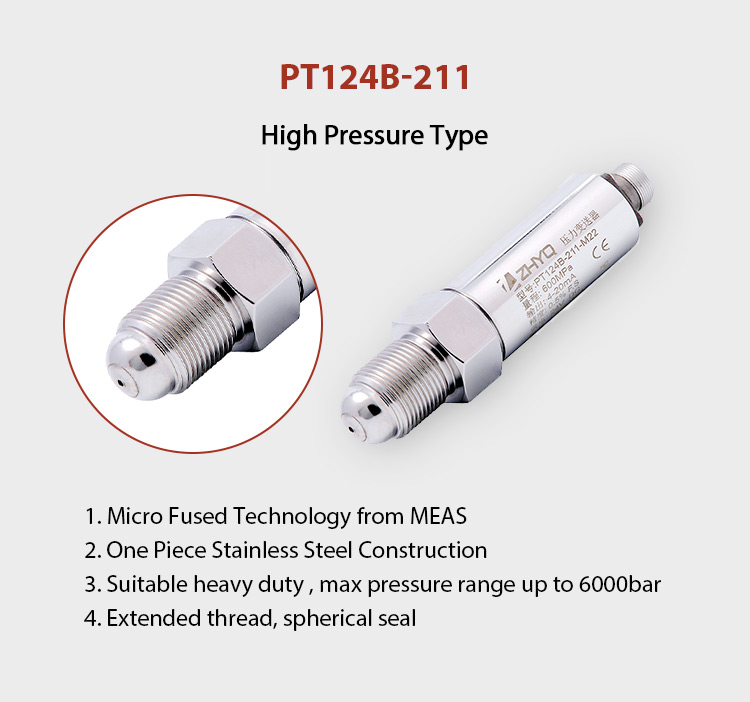

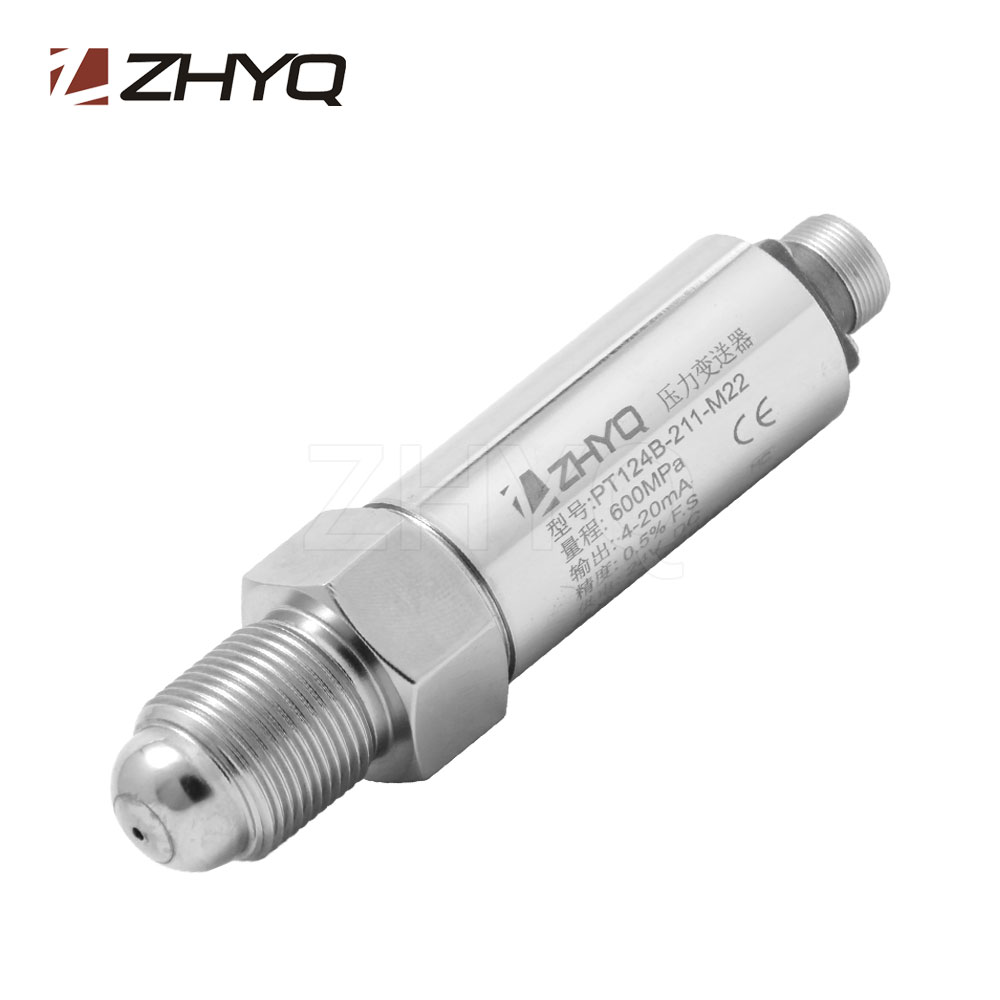

Micro fused pressure transmitter
Model:PT124B-211
Description:

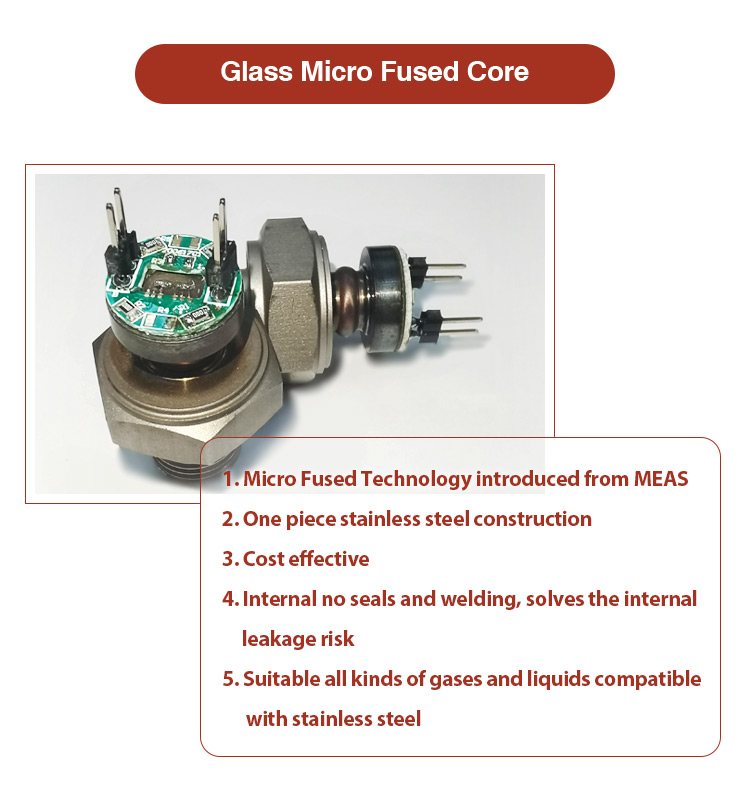

The PT124B/G-211 pressure transducer adopt micro fused Technology which introduced from MEAS (USA), it’s a new pressure sensor technology for high volume, commercial and industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly. The transducer pressure cavity is machined from a solid piece of stainless steel. It’s a leak-proof, all metal sealed system. No O-rings, welds or organics exposed to the pressure media. The durability is excellent corrosive fluids.
Send inquiry Download PDF
- Pressure range up to 6000bar
- Better than 0.5% combined error
- mV or Amplified or Voltage Outputs
- Wide Operating Temperature Range
- Pumps and Compressors
- Hydraulic/Pneumatic Systems
- Automotive Test Systems
- Energy and Water Management
- Agriculture – Sprayers and Dusters
- Refrigeration – Freon and Ammonia Based
- General Pressure Measurements
| Range: | 0~100bar ~6000bar |
| Accuracy: | 0.5%FS |
| Nonlinearity: | Full range x 0.2% |
| Reliability: | Full range x 0.05% |
| Output: | 4-20mA , 0-5V , 0-10V; 0.5-4.5V; 10-30mV (PT124G-211) |
| Input voltage: | 12-36VDC (24VDCTypical); 5VDC |
| Operating temperature: | -20~80℃ |
| Compensated temperature: | 0~65℃ |
| Overload pressure: | 150%FS |
| Burst pressure | 300%FS |
| Wetted Parts: | stainless steel |

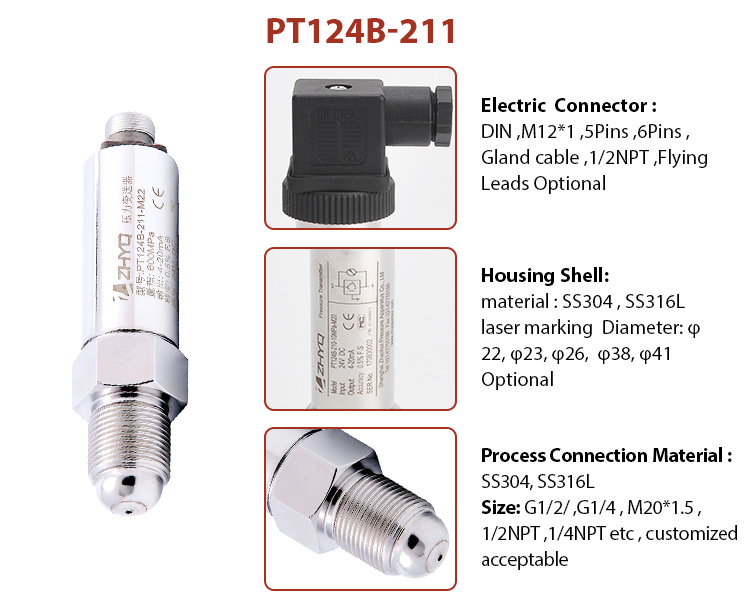

| Electric connector: | Hirschman（DIN）, M12,4pin, 5pin connector, grand cable and optional |
| Process connector: | G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5 (Customer design) |
| Housing Shell Diameter: | ￠22mm,￠23mm , ￠26mm , ￠38mm optional |
