WR-207
WR-207

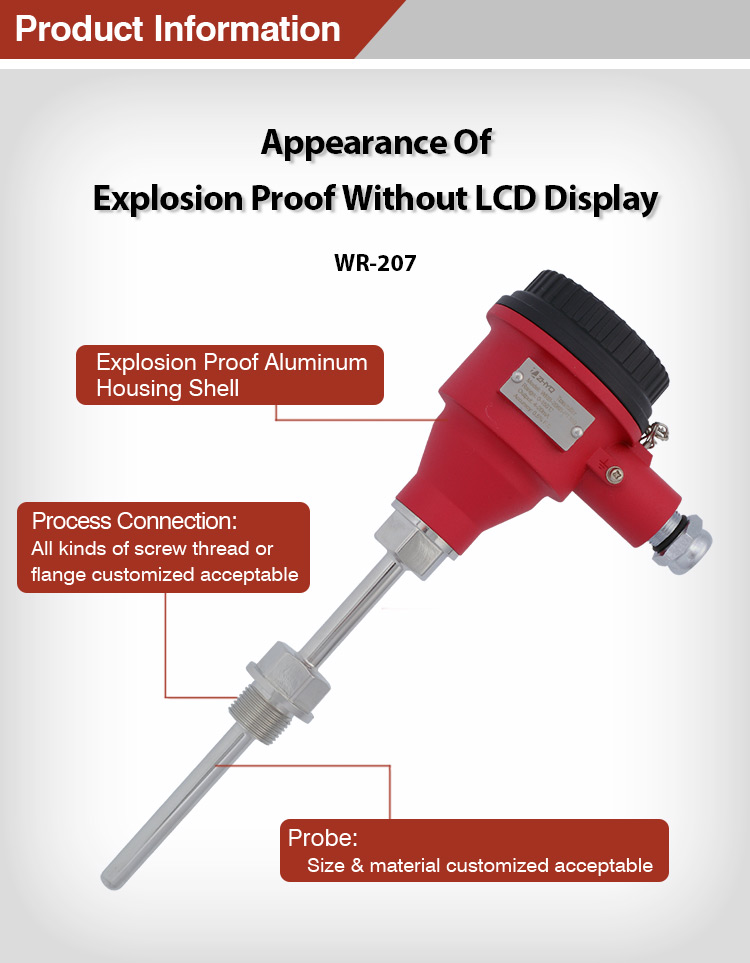

Intelligent and explosion proof temperature transmitter

Model:WR-207

Description:

WR-207 is integrated temperature transmitter uses PT100, N, K, J and other temperature sensing components, through the circuit processing module to convert the resistance signal into a standard 4-20mA current signal, widely used in chemical automatic control systems, and transmitted to Indicators, recorders and regulators for monitoring, regulating and controlling industrial systems. It not only saves expensive compensation wires cost , but also improves the anti-interference ability of signals during long-distance transmission. The transmitter is high precision, low power consumption, wide temperature range, stable and reliable operation, and is resistant to shock and moisture due to the silicone rubber sealing structure, which is suitable for use in harsh field environments.

Send inquiry Download PDF

Tags: Temperature sensor , explosion proof temperature transmitter , fireproof temperature transmitter

Easy assembly and easy replacement

Good shakeproof and high precision

Wide measuring range (-200 ° C ~ 1600 ° C)

Fast thermal response time and long service life

High mechanical strength and good pressure resistance

Suitable Explosion proof area

In chemical plant, there are various flammable and explosive chemical

gases around the production site. It’s unsafe and easy to cause

environmental gas explosion if use common thermocouples,

it needs to use flameproof thermocouple as temperature

measurement instrument in these cases.
Material Type Temperature Range Error/ t
Ni/Ch-Ni/Si K 800-1600℃ ±2.5 or±0.75%t
Ni/Ch-Cu E 600-800℃ ±2.5 or ±0.75%t
Cu T 350-400℃ ±2.5 or ±0.75%t
Fe-Cu J 600-700℃ ±2.5 or ±0.75%t
Pt PT100 -200-600℃ ±1 or ±0.75%t
Cu CU50 -50~100℃ ±2.5 or ±0.75%t
Temperature Sensing element: N,R,K,E,J,T,PT100,CU50
Temperature range: -200℃~0℃~1600℃
Output: mV/V (for WR-207)

4-20mA, HART optional (for WRB-207)

Local display: none
Power supply: 10VDC (mV/V) for WR-207

24VDC (4-20mA /HART) for WRB-207

Accuracy class: Class A: +/- (0.15+0.2%t); Class B: +/- (0.3+0.5%t)

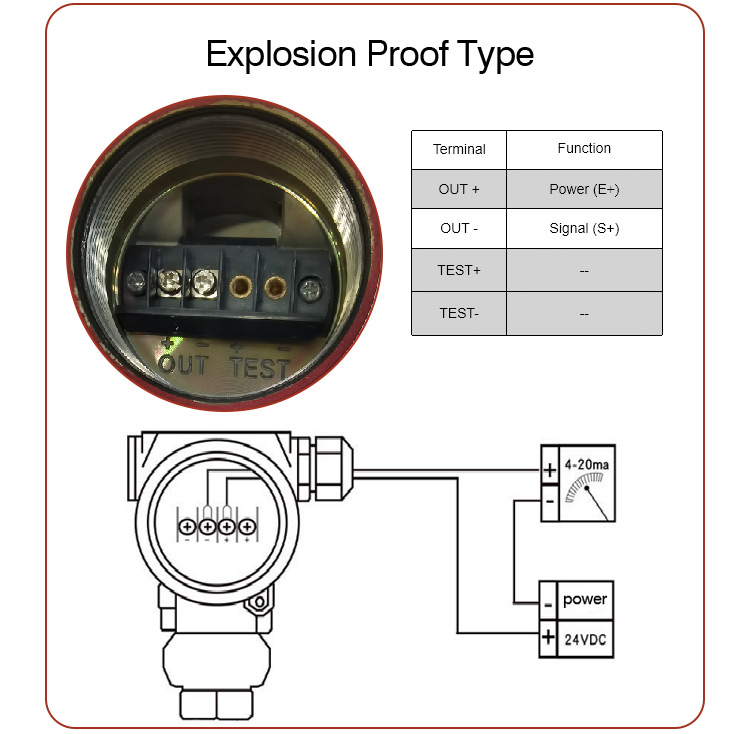

Electrical connector: waterproof, explosion-proof
Process connection: M20*1.5, G1/2 , G1/4 ,flange, customized

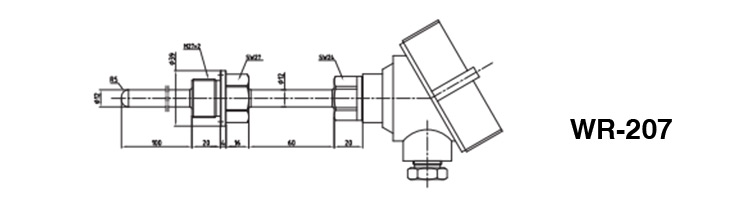

Probe tube diameter (D): 6mm ,8mm ,12mm ,customized
Probe tube length (L): 8mm<L<800mm

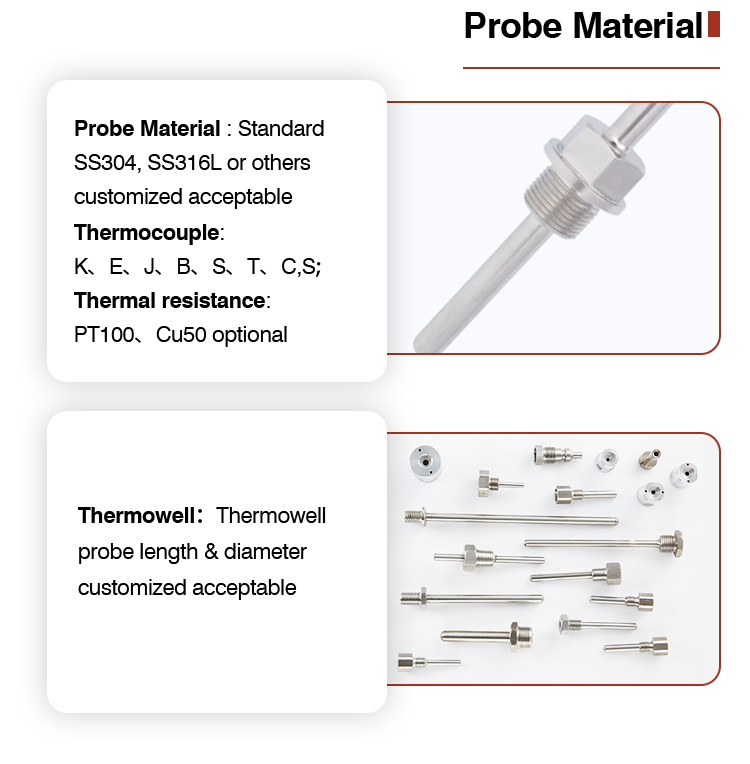

Insert tube material SS304 ,SS316L optional
