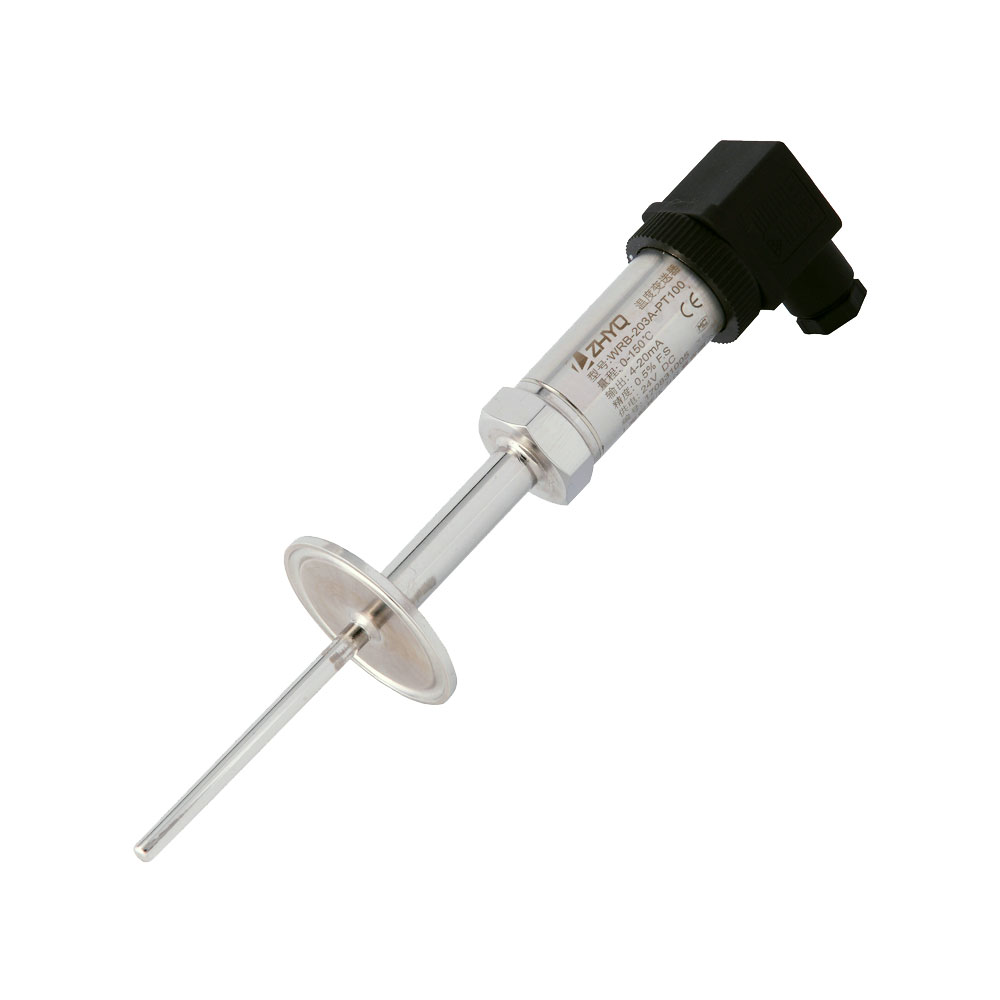

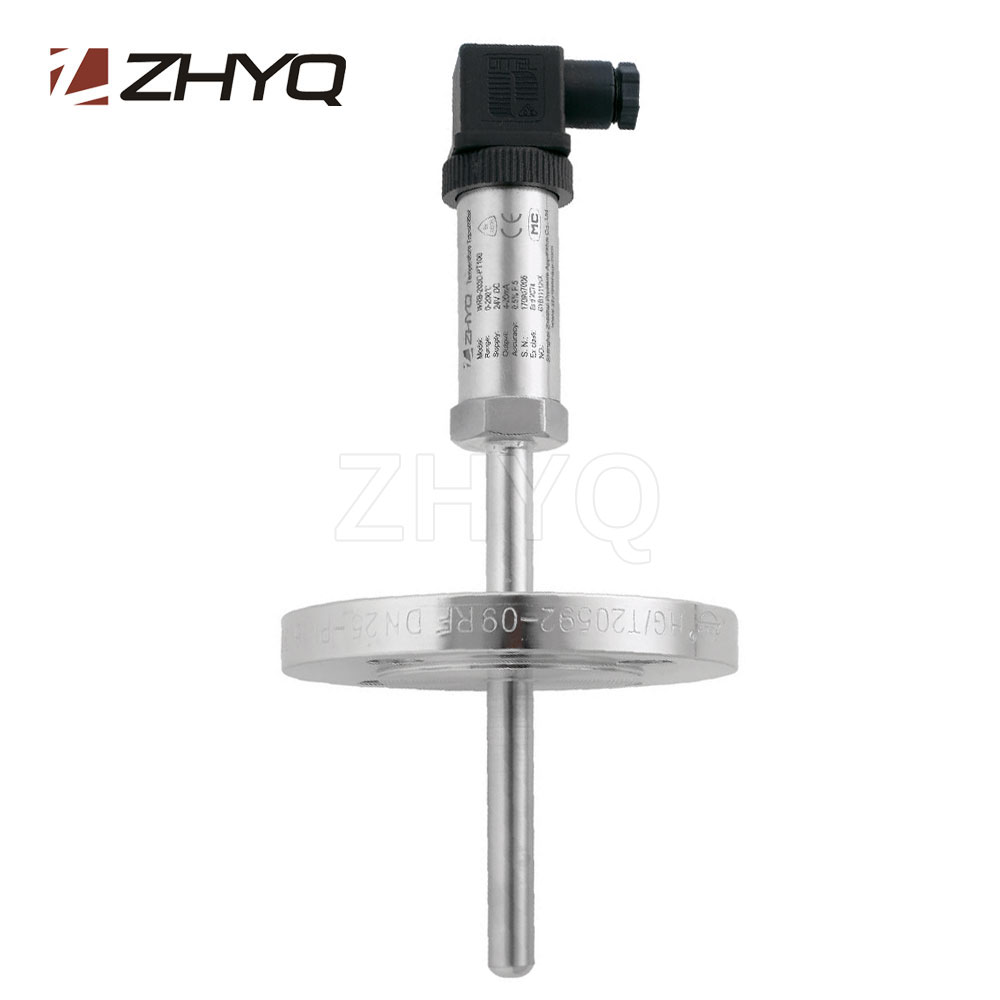

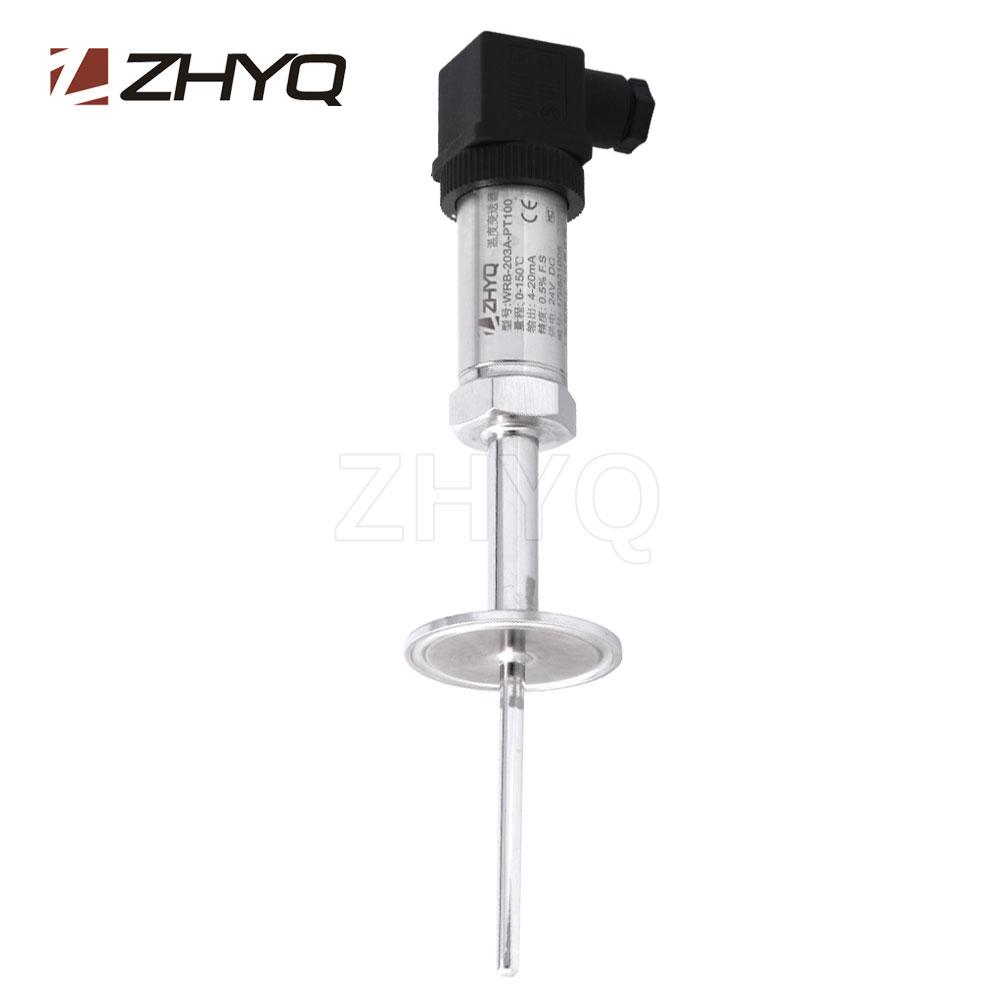

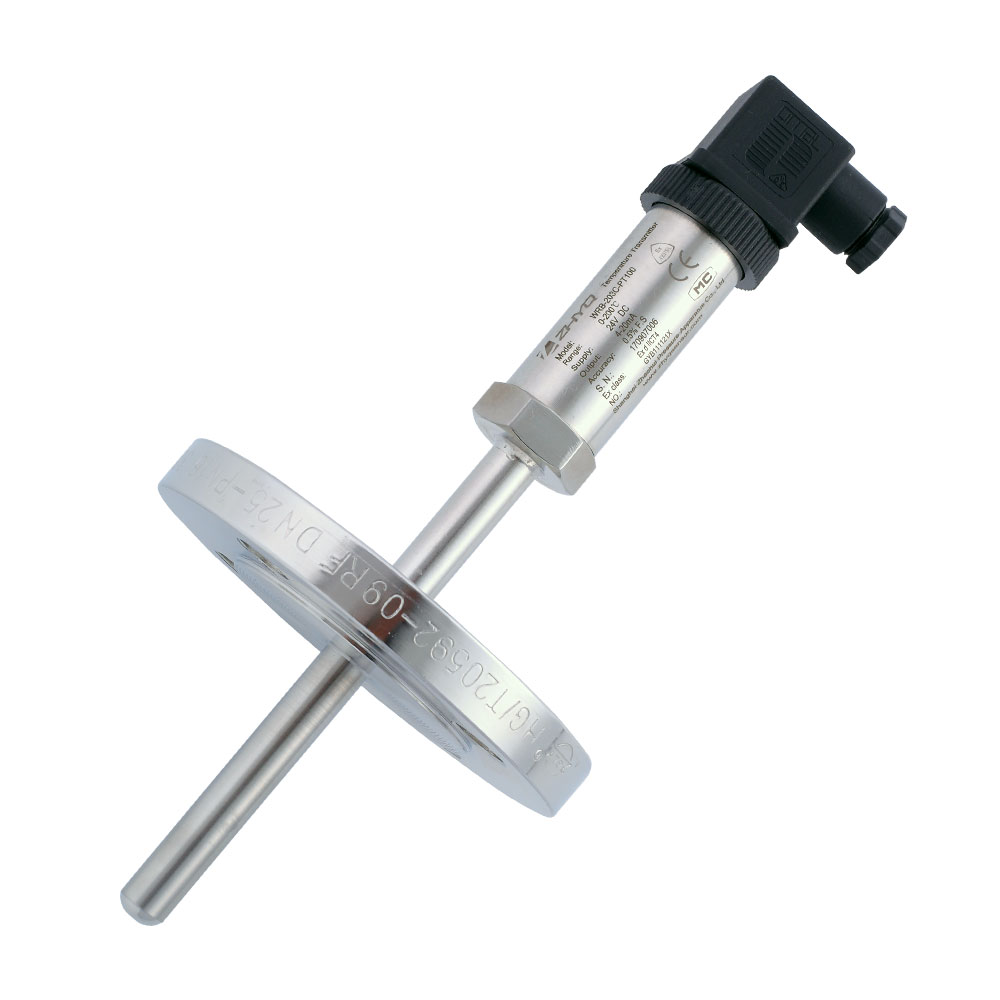

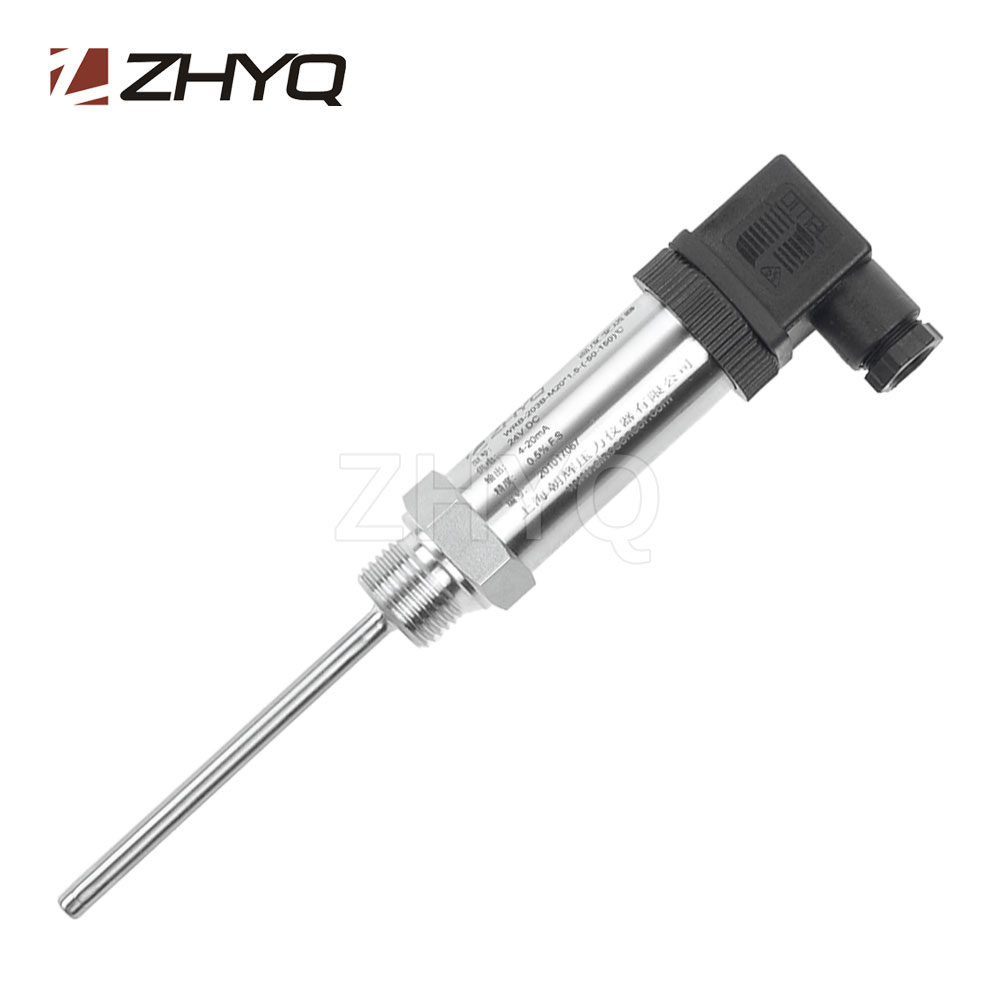

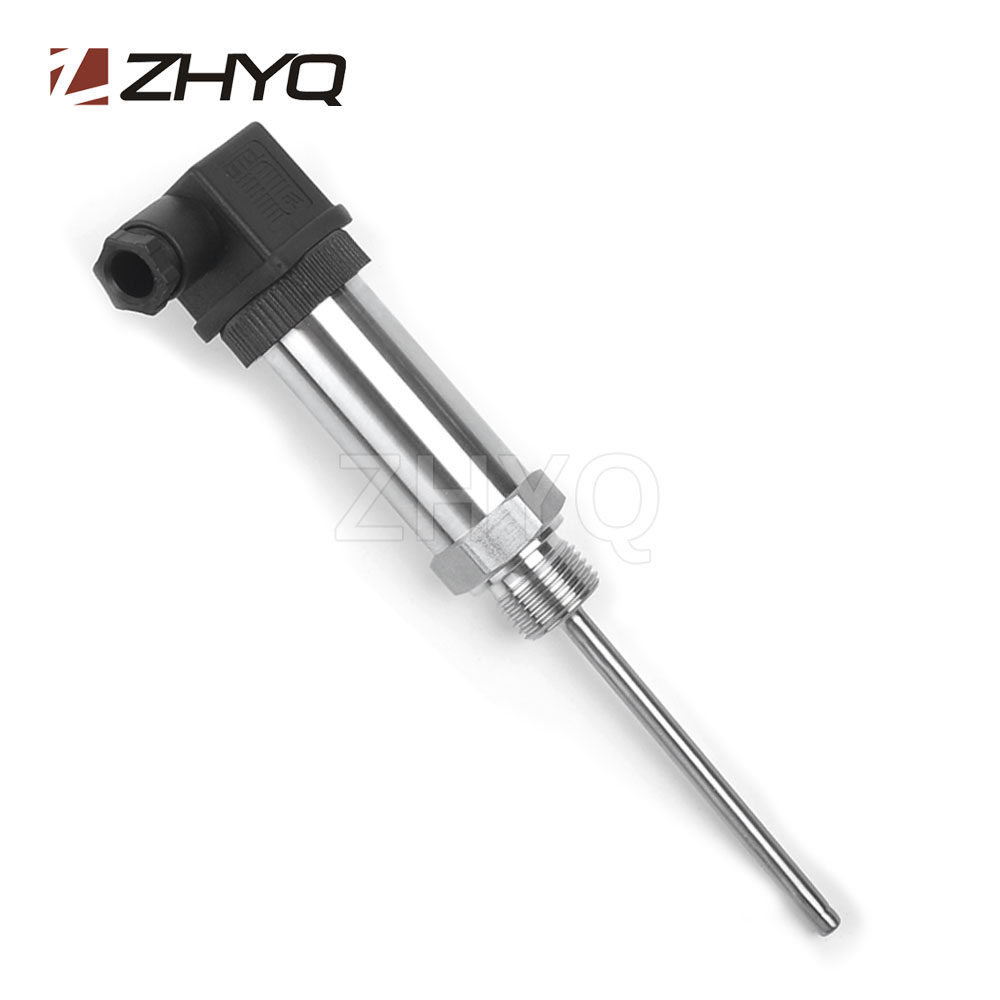

4-20mA PT100 temperature transmitter
Model:WR-203
Description:
The RTD temperature transmitter has the advantages of stable performance, high sensitivity, and strong reliability. It can be widely used in automation temperature control system.
Send inquiry Download PDFTags: PT100 temperature transmitter,RTD temperature transmitter,4-20Ma PT100 temperature transmitter
- Widely temperature measurement -50~600℃
- Temperature measurement element as J, K,E, PT100
- 4-20mA signal output optional
- This series product is used to measure the temperature of the surface of liquid, steam, gas and solid under -50 to +300℃. It is suitable for temperature measurement in water supply, hydraulic pressure, cooling, heating system industry and automatic control.
| Temperature range | -50 to +600℃ |

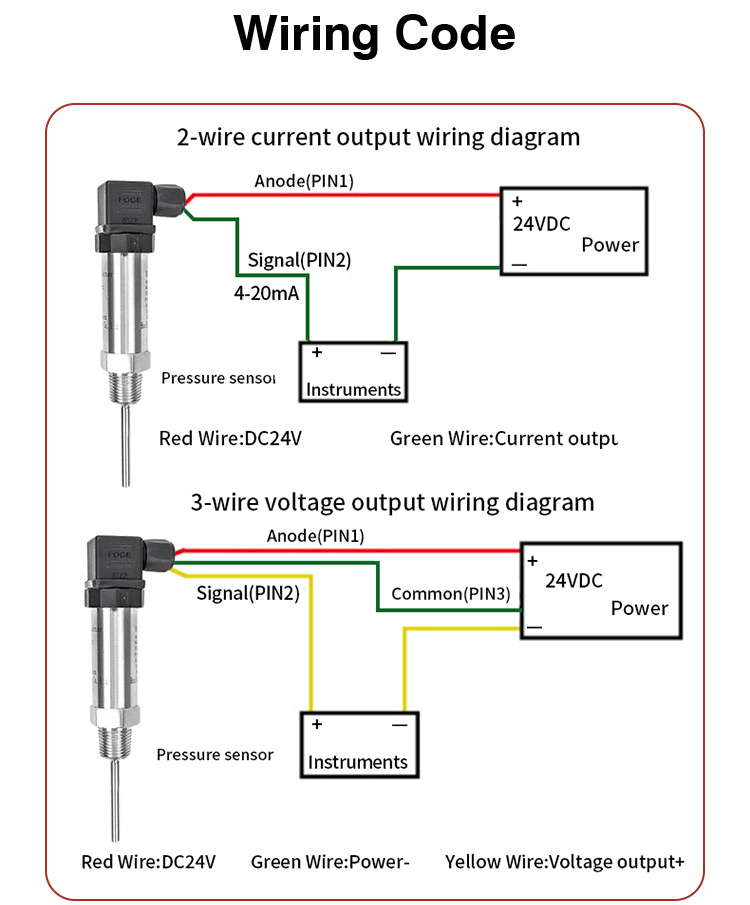

| Output | 4-20mA (2-wire) optional |
| Power supply | 10 ～30VDC |

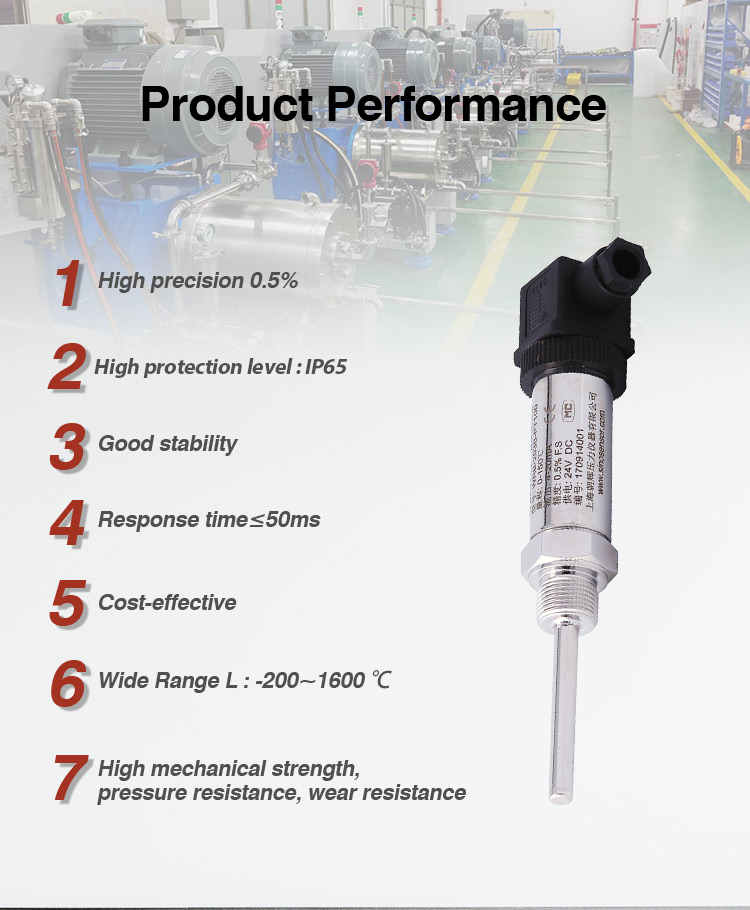

| error | 0.1%FS, 0.3%FS, 0.5%FS |

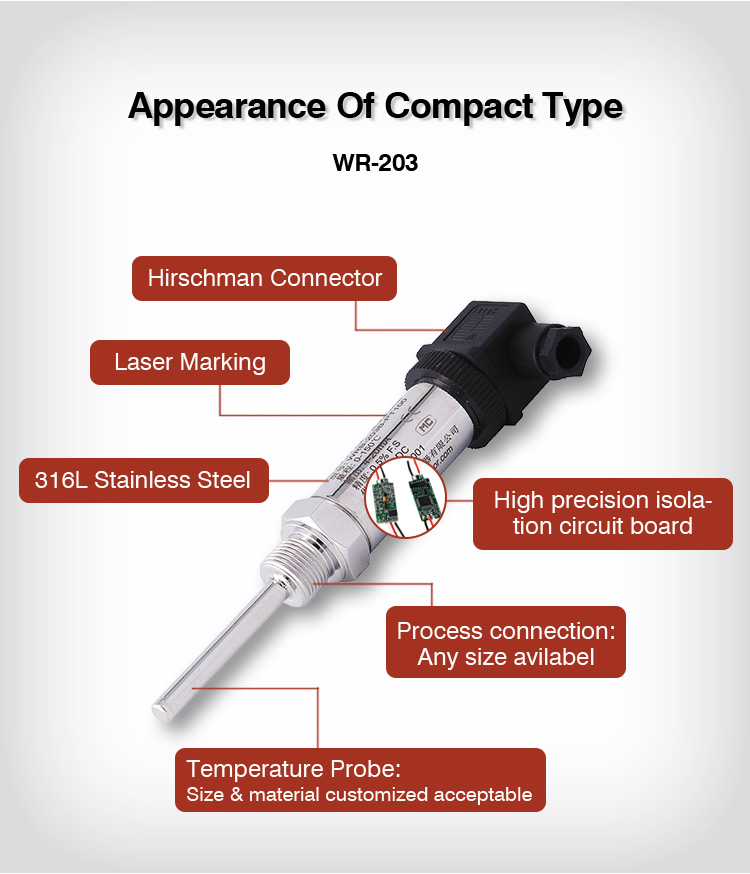

| Media compatibility | 316L stainless steel |

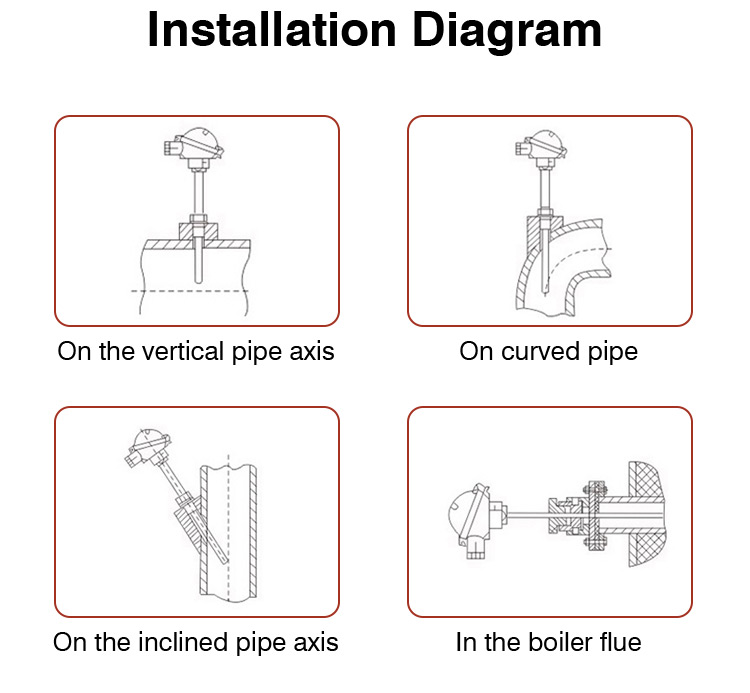

| Pressure connection | Thread |
| Protection tube | Stainless steel, 5mm, 6mm and 8mm dia. |
| Insert length (L) | 30mm <L<500mm |
| Sensing element | PT100 temperature sensor |
| Electrical connector | DIN43650 (IP65) |
