Model:PT124B-212K
Description:

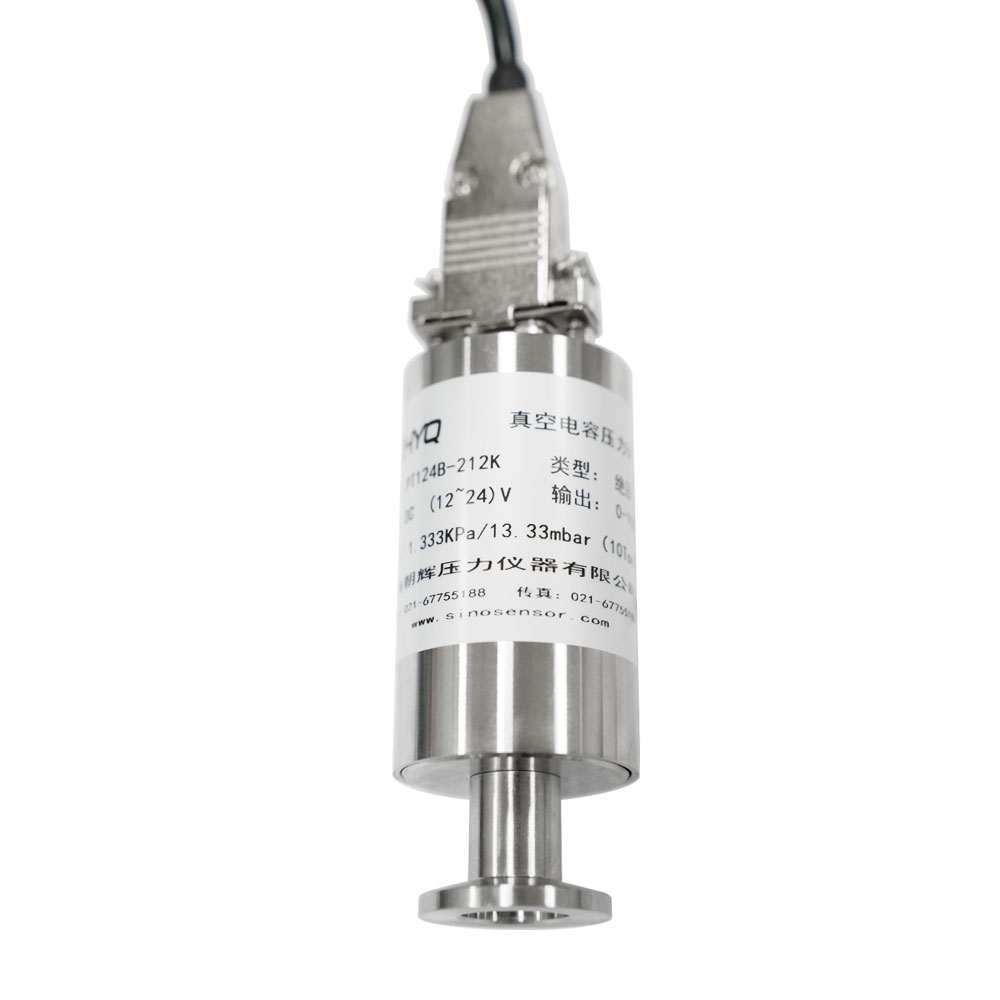

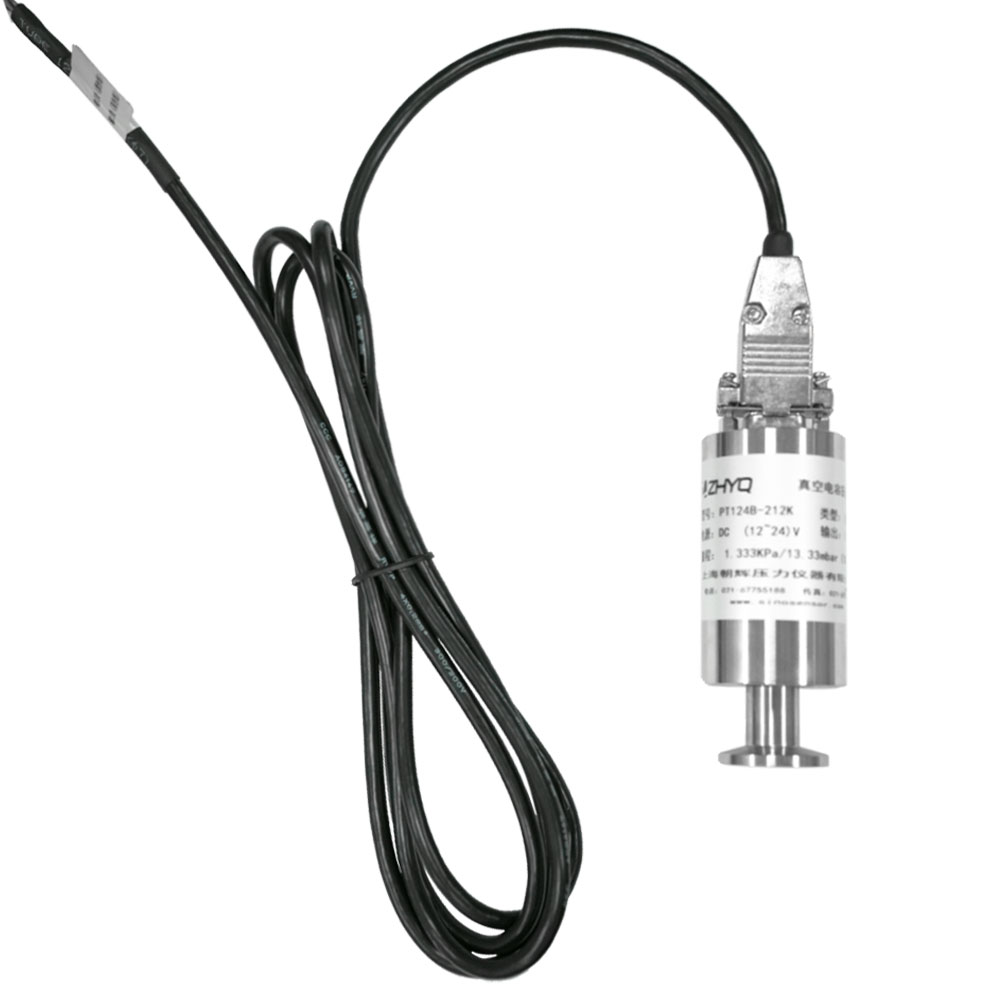

PT124B-212K is an advanced high-performance, non-heated capacitance manometer designed for vacuum pressure measurement applications. It uses advanced manufacturing technology and processes to ensure repeatability in application scenarios, and adopts advanced digital architecture to ensure high stability and reliability.
High overvoltage limit withstand pressure to ensure pressure shock in the event of sudden system failure. It operates at 24V DC, has a standard (0~10)V DC analog output signal, full-scale measurement, and the available range is 1Torr (133Pa) to 10Torr (1.33kPa).
• Industry standard connector
• High accuracy: standard ±0.5%FS, ±0.25%FS (optional)
• Precision diaphragm ensures excellent performance
• Wide operating temperature compensation range
• Low circuit noise and fast response
• Not easily affected by changes in environmental conditions
• Excellent overpressure resistance design
|
Name
|
Vacuum pressure transmitter
|
|
Measuring range
|
1Torr(133Pa) – 10Torr.(1.33kPa)
|
|
Accuracy
|
0.5%F.S;0.25%F.S
|
|
Power supply
|
18~24V DC
|
|
Output signal
|
0~10V DC
|
|
Measuring medium
|
Gas
|
|

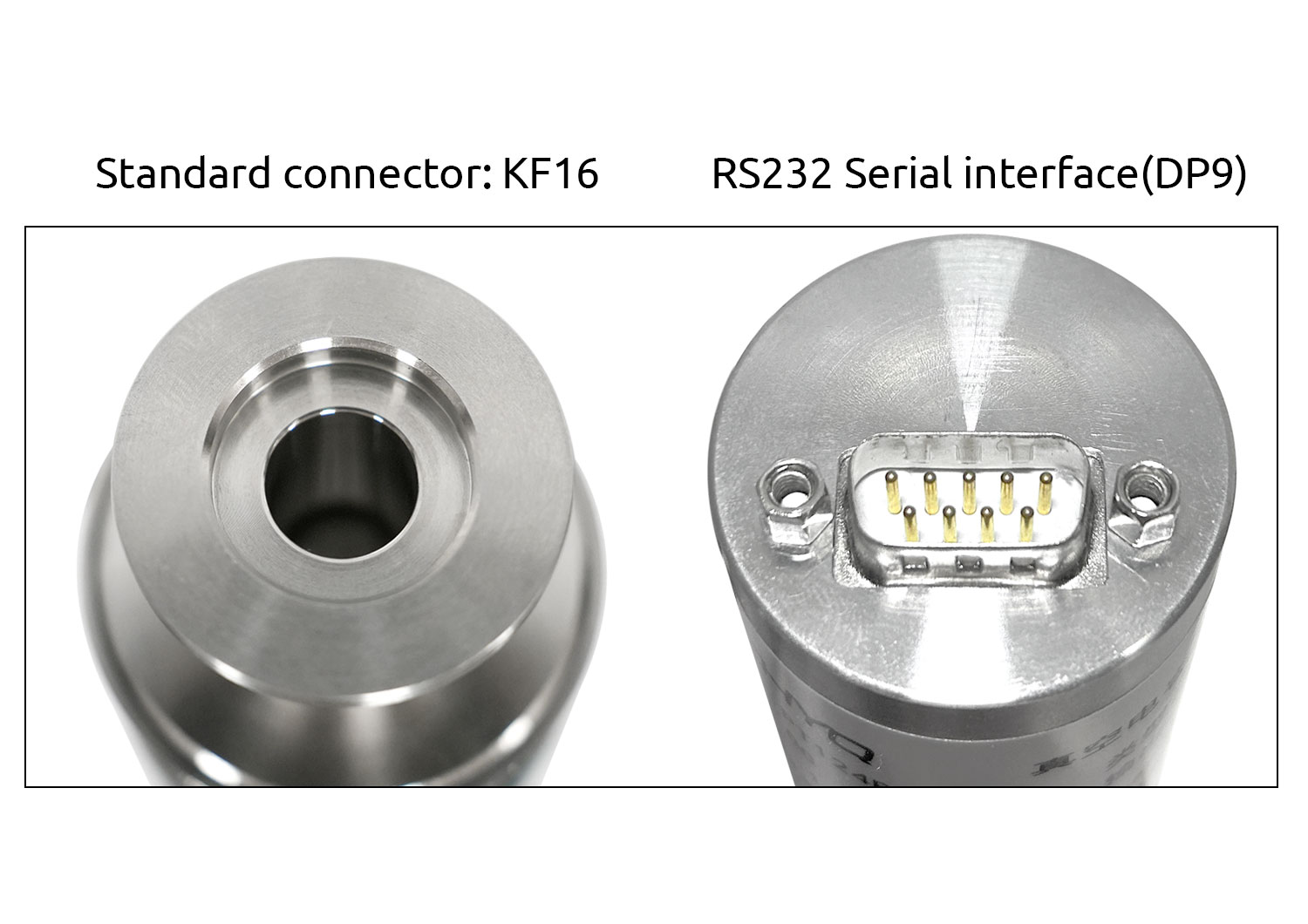

Electrical connector
|
Analog 9PIN
|
|
Process connection
|
KF16
|
|
Power-on warm-up time
|
10min
|
