BP1020-1
BP1020-2
BP1020-1
BP1020-2

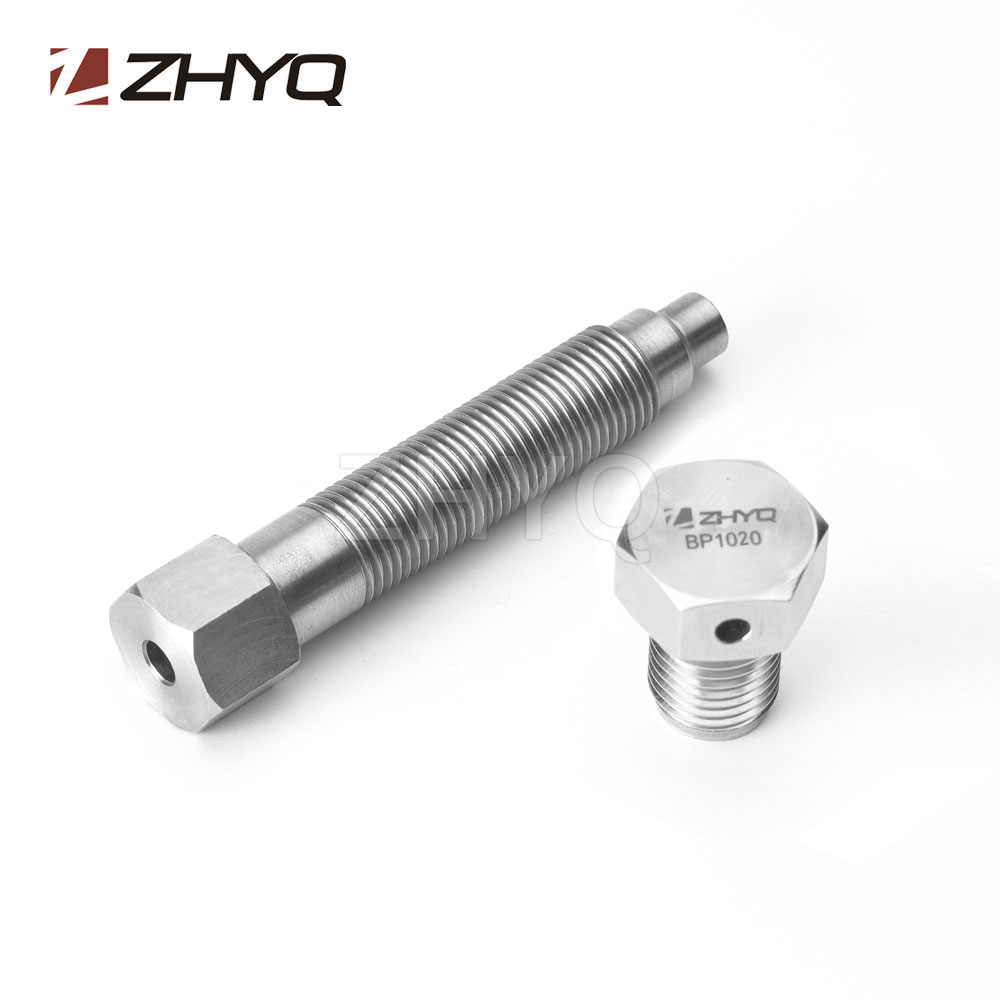

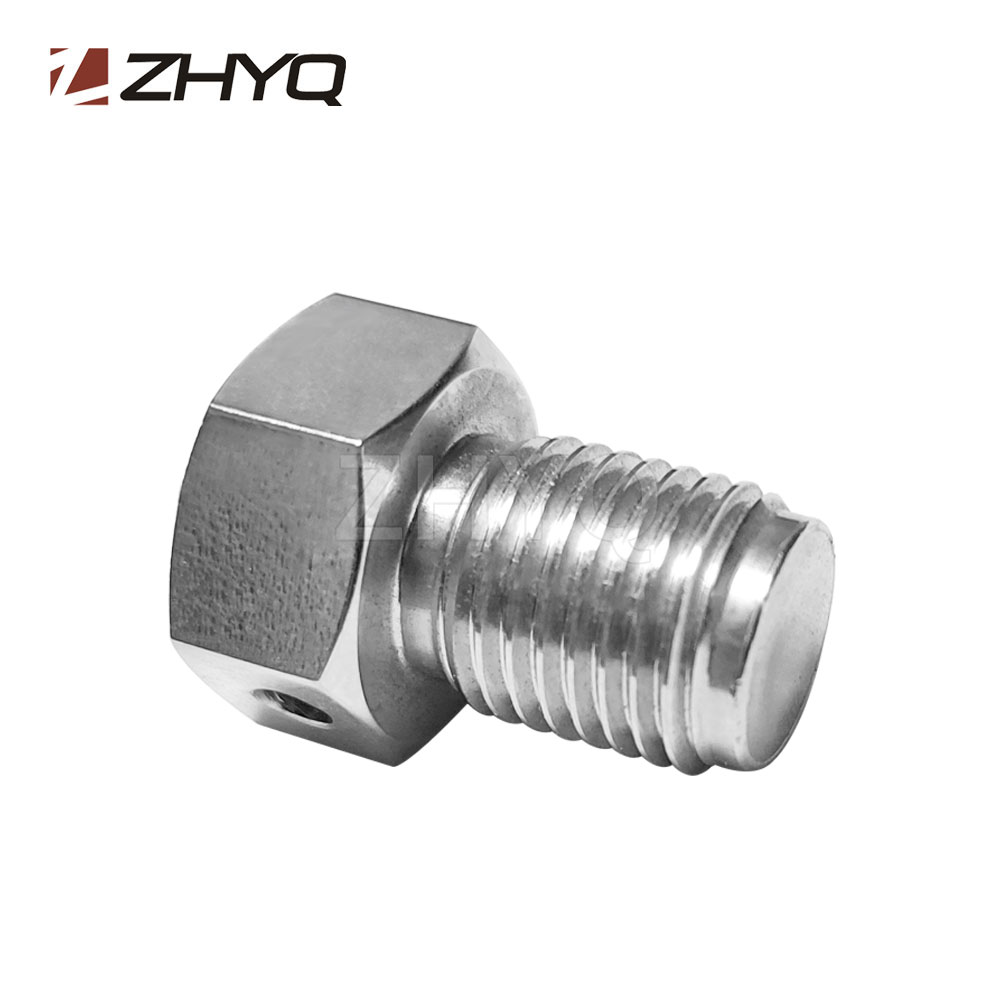

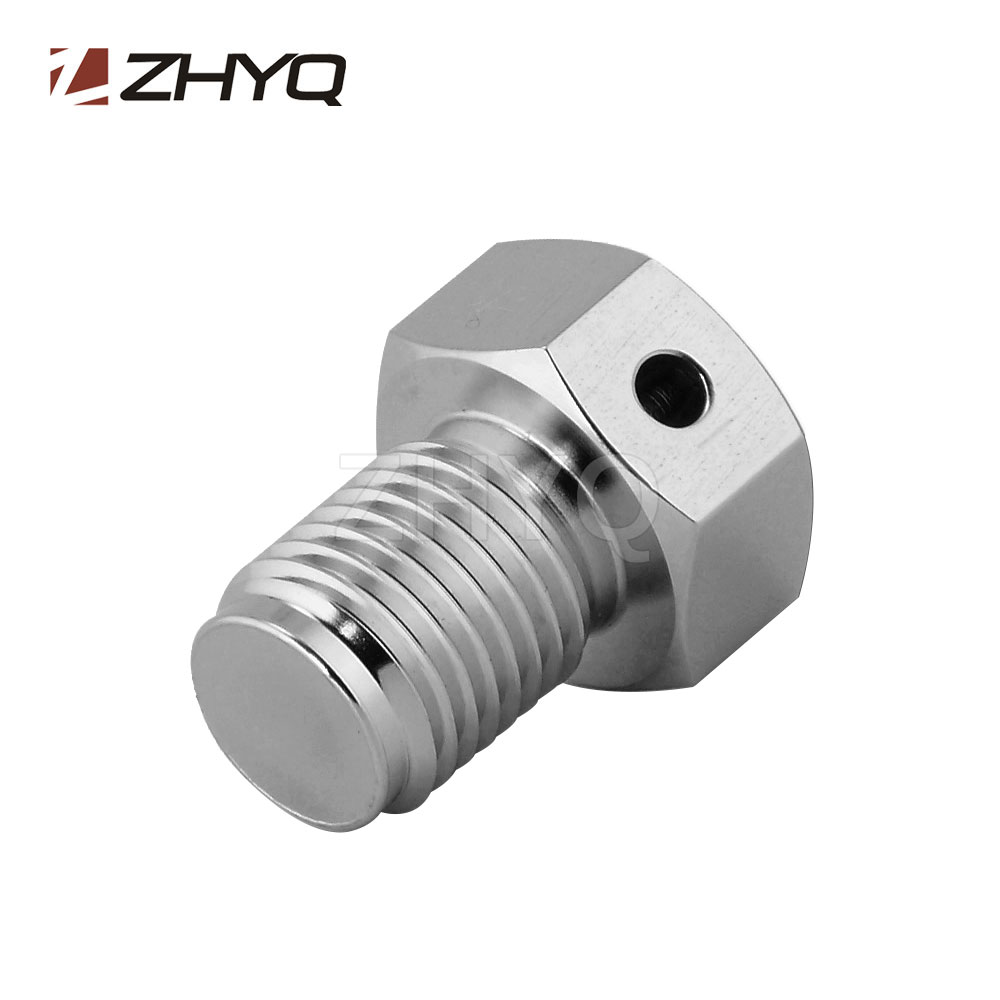

Bolt extruder rupture disc

Model:BP1020

Description:

The rupture disk is specially designed for all kinds of hydraulic equipments, and it plays an important role in release and buffer pressure in the industrial area.

Send inquiry Download PDF

Tags: Bolt rupture disk,Bolt burst plug

  • Small size and various process size
  • Widely pressure range
  • Reliable and safety for the industrial control

It is designed for industrial control, gas, liquid and medical equipment or other fluid process control.

Pressure range 0…10bar…700bar
Caliber range Φ5mm…Φ50mm…300mm
Diaphragm temperature 0-150℃ max.
Process connection G1/4, M14*1.5, M20*1.5 tailor for other size
Material 316L, copper nickel alloy
