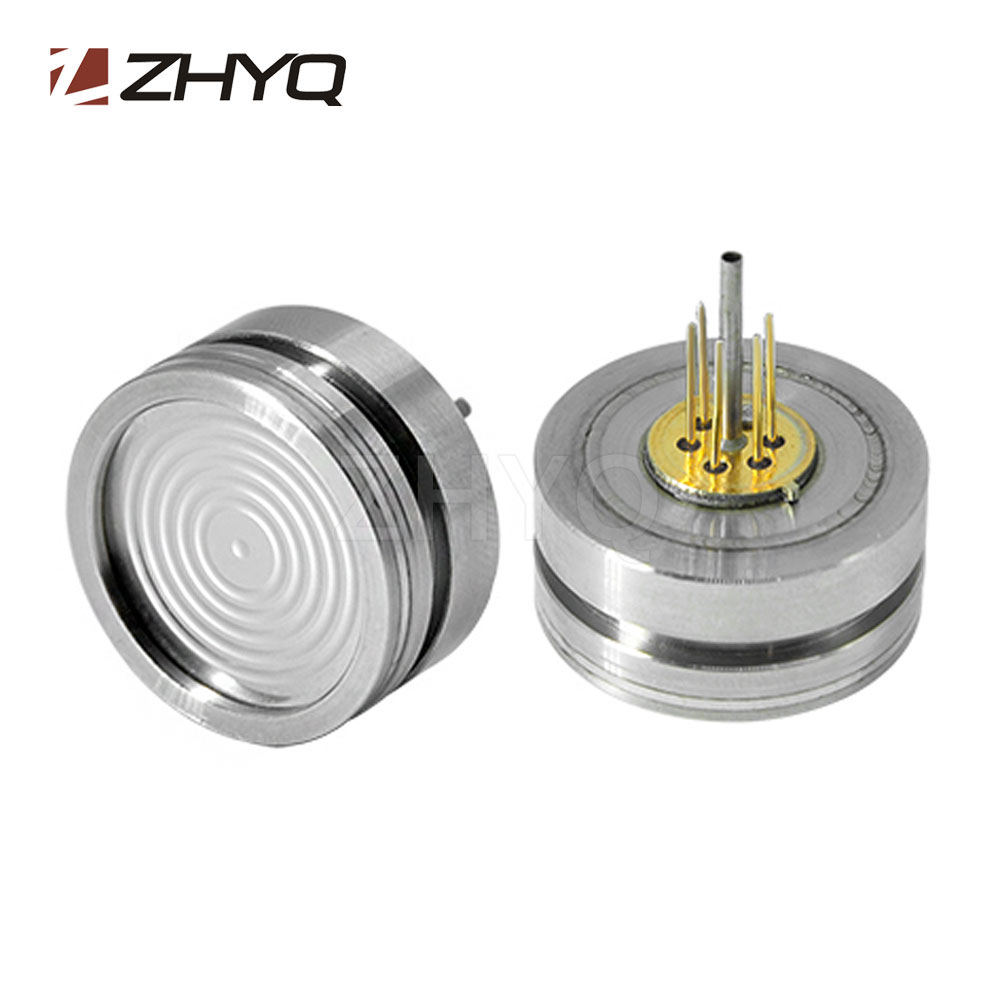

High stable OEM pressure sensor chip

Model:PT124G-3100

Description:

The high stable OEM sensor is the piezoresistive pressure sensor designed with isolated construction and precise compensation. It uses high stable silicon die. Stainless steel 316L housing with diameter Ф19mm.

Send inquiry Download PDF

Tags: OEM piezoresistive pressure sensor, Silicon pressure sensor, Gauge and absolute pressure sensor

  • Pressure range 0KPa~10KPa…10MPa
  • Gauge, absolute, sealed gauge
  • Constant current / Constant Voltage power supply
  • Isolated construction, enable to measure various media
  • Φ19mm standard OEM pressure sensor
  • Full stainless steel 316L
  • Wide temperature compensation -10℃~80℃
  • Long-term stability ±0.1%FS/year
  • Industrial process control
  • Level measurement
  • Gas, liquid pressure measurement
  • Pressure checking meter Pressure calibrator
  • Liquid pressure system and switch
  • Cooling equipment and air conditioning system
  • Aviation and navigation inspection
Item (1) Min. Typ. Max. Units
Linearity ±0.2 ±0.25 %FS,BFSL
Repeatability ±0.05 ±0.075 %FS
Hysteresis ±0.05 ±0.075 %FS
Zero output ±2 mV DC
FS output (2) 40 mV DC
Zero thermal error (3) ±0.75 ±1.0 %FS,@35℃
Span thermal error ±0.75 ±1.0 %FS,@35℃
Compensated temp. range -10~80

0~70(10KPa,20 KPa,35 KPa)

Working temp. range -40~125
Storage temp. range -40~125
Stability error ±0.1 ±0.2 %FS/year
(1) Testing at basic condition

(2) For range code 0C, FS output ≥45mV

(3) For range code 0C, Zero thermal error≤1.5%FS
