• Pressure Sensor, Pressure Transducer, Pressure Transmitter
PT124G-3500-1
PT124G-3500-1

High quality monosilicon pressure sensor for sale

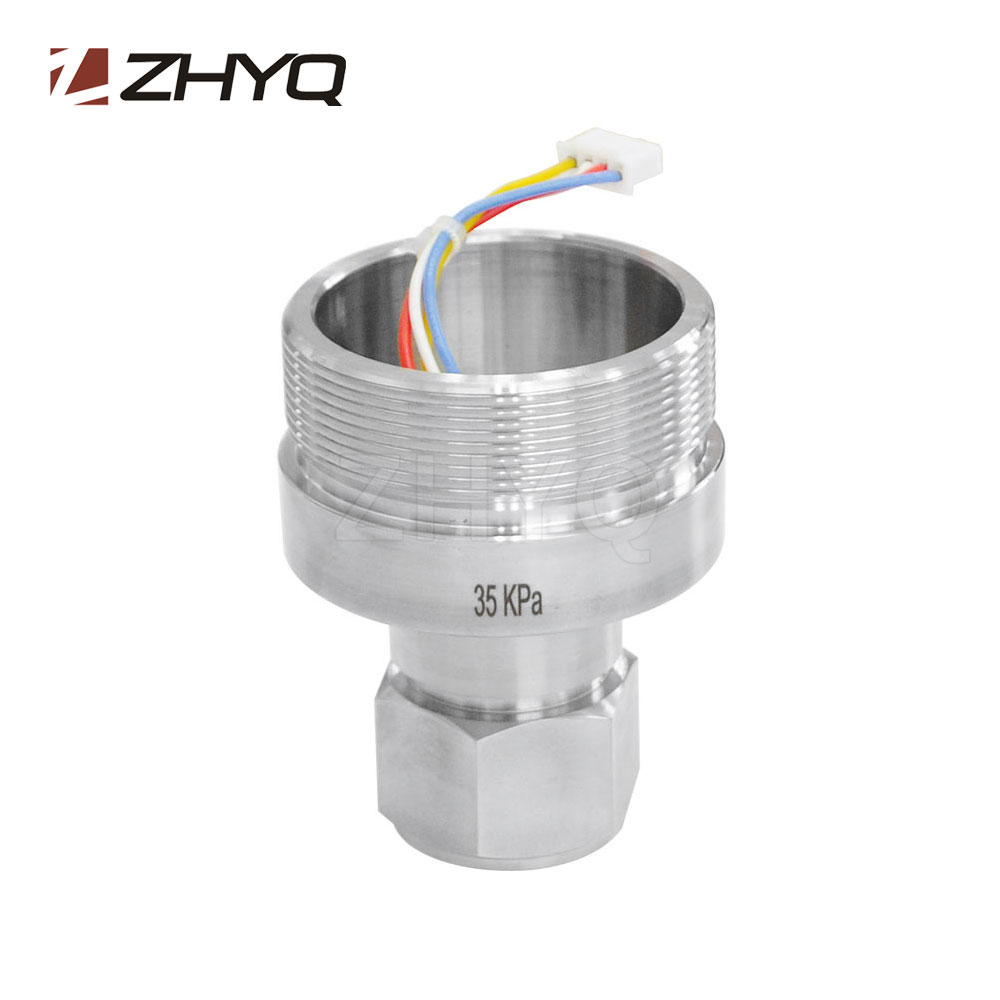

Model:PT124G-3500

Description:

This series high quality monosilicon pressure sensor comes with ultra high overload performance, perfect temperature compensation, convenient installation and condition compatible, it can be widely used in various industrial control fields.

Send inquiry Download PDF

Tags: Gauge pressure sensor, Absolute pressure sensor, OEM monosiliocn pressure sensor

  • Adopts FST monosilicon MEMS chip to encapsulate, precision up to 0.04%FS
  • Excellent overload performance
  • Suitable for negative pressure measurement
  • Intelligent static pressure and temperature compensation, strong condition compatible
  • Petrol oil, chemical industry, electrical power, paper making, iron and steel, coal gas and etc.
Item Value
Measurement range 10 KPa、35 KPa、100 KPa、250 KPa、500 KPa、1MPa、3MPa、20MPa、40MPa
Overload 150%F.S
Voltage 5V DC
Signal output 40-200mV
Operation temperature -50~85℃
Medium temperature -50-125℃
Non-linearly ≤0.1%F.S
Long term stability ≤0.05%F.S/yr.
Temperature effect ≤0.3%F.S/yr.
Long term drift ≤0.05%F.S/yr.
Housing material SS316
Diaphragm material SS316L、Hastelloy、Tantalum、Gold-plating and etc.
Process connection M20*1.5、G1/2、NPT1/2 female、NPT1/2 male
