PT124G-3510-1
PT124G-3510-1

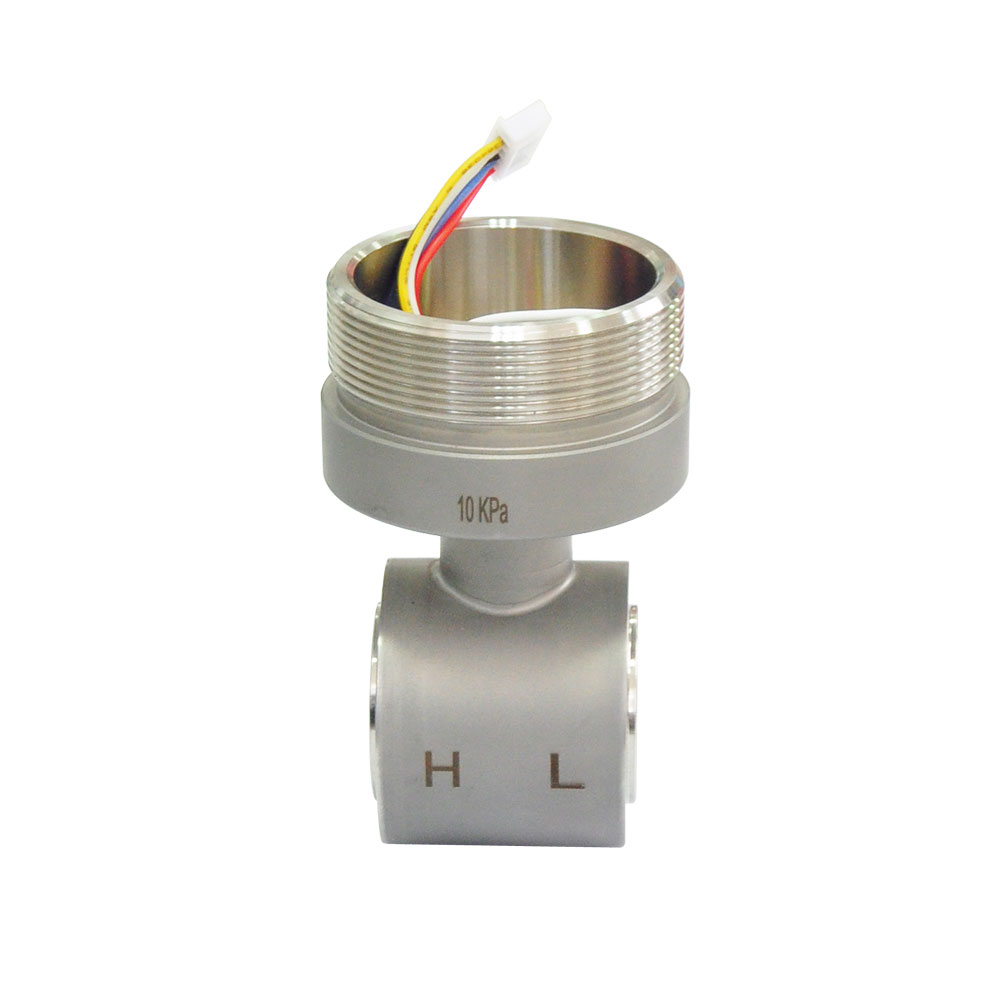

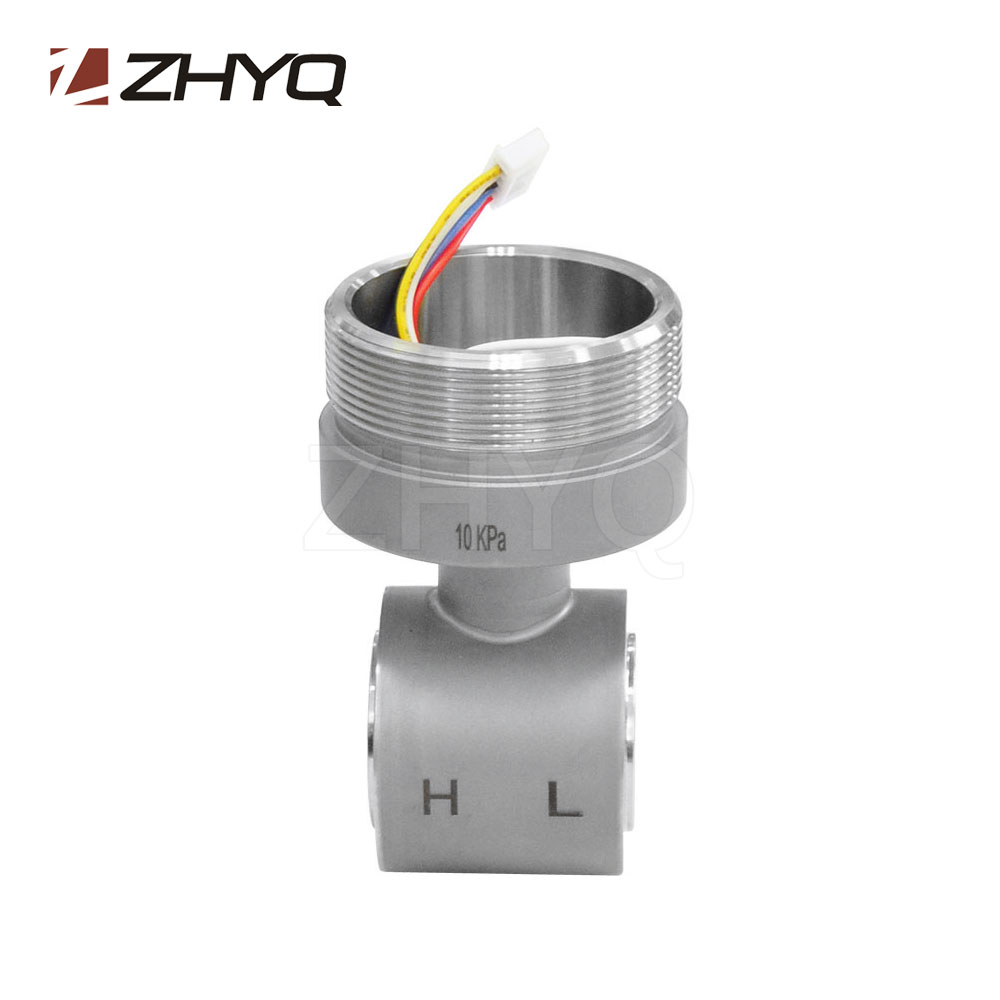

High precision monosilicon differential pressure sensor

Model:PT124G-3510

Description:

This series high precision monosilicon differential pressure sensor comes with ultra high overload performance, perfect temperature compensation, convenient installation and condition compatible; it can be widely used in various industrial control fields.

Send inquiry

Tags: OEM differential pressure sensor, High precision differential pressure sensor, High quality differential pressure sensor

  • Adopts FST monosilicon MEMS chip to encapsulate, precision up to 0.04%FS
  • Excellent overload performance
  • Suitable for negative pressure measurement
  • Intelligent static pressure and temperature compensation, strong condition compatible
  • Petrol oil, chemical industry, electrical power, paper making, metallurgy, coal gas and etc.
Item Value
Measurement range 3KPa、6KPa、10KPa、40KPa、150KPa、250KPa、3MPa
Rated working pressure range 2.5MPa、16MP、25MPa、40MPa
Overload 150%F.S
Voltage 5V DC
Signal output 40-200mV
Operation temperature -50~85℃
Medium temperature -50-125℃
Non-linearly ≤0.1%F.S
Long term stability ≤0.05%F.S/yr.
Temperature effect ≤0.3%F.S/yr.
Static pressure characteristics ≤±0.1%F.S/10MPa
Long term drift ≤0.05%F.S/yr.
Housing material SS316
Diaphragm material SS316L、Hastelloy、Tantalum、gold-plating and etc.
