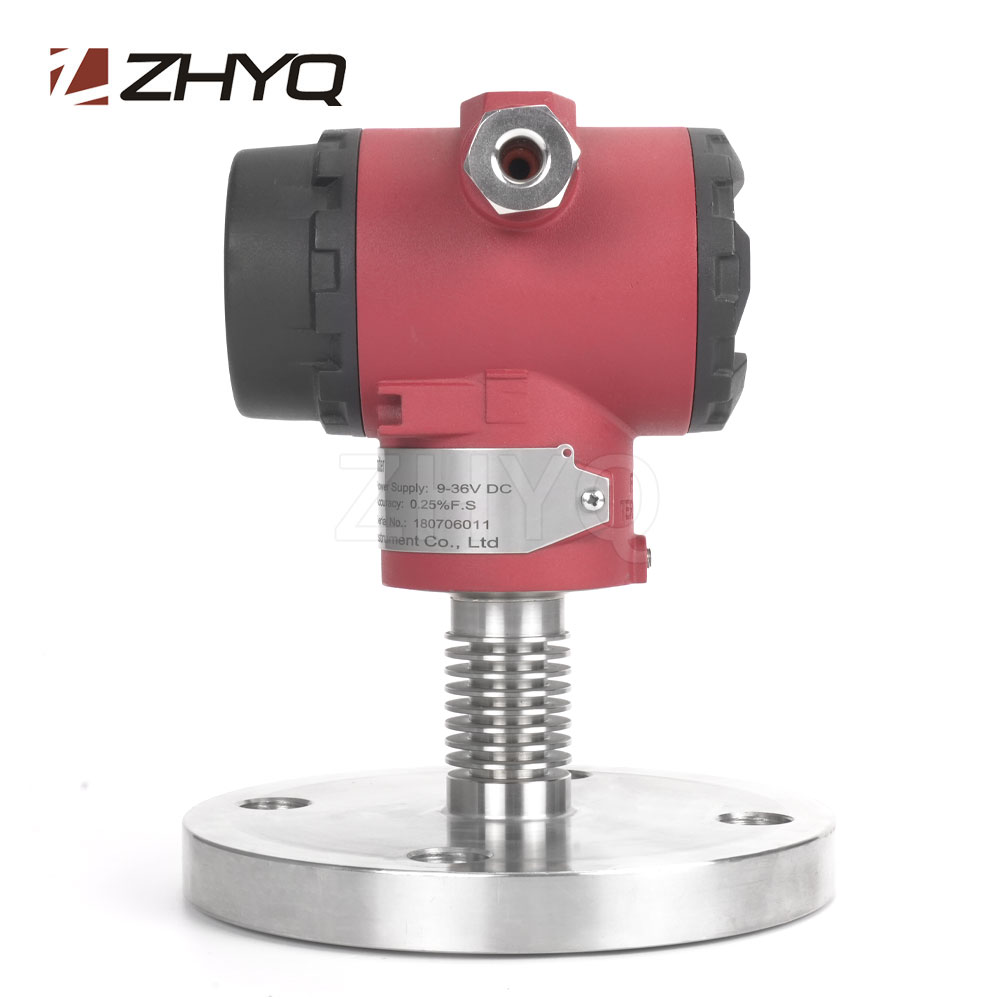

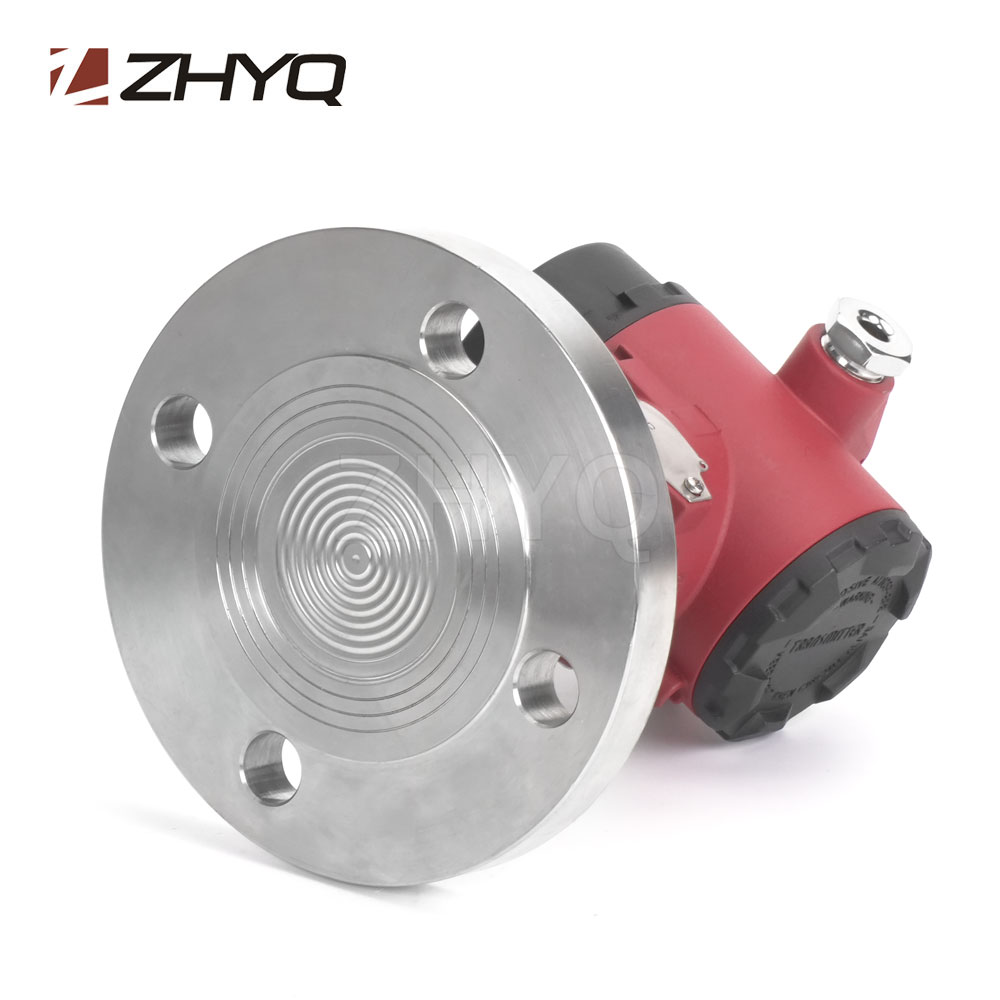

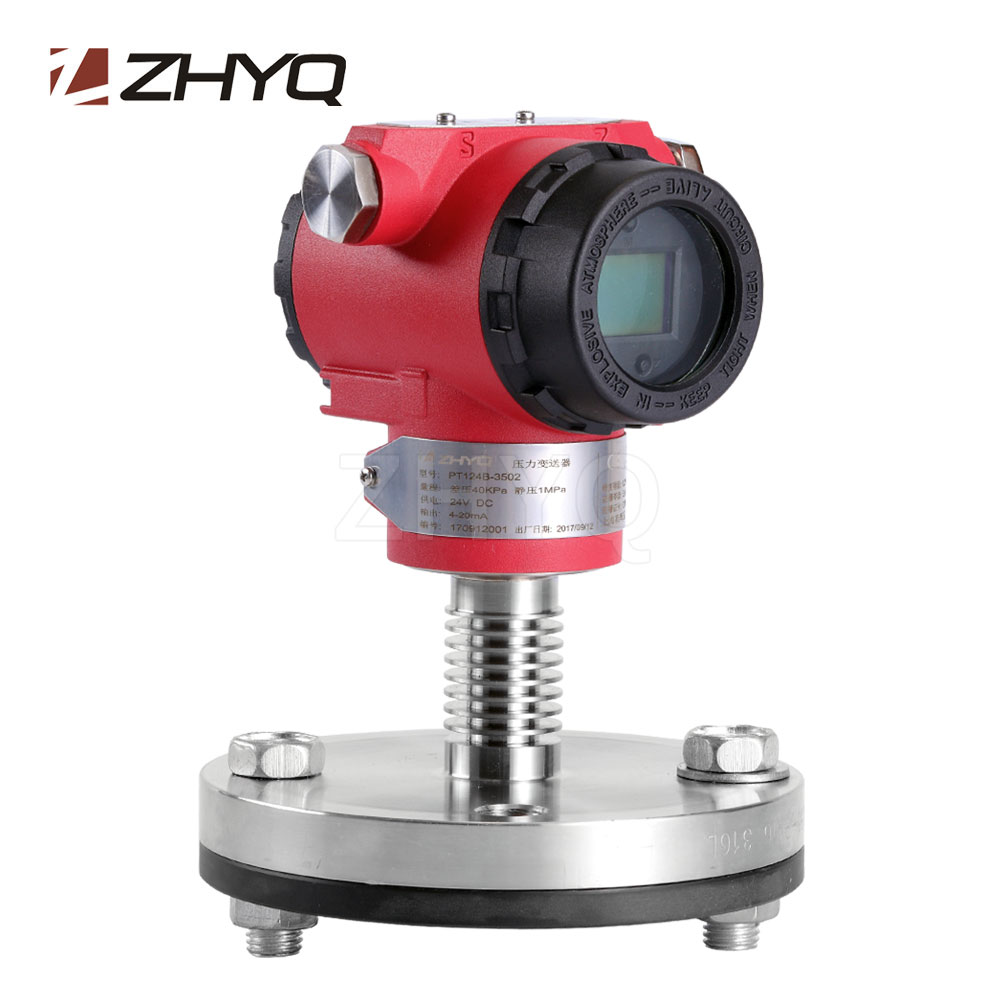

High accuracy flange pressure transmitter

Model:PT124B-3502

Description:

The high performance absolute and gauge pressure transmitter PT124B-3502 feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure. It gives an output of 4 to 20mA HART signal corresponding to the measured pressure.

Send inquiry

Tags: flange pressure transmitter,flange absolute pressure transmitter,Monosilicon pressure transmitter

  • Adopts global leading high precision silicon
  • Accuracy +/-0.075%
  • Advanced static pressure performance
  • Error less than +/-0.1%/10MPa
  • Internal integrated high sensitivity temperature transducer
  • Perfect thermal drift
  • Fast response time

Petrol oil, chemical industry, electrical power, paper making, iron and steel, coal gas and etc.

Item Specification
Medium Gas, steam, liquid
Measurement range
(Non migration)
0-0.6KPa-20Mpa
Accuracy +/-0.075%,  +/-0.1%
Wetted parts material SS316L, Hastelloy C
Output 2-wire 4-20mA, HART communication optional, linear output or square root output available
Ambient temperature limited -40~85℃
-20~65℃ (with LCD display, fluorine rubber O-ring)
Protection grade IP67
Electrical connector M20*1.5 cable sealing buckle, terminal suitable for 0.5-2.5mm2  cable
Process connector Flange mount
