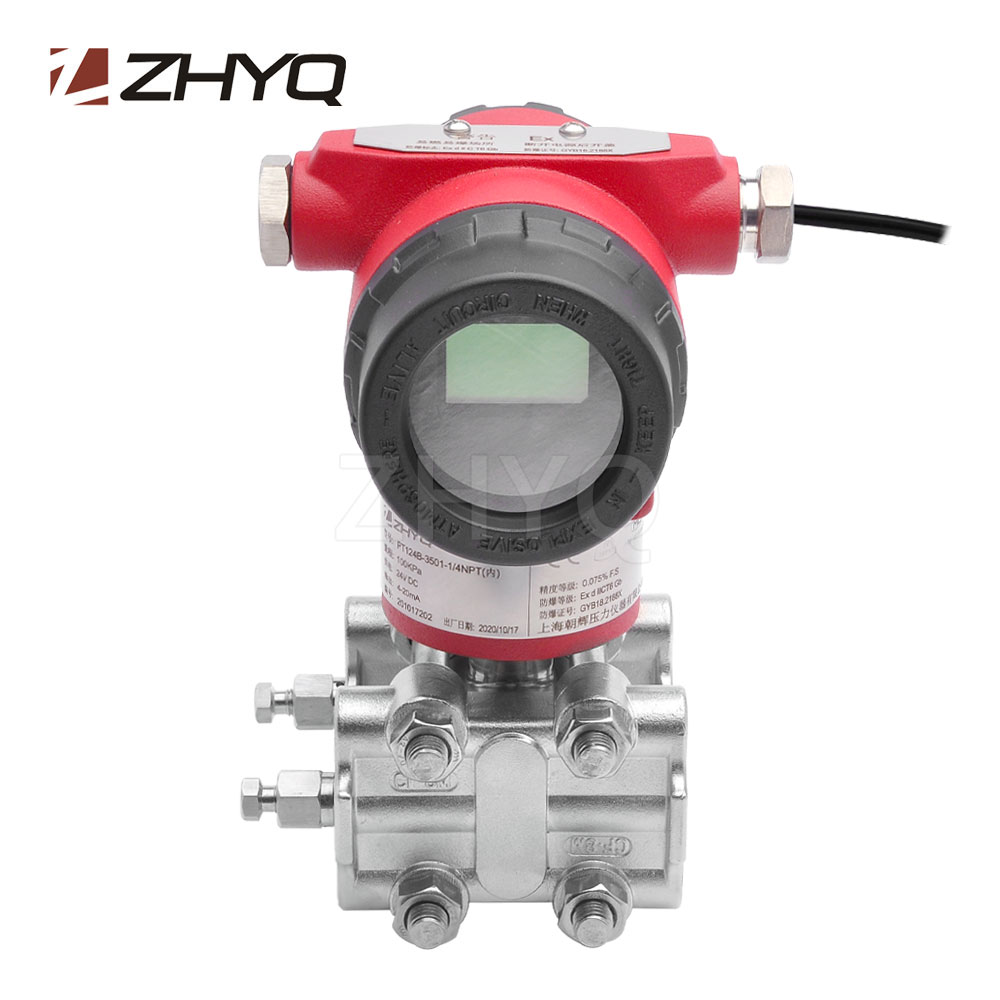

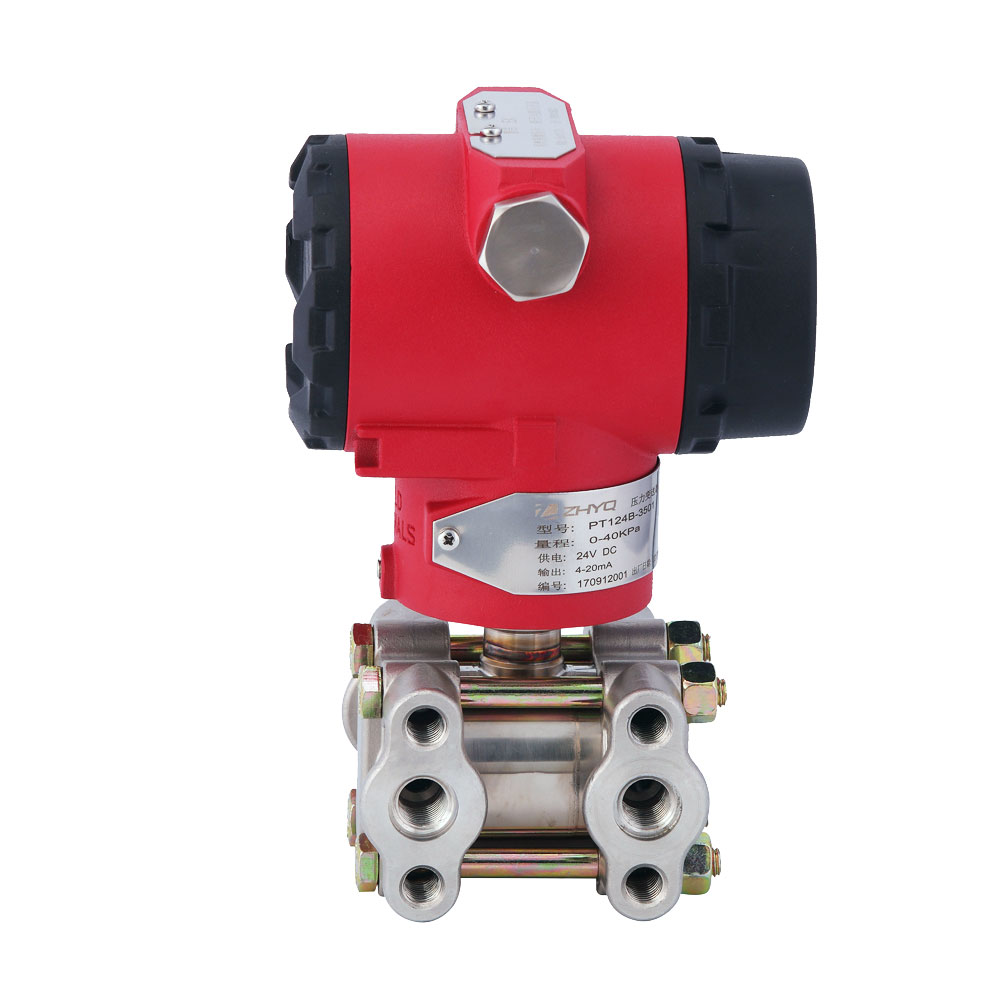

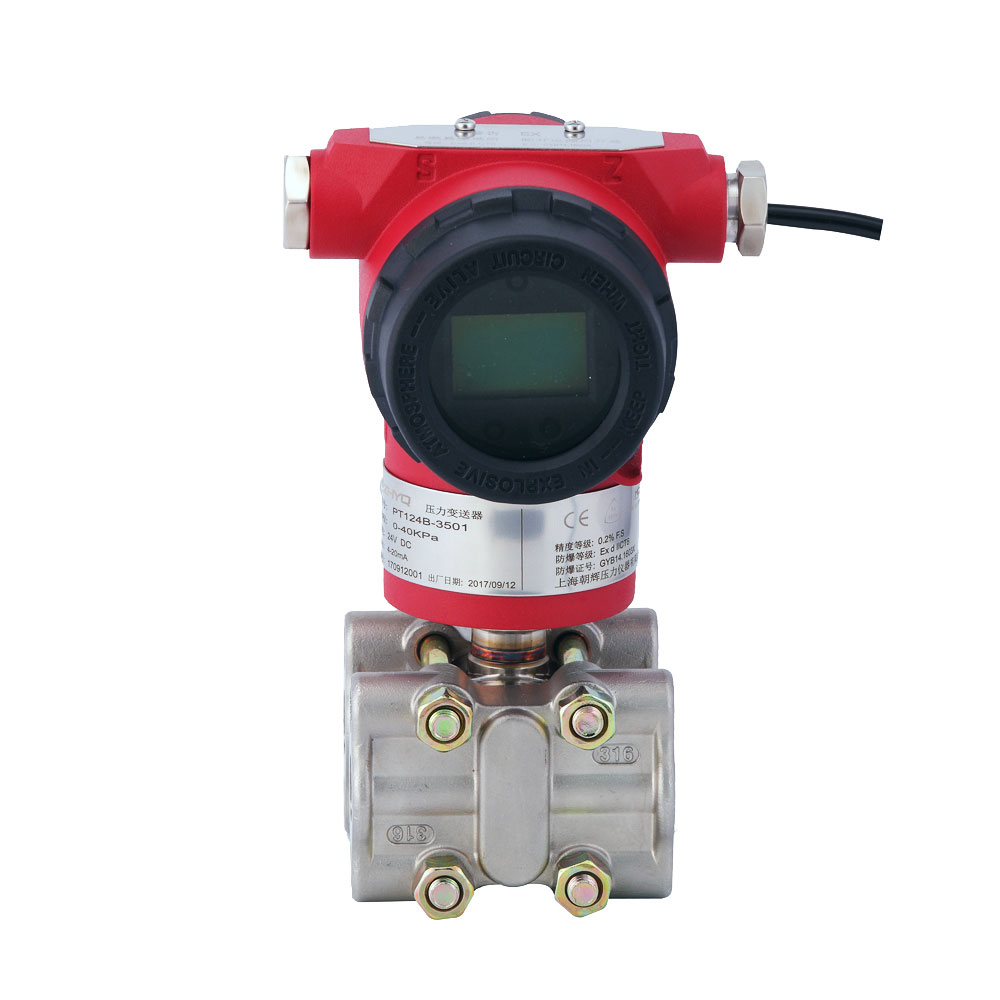

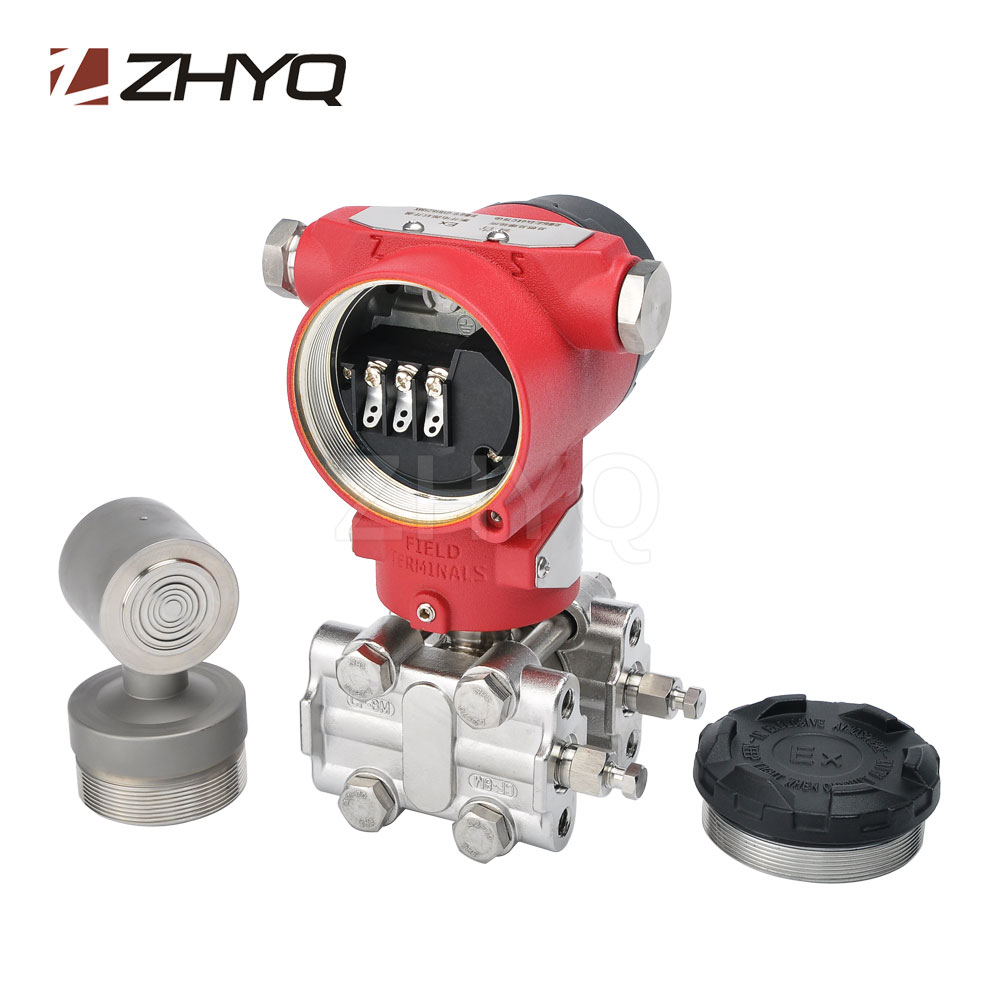

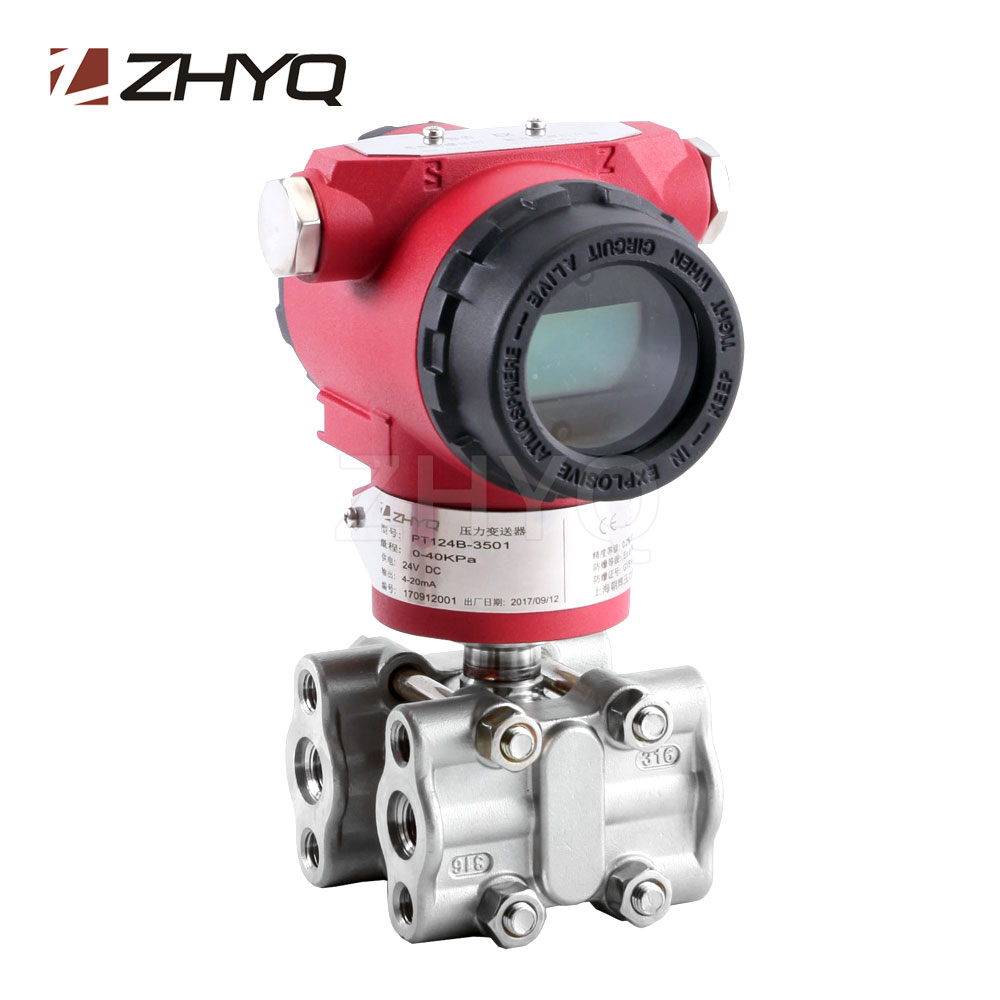

PT124B-3501 Differential pressure transmitter
Model:PT124B-3501
Description:

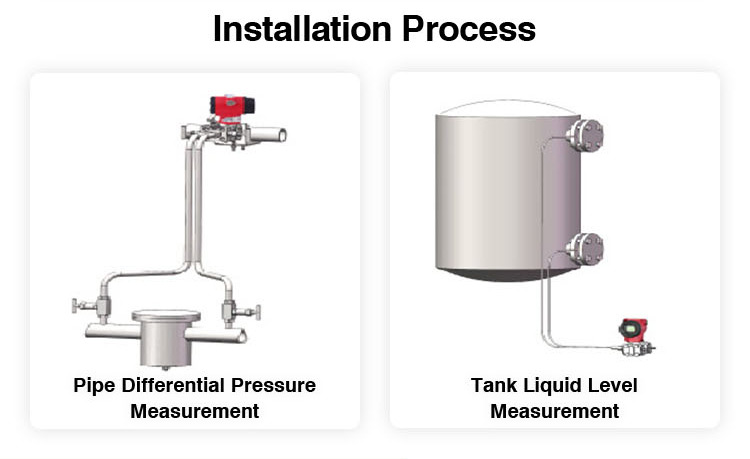

The model differential pressure transmitter can be used to measure liquid, gas, or stem flow, as well as liquid level, density and pressure. It outputs a 4 to 20mA DC HART signal corresponding to the measured pressure differential.
Send inquiry Download PDF

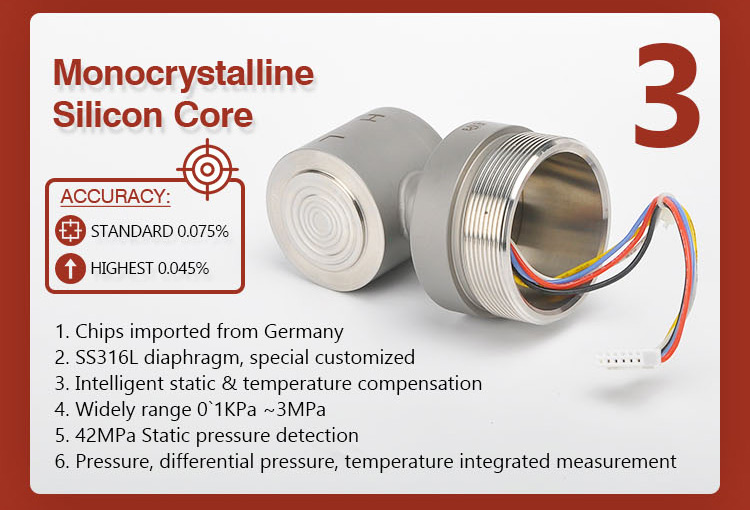

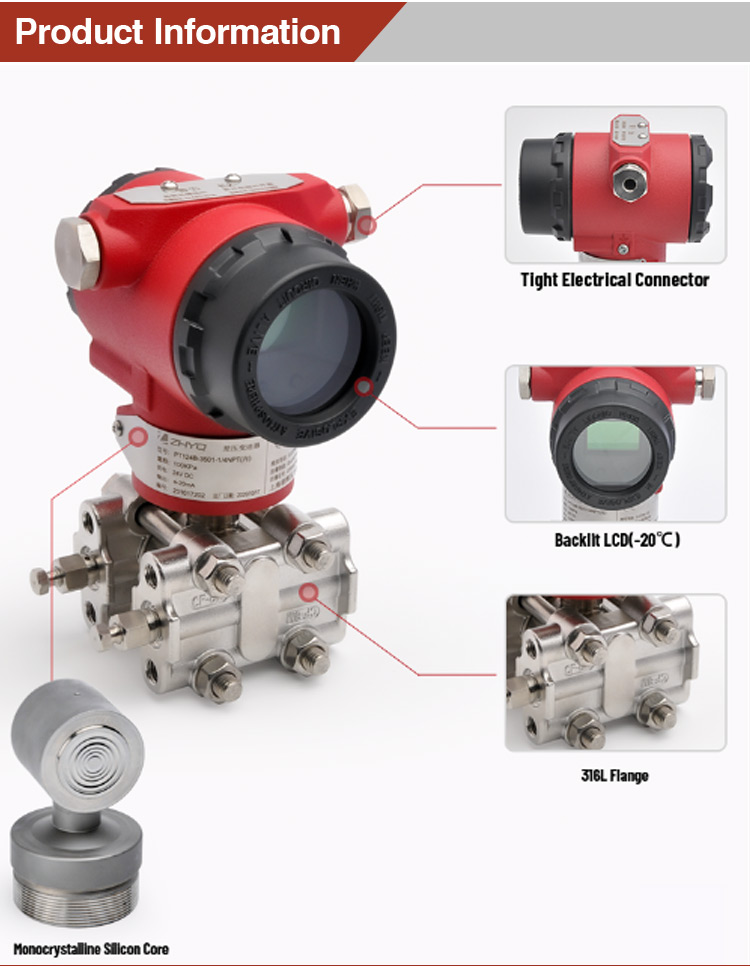

- Adopts global leading high precision silicon
- Accuracy +/-0.075%
- Advanced stability and static pressure performance
- Error less than +/-0.1%/10MPa
- Internal integrated high sensitivity temperature transducer
- Perfect thermal drift
- All SS316L welding sealed construction with silicon filled
Petrol oil, chemical industry, electrical power, paper making, iron and steel, coal gas and etc.
| Item | Specification |
| Medium | Gas, steam, liquid |
| Measurement range
(Non migration) |
-150pa-150pa, -5KPa-5KPa, -0.1MPa-20MPa |
| Accuracy | +/-0.1%,+/-0.075% optional |

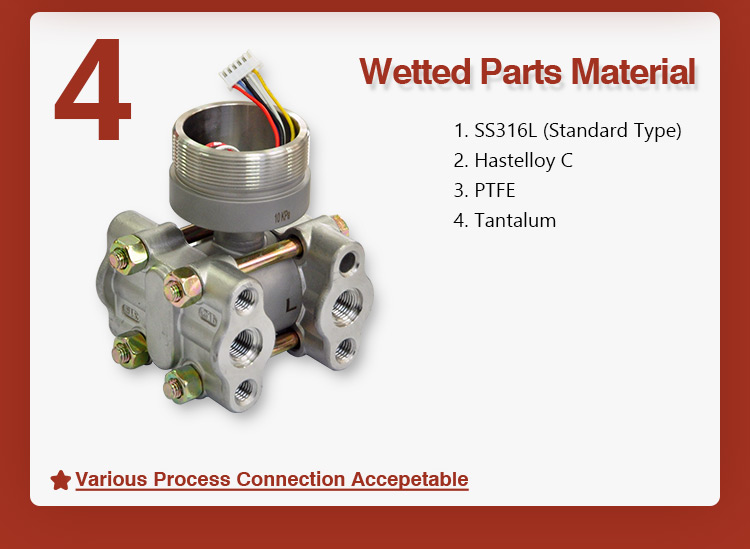

| Wetted parts material | SS316L, Hastelloy C, Tantalum |
| Output | 2-wire 4-20mA, HART communication optional, linear output or square root output available |
| Ambient temperature limited | -40~85℃
-20~65℃ (with LCD display, fluorine rubber O-ring) |
| Protection grade | IP67 |

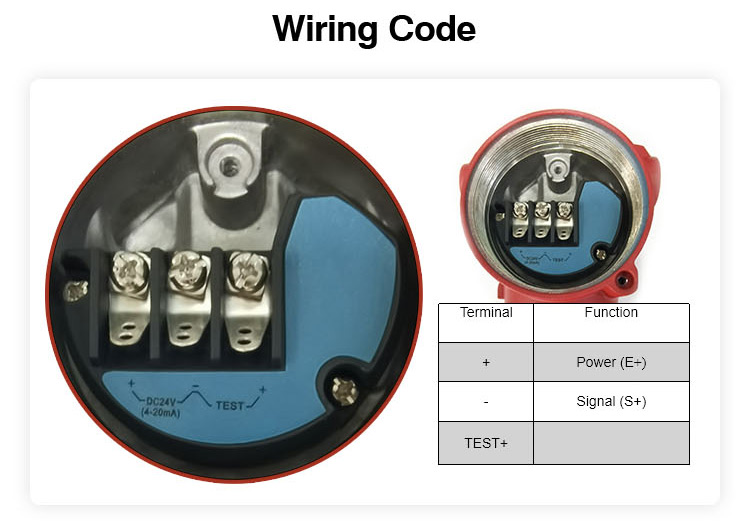

| Electrical connector | M20*1.5 |
| Process connector | 1/4NPT female and 7/16 female on the cover flanges |
