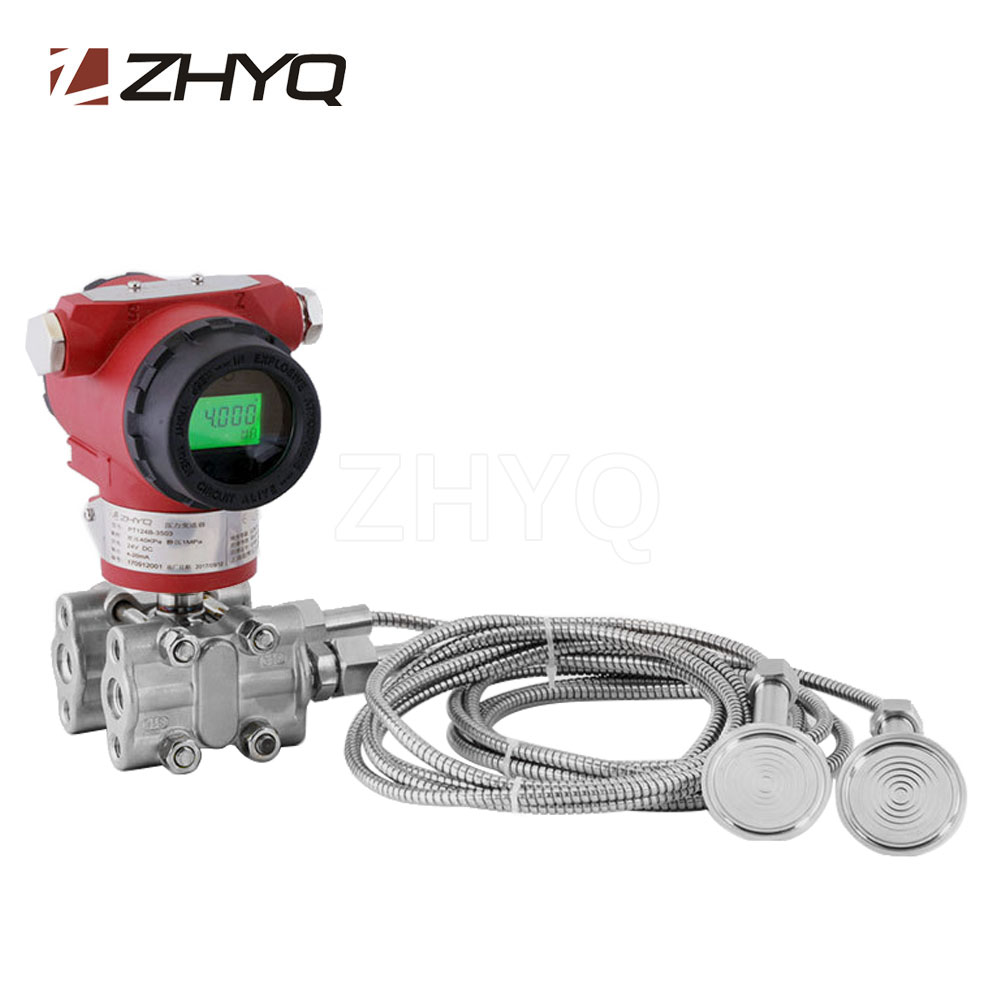

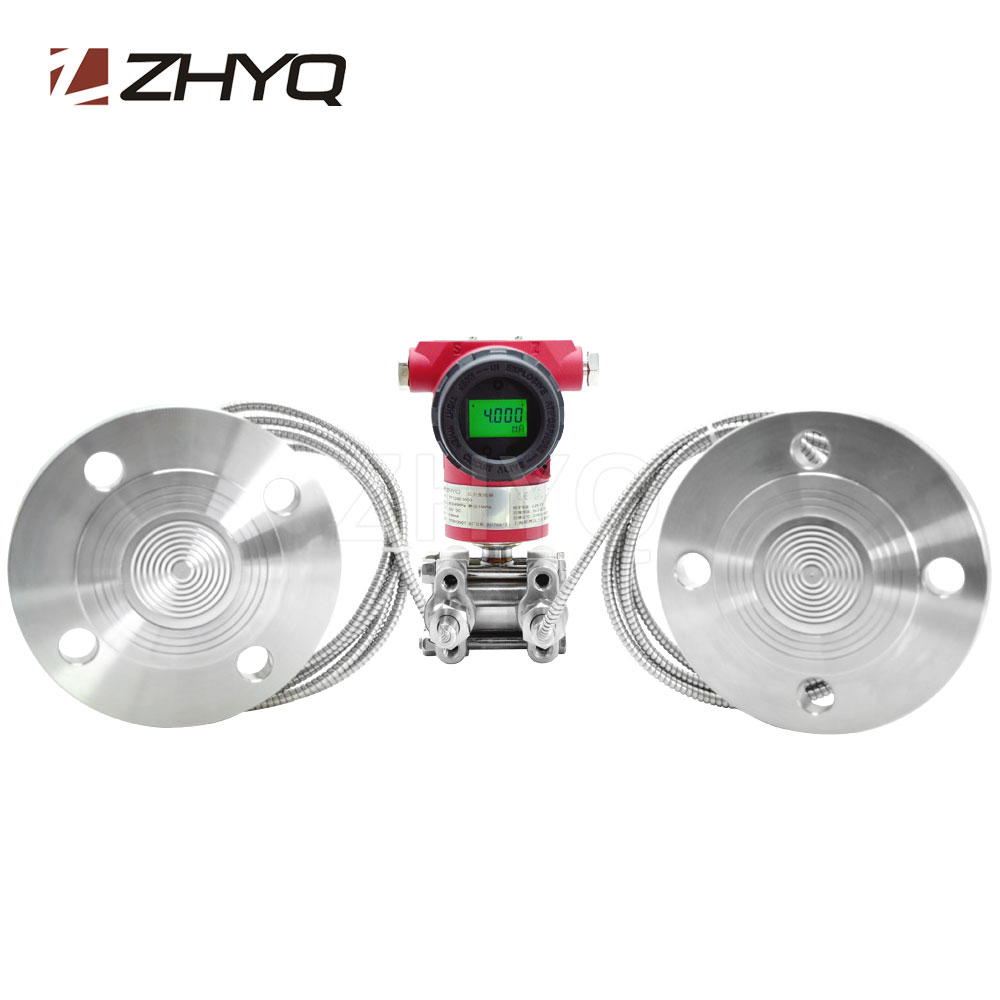

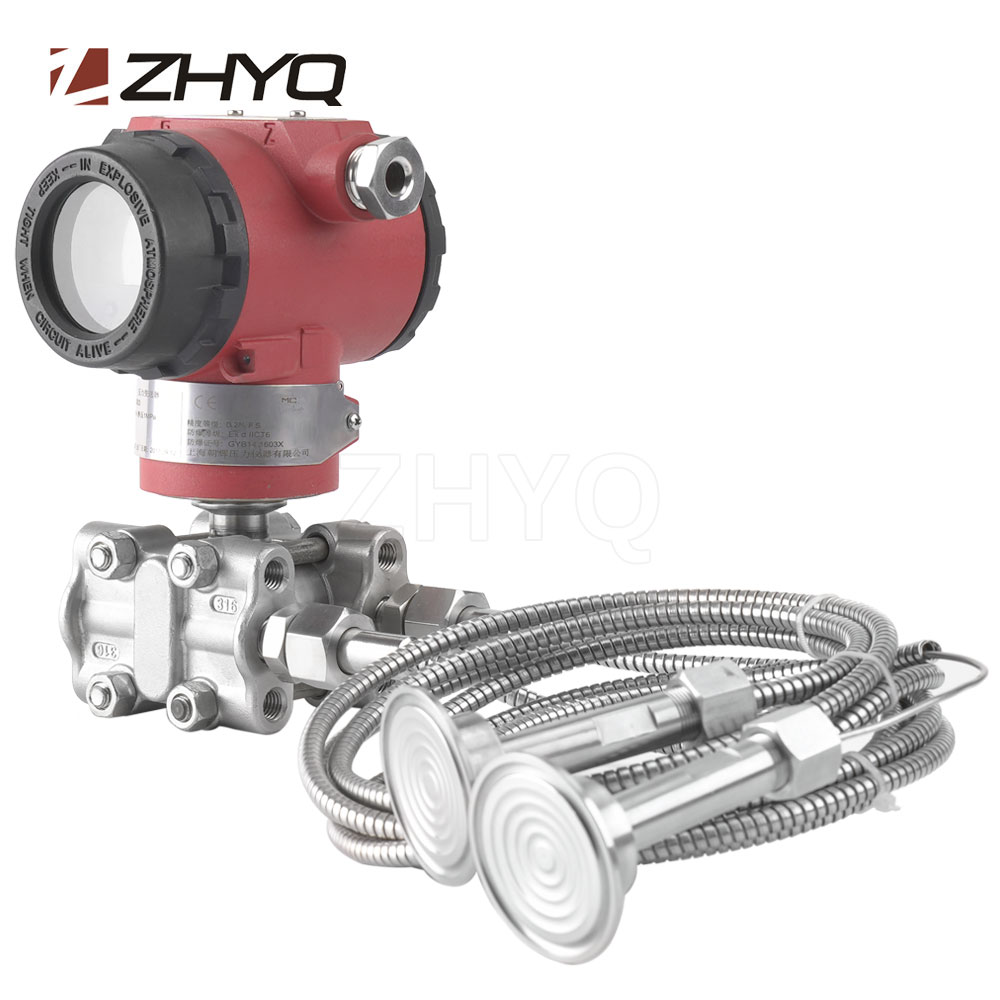

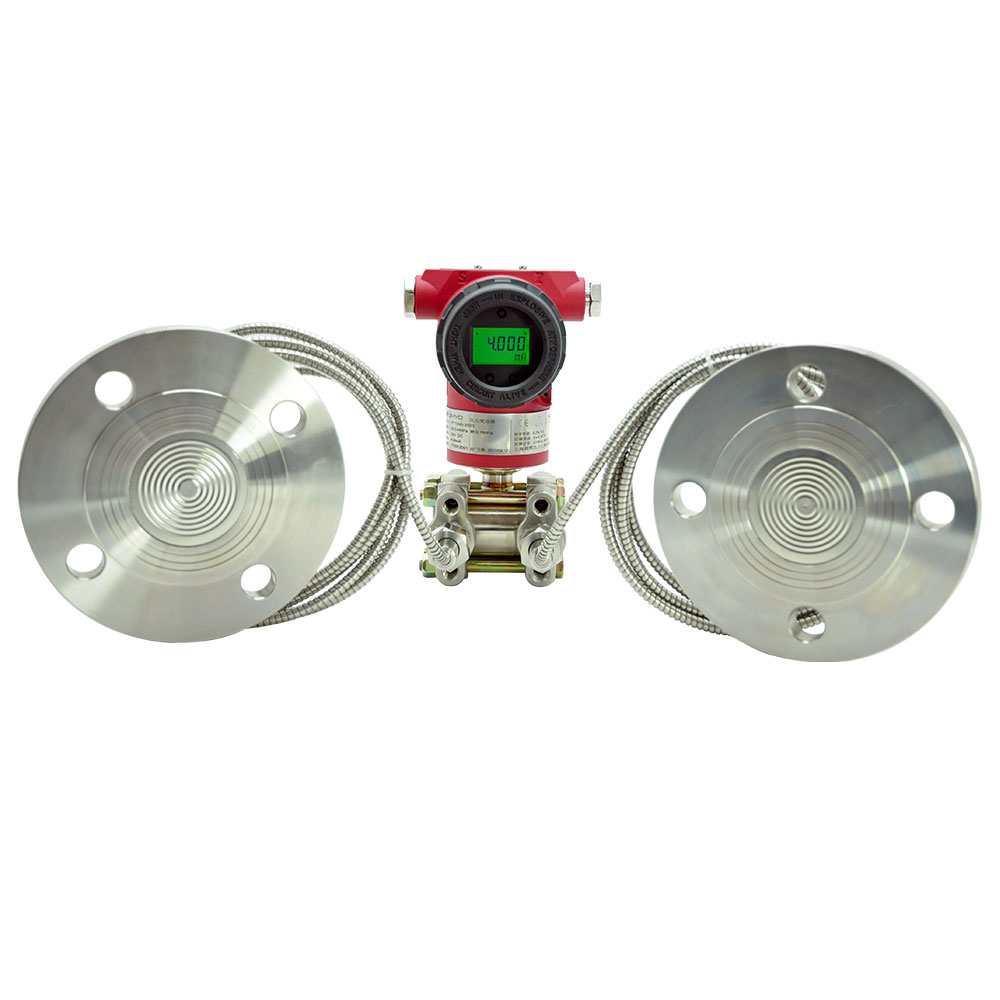

Diaphragm sealed remote differential pressure transmitter

Model:PT124B-3503

Description:

The diaphragm sealed remote differential pressure transmitter is used to prevent medium from entering directly into the pressure-sensing assembly of the pressure transmitter.

Send inquiry Download PDF

Tags: Diaphragm differential pressure transmitter,flange differential pressure transmitter,remote differential pressure transmitter

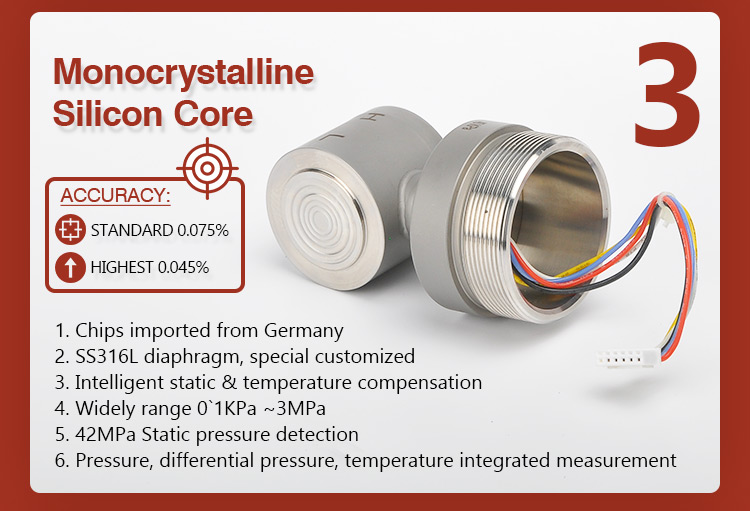

  • Adopts global leading high precision silicon transducer
  • Strong anti-jamming performance
  • Accuracy +/-0.075%
  • Advanced stability and static pressure performance
  • Error less than +/-0.1%/10MPa
  • Internal integrated high sensitivity temperature transducer
  • Perfect thermal drift
  • Fast response time

Petrol oil, chemical industry, electrical power, paper making, iron and steel, coal gas and etc.

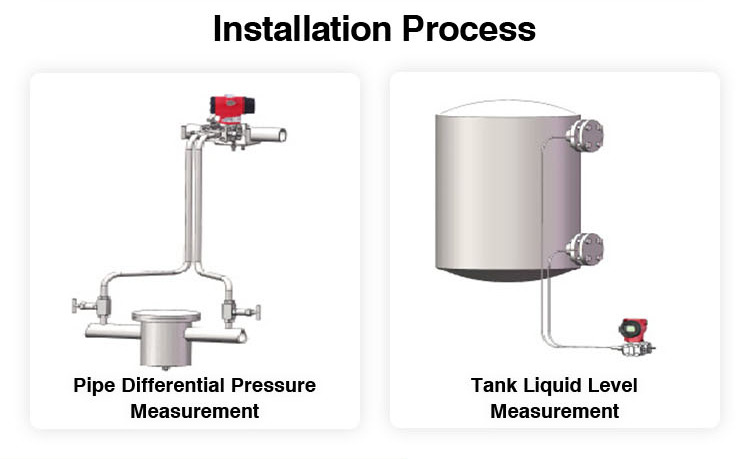

Measurement parameter Differential pressure, liquid level
Measurement range
(Non migration)
0-1KPa-2MPa
Accuracy +/-0.1%

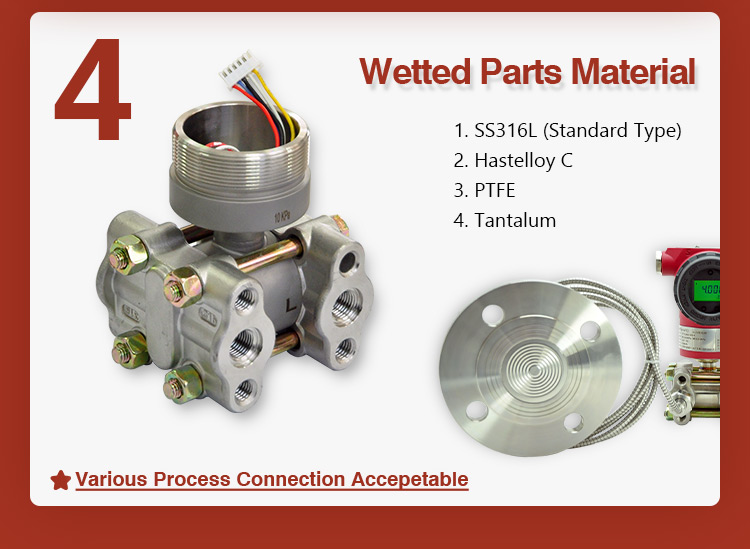

Wetted parts material SS316L, Hastelloy C, tantalum
Output 2-wire 4-20mA, HART communication optional, linear output or square root output available
Ambient temperature limited Lowest: depending on the filled liquid
Highest: 85℃
-20~65℃ (with LCD display, fluorine rubber O-ring)
temperature limited -30~400℃

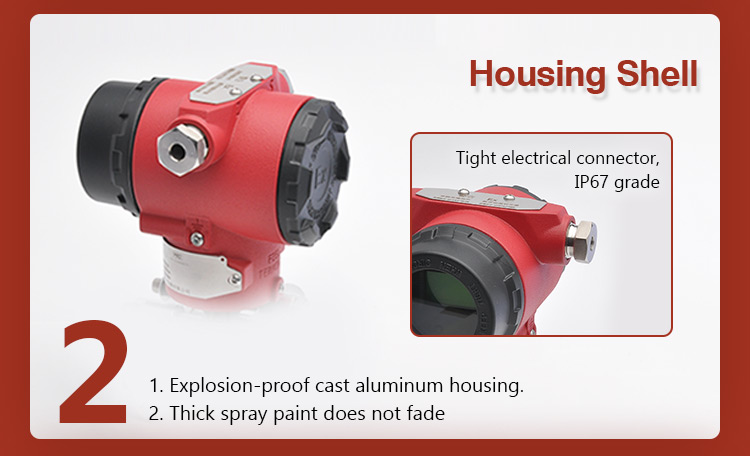

Protection grade IP67

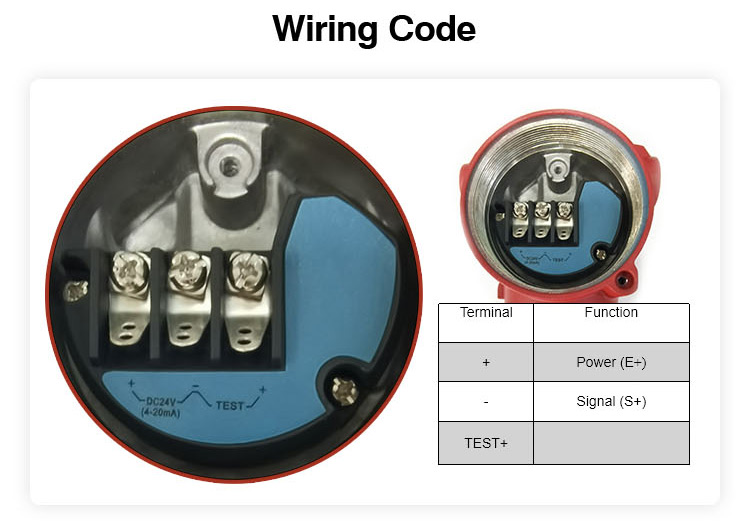

Electrical connector M20*1.5 cable sealing buckle, terminal suitable for 0.5-2.5mm2  cable
Process connector 7/16 female at the low pressure, compatible with ANSI or DIN at high pressure. Directly install.
