Model:PT124B-113/113T/122/122T

Description:

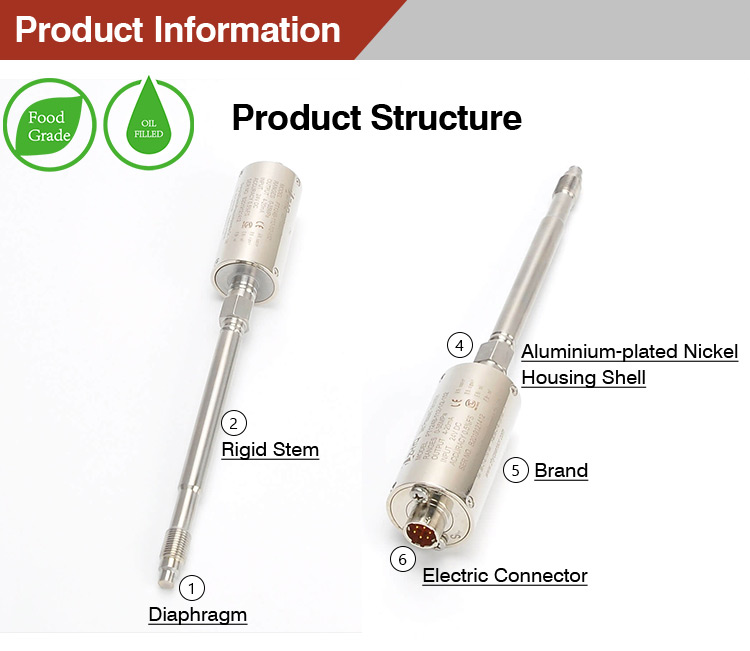

PT124B-113/113T/122/122T Series sanitary melt pressure transmitter, it designed with rigid or flexible stem. And PT124B-113T comes with thermocouple, which can measure the pressure and temperature at one point. This product filled with environmental, avirulent medium. If the diaphragm damaged during process, the leaking medium is no harm to the human body or ambient. With the advantages of exact and reliable measurement, high performance, no harm, t is widely used in the hygienic field.

Send inquiry Download PDF

  • High-standard quality
  • Stainless steel welding
  • Simple installation
  • Adopt environmental and non-toxic material
  • 80% internal calibration
  • Excellent stability and repeatability
  • It has the wide application in medicine & food process equipment, drinking water environmental monitoring and etc.
Pressure range 0-10MPa…0-150MPa (0-1500psi…0-20000psi)
Over Pressure 1.5 X FSO
Combined Error ± 1.5% FSO; ± 1.0% FSO (Including Linearity, Repeatability & Hysteresis)
Output 4-20mA, 0-10V, 0-5V
Input Voltage 24VDC
Repeatability +/- 0.2%FSO
Internal Shunt Calibration (R-Cal) 80% FSO +/- 1%
Insulation Resistance 200 megohms @ 100 Vdc
Max Diaphragm Temperature 260 ℃
Mounting Torque 500 inch/lbs. max.
Standard Wetted Parts Diaphragm coated 15-5 PH SST
Process connector 1/2 ″ -20UNF, M14×1.5, M18×1.5 Optional
