High accuracy extrusion pressure transducer melt pressure sensor
Model:PT124B-112/112T/123/123T
Description:

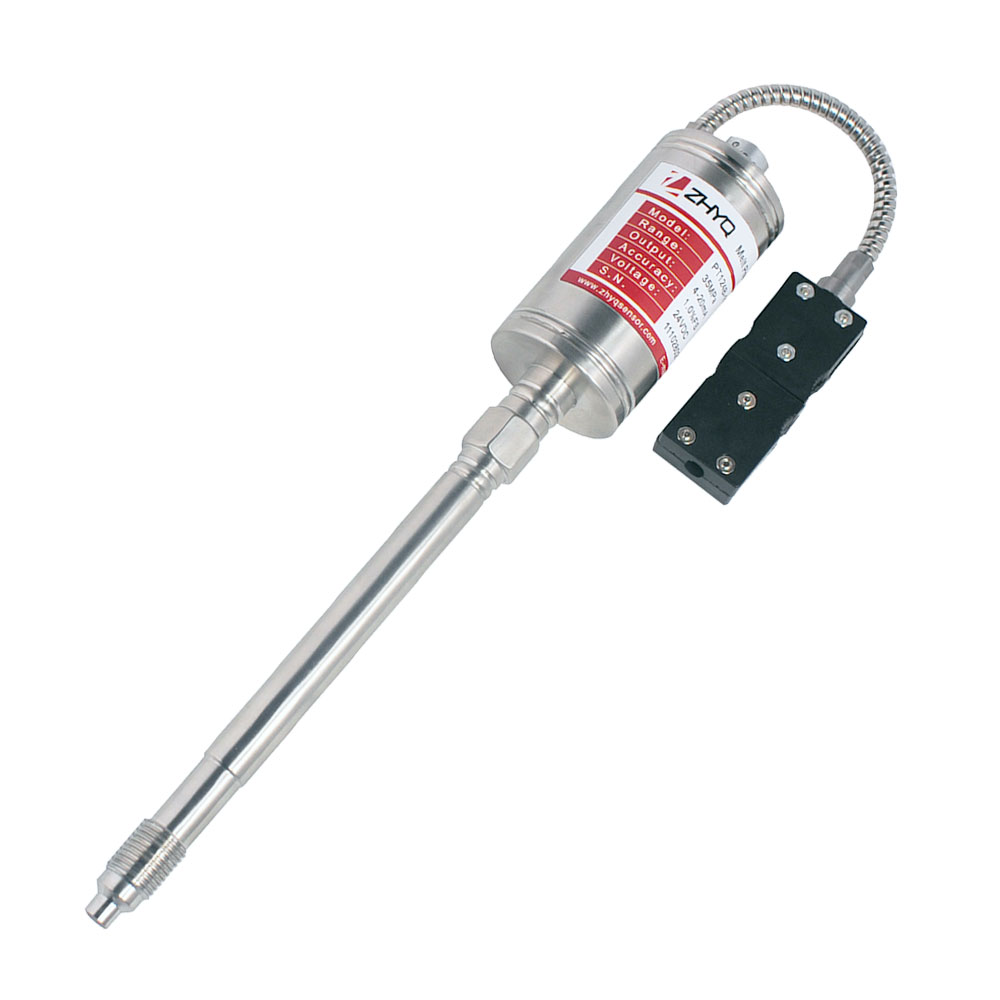

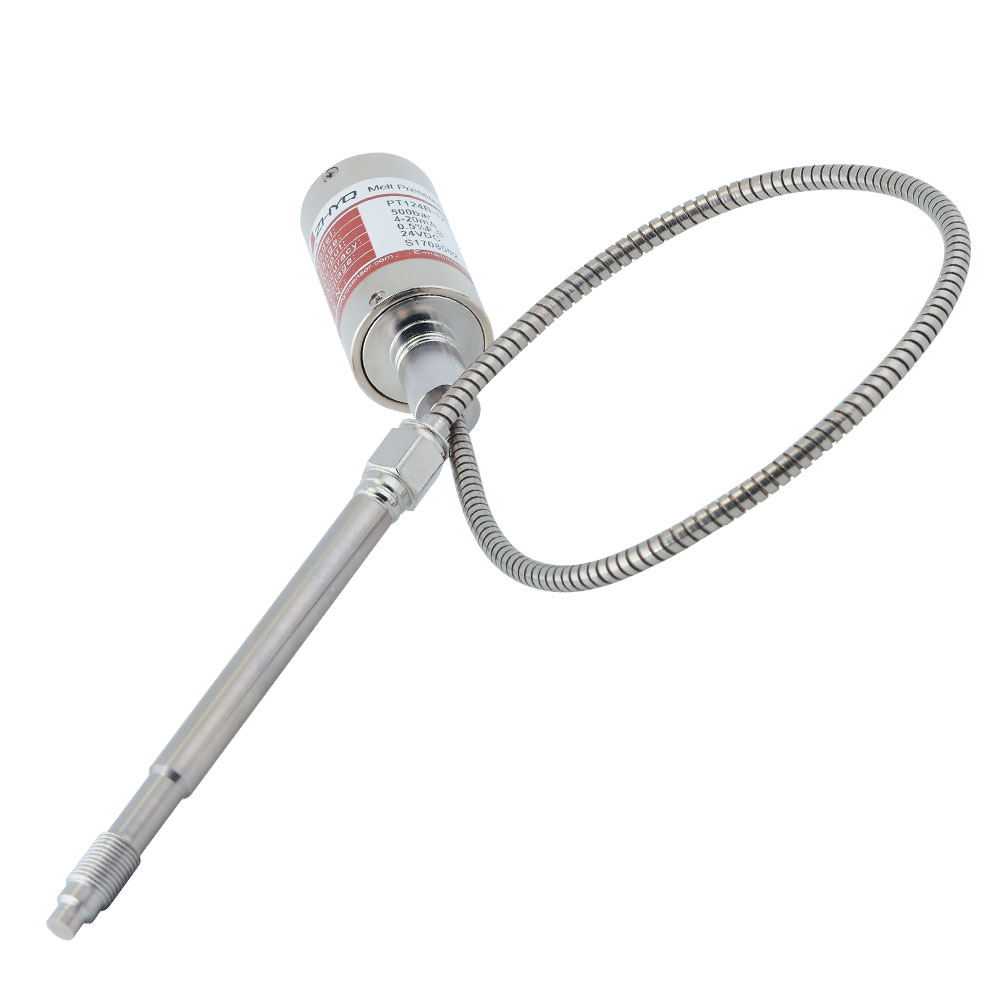

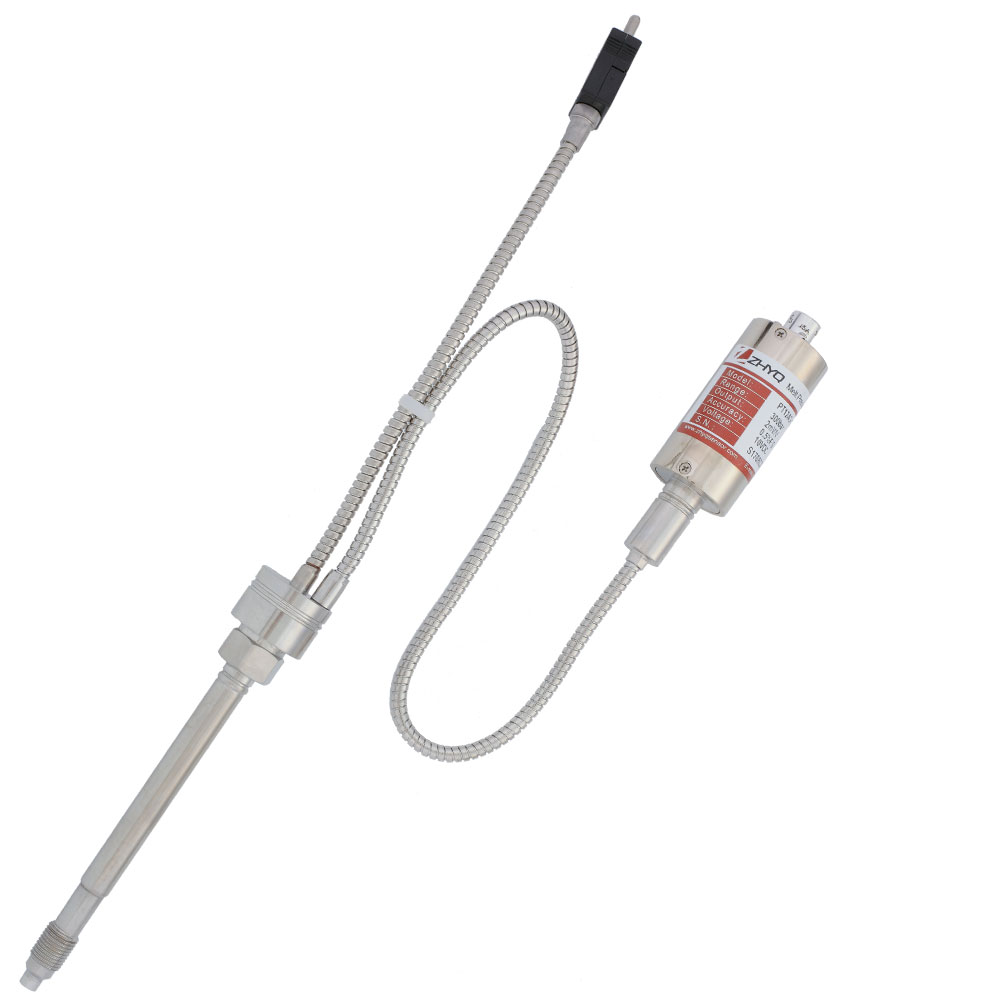

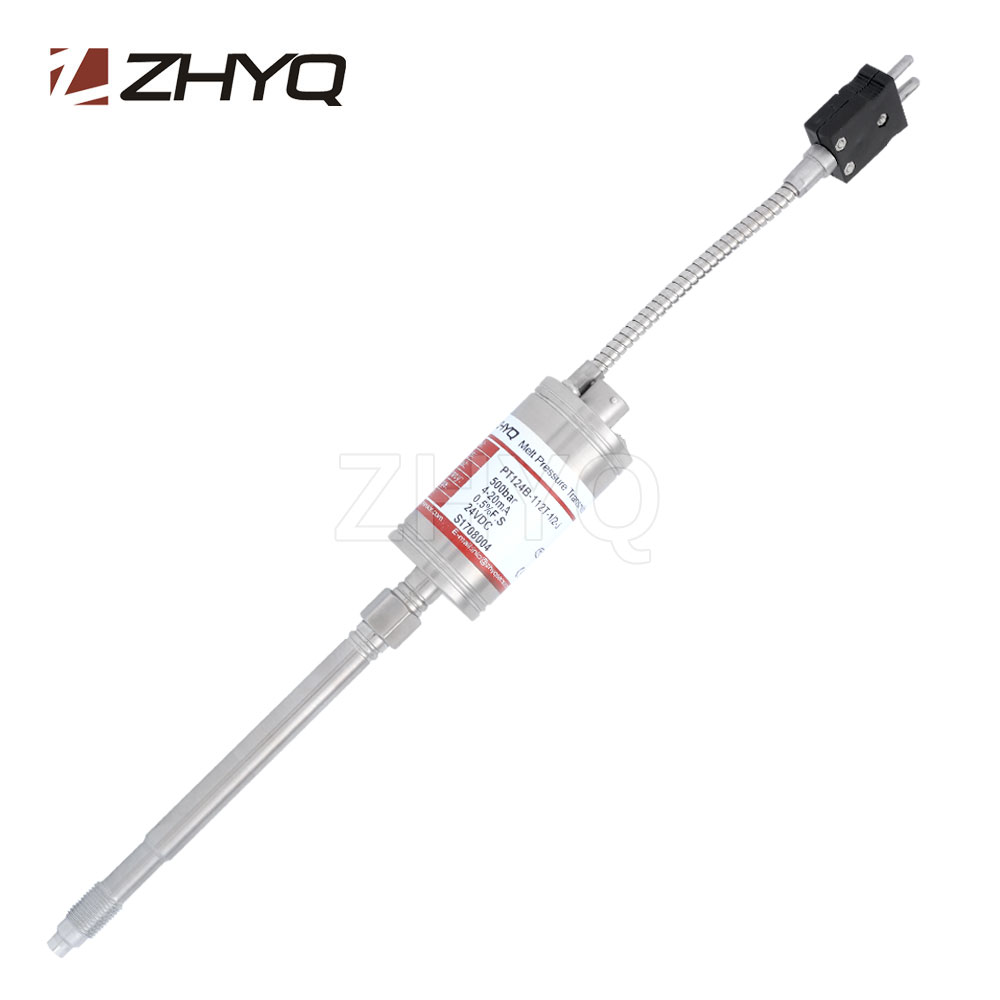

PT124B-112/112T/123/123T Series high accuracy melt pressure sensor , designed with rigid stem, the model PT124B-112T/123T comes with thermocouple, which can measure the pressure and temperature at one point. This product built in amplifier circuit board and 80% shunt calibration, zero and span adjustable, and the output signal can input PLC directly. And it can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. This product has advantage of stability and repeatability, good anti-jamming performance.
Send inquiry Download PDF
- Widely pressure range
- High accuracy better than 0.5%FS
- Simple Installation
- 80% inner calibration
- Interchangeable for other brands
- Excellent stability and repeatability
- It can be widely used in various plastic extrusion lines for pressure measuring and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical.
| Pressure range | 0-3.5MPa…0-150MPa (0-500psi…0-20000psi) |
| Over Pressure | 1.5 X FSO |
| Combined Error | ± 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
| Output | 4-20mA, 0-10V, 0-5V |
| Input Voltage | 24VDC |
| Repeatability | +/- 0.2%FSO |
| Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
| Insulation Resistance | 200 megohms @ 100 Vdc |
| Max Diaphragm Temperature | 300 ℃ |
| Mounting Torque | 500 inch/lbs. max. |
| Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
| Electrical connector | 6PIN |
| Process connector | 1/2 ″ -20UNF, M14×1.5, M18×1.5 Optional |
