Cost-effective melt pressure transducer

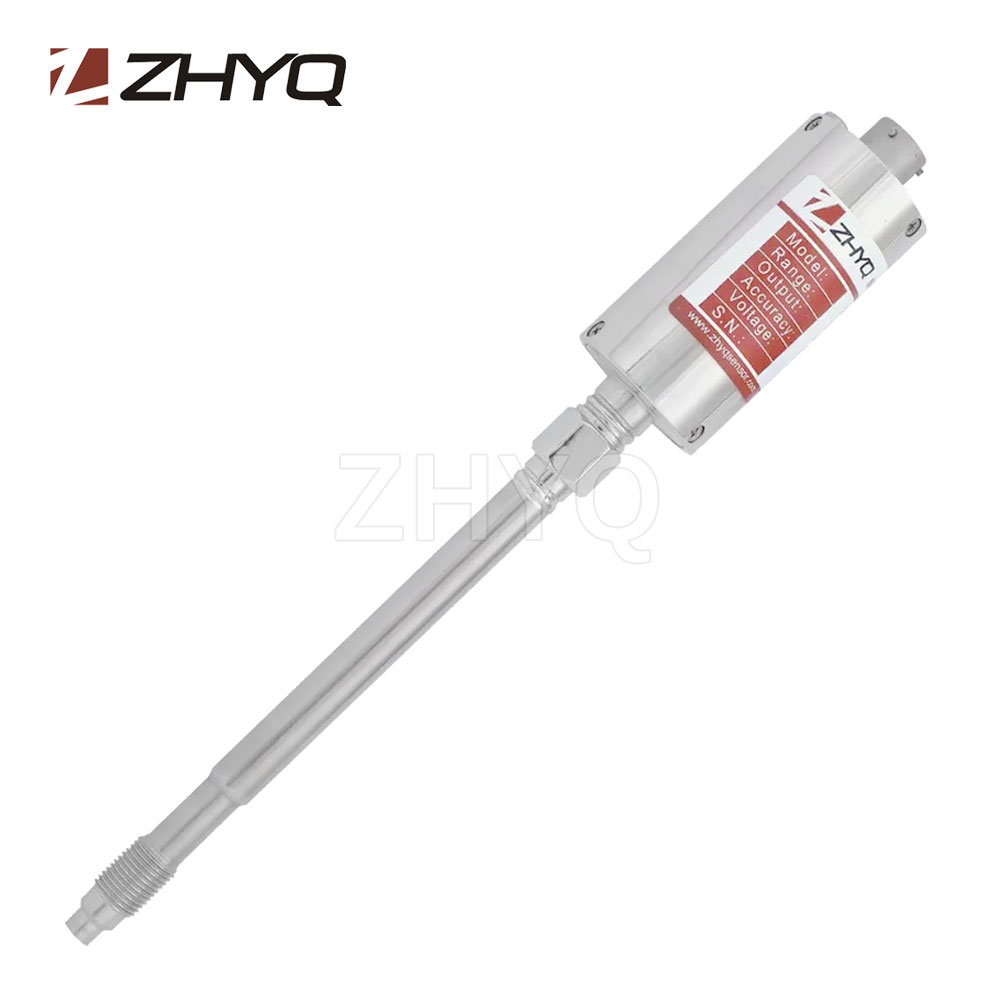

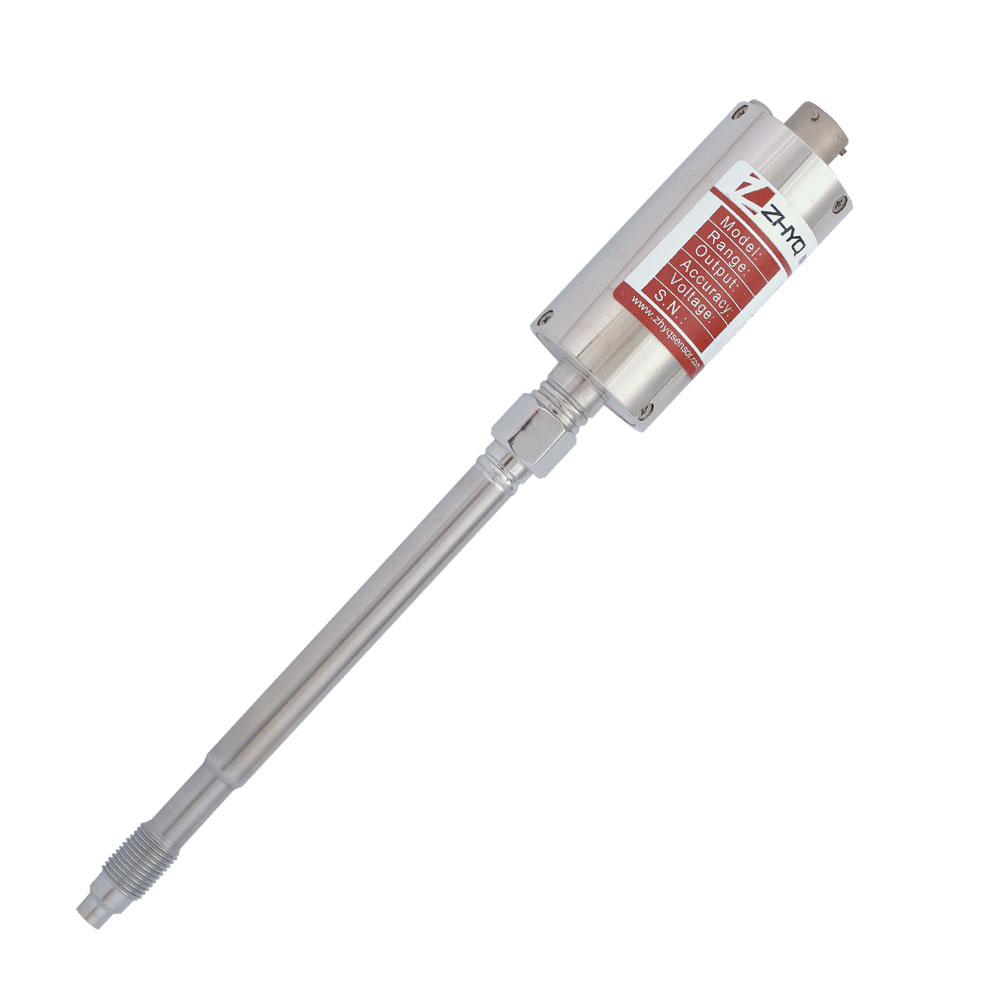

Model:PT124B-111/ 111T/121/121T

Description:

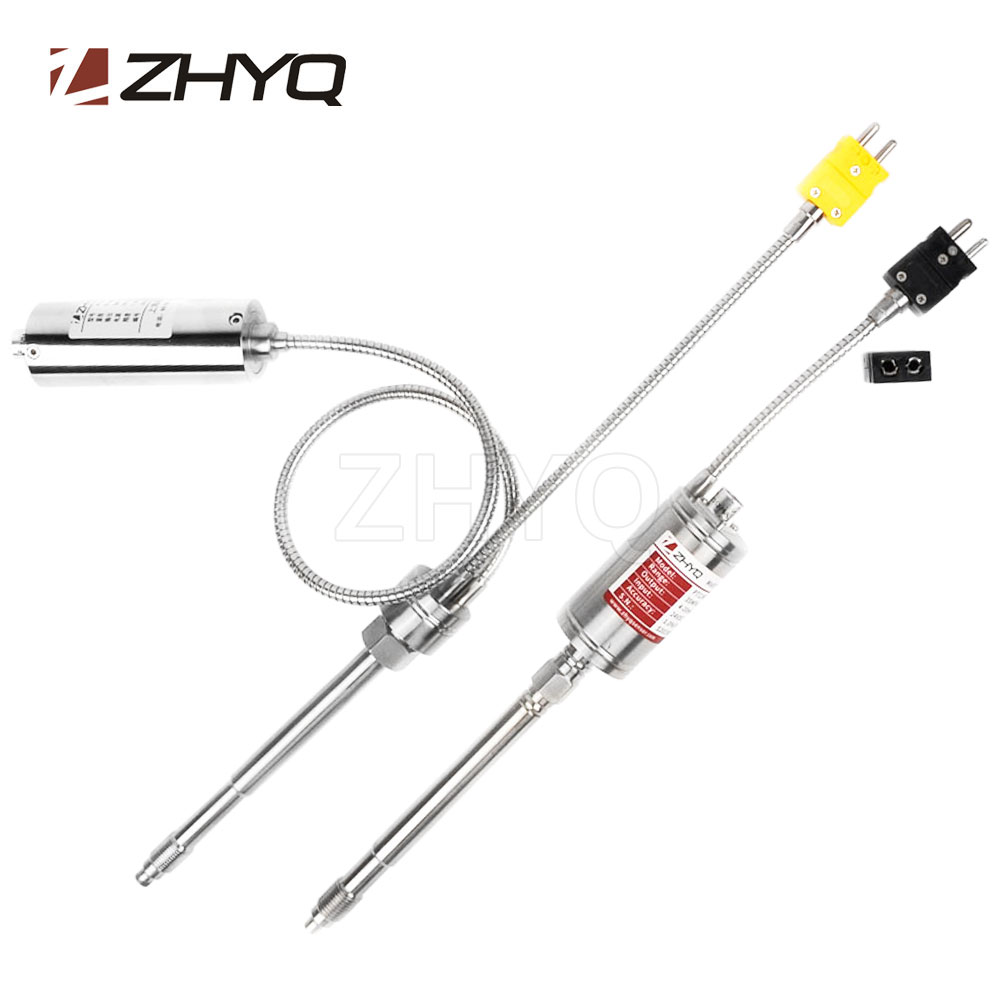

PT124B-111/ 111T/121/121T Series melt pressure transducer is economic type, designed with rigid stem construction. And the model PT124B-111T comes with thermocouple, it can measure the pressure and temperature at one point. This product built in amplifier circuit board and 80% shunt calibration, zero and span adjustable, the output signal can input PLC directly. And it can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand.

Send inquiry Download PDF

Tags: plastic extruder melt pressure sensor, Cost-effective melt pressure transducer, Lower price extruder melt pressure transducer

  • Widely pressure range
  • Stainless steel Seal
  • Simple Installation
  • 80% inner calibration
  • Excellent stability and repeatability
  • It can be widely used in various plastic extrusion lines for pressure measuring and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical.
Pressure range 0-3.5MPa…0-150MPa (0-500psi…0-20000psi)
Over Pressure 1.5 X FSO
Combined Error ± 1.5% FSO; ±1.0% FSO (Including Linearity, Repeatability & Hysteresis)
Output 4-20mA, 0-10V, 0-5V
Input Voltage 24VDC
Repeatability +/- 0.2%FSO
Bridge Resistance Input 345 Ohms minimum
Internal Shunt Calibration (R-Cal) 80% FSO +/- 1%
Insulation Resistance 200 megohms @ 100 Vdc
Max Diaphragm Temperature 300 ℃
Mounting Torque 500 inch/lbs. max.
Standard Wetted Parts Diaphragm coated 15-5 PH SST
Thermocouple type J, K, E, PT100 (PT124B-111T, PT124B-121T)
Electrical connector 5PIN
Process connector M14×1.5, M18×1.5 Optional
