sanitary melt pressure transducer

Model:PT124G-113/113T/122/122T

Description:

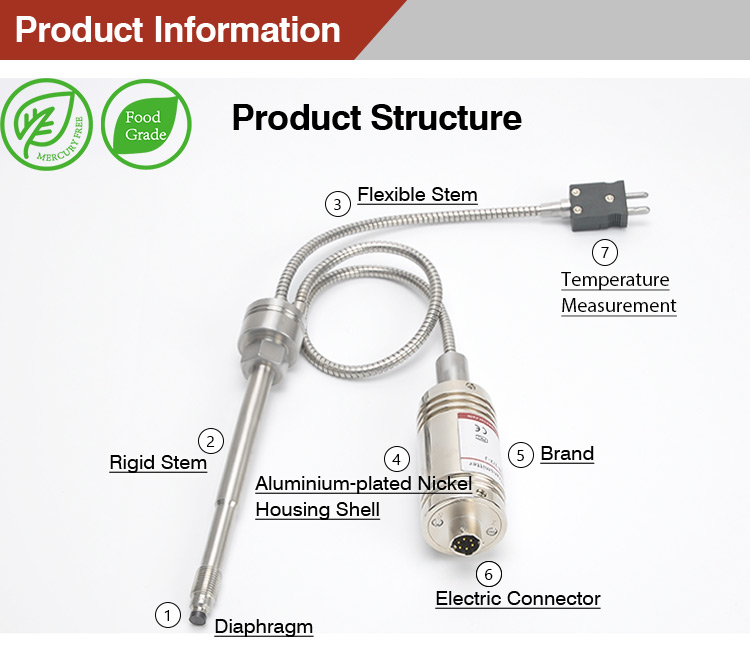

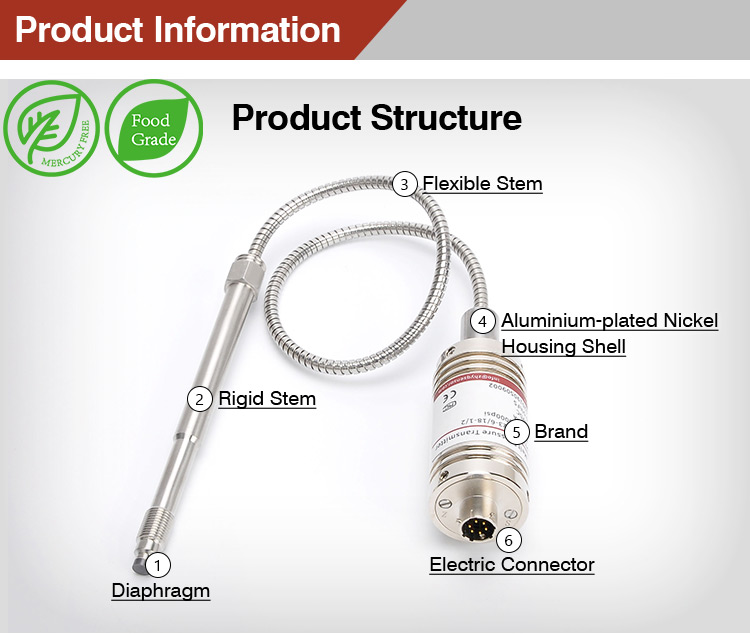

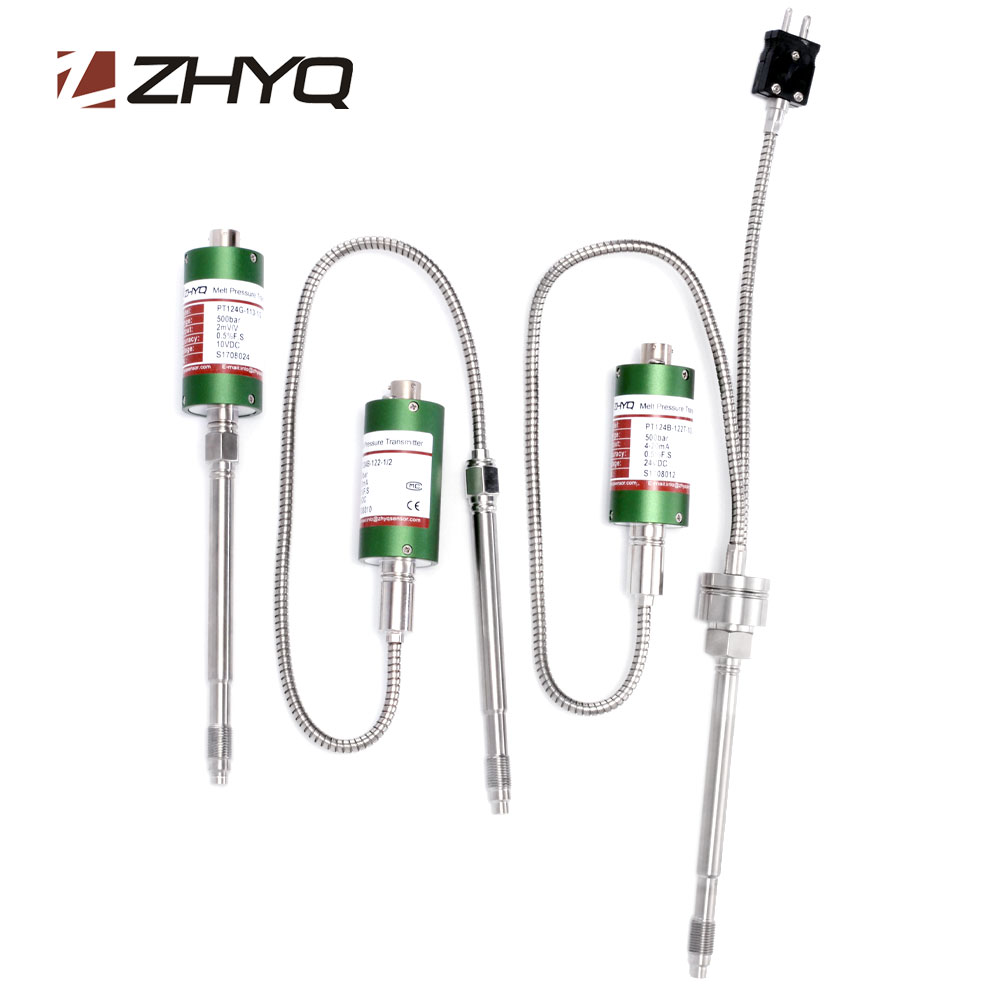

PT124G-113/113T/122/122T Series sanitary melt pressure transducer designed with rigid stem or flexible stem. The model PT124G-113T/122T comes with thermocouple, which can measure the pressure and temperature at one point. This product filled with environmental, avirulent medium. If the diaphragm damaged during process, the leaking medium is no harm to the human body or ambient. With the advantages of exact and reliable measurement, high performance, no harm, it is widely used in the hygienic field.

Send inquiry Download PDF

Tags: sanitary melt pressure transducer for food machinery, Food grade flexible melt pressure transducer, 3.33mv/v output oil filled rigid stem melt pressure transducer

  • High-standard quality

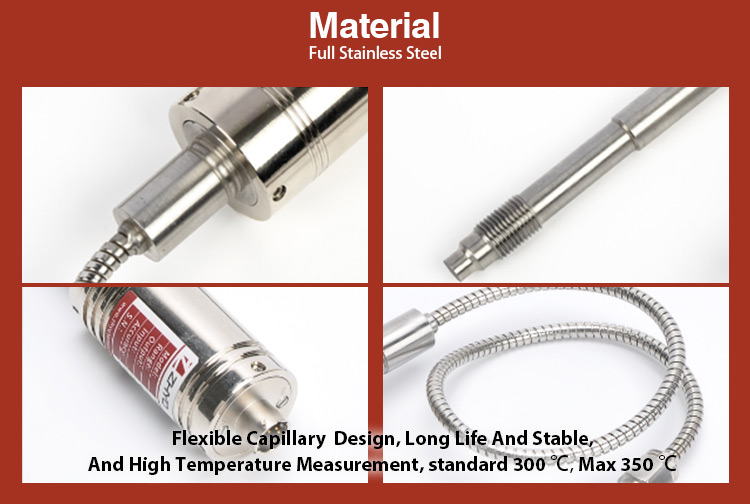

  • Stainless steel welding
  • Simple installation
  • Adopt environmental and non-toxic material
  • 80% internal calibration
  • Excellent stability and repeatability
  • It has the wide application in medicine & food process equipment, drinking water environmental monitoring and etc.
Pressure range 0-10MPa…0-150MPa (0-1500psi…0-20000psi)
Over Pressure 1.5 X FSO
Combined Error ± 1.5% FSO; ± 1.0% FSO (Including Linearity, Repeatability & Hysteresis)
Output 3.33 mV/V, 2mV/V
Input Voltage 10VDC
Repeatability +/- 0.2%FSO
Bridge Resistance Input 345 Ohms minimum
Bridge Resistance Output 350 Ohms +/- 10%
Internal Shunt Calibration (R-Cal) 80% FSO +/- 1%
Insulation Resistance 200 megohms @ 100 Vdc
Max Diaphragm Temperature 260 ℃
Mounting Torque 500 inch/lbs. max.
Standard Wetted Parts Diaphragm coated 15-5 PH SST
Electrical connector 5PIN, 6PIN
Process connector 1/2″-20UNF, M14×1.5, M18×1.5 Optional
