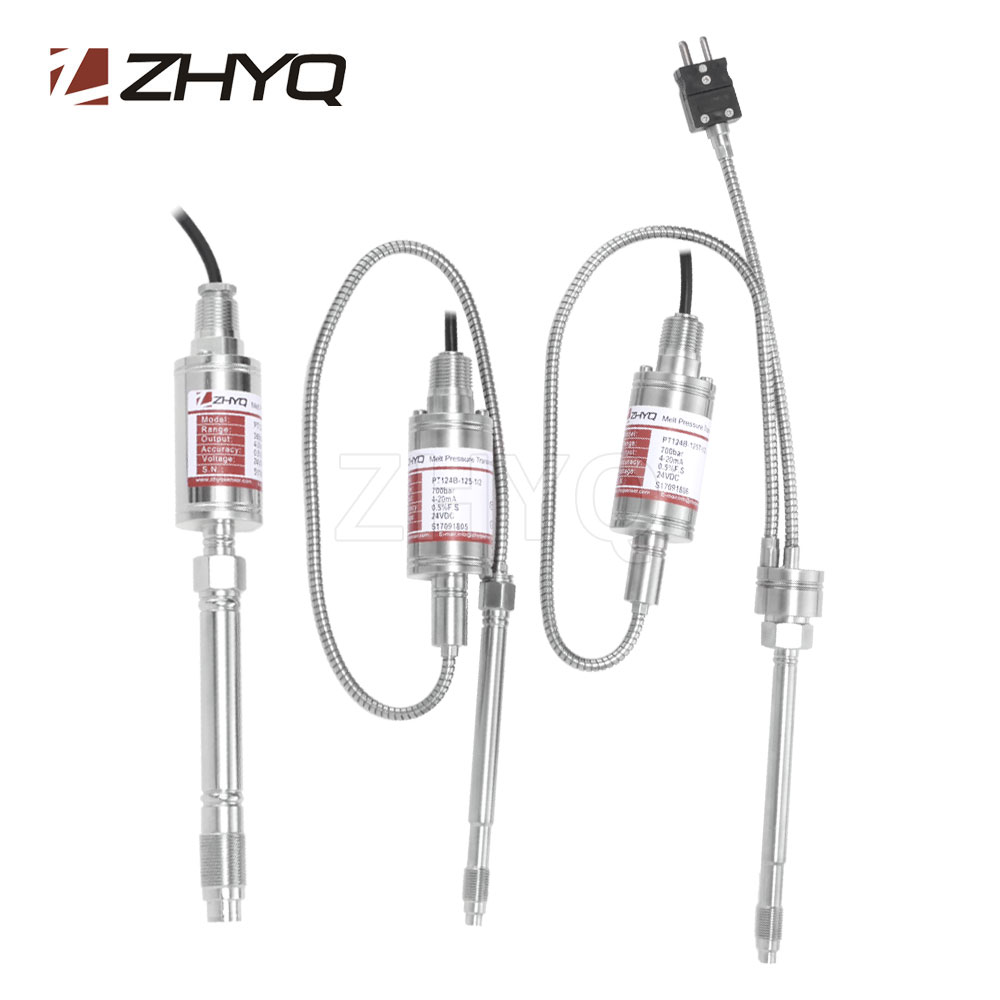

Explosion proof melt pressure transducer
Explosion proof melt pressure transducer
Explosion proof melt pressure transducer
Explosion proof melt pressure transducer

Explosion proof melt pressure transducer

Model:PT124G-125/125T

Description:

PT124G-125/125T Series explosion proof melt pressure transducer adopts intrinsic safety explosion proof and welded construction, it is suitable to use in the harsh environment. PT124G-125T comes with thermocouple, which can measure the pressure and temperature at one point. This product built in 80% shunt calibration, it can match the N series pressure instrument from ZHYQ, and also can match the pressure instrument or controller of other brand.

Send inquiry Download PDF

Tags: explosion proof melt pressure transducer, pressure transducer manufacturer, Explosion proof pressure transmitter

  • Intrinsic safety explosion proof design
  • High-standard quality
  • Stainless steel Seal
  • 80% inner calibration
  • Excellent stability and repeatability
  • It is widely used in the hazardous area for pressure measurement and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical.
Pressure range 0-3.5MPa…0-150MPa (0-500psi…0-20000psi)
Over Pressure 1.5 X FSO
Combined Error ± 0.5% FSO, ± 1.0% FSO (Including Linearity, Repeatability & Hysteresis)
Output 3.33 mV/V, 2mV/V
Input Voltage 10VDC
Repeatability +/- 0.2%FSO
Bridge Resistance Input 345 Ohms minimum
Bridge Resistance Output 350 Ohms +/- 10%
Internal Shunt Calibration (R-Cal) 80% FSO +/- 1%
Insulation Resistance 200 megohms @ 100 Vdc
Max Diaphragm Temperature 350 ℃
Mounting Torque 500 inch/lbs. max.
Explosion proof ExibllCT4
Standard Wetted Parts Diaphragm coated 15-5 PH SST
Electrical connector 1/2NPT conduit cable
Process connector 1/2 ″ -20UNF, M14×1.5, M18×1.5 Optional
