Capillary melt pressure transducer
Capillary melt pressure transducer

Capillary melt pressure transducer for narrow space

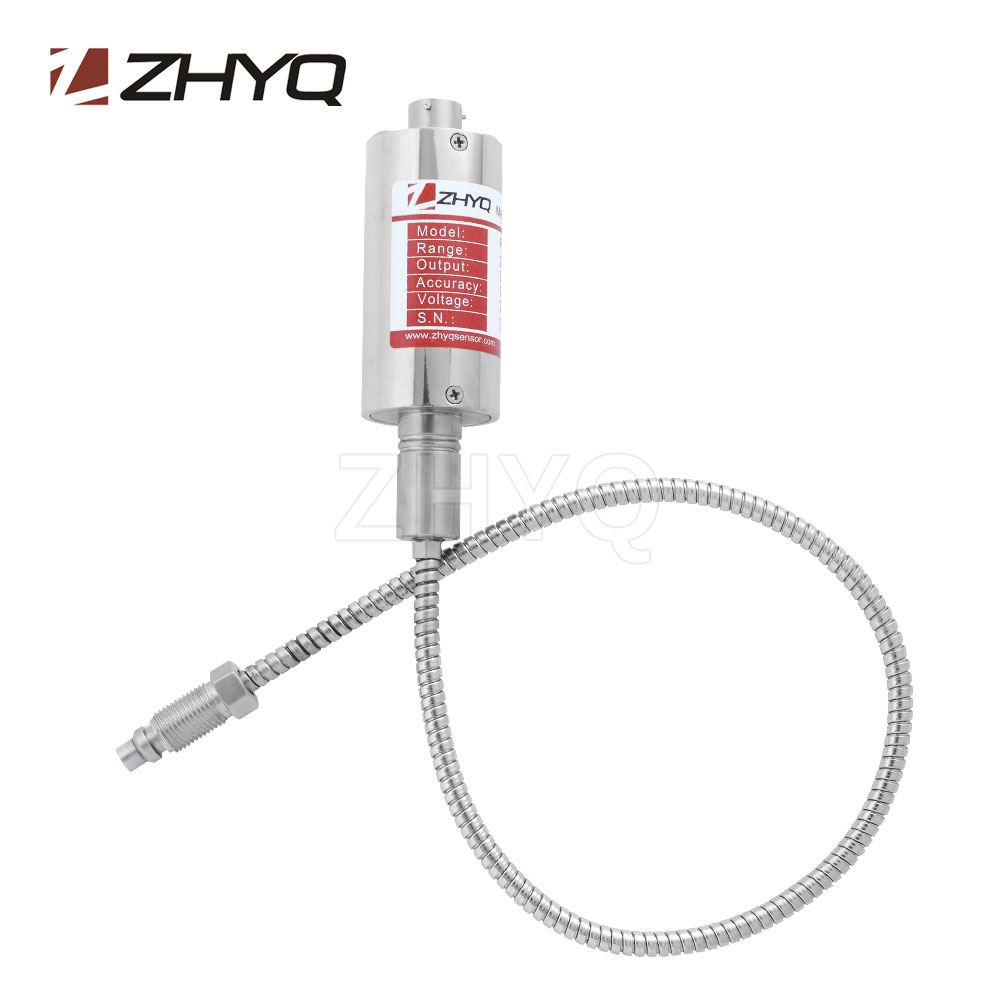

Model:PT124G-128

Description:

PT124G-128 Series melt pressure transducer is ideal for space restricted areas applications required, where mounting space is limited. It also has a free-spinning jam nut that simplifies installation. It comes equipped with six or eight pin bendix connector, and it can be interchangeable with the similar world standard products.

Send inquiry Download PDF

Tags: Capillary melt pressure transducer, pressure transducer supplier, MV/V output plastic machinery melt pressure transducer

  • Exposed, bendable capillary
  • Accuracy better than 0.5%
  • Stainless steel wetted parts
  • Internal 80% Shunt Calibration
  • Good stability and repeatability
  • It can be used in various plastic extrusion lines for pressure measuring and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical.
Pressure range 0-3.5MPa…0-150MPa (0-500psi…0-20000psi)
Over Pressure 1.5 X FSO
Combined Error 0.5% FSO (Including Linearity, Repeatability&Hysteresis)
Output 3.33 mV/V, 2mV/V
Input Voltage 10VDC
Repeatability +/- 0.2%FSO
Bridge Resistance Input 345 Ohms minimum
Bridge Resistance Output 350 Ohms +/- 10%
Internal Shunt Calibration (R-Cal) 80% FSO +/- 1%
Insulation Resistance 200 megohms @ 100 Vdc
Max Diaphragm Temperature 350 ℃
Mounting Torque 500 inch/lbs. max.
Standard Wetted Parts Diaphragm coated 15-5 PH SST
Electrical connector 5PIN, 6PIN
Process connector 1/2 ″ -20UNF, M14×1.5, M18×1.5 Optional
