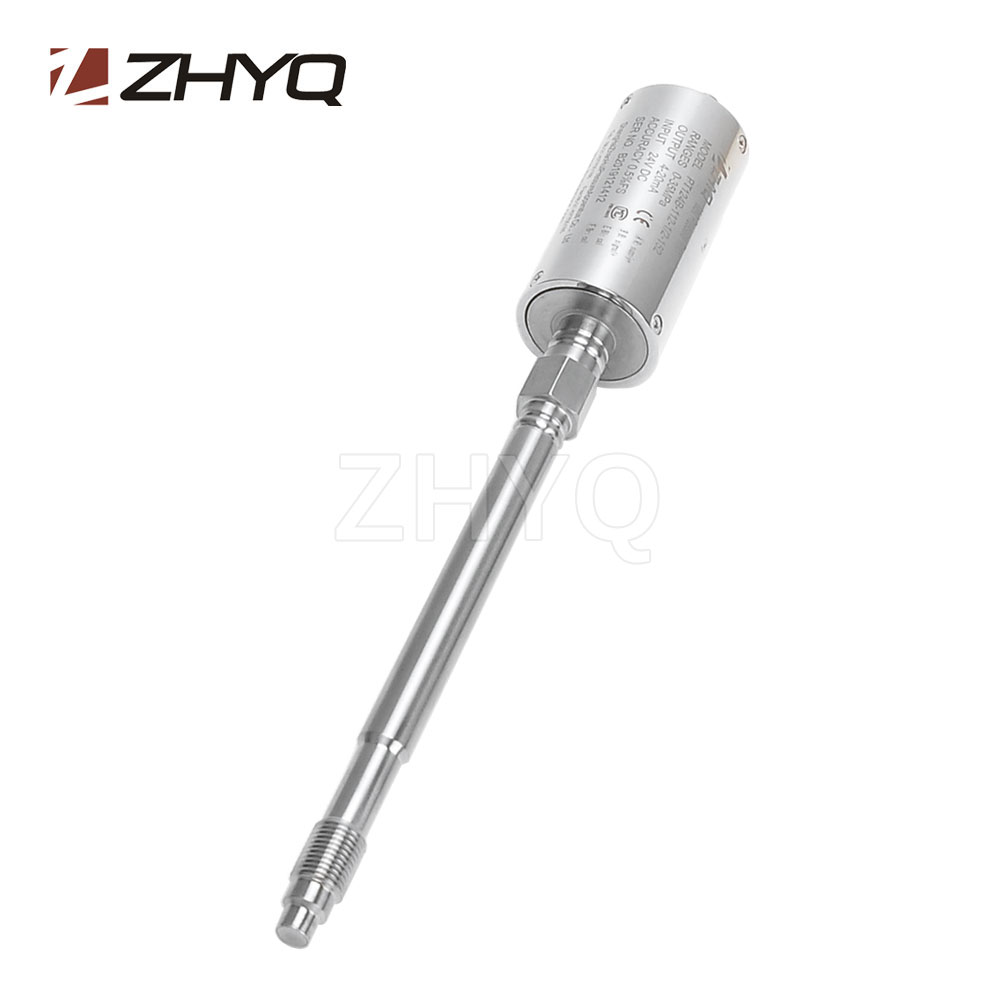

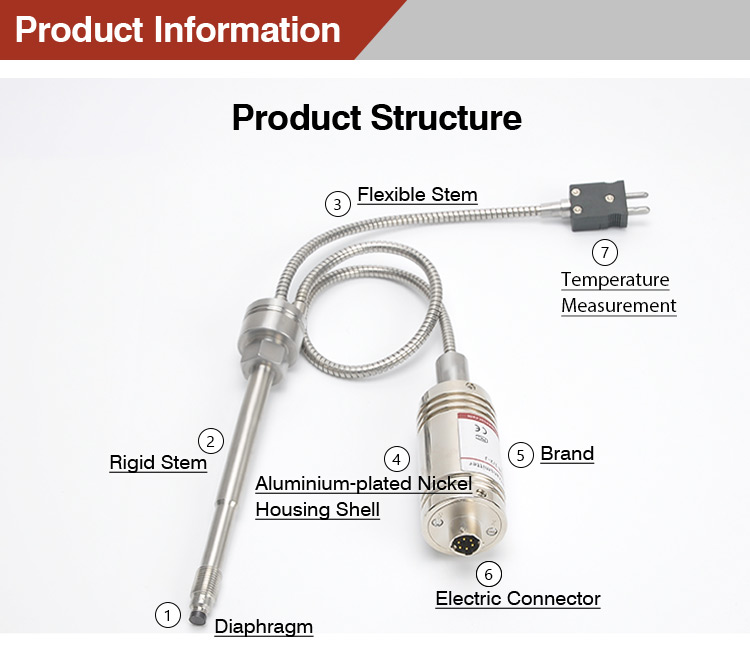

High accuracy flexible melt pressure transducer

Model:PT124G-112/112T/123/123T

Description:

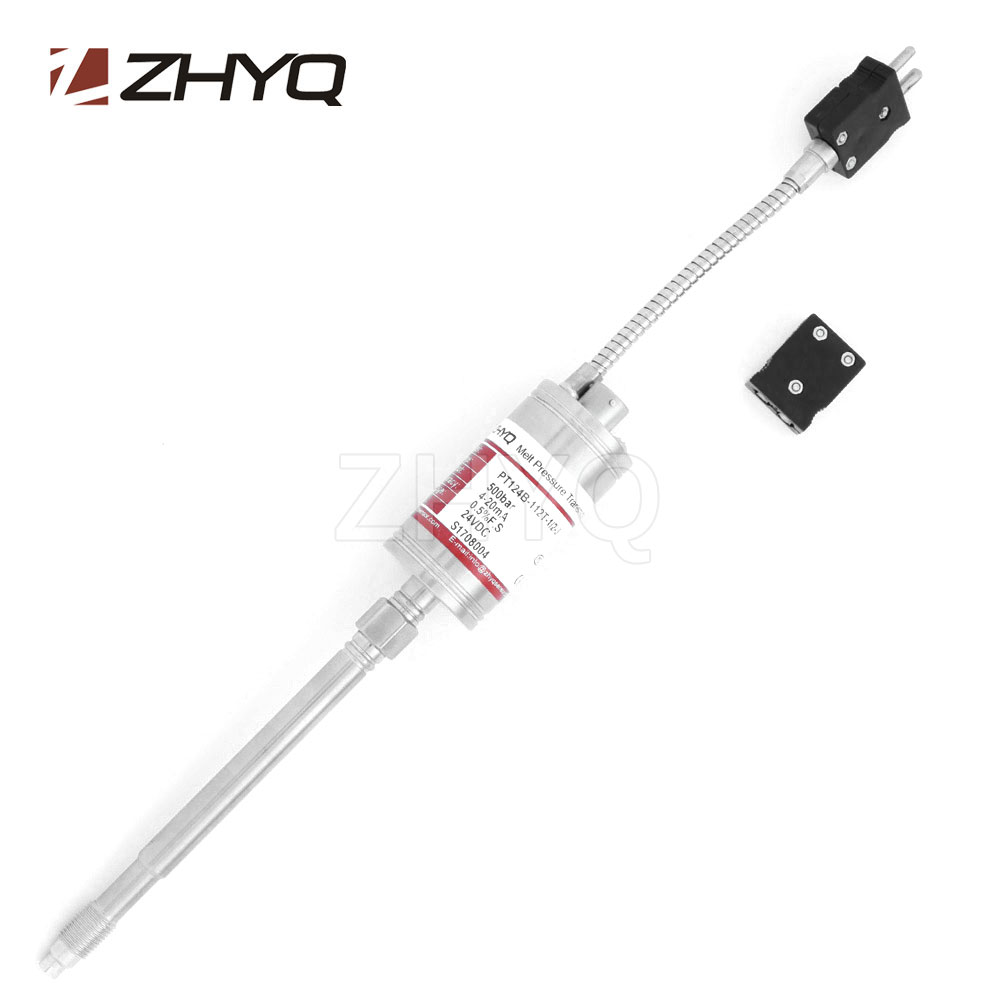

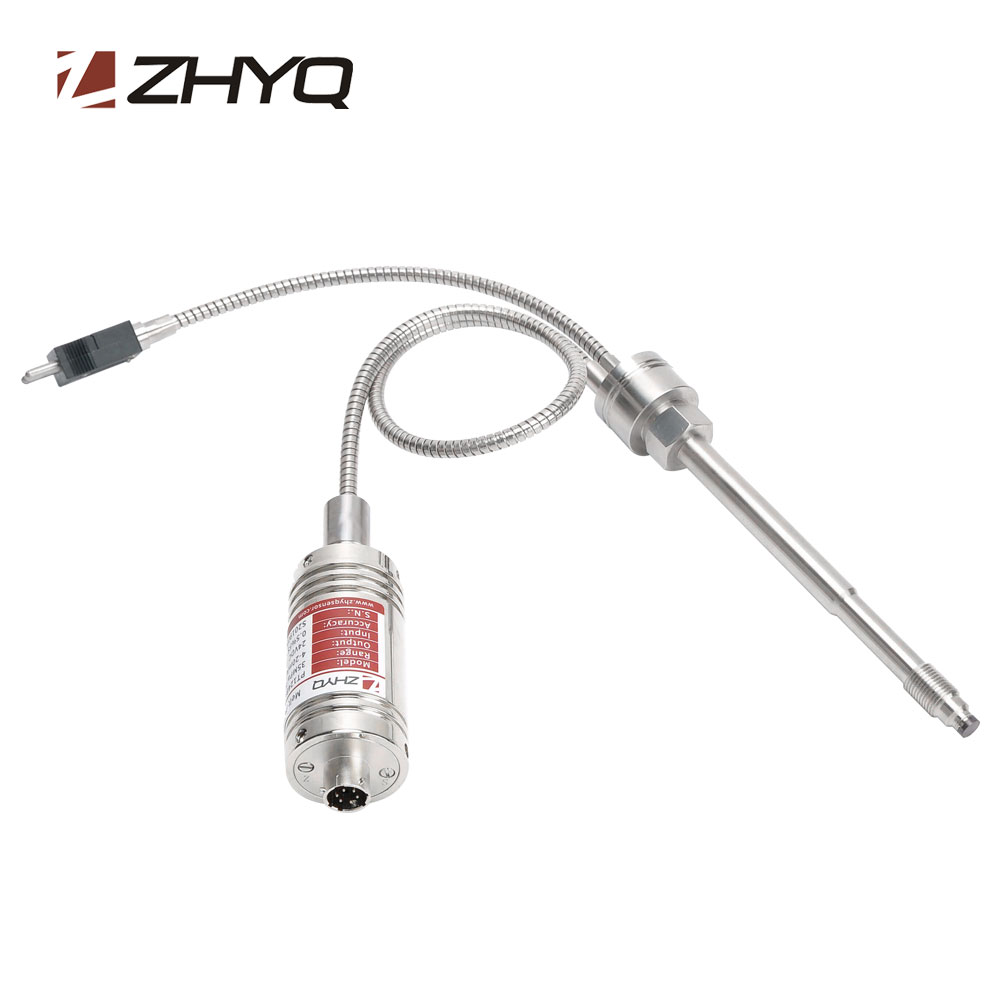

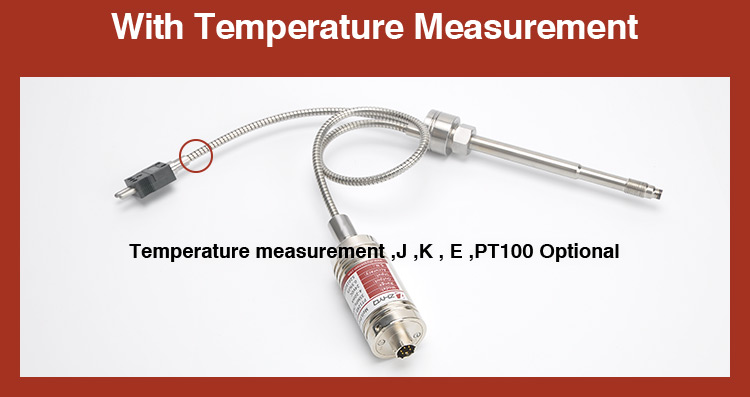

The PT124G-112/112T/123/123T high precision melt pressure transducers are ideal for the measurement of melt pressure in extrusion processes at temperatures up to 350℃.This series are produced with special materials and alloyed elastic diaphragm together with delicate processing and debugging. The main characteristics are high accuracy and small zero and span shifts caused by changes in process temperatures. The model PT124G-112T/123T comes with temperature sensor, with type J, K, E optional.

Send inquiry Download PDF

Tags: 0.5% accuracy melt pressure transducer, Flexible melt pressure transducer, Melt pressure transducer with TC thermocouple

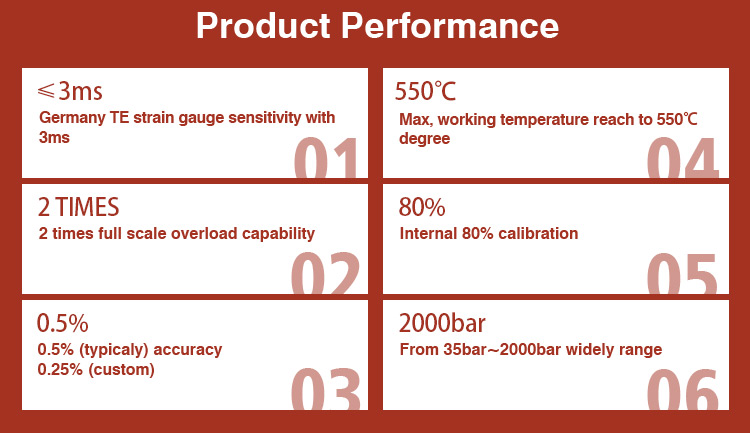

  • Easy to install
  • Widely measurement ranges
  • High accuracy
  • Internal 80% calibration
  • Interchangeable for other brands
  • Excellent stability and repeatability
  • It can be widely used in various plastic extrusion lines for pressure measuring and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical.
Pressure range 0-3.5MPa…0-150MPa (0-500psi…20000psi)
Over Pressure 1.5 X FSO
Combined Error  ± 0.5% FSO (Including Linearity, Repeatability & Hysteresis)
Output 3.33 mV/V, 2mV/V
Input Voltage 10VDC
Repeatability +/- 0.2%FSO
Bridge Resistance Input 345 Ohms minimum
Bridge Resistance Output 350 Ohms +/- 10%
Internal Shunt Calibration (R-Cal) 80% FSO +/- 1%
Insulation Resistance 200 megohms @ 100 Vdc
Max Diaphragm Temperature 300 ℃
Mounting Torque 500 inch/lbs. max.

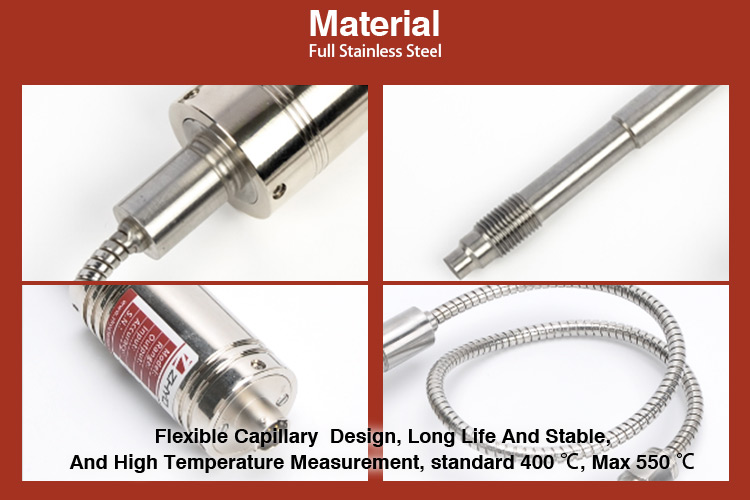

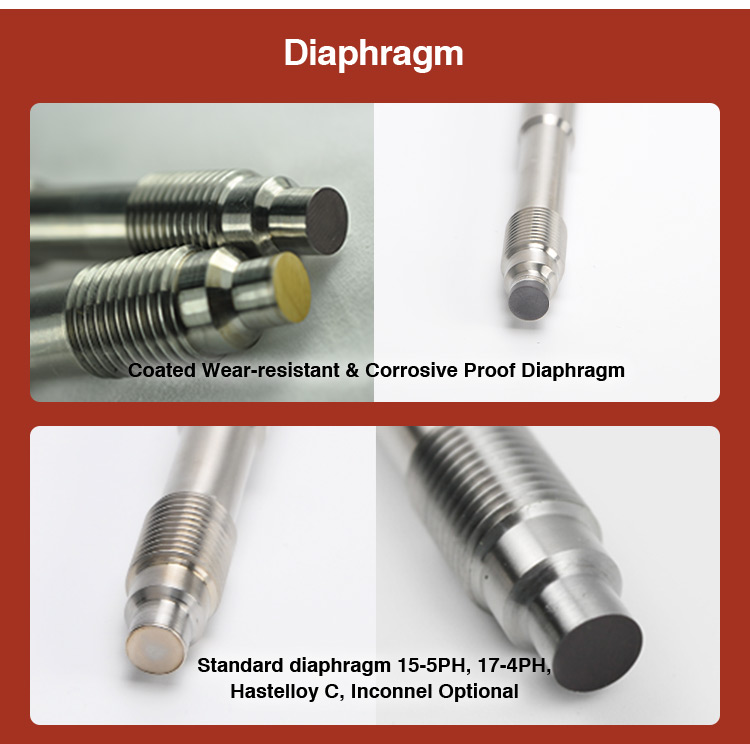

Standard Wetted Parts Diaphragm coated 15-5 PH SST

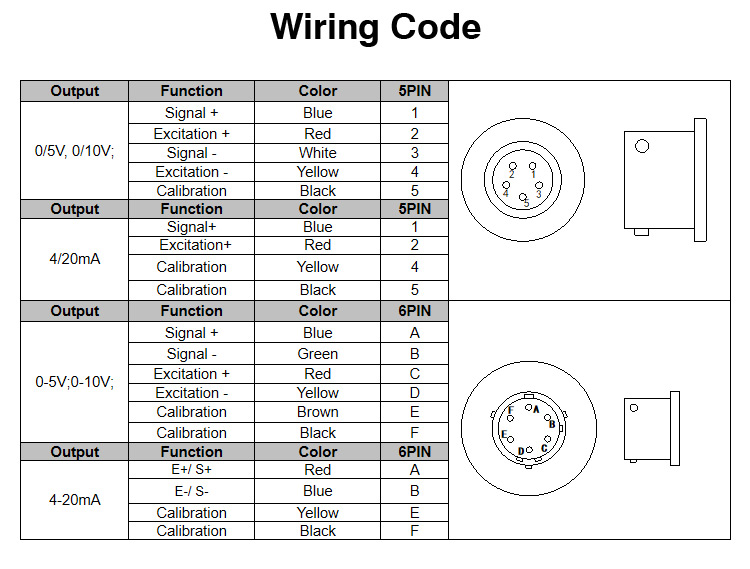

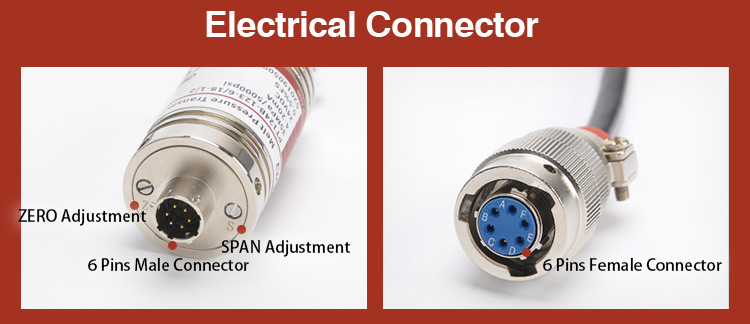

Electrical connector 6PIN connector

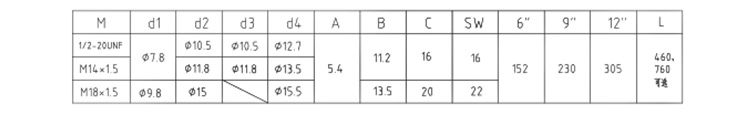

Process connector 1/2″-20UNF, M14×1.5, M18×1.5 Optional
