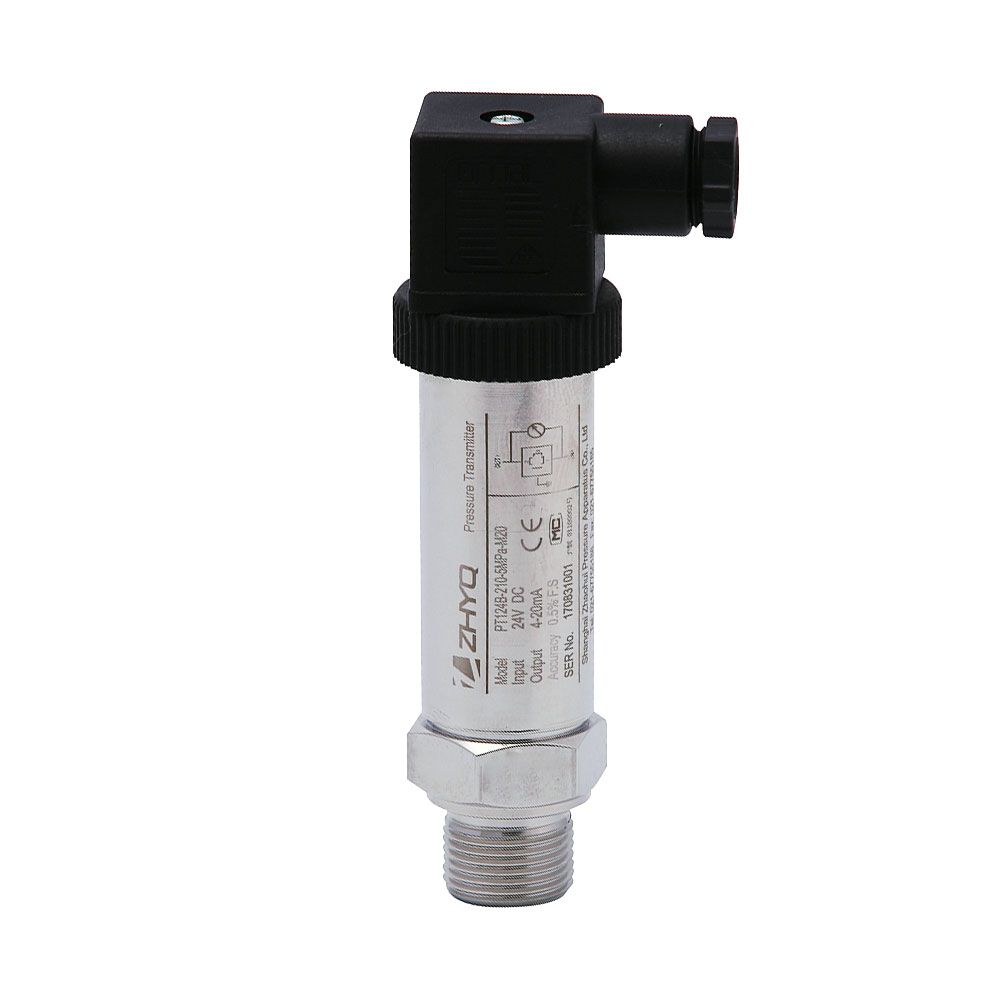

PT124B-210-2
PT124B-210-1
PT124B-210-2

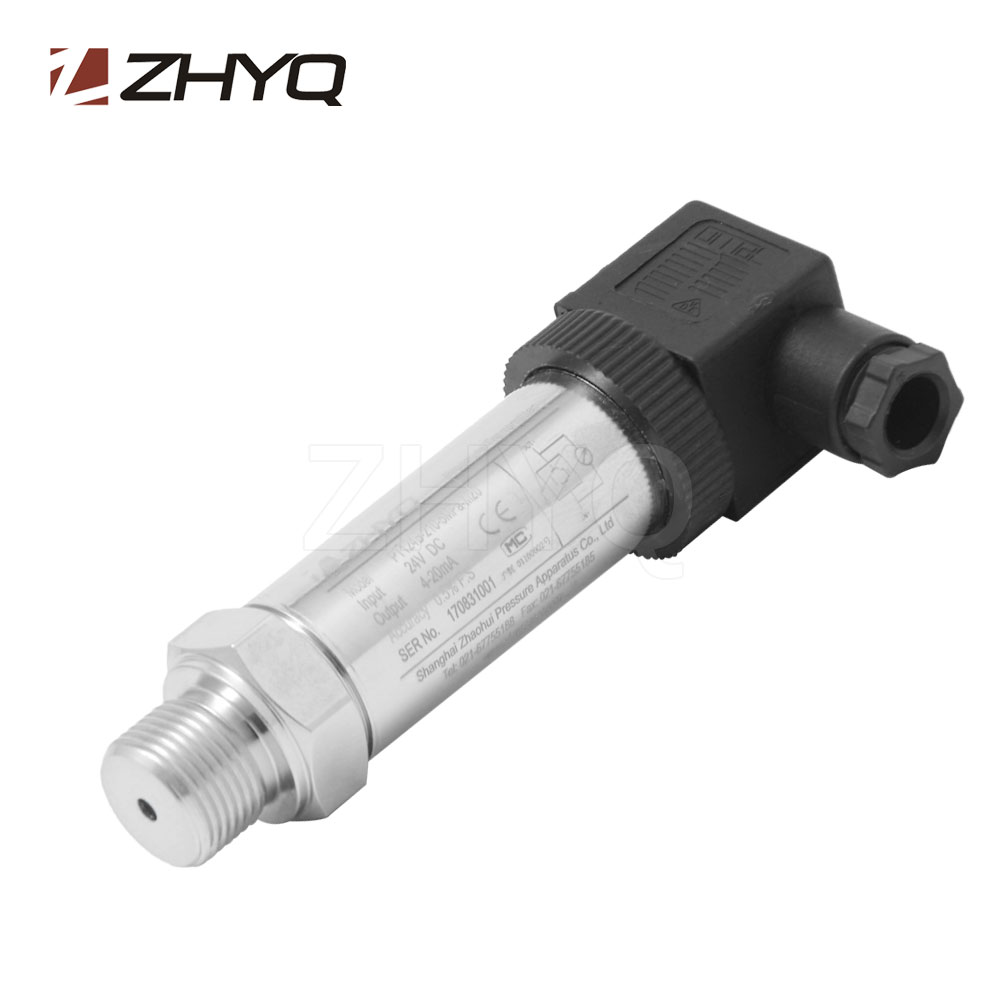

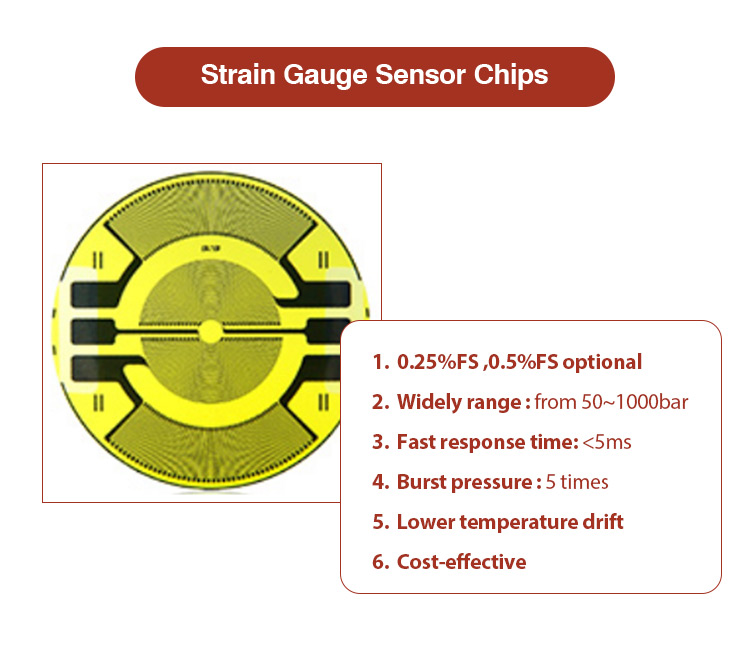

Strain gauge pressure transmitter

Model:PT124B-210

Description:

PT124B-210 Series standard pressure transmitter adopts traditional piezoresistive technology. It designed with widely pressure range, compound output signals optional. It is suitable for both civil and industrial use. Multiply construct available, it can make sure the batch requirement of the client, we also can supply the special design.

Send inquiry Download PDF

Tags: Industrial pressure transmitter, 4-20mA pressure transmitter, 0-10V pressure transmitter

  • Widely pressure range from 0~50bar~1000bar
  • Various industrial standard signal output
  • Various electrical connectors available
  • Certain stock for shortening delivery time
  • Compact dimension design

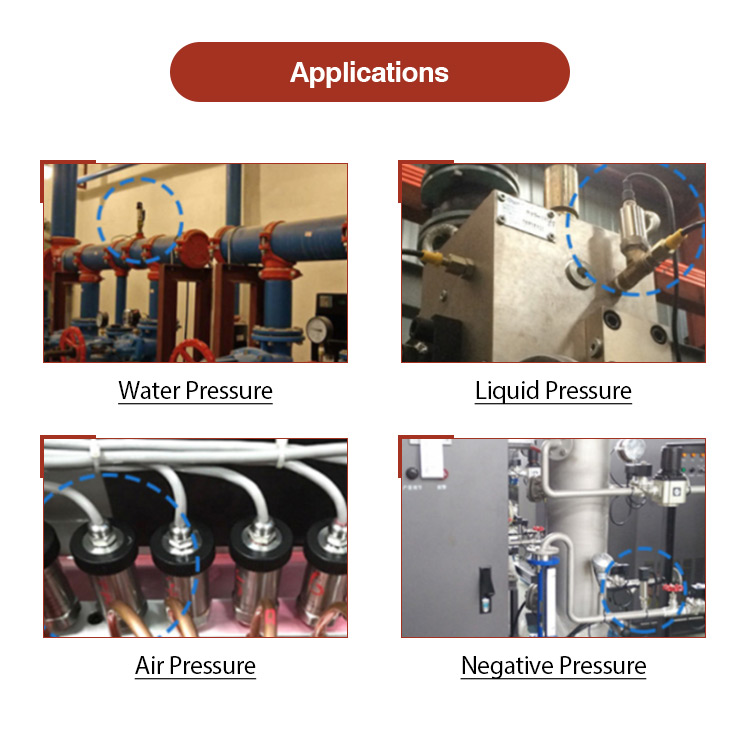

  • This series is suitable for mechanical engineering or industrial automation measuring for mechanical engineering Industry, hydraulic and level measurement, gas tank pressure monitoring, industrial test and control, and other industrial applications.
Model PT124B-210
Pressure range 0~50bar~1000bar
Over load 150%FS
Burst pressure 300%FS

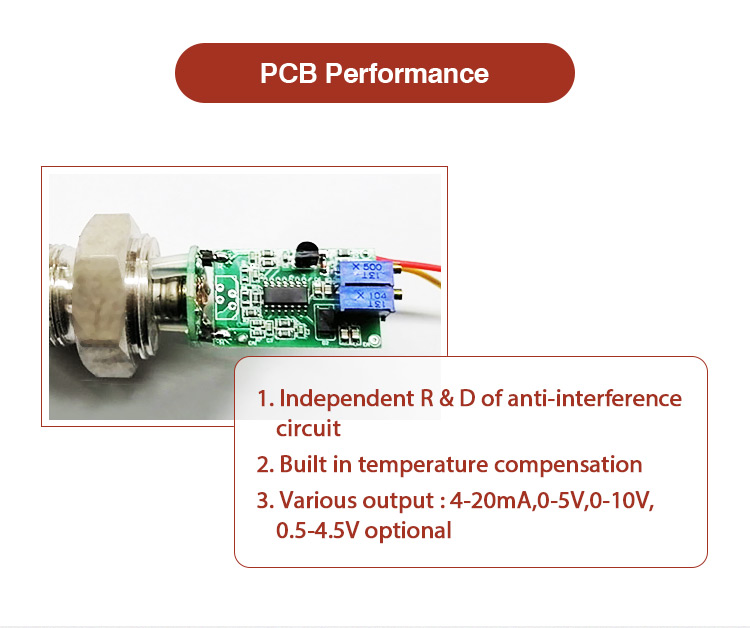

Output 4-20mA, 1-5V/0-5V, 0-10V
Power supply 12~36VDC
Response time <5ms
Combine error 0.5%FSO; 0.25%FS (Including Linearity, Repeatability & Hysteresis)
Repeatability ≤ +/- 0.2%FSO
Long term stability ≤ +/-0.2%FS/year

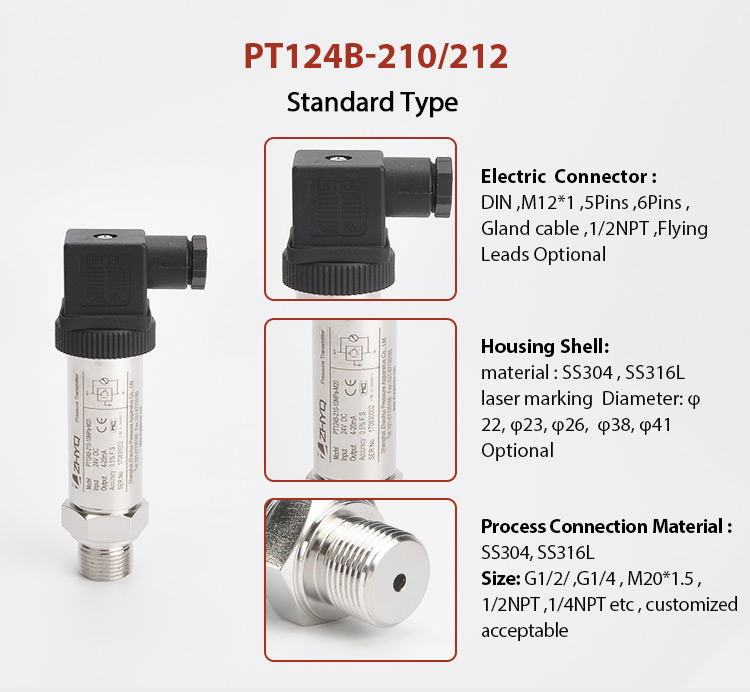

Pressure connection M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor )
Operating temperature -20 ℃ ~ 80 ℃
Temperature compensation 0℃ ~ 60℃

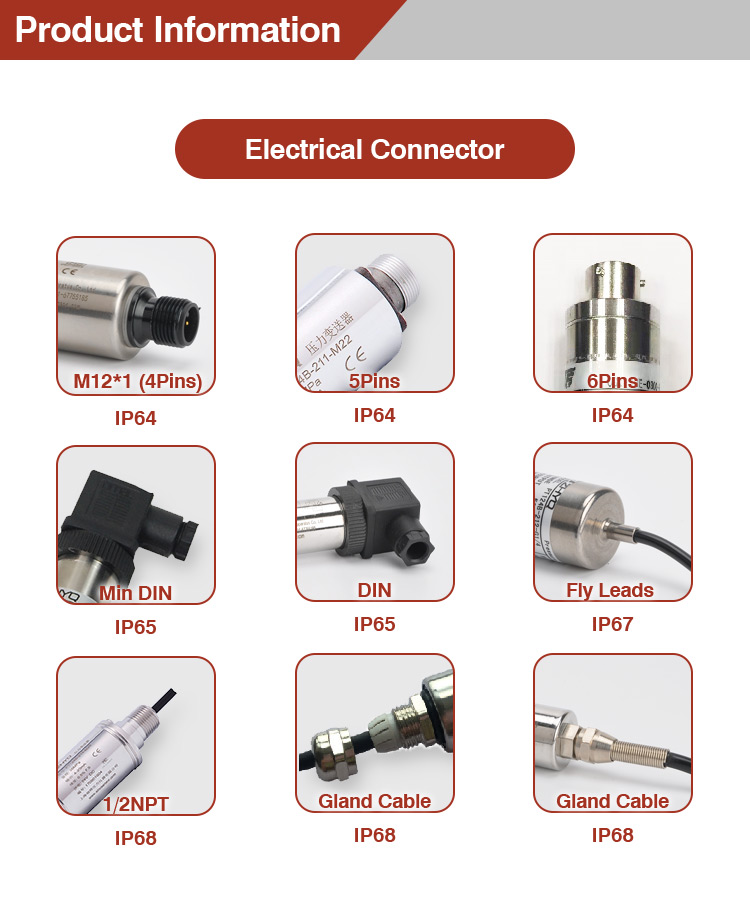

Electrical connector Bendix connector,Hirschman DIN4365 and Gland lead
