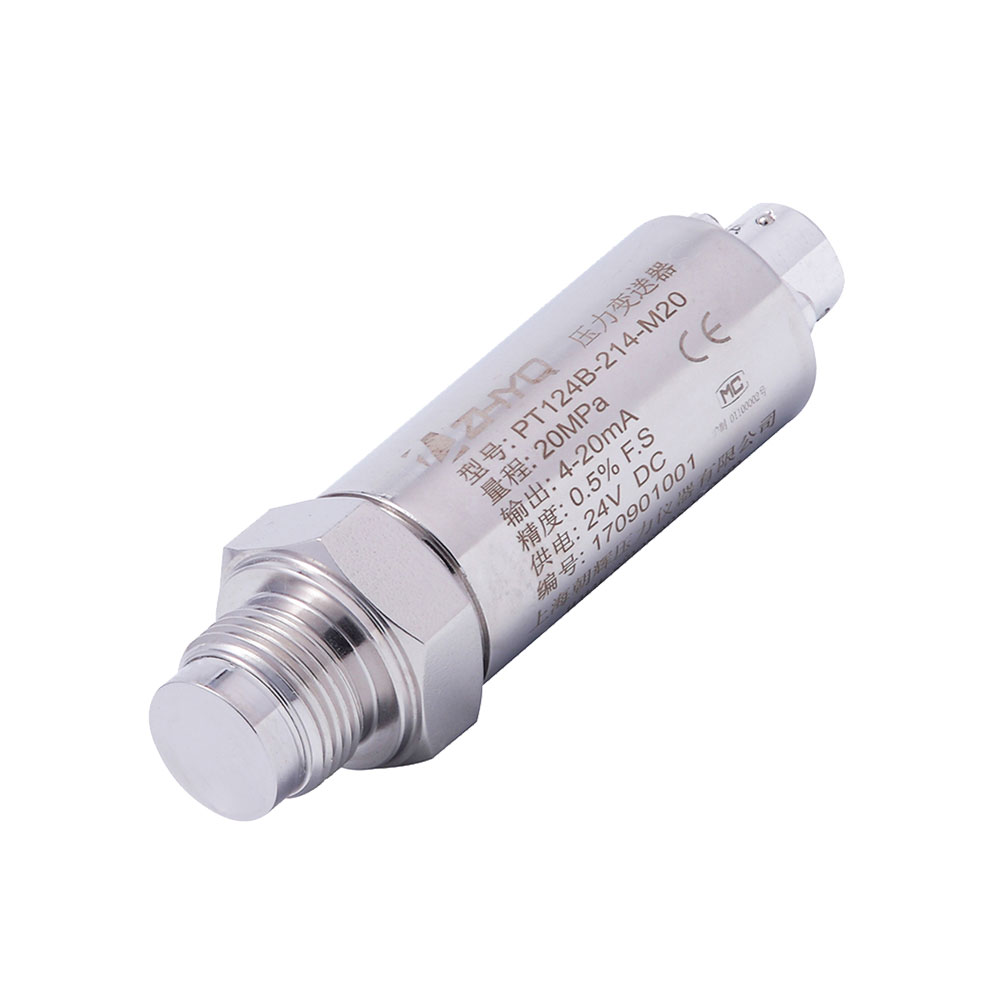

PT124B-214-1

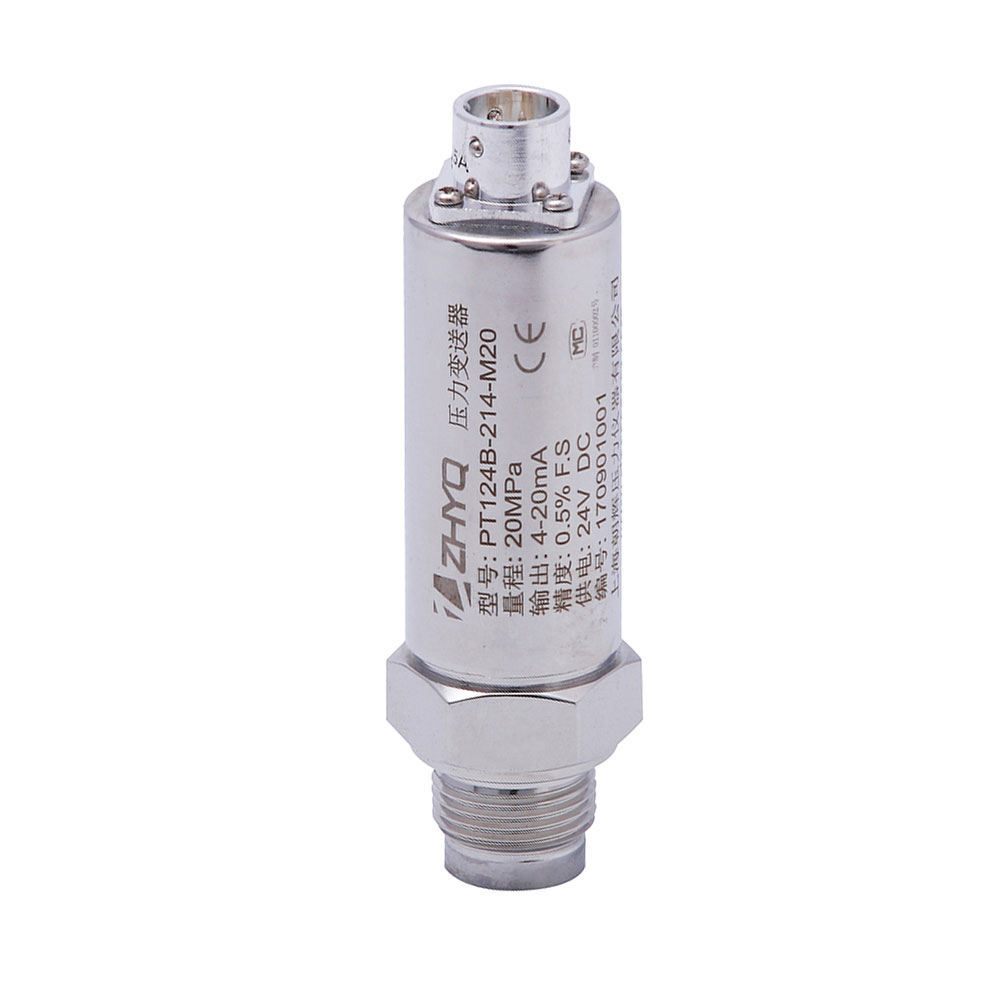

PT124B-214-2
PT124B-214-1
PT124B-214-2

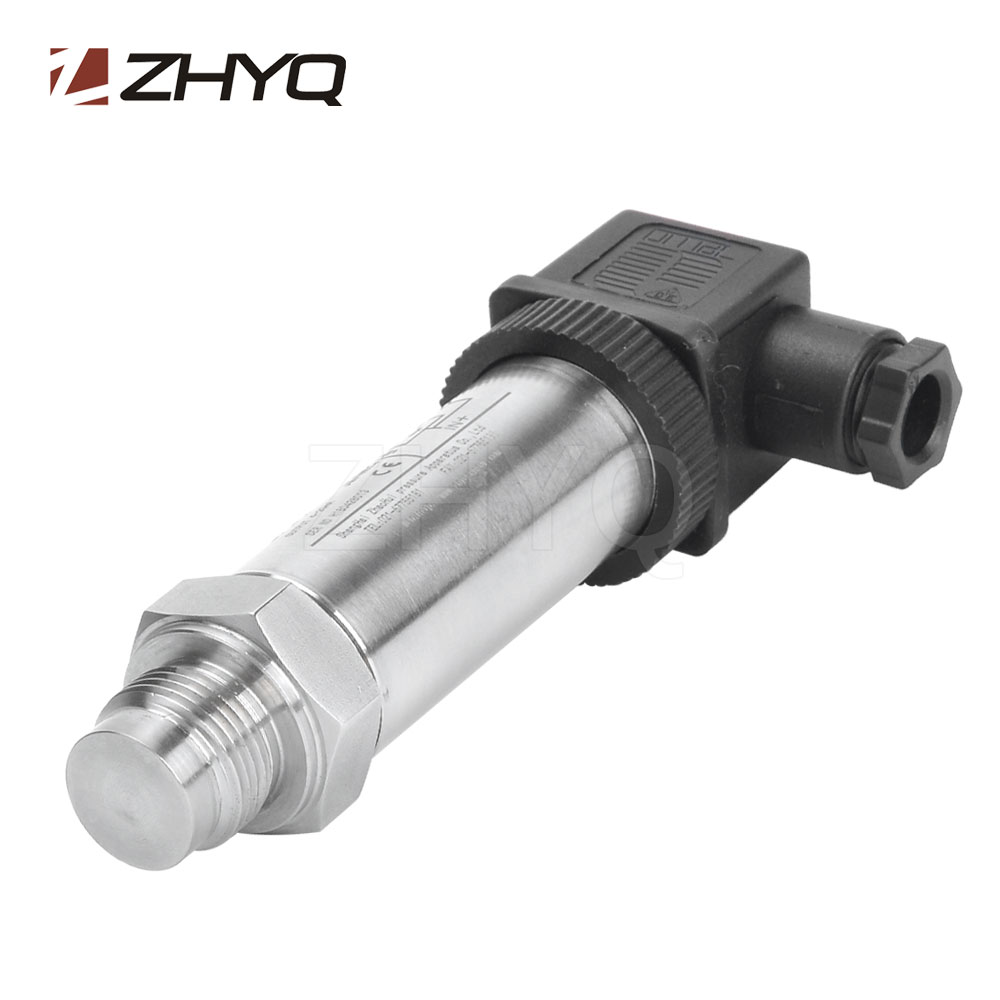

Flush diaphragm pressure transmitter

Model:PT124B-214

Description:

PT124B-214 Series flush diaphragm pressure transmitter, it adopts firm material with special treatment, it hardly to damage by the tiny particles in the measurement medium. This product design with compact construct, shock-resistant, it solves the problems during the measurement that the pressure port is easily blocked, it can be interchangeable with the similar world standard products.

Send inquiry Download PDF

Tags: Industrial pressure transmitter, Flush diaphragm pressure transmitter, Corrugated diaphragm pressure transmitter

  • Widely Pressure Range: -1bar~ 0bar ~800bar
  • Various output signal for option

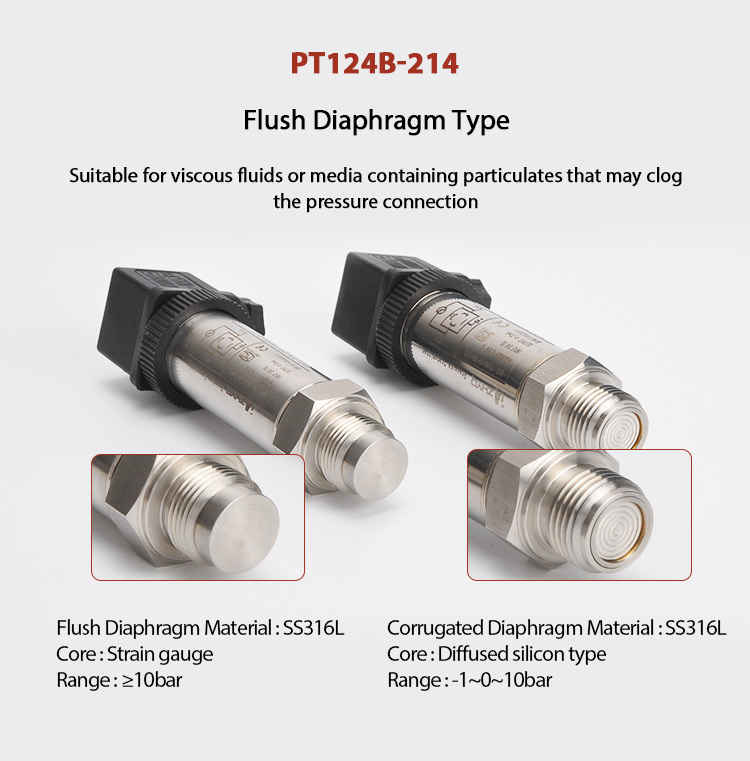

  • Diffused silicon element, Corrugated flush diaphragm
  • Excellent corrosion-proof capability
  • Compact dimension, high quality
  • Mechanical engineering
  • Hydraulics/Pneumatics
  • General industrial applications
  • Food & Beverage
Pressure range -1~0bar~800bar
Over load 150%FS
Burst pressure 300%FS
Output 4-20mA, 1-5V/0-5V, 0-10V
Power supply 12~36VDC
Response time <5ms
Combine error 0.5% FSO (Including Linearity, Repeatability & Hysteresis)
Repeatability ≤ +/- 0.2%FSO
Long term stability ≤ +/-0.2%FS/year
Pressure connection M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor )
Operating temperature -20 ℃ ~ 80 ℃
Temperature compensation 0℃ ~ 60℃
Electrical connector Bendix connector,Hirschman DIN4365 and Gland lead
