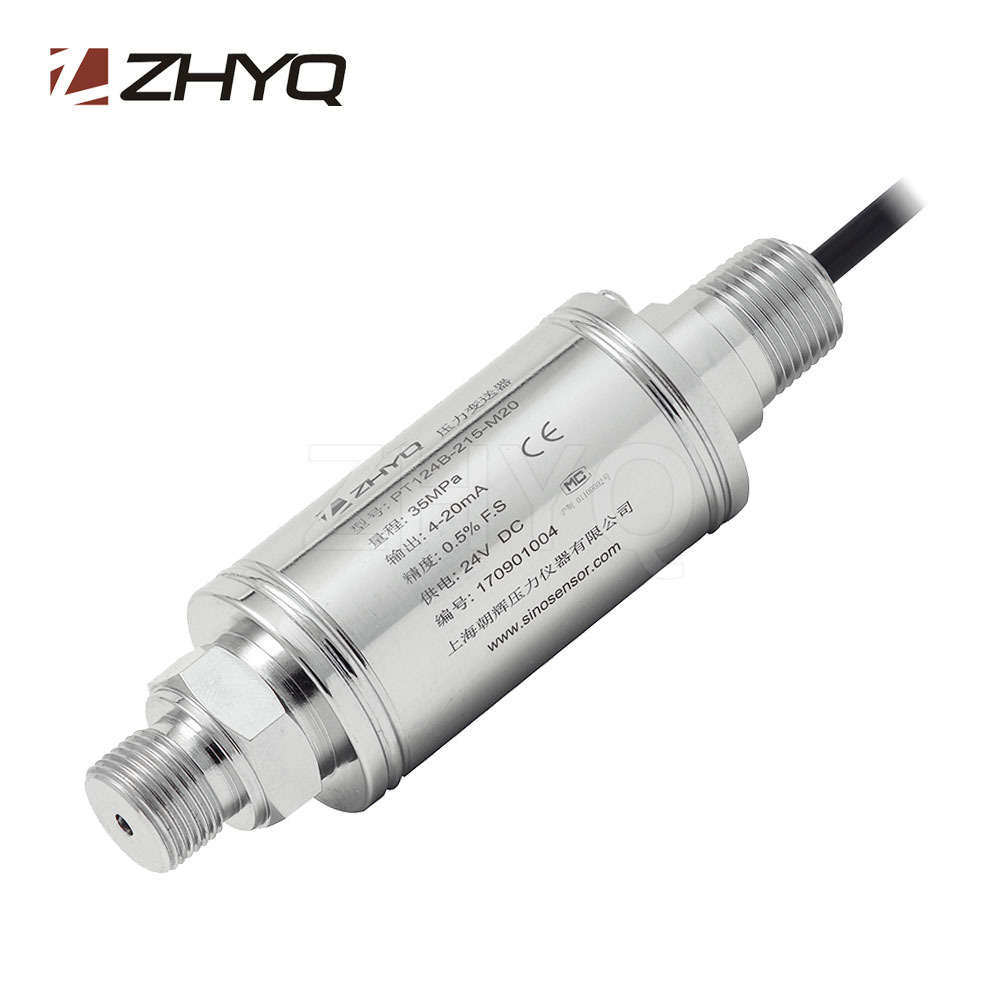

Explosion proof pressure transmitter
Model:PT124B-215
Description:

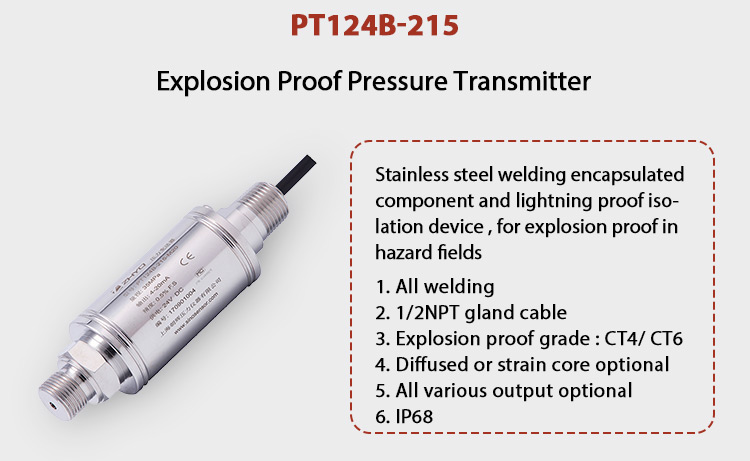

PT124B-215 Series explosion proof pressure transmitter designed with stainless steel welding encapsulated, lighting proof isolation device. This product has passed NEPSI certificate of explosion protection, according to GB3836.1-2000 and GB3836.4-2000 standard. It comes with widely temperature compensation, perfect linearity, output signal diversification.
Send inquiry Download PDF
- Widely pressure range: -1~0~6000bar available
- Various standard Industrial signal output
- All stainless steel and anticorrosive
- Stronger anti-jamming ability
- High stability & high sensitivity
- Intrinsically safe & explosion proof construction
- Mechanical Engineering Industry
- Hydraulic and level measurement
- Gas tank pressure monitoring
- Industrial test and control
- General industrial applications
- water,Oil,Air,Petroleum , natural gas,coal or mine
| Pressure range | -1~0~6000bar |
| Over load | 150%FS |
| Burst pressure | 300%FS |
| Output | 4-20mA, 1-5V/0-5V, 0-10V |
| Power supply | 12~36VDC |
| Response time | <5ms |
| Combine error | 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
| Repeatability | ≤ +/- 0.2%FSO |
| Long term stability | ≤ +/-0.2%FS/year |

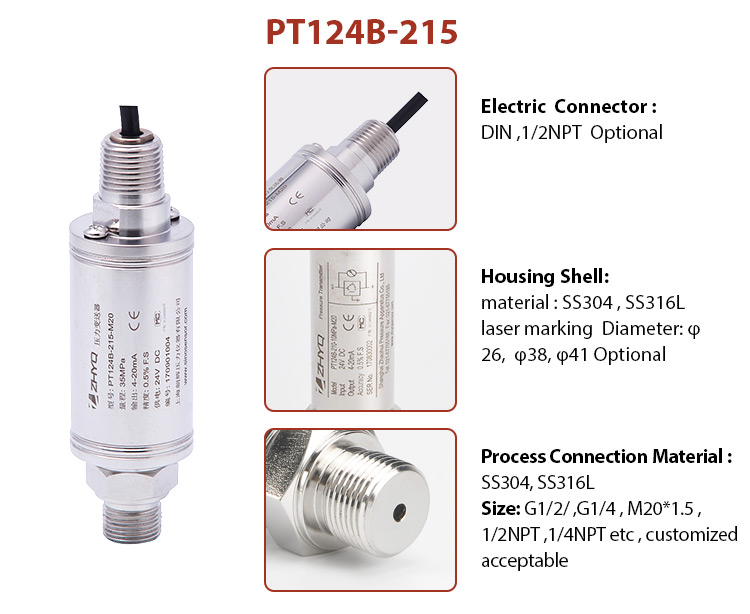

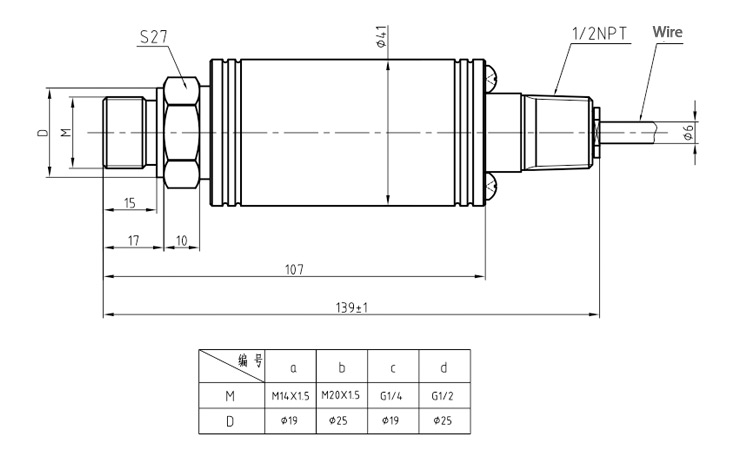

| Pressure connection | M20×1.5,G1/2,G1/4,1/2NPT （ customer tailor ） |
| Operating temperature | -20 ℃～ 80 ℃ |
| Temperature compensation | 0 ℃～ 60 ℃ |
| Explosion proof class | ExibIICT4 |

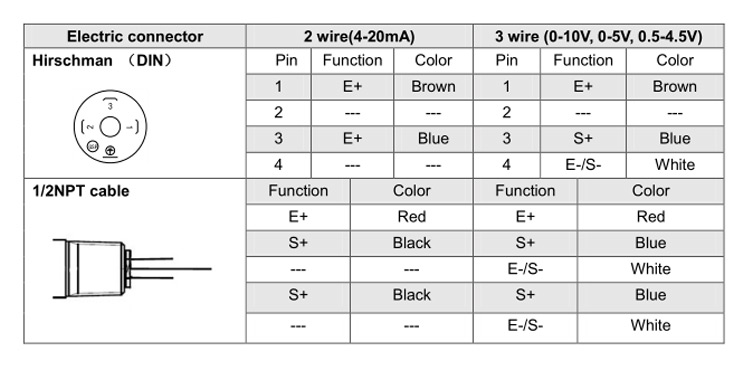

| Electrical connector | Bendix connector,Hirschman DIN4365 and Gland lead |
