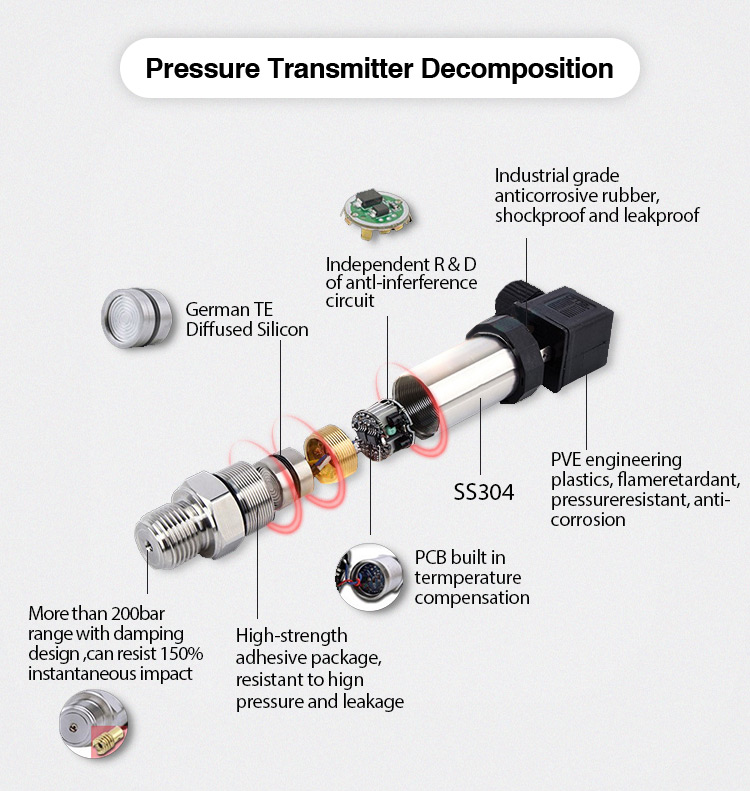

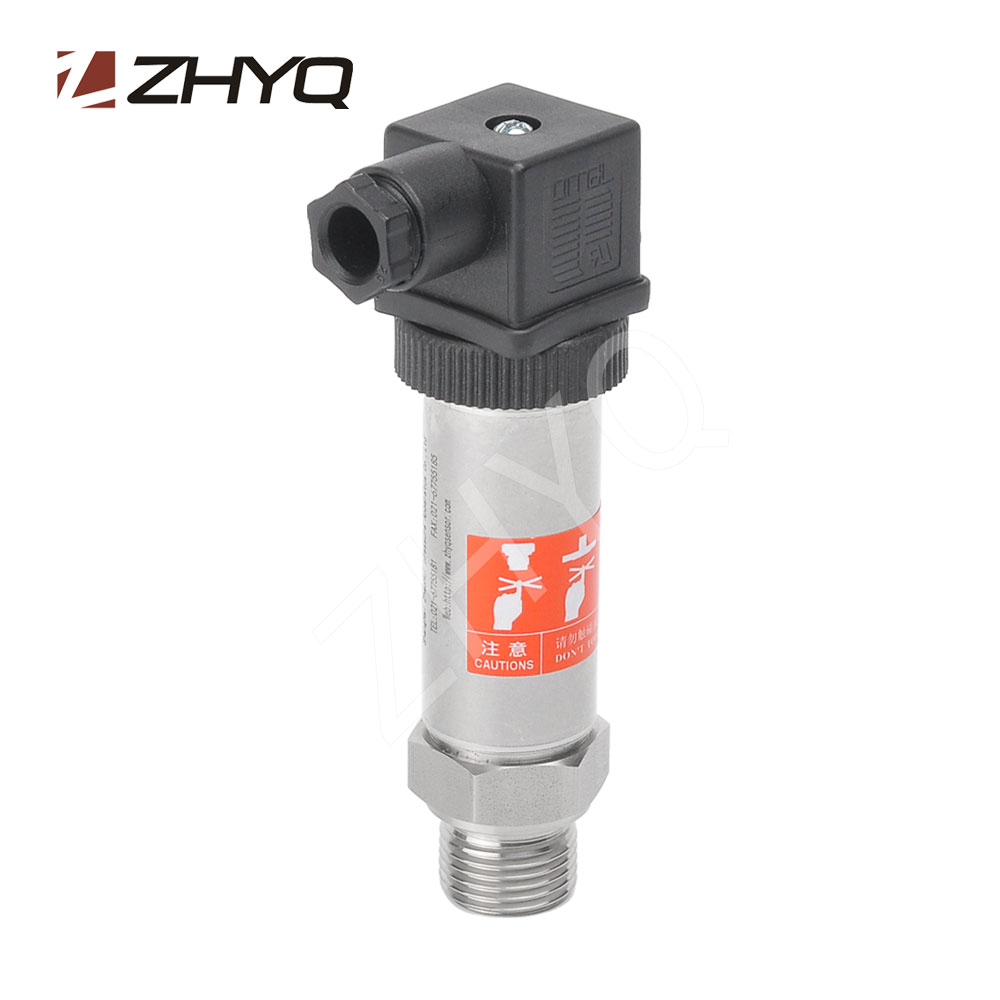

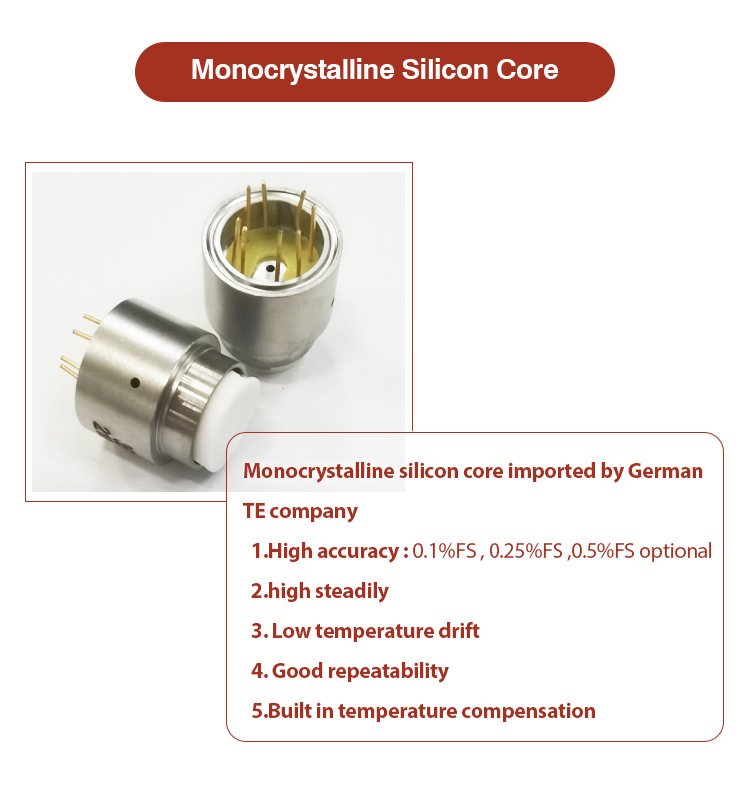

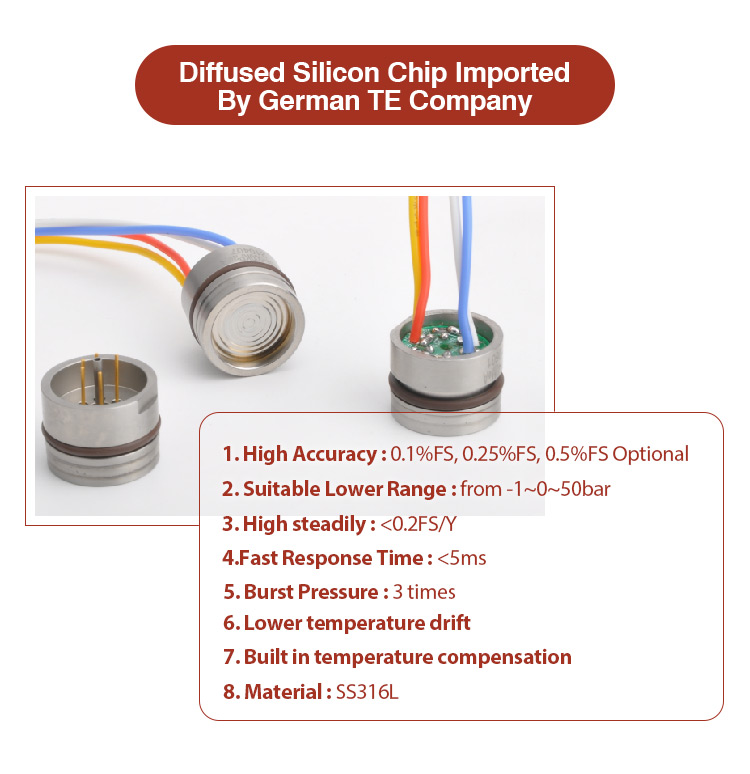

Diffused silicon pressure transmitter

Model:PT124B-212

Description:

PT124B-212 series high precision pressure transmitters has been specially designed to cover the majority of industrial applications where need high accuracy measuring. Compact design and robust construction make this instrument is suitable for all application in machine construction, process control, laboratory or quality and materials testing equipment.

Send inquiry Download PDF

Tags: Diffused silicon pressure transmitter, High accuracy pressure transmitter, High steadily pressure transmitter

  • Various industrial standard signal output
  • Various electrical connector available
  • Certain stock for shortening delivery time
  • High accuracy measuring
  • compact dimension design
  • This series is suitable for mechanical engineering or high precision industrial automation measuring for hydraulic controlling and gas measuring. Such as the industry of petrochemical, medical, food and beverages.
Model PT124B-212
Pressure range -1~0~1bar; 0~1~600bar
Over load 150%FS
Burst pressure 300%FS

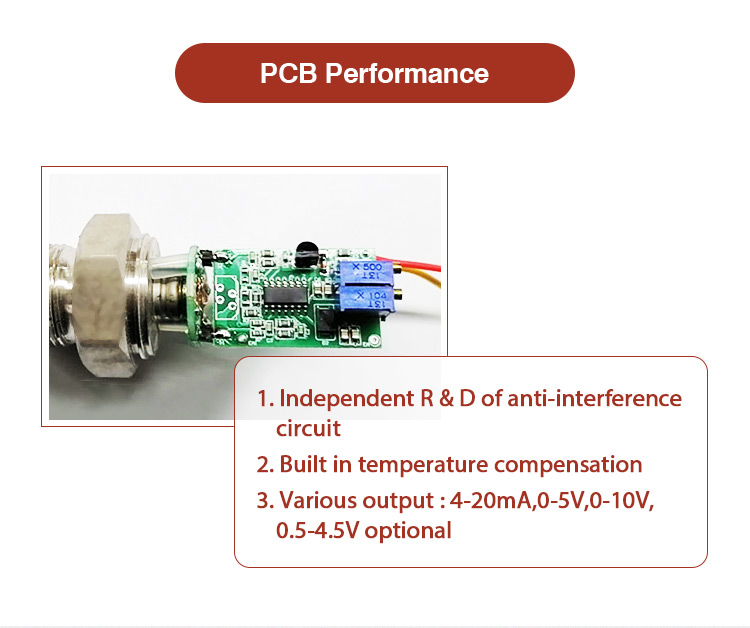

Output 4-20mA, 1-5V/0-5V, 0-10V
Power supply 12~36VDC
Response time <5ms
Combine error 0.25% FSO (Including Linearity, Repeatability & Hysteresis)
Repeatability ≤ +/- 0.2%FSO
Long term stability ≤ +/-0.2%FS/year

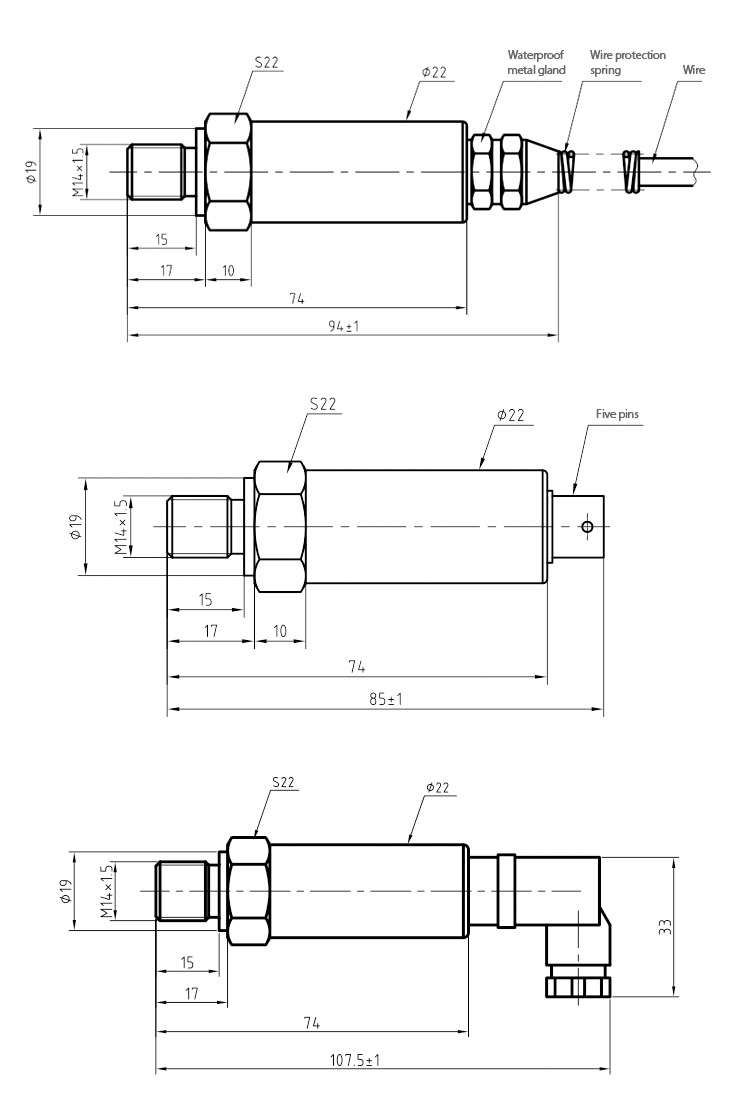

Pressure connection M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor )
Operating temperature -20 ℃ ~ 80 ℃
Temperature compensation 0℃ ~ 60℃

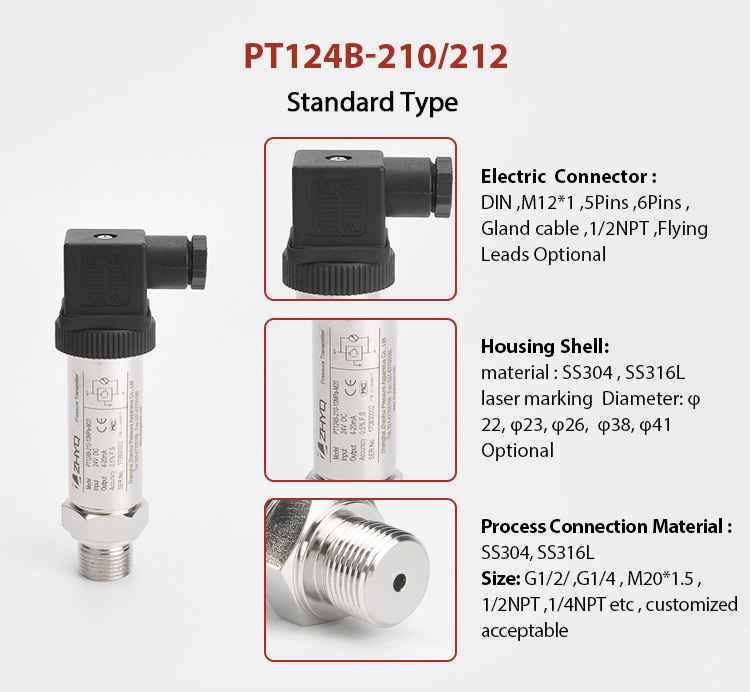

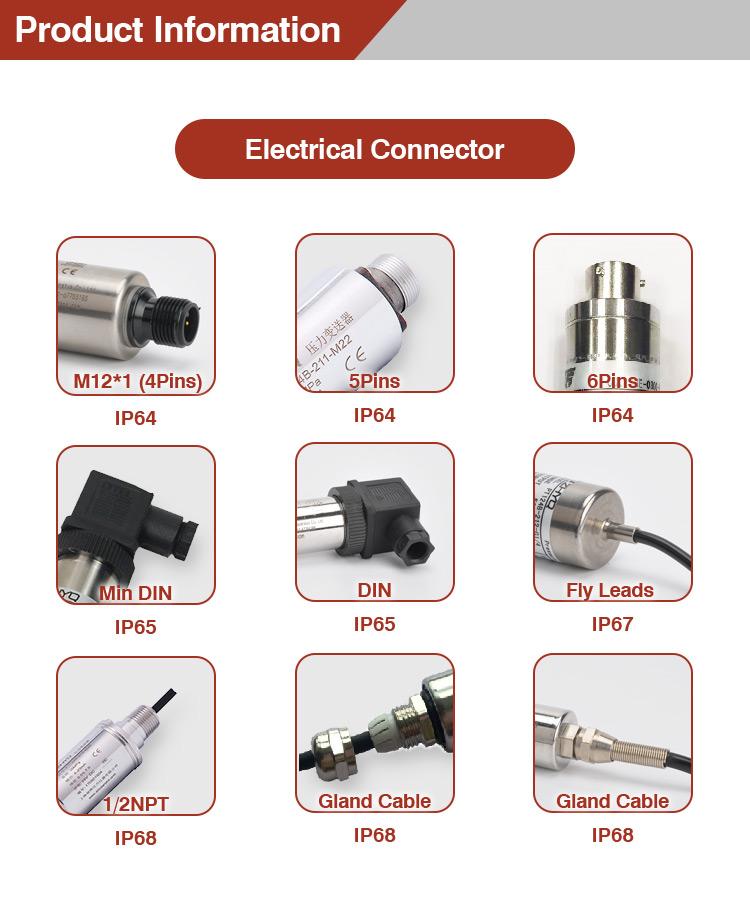

Electrical connector Bendix connector,Hirschman DIN4365 and Gland lead
