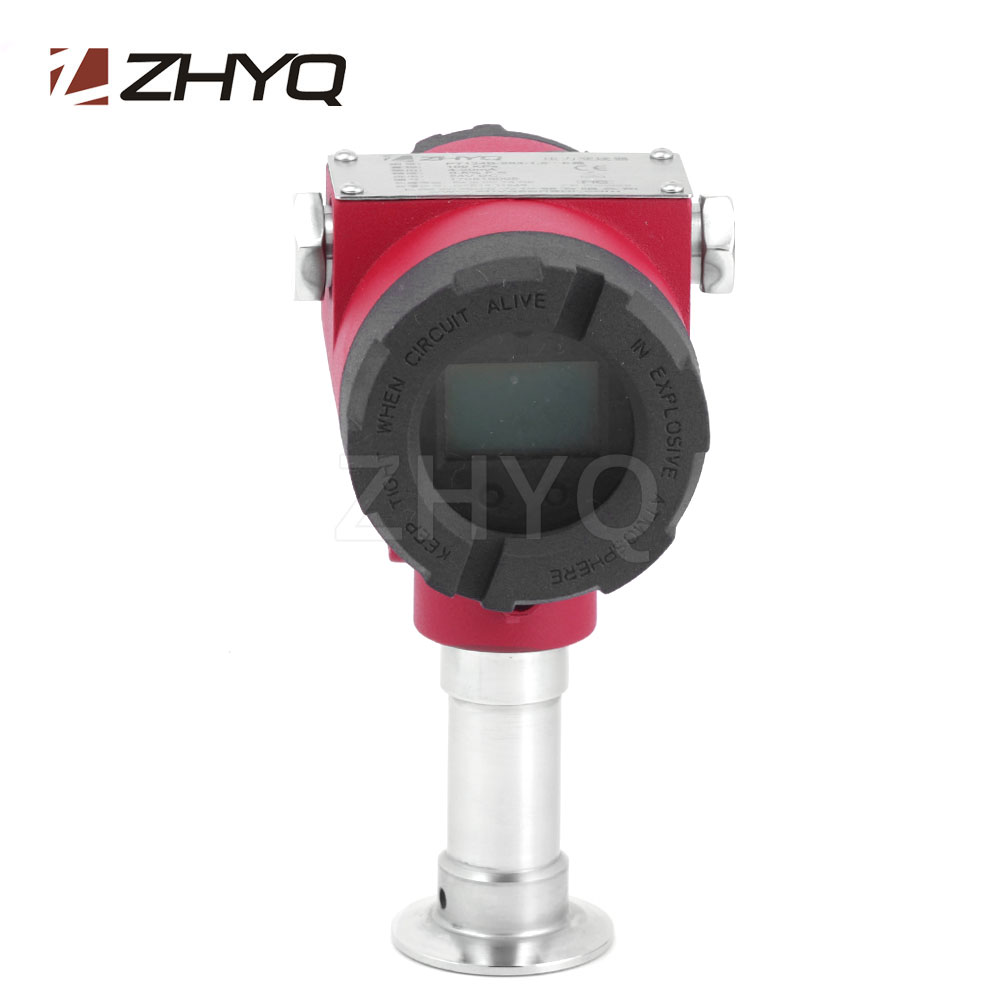

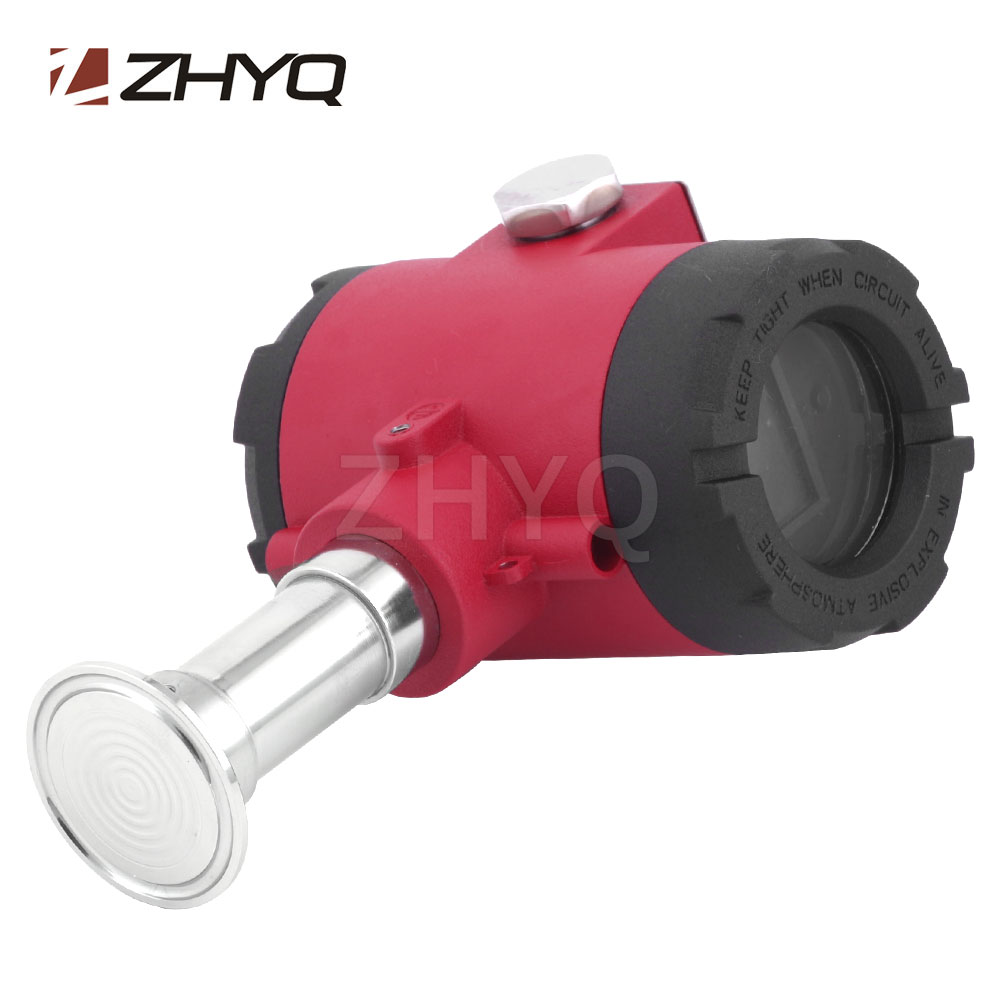

Tri clamp explosion proof pressure transmitter
Tri clamp explosion proof pressure transmitter

Tri clamp explosion proof pressure transmitter

Model:PT124B-284

Description:

The clamp type explosion proof pressure transmitter designed with flameproof structure, and comes with flush diaphragm, solves the problems during the measurement that the pressure port is easily blocked.

Send inquiry Download PDF

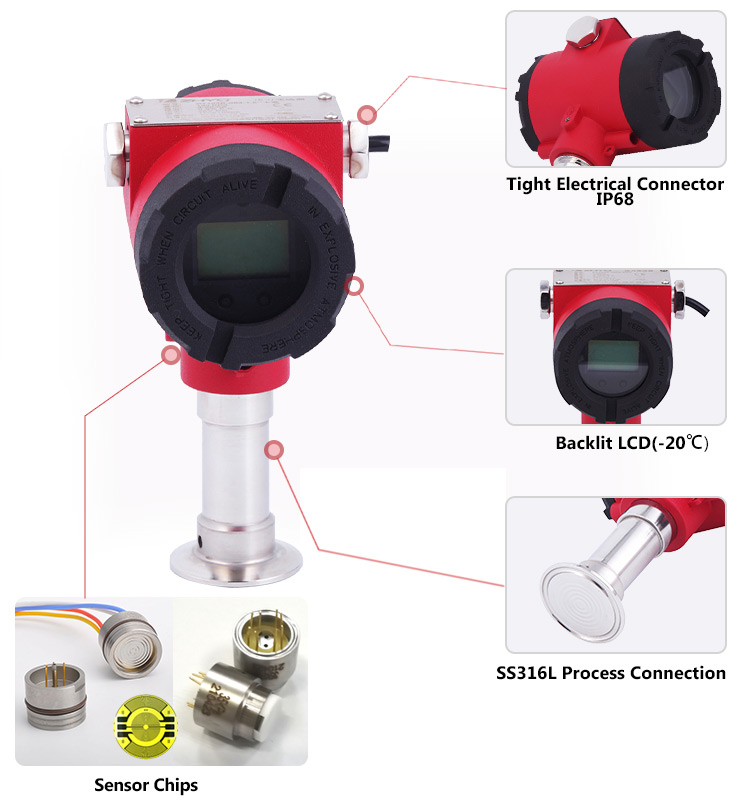

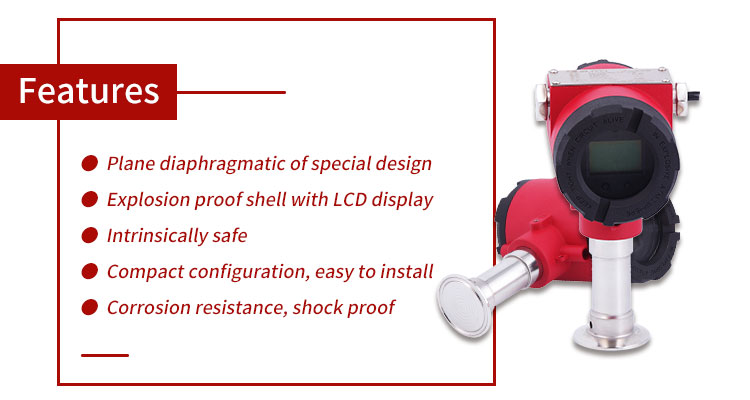

  • Clamp mounting design
  • High accuracy, high stability
  • Explosion proof grade ExibllCT4
  • Local LCD display

This series product is suitable for polyurethane device, papermaking, paint, medical pharmacy, food & Beverage.

Pressure range -1…0…1bar, 0…1bar…1000bar
Over load 150%FS
Burst pressure 300%FS
Output 4-20mA
Power supply 12~36VDC
Response time <5ms
Combine error 0.5% FSO(Including Linearity, Repeatability & Hysteresis)

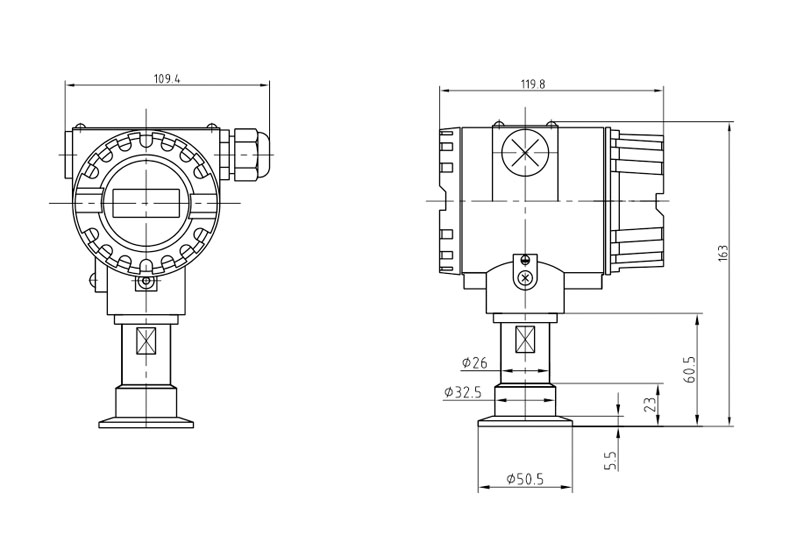

Pressure connection 1.0 ″ , 1.5 ″(customer tailor)
Operating temperature -20 ℃~85 ℃
Temperature compensation 0 ℃~60 ℃
Electrical connector Terminal Block
Explosion proof grade ExiallCT4
