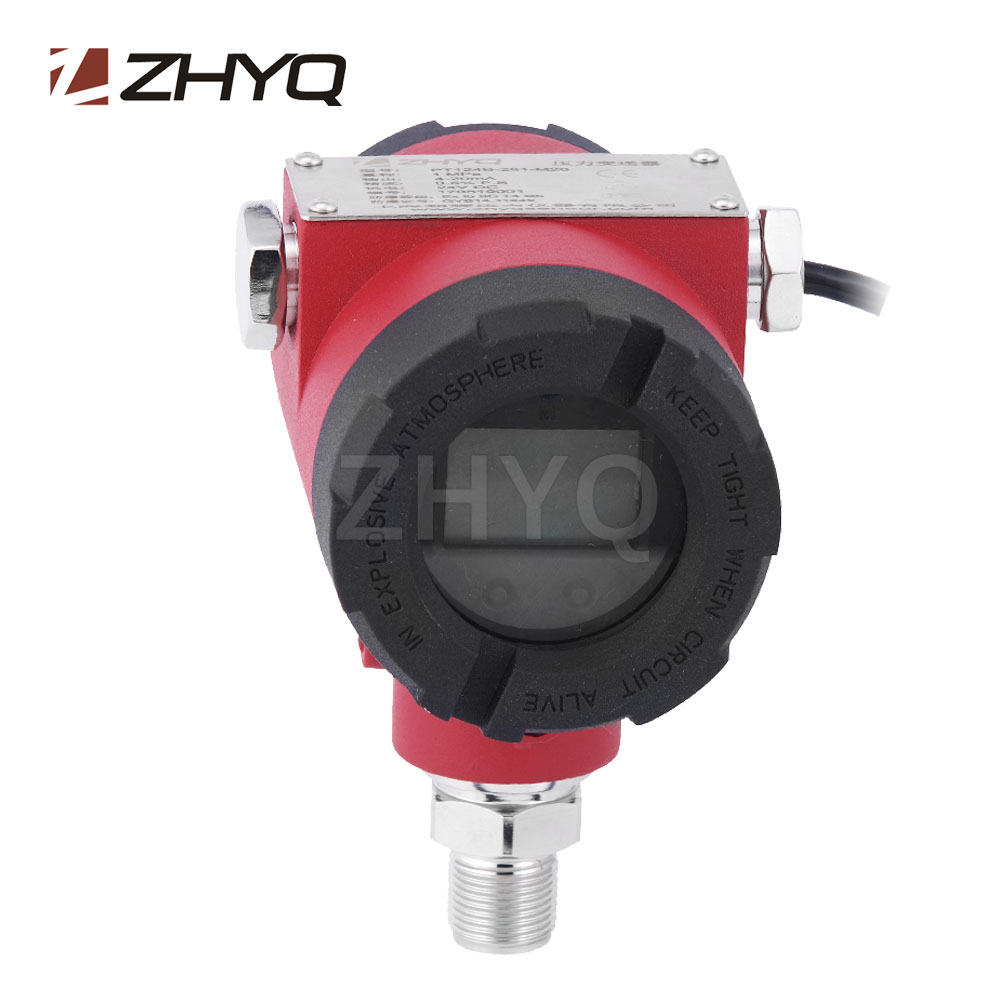

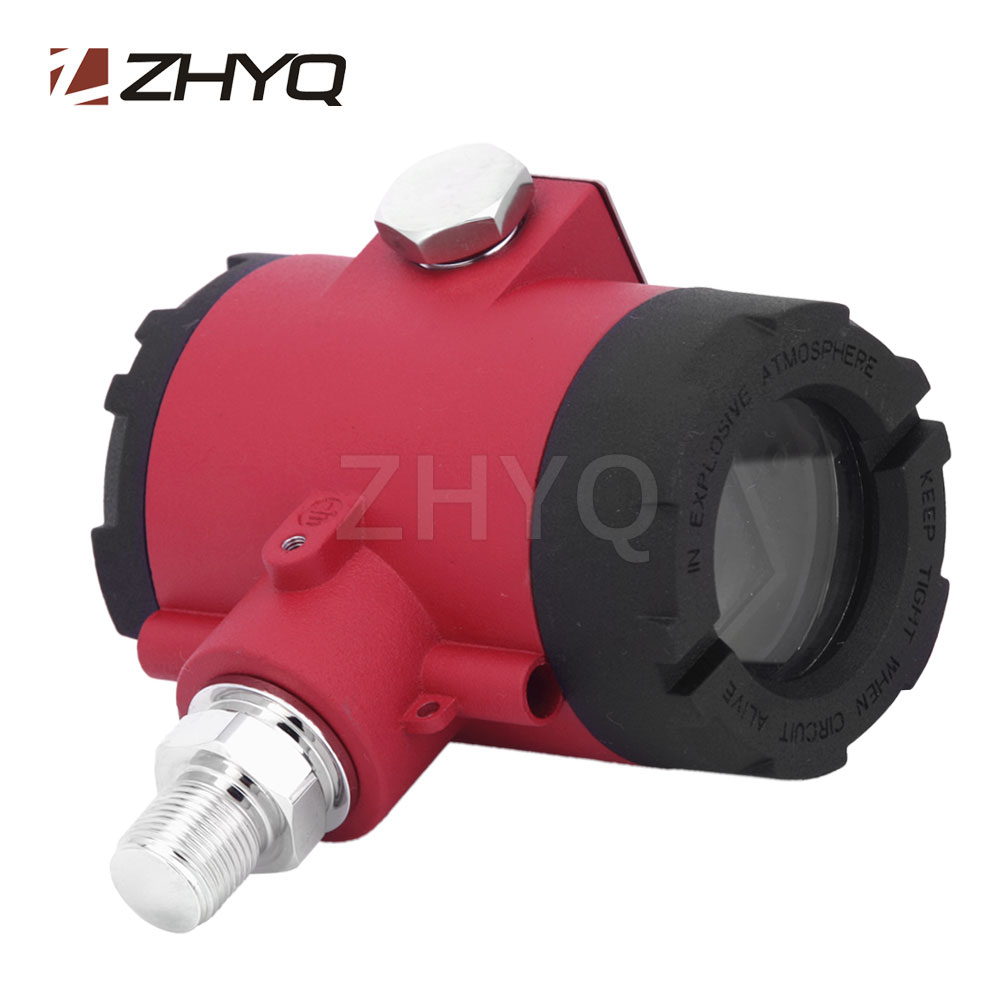

Anti-corrosive explosion proof pressure transmitter
Model:PT124B-281
Description:

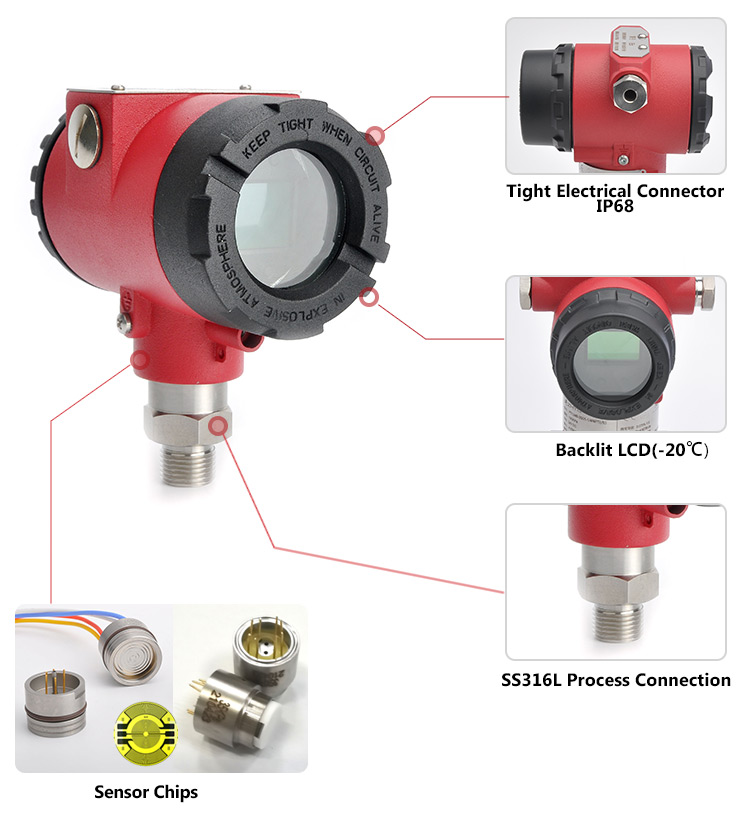

The anti-corrosive explosion proof pressure transmitter designed with flameproof structure, it is suitable for outdoor installation, LCD display optional, the wetted parts adopts material of 316L, hastelloy alloy or F4.
Send inquiry Download PDF

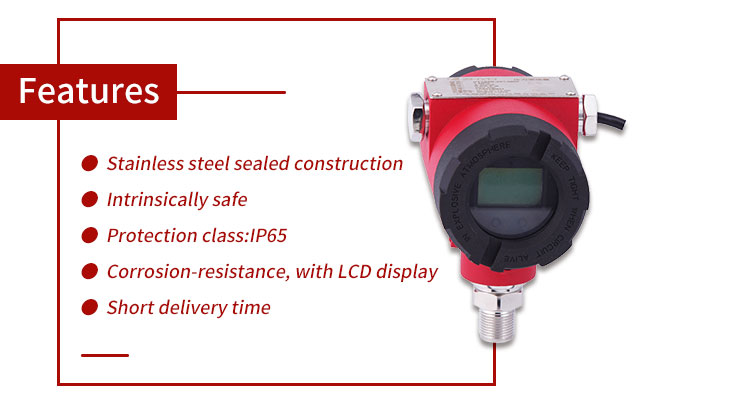

- High accuracy, high stability
- Explosion proof grade ExibllCT4
- Local LCD display
This series product is suitable for the occasion of chemical fiber, environmental protection, medicine, industrial control and etc. It is used to measure the pressure or height of the liquid level of corrosive medium, such as acid, alkaline and so on.
| Pressure range | -1~0~1bar; 0-1bar~0-2000bar |
| Over load | 150%FS |
| Burst pressure | 300%FS |
| Output | 4-20mA |
| Power supply | 12~36VDC |
| Response time | <5ms |
| Combine error | 0.5% FSO(Including Linearity, Repeatability & Hysteresis) |
| Pressure connection | M20×1.5, G1/2 , G1/4 ,1/2NPT （ customer tailor ） |
| Operating temperature | -20℃ ～ 85℃ |
| Temperature compensation | 0℃ ～ 60℃ |
| Electrical connector | Terminal Block |
| Explosion proof grade | ExiallCT4 |
