PT124Y-623- Tri-clamp diaphragm pressure gauge

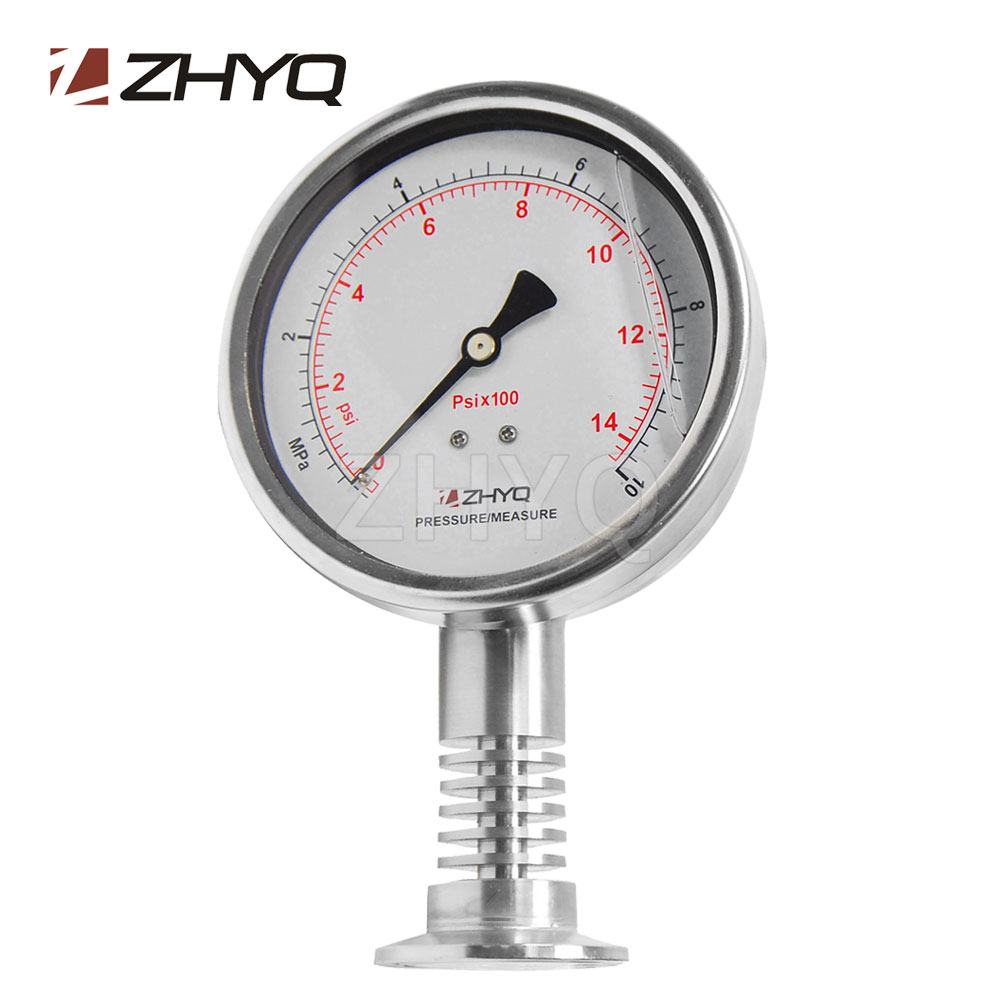

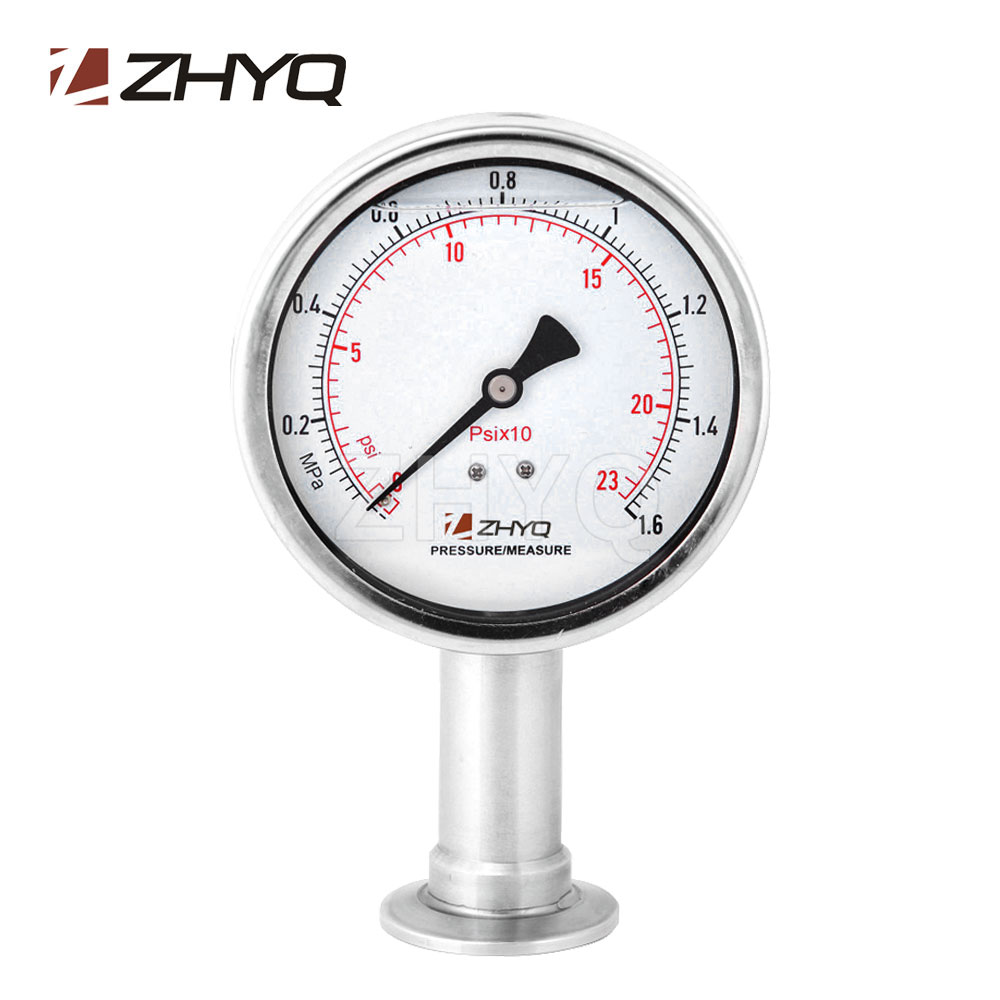

Tri-clamp diaphragm pressure gauge



The tri-clamp diaphragm pressure gauge, adopts high performance imported bourdon tube, it is suitable for the process pressure measuring of homogenizer, mulser and the similar machines.

Send inquiry Download PDF

Range 0~10bar to 0~500bar
Accuracy ±1.6%FS

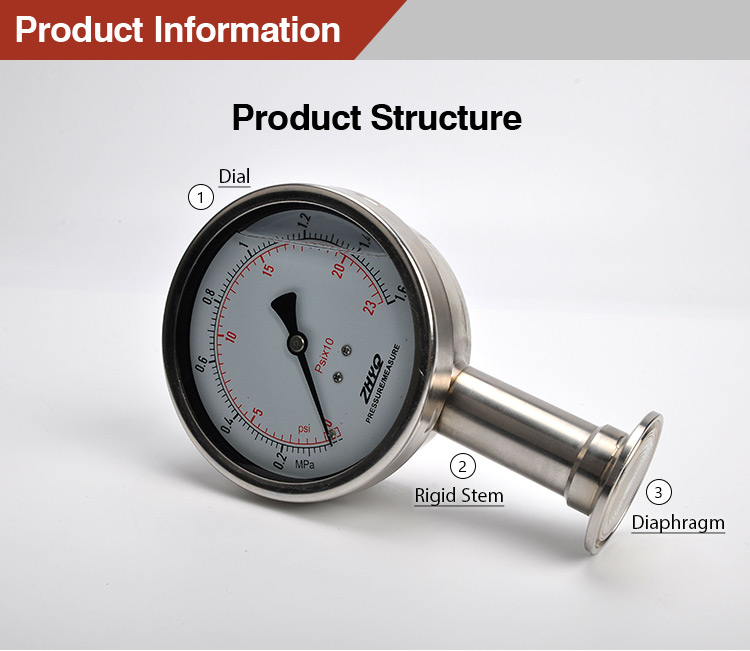

Configuration Bourdon tube
Over Pressure 1.5×FS

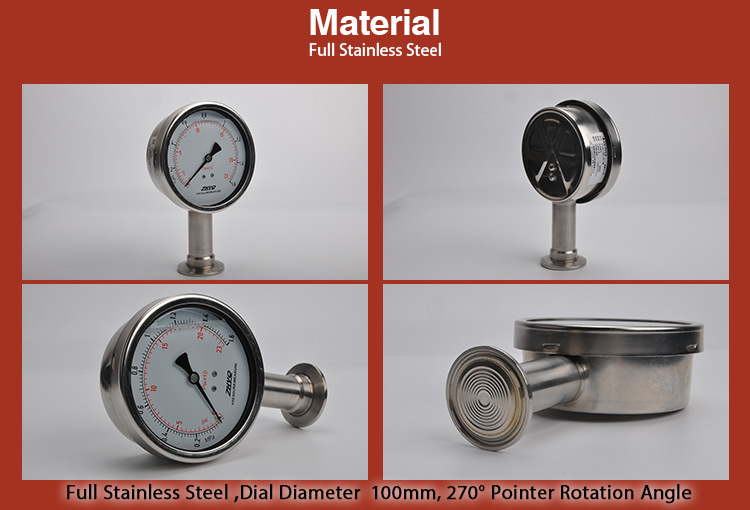

Dial Diameter 100mm
Max Diaphragm Temp. 120℃
Process Connection Clamp 1”,1.5”
