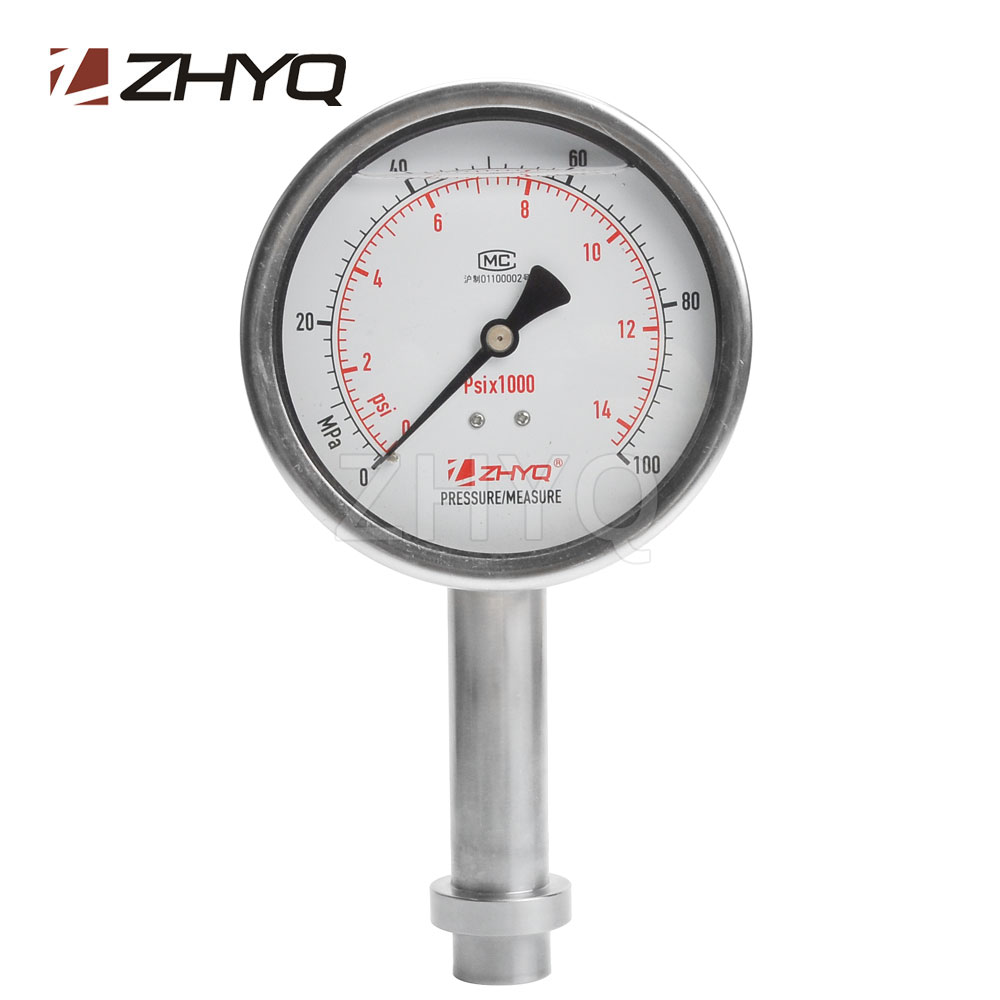

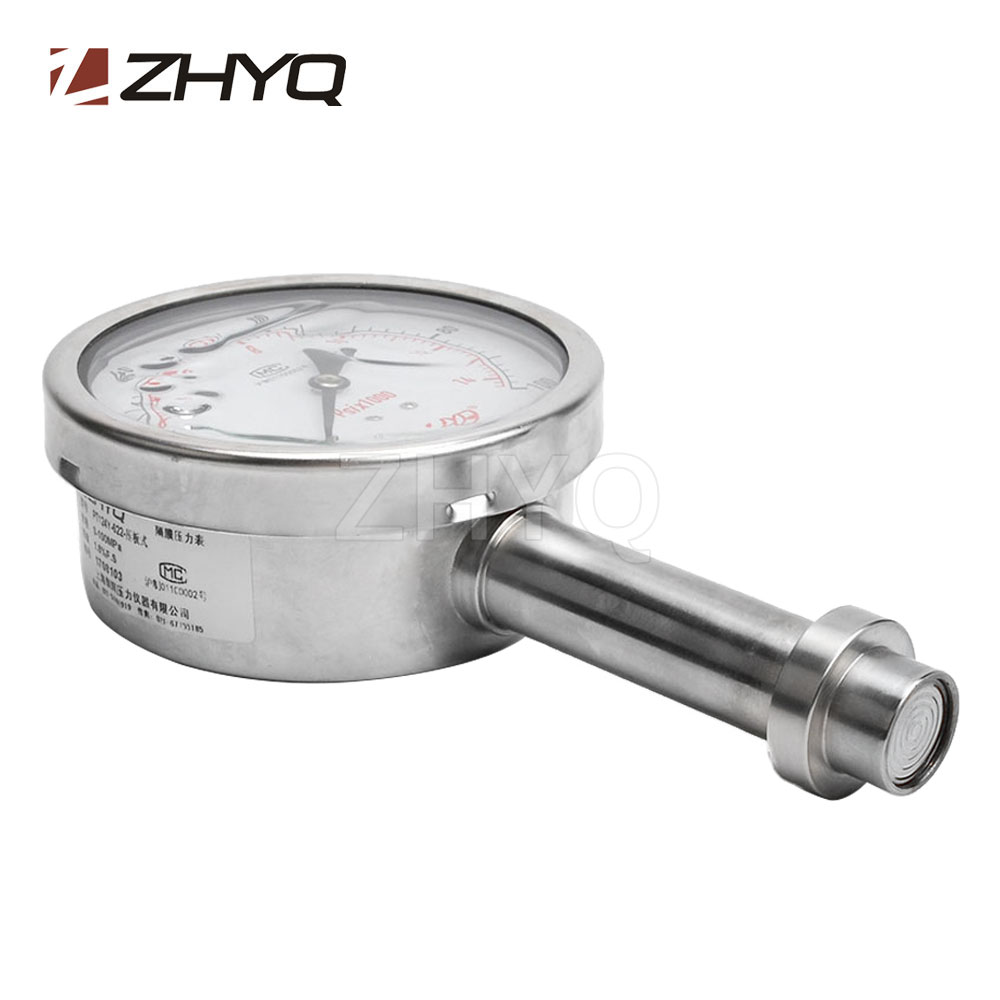

PT124Y-622-diaphragm pressure gauge

pressure plate diaphragm pressure gauge

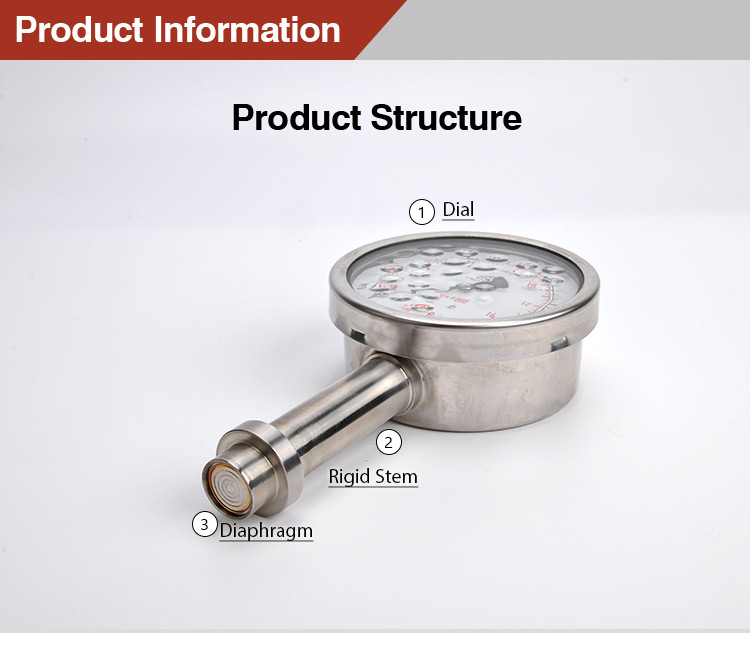

Pressure plate diaphragm pressure gauge designed with high quality bourdon tube, pressure plate installation, it is popular to measure the measure for the homogenizer machine.

Send inquiry Download PDF

  • Mechanical design
  • Easy to install
  • Fill in food grade silicon oil
  • Good shock-proof and anti-corrosion
  • High reliability and good repeatability

It is suitable for the process pressure measuring of many machineries, such as Homogenizer machine, mulser, Crusher, Other food machinery and so on.

Range 0~10bar to 0~500bar
Accuracy ±1.6%FS
Configuration Bourdon tube
Over Pressure 1.5×FS

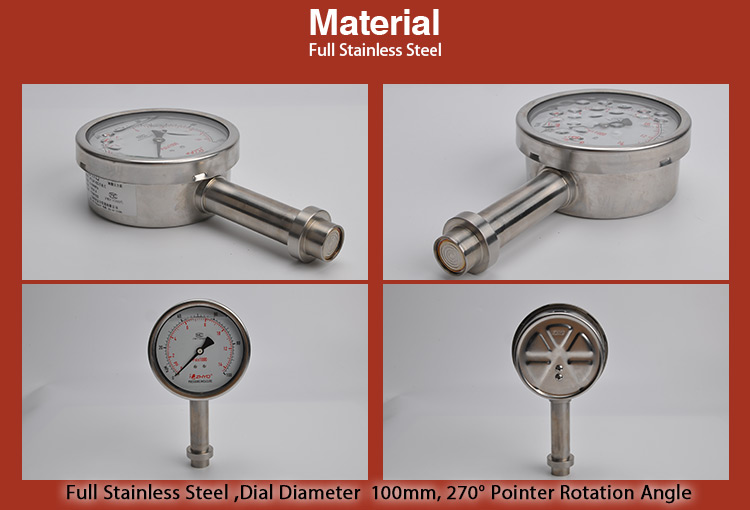

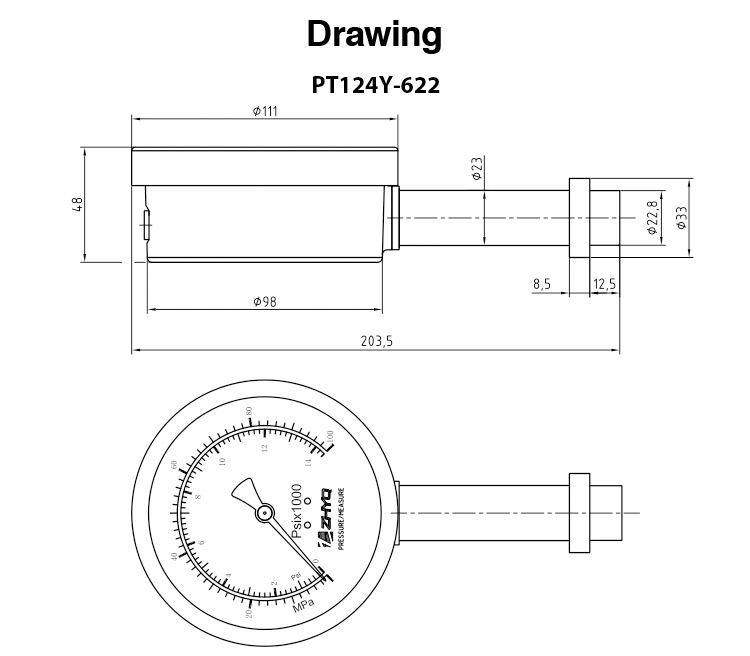

Dial Diameter 100mm

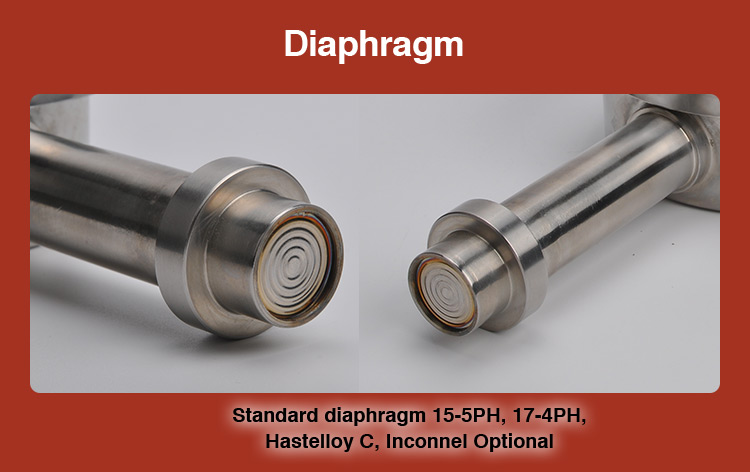

Max Diaphragm Temp. 125℃
Process Connection Pressure Plate
