PT124G-650-Digital diaphragm pressure gauge

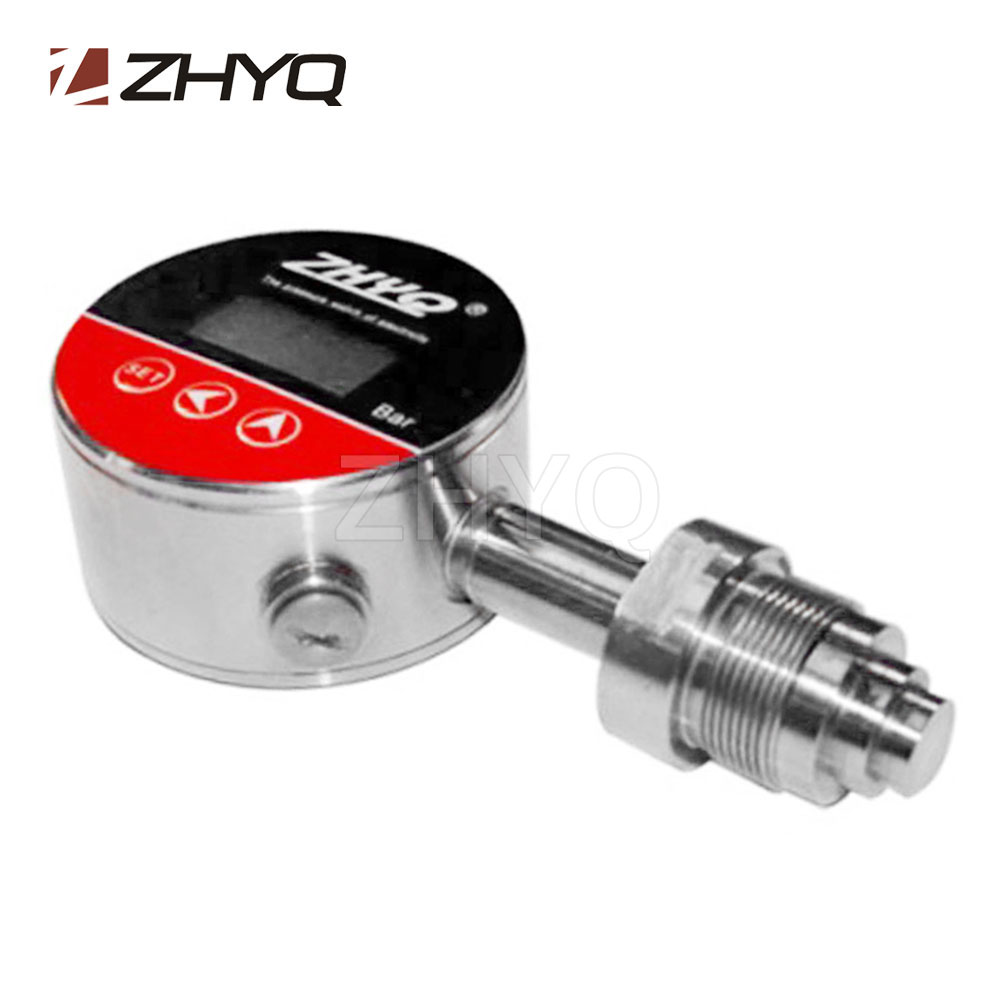

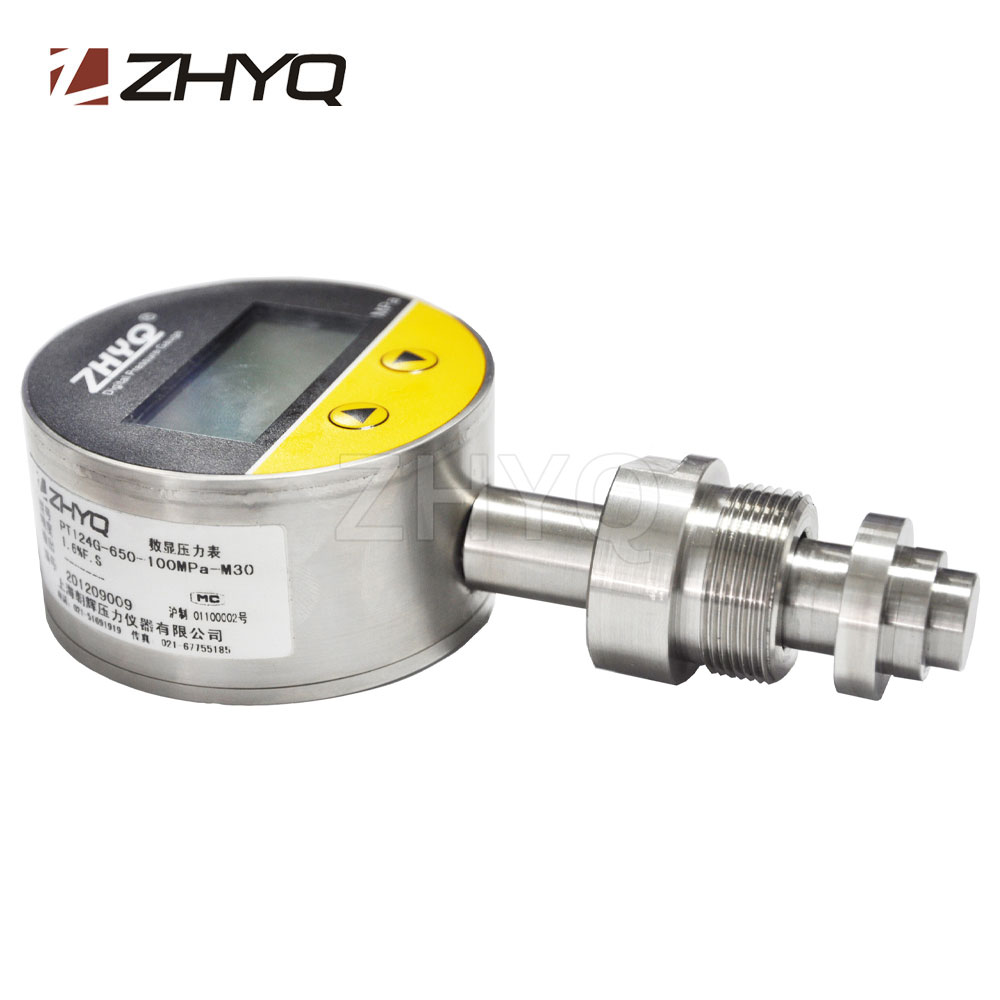

Digital diaphragm pressure gauge



The digital diaphragm pressure gauge adopts big screen LED display. With the corrosion resistance and shock resistance feature. It is suitable to use in various complicated conditions, especially the homogenize machine.

Send inquiry Download PDF
  • Diaphragm design
  • Local LED digital display
  • 4-20mA output available

It can be used for measuring the liquid with the performance of viscosity, easy crystallize and solidify application for homogenizer, mulser, crusher, alkali making, food or other machinery.

Range 0…10bar~0…2000bar
Output 4-20mA or customer tailor
Accuracy 0.5%FS
Power supply 12-36VDC
Display 4 digital LED display
Operating temp. 0~100℃
Humidity <85%
Over load 2×FSO
Process connector M20×1.5, pressure plate or customer tailor
