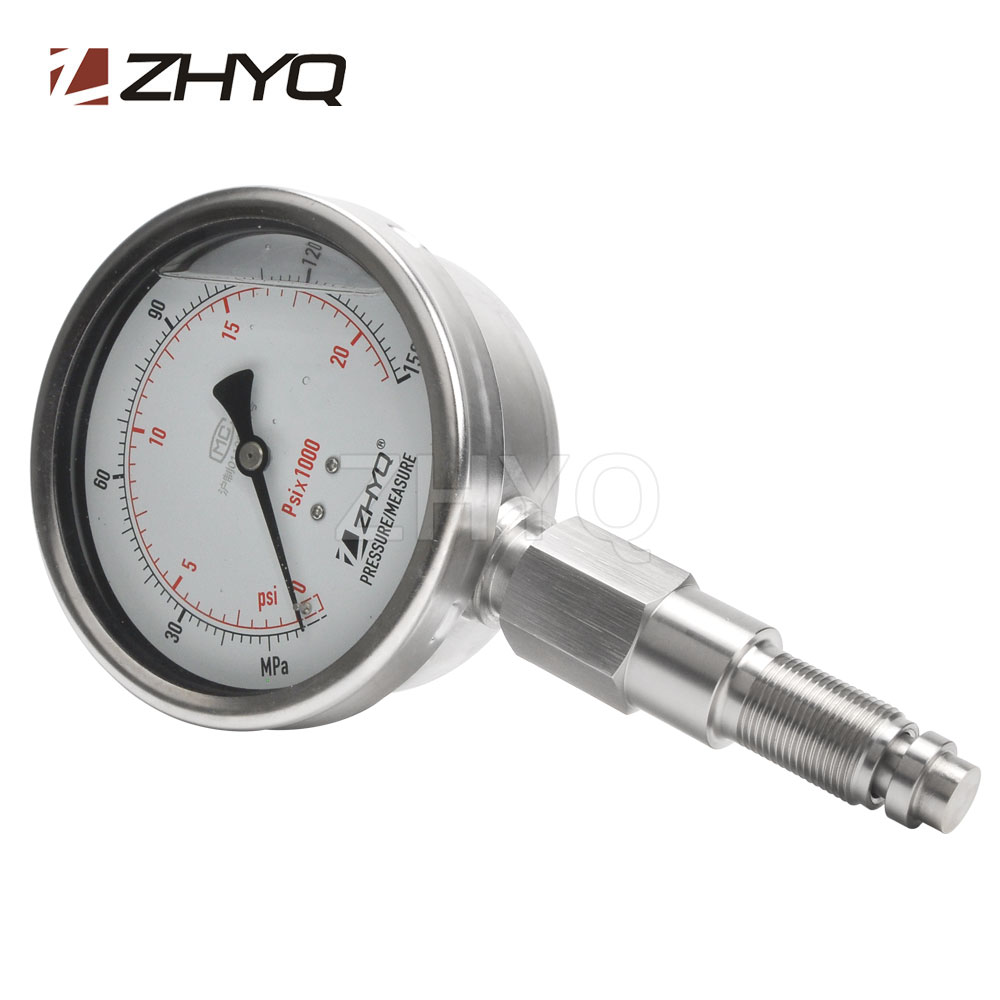

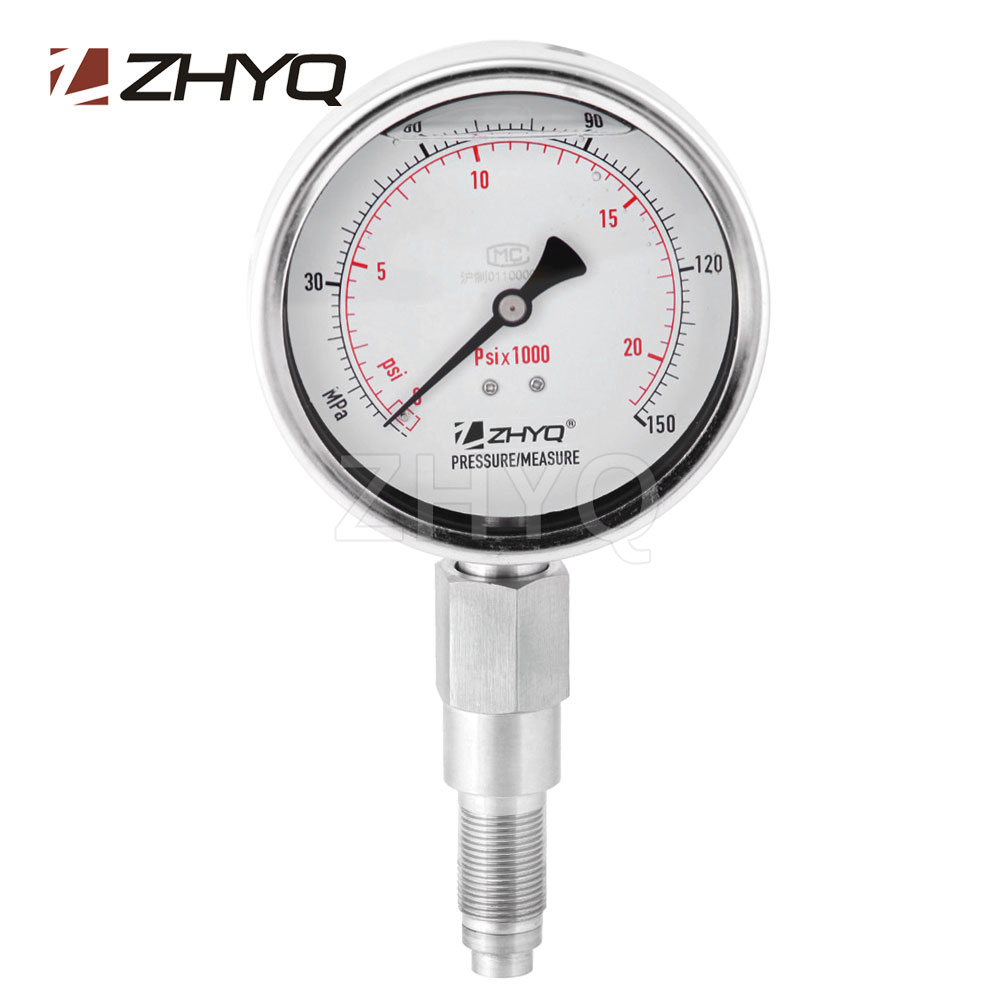

Anti-shock diaphragm homogenizer pressure gauge
Model:PT124Y-621
Description:

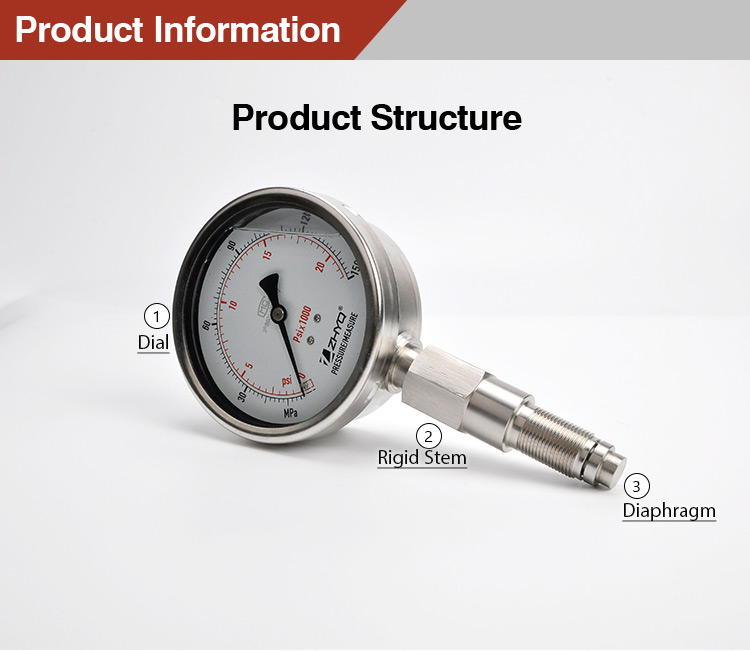

The anti-shock diaphragm pressure gauge designed with high performance bourdon tube, double scale display, it is suitable for the pressure measurement of homogenizer machine.
Send inquiry Download PDF
- Mechanical design
- Easy to install
- Fill in silicon oil（food grade）
- Good shock-proof and anti-corrosion
- High reliability and good repeatability
It is suitable for the process pressure measuring of much more machineries such as Homogenizer machine, mulser, Crusher, Other food machinery and so on.
| Range | 0….10bar to 0….1500bar |

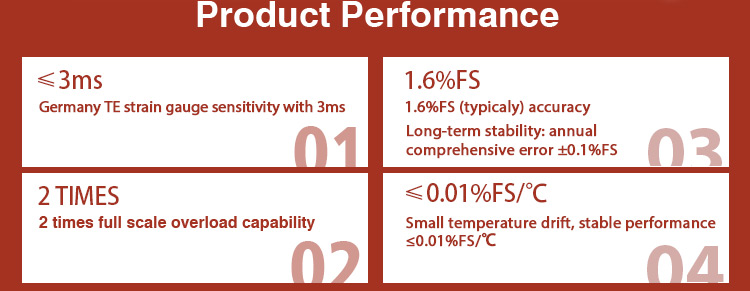

| Accuracy | ±1.6%FS |
| Configuration | Bourdon tube |
| Over Pressure | 1.5×FS |

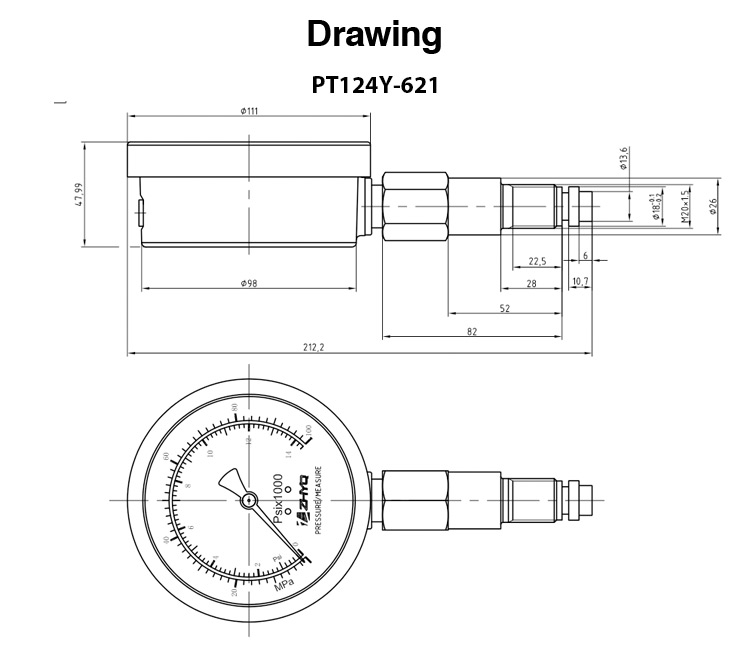

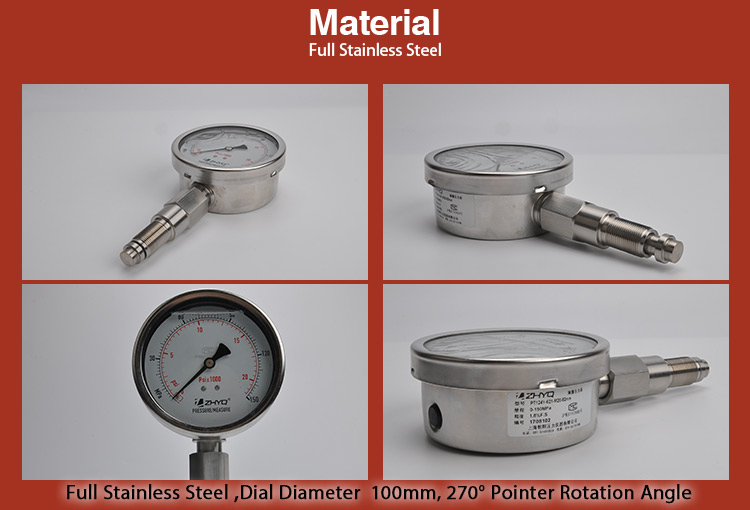

| Dial Diameter | 100mm |
| Max Diaphragm Temperature | 120℃ |
| Process Connection | M20×1.5; M18×1.5（Optional） |
