PT124B-224
PT124B-224.

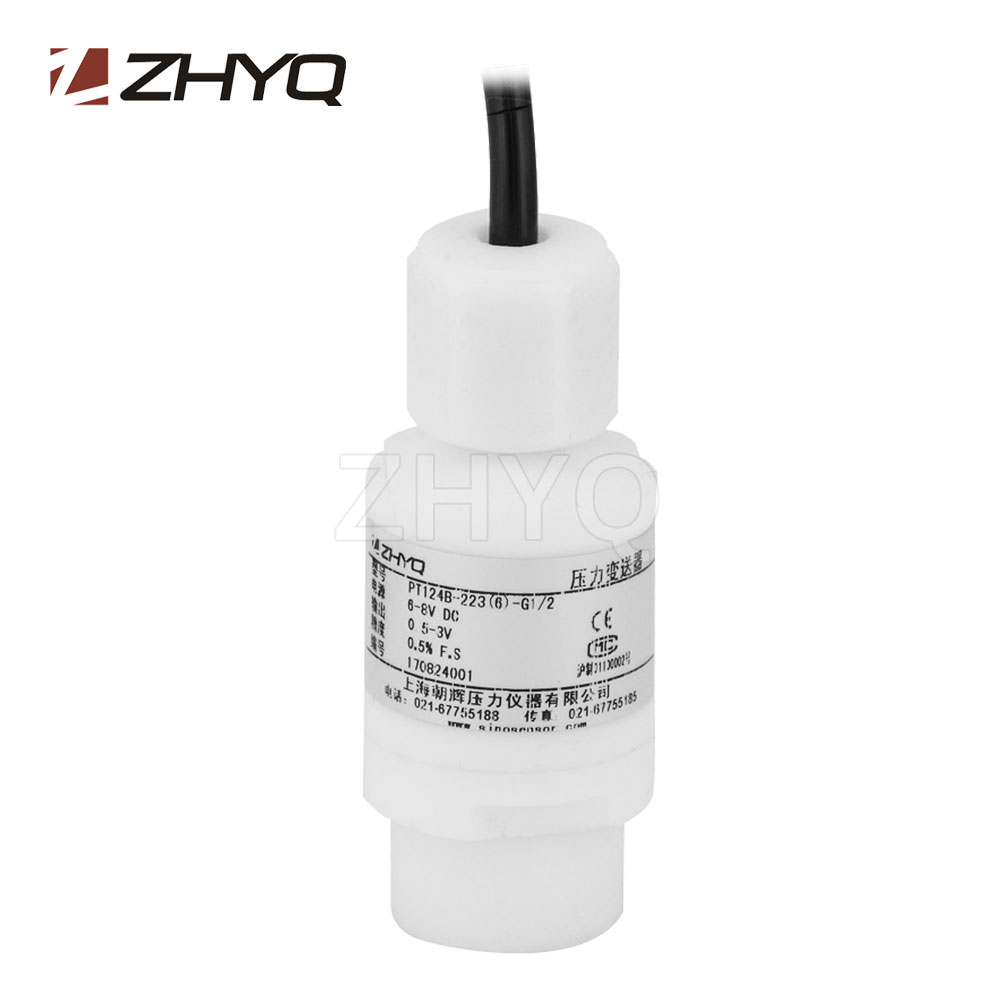

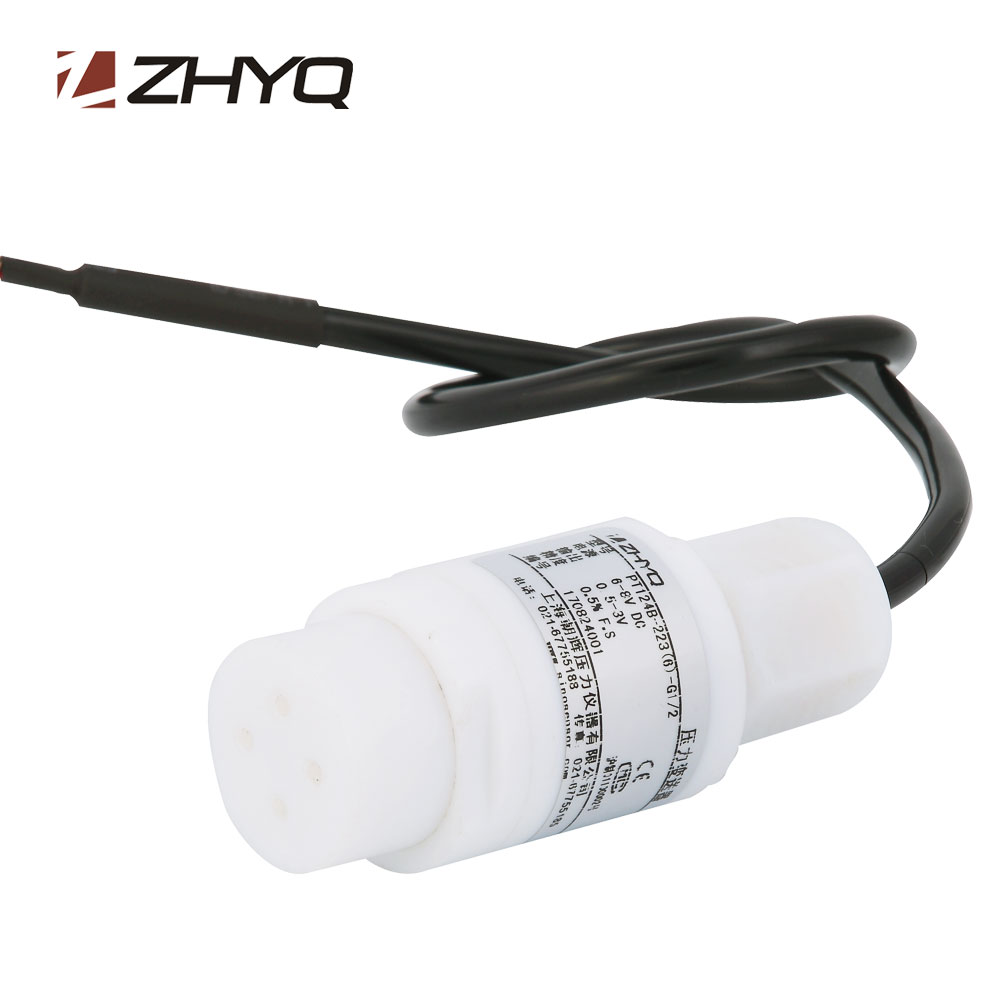

Anti-corrosive liquid level transmitter

Model:PT124B-224

Description:

The probe and cable of the anti-corrosive liquid level transmitter adopt Teflon, the tank level transmitter can directly deep into the container to sense the changes of the liquid level, the transmitter adopts full solidified and sealed module structure.

Send inquiry Download PDF

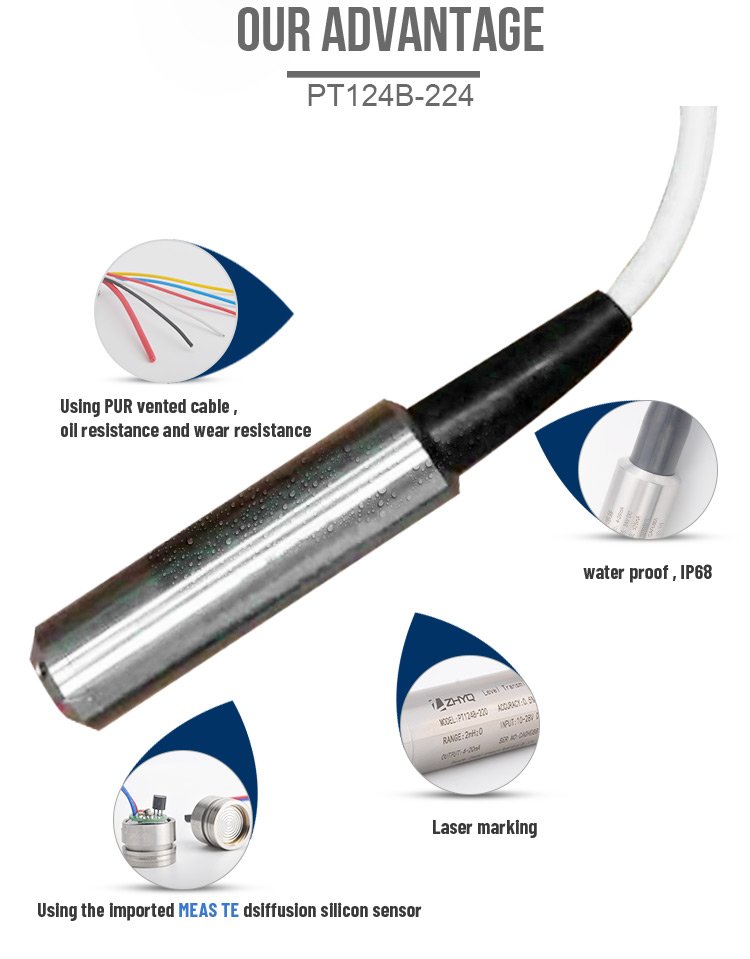

  • Immersion type, easy to install
  • Corrosion Proof, moist proof, frost proof, seepage prevention
  • Various signal output for industrial standard
  • High accuracy, good stability
  • This series product is suitable for the occasion of chemical fiber, environmental protection, medicine, Industrial control and etc. It is used to measure the pressure or height of the liquid level of corrosive medium, such as acid, alkaline and so on.
Pressure range 0~1mH2O, 0~50mH2O
Over load 150%FS
Material SS316L, hastelloy or F4
Output 4-20mA, 0-5V, 0.5-4.5V
Power supply 12~36VDC; 5VDC
Combine error ±1.0%FS; ±0.5% FSO(Including Linearity, Repeatability & Hysteresis)
Long term stability ≤ +/-0.2%FS/year
Repeatability ≤ +/- 0.2%FSO
Response time <10ms
Pressure connection screw thread, throw-in type
Operating temperature -20℃ ~ 85℃
Temperature compensation -10℃ ~ 60℃
