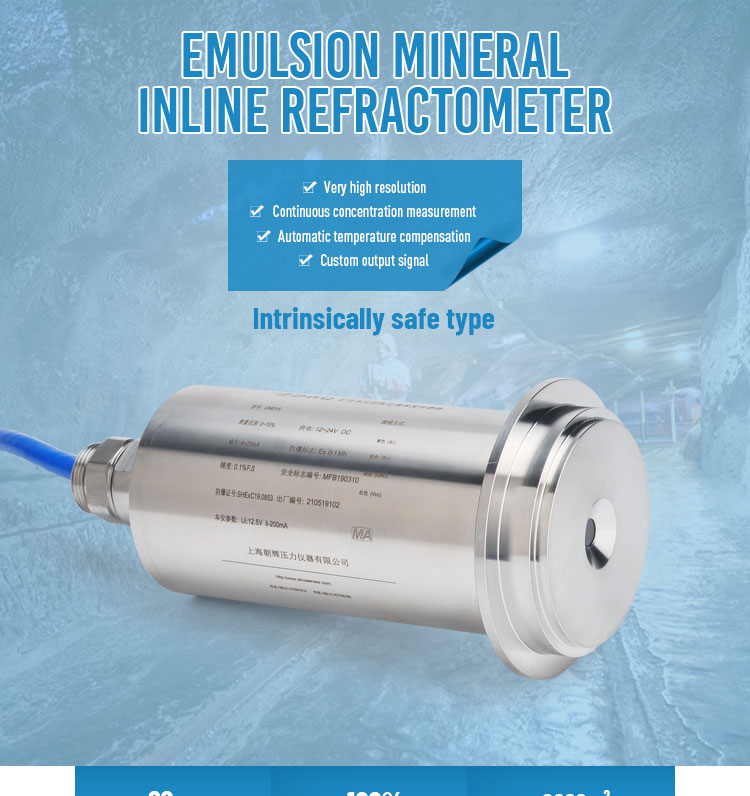

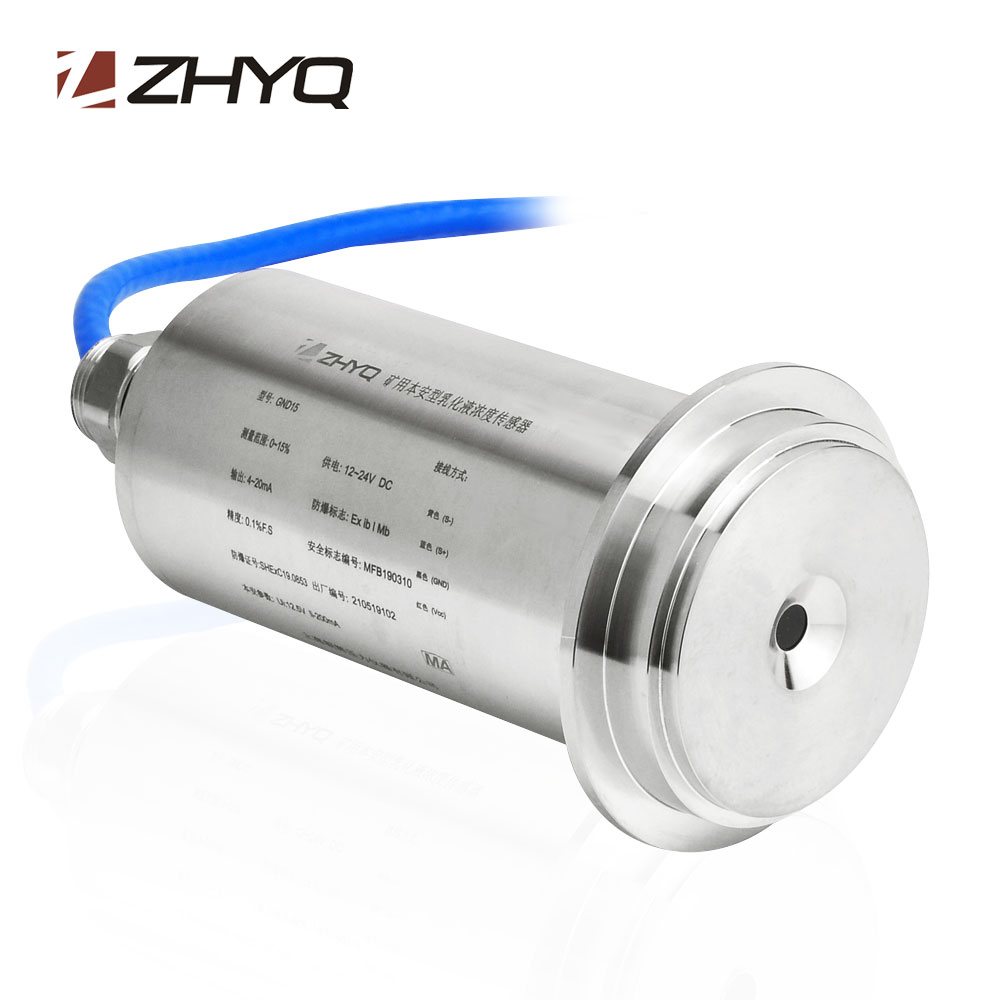

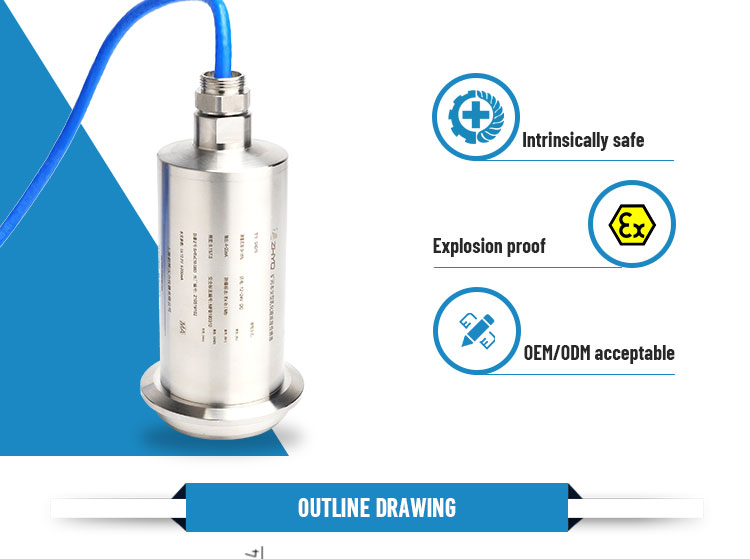

Mine Inline Refractometer ( Intrinsically Safe )
Model:CZ-C
Description:

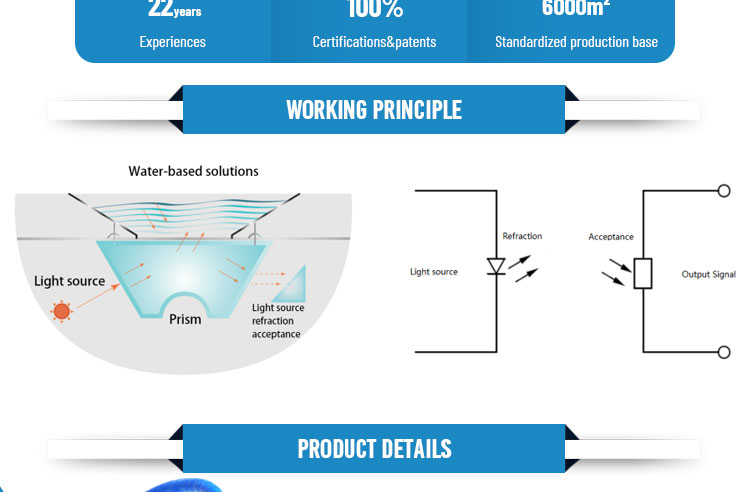

The Intrinsically safe In-line Refractometer CZ-C it designed to detects the Refractive Index of a sample and outputs the Brix(%) value , can also transmit measured data to external devices via 4 to 20mA or RS485 . CZ-C series has the function of automatic temperature compensation according to the temperature of the tested medium , when the tested medium temperature changes , the Brix value ( soluble solids ) after temperature compensation and the output changes accordingly .
Send inquiry Download PDF
1.Automatic temperature compensation
2.Sturdy and durable, compact and easy to install
3.Easy to operate, easy to connect with other devices for automatic control
4.The CZ-C intrinsically safe concentration meter is mainly used for the preparation and detection of the weight percentage concentration of the cooling and cooling emulsion in the machining industry and the M-10 and MDT emulsions commonly used in mines. It provides convenience for safe and economical preparation of emulsions. The method is widely used in mechanical processing, mining selection, underground support and other fields. It is used to detect the weight percentage concentration of water-soluble mine emulsion, which provides great convenience for accurately preparing emulsion-pressed liquefied liquid.
Inline real-time monitoring and control of liquid substance concentration in various industries
The CZ-C intrinsically safe concentration meter is mainly used for the preparation and detection of the weight percentage concentration of the cooling and cooling emulsion in the machining industry and the M-10 and MDT emulsions commonly used in mines. It provides convenience for safe and economical preparation of emulsions. The method is widely used in mechanical processing, mining selection, underground support and other fields. It is used to detect the weight percentage concentration of water-soluble mine emulsion, which provides great convenience for accurately preparing emulsion-pressed liquefied liquid.
| Measure Parameters: | Refractive index(nD), Brix (%) |
| Measure range: | 0-15% , 0-33% , 0-53% , 93% |
| Min Resolution Ratio: | Brix: 0.1% ( Range for 15% , 33% & 53% )；Brix: 0.5% ( Range for 93% ) |
| Measurement Accuracy: | Brix:±0.1%,Brix:±0.3% (standard) |
| Measurement Temperature: | 0-85℃(Automatic Temperature Compensation) |
| Operating current: | ≤200mA |
| Output : | 4-20mA , 4-20mA+ RS485 optional |
| Process connection: | Our standard is 3” tri-clamp |
| Power: | 12-24V DC |
| Wetted parts material: | Prism: sapphire, Prism stage: SS304 , SS316L (can be customized) |
| Environment Temperature: | 0-40℃ |
| Protection grade: | IP67 |
| Electrical connection: | Directly cable |
| Cable length: | 2M ,3M ,5M,10M are optional |
