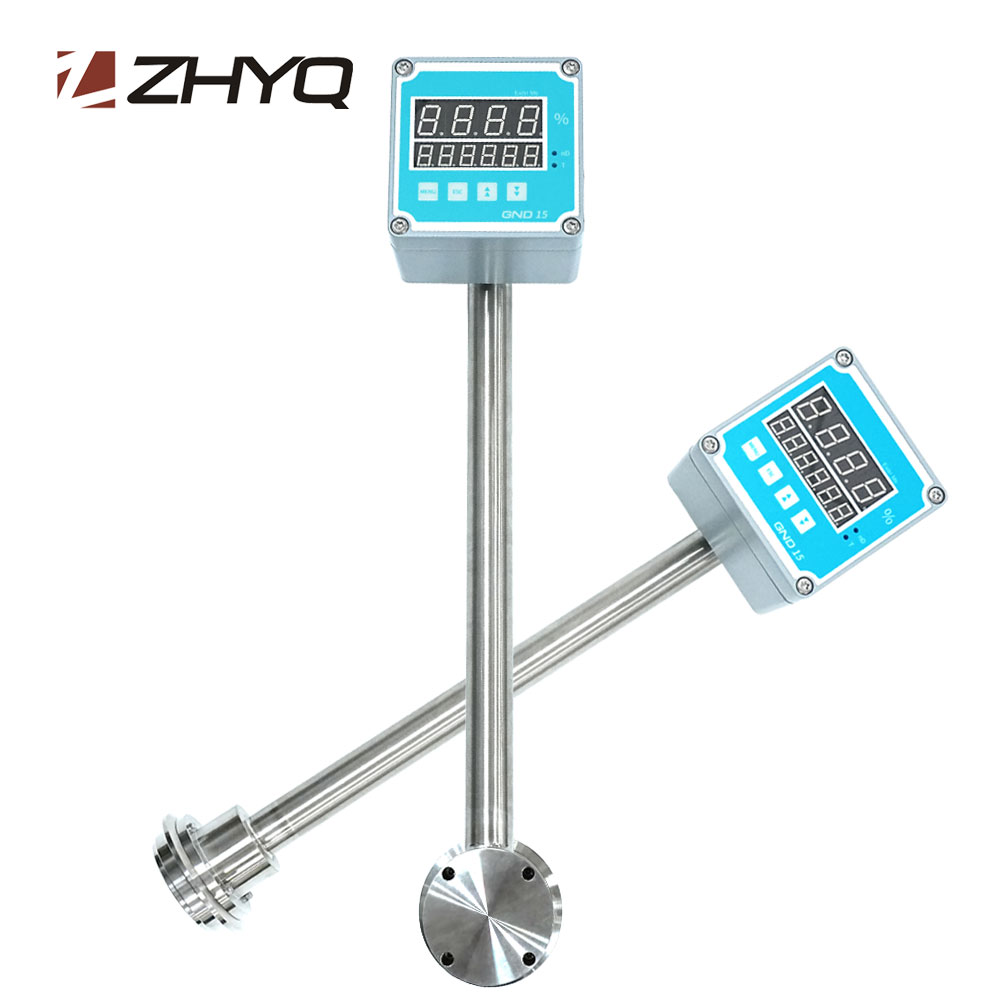

GHD15-L

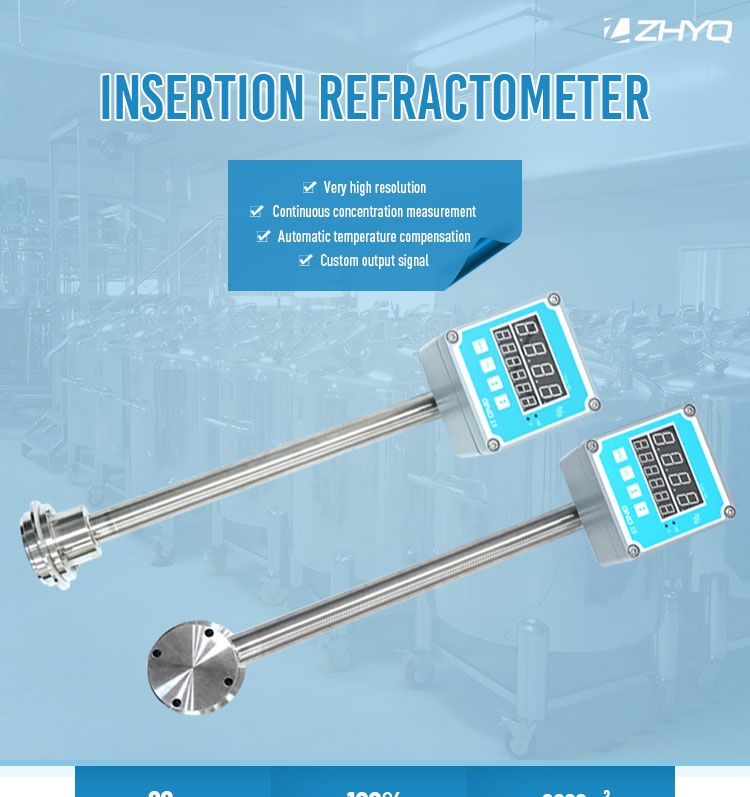

Long Rod Insertion Refractometer

Model:CZ-L

Description:

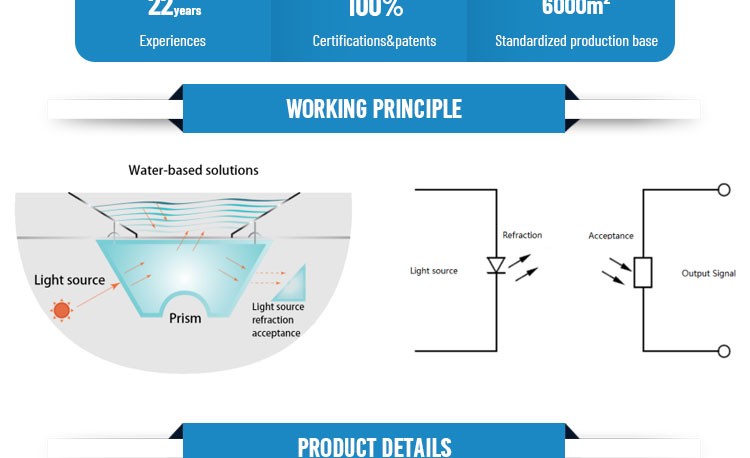

The Brix-Monitor CZ-L is a refractometer Designed for liquid storage tanks, that detects the Refractive Index of a sample and outputs the Brix(%) value on the display , can also transmit measured data to external devices via 4-20mA or RS-485. CZ-L series has the function of automatic temperature compensation according to the temperature of the tested medium , when the tested medium temperature changes , the Brix value ( soluble solids ) after temperature compensation is displays and the output changes accordingly .

Send inquiry

1.Automatic temperature compensation.
2.LED display.
3.Easy to operate, easy to connect with other devices for automatic control.

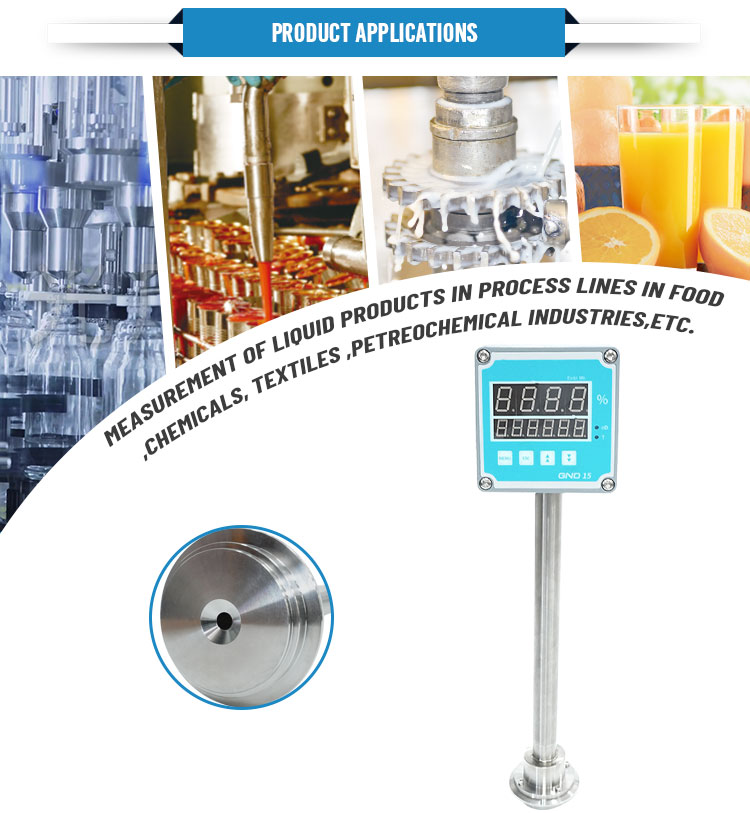

4.Inline real-time monitoring and control of liquid substance concentration in various industries.

1.Cutting oil , mold release agent , quenching liquid , cleaning liquid , emulsion in the machining industry

2.Chemicals and allied , pulp & paper , tobacco , environmental protection

3.Biorefining , Metals and mining

4.Food industry , Dairy , Beverage industry , Fruit and effect processing

5.Starch sweetener , Sugar and sweeteners

6.Water-based solutions

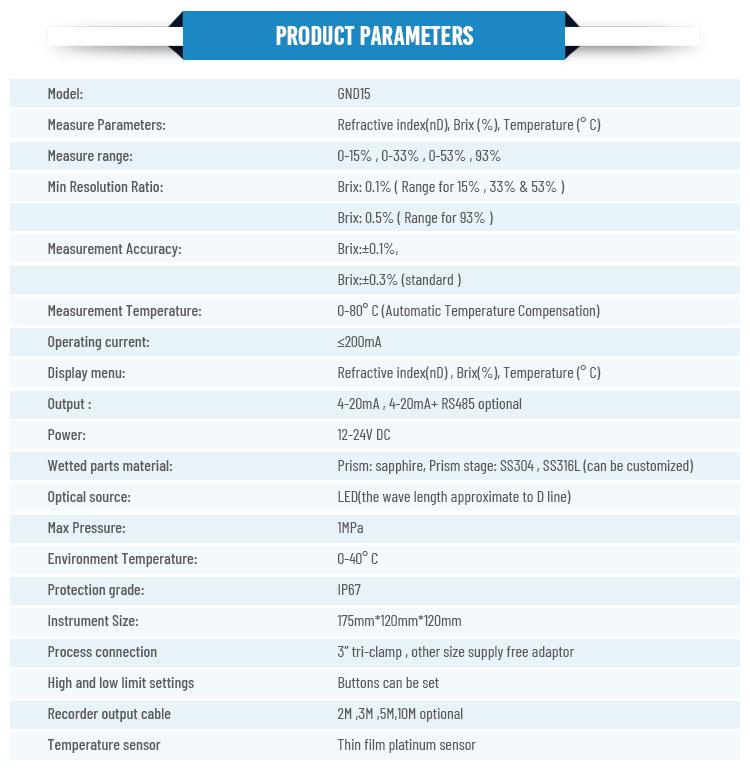

Model: CZ-L
Measure Parameters: Refractive index(nD), Brix (%), Temperature (° C)
Measure Range: 0-15% , 0-33% , 0-53% , 93%
Min Resolution Ratio: Brix: 0.1% ( Range for 15% , 33% & 53% ) ,Brix: 0.5% ( Range for 93% )
Measurement Accuracy: Brix:±0.1%, rix:±0.3% (standard )
Measurement Temperature: 0-80℃(Automatic Temperature Compensation)
Operating Current: ≤200mA

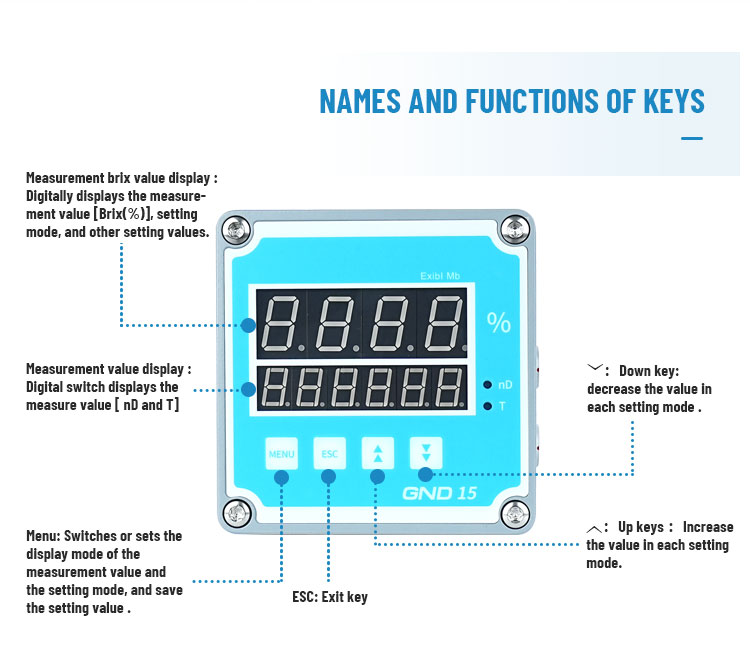

Display Menu: Refractive index(nD) , Brix(%), Temperature (° C)

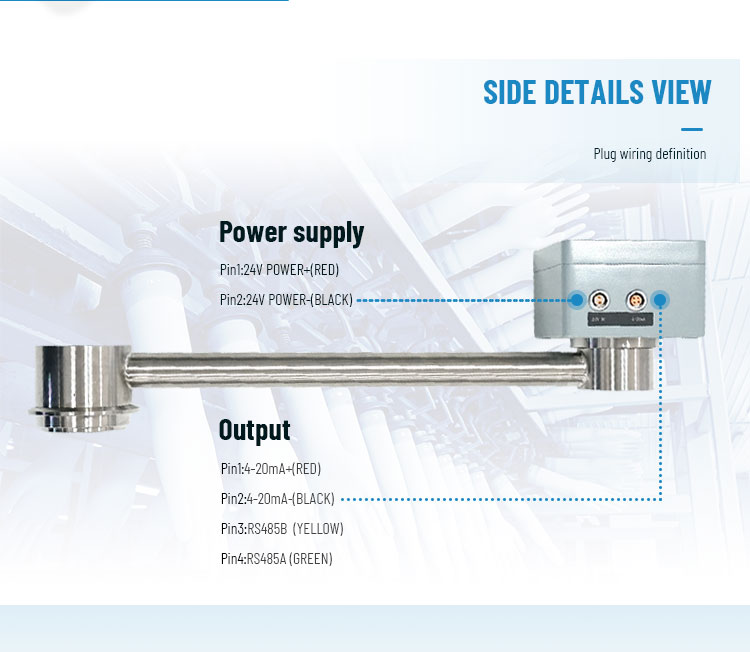

Output: 4-20mA , 4-20mA+ RS485 optional
Power: 12-24V DC

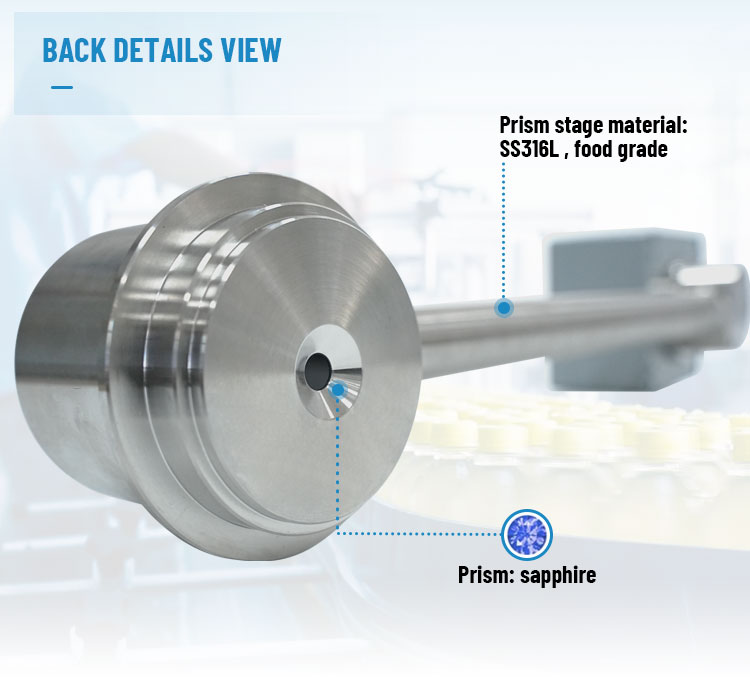

Wetted Parts Material: Prism: sapphire, Prism stage: SS304 , SS316L (can be customized)
Optical Source: LED(the wave length approximate to D line)
Max Pressure: 1MPa
Environment Temperature: 0-120℃
Protection Grade: IP67
Process Connection: 3” tri-clamp , other size supply free adaptor
High and Low Limit Settings: Buttons can be set
Recorder Output Cable: 2M ,3M ,5M,10M optional
Temperature Sensor: Thin film platinum sensor
