GND In-line Refractometer (high temperature Application)

Model:GND15-H

Description:

The In-line Brix-Monitor GND15-H is a refractometer that detects the Refractive Index of a sample and outputs the Brix(%) value on the display , can also transmit measured data to external devices via 4 to 20mA or RS485 .

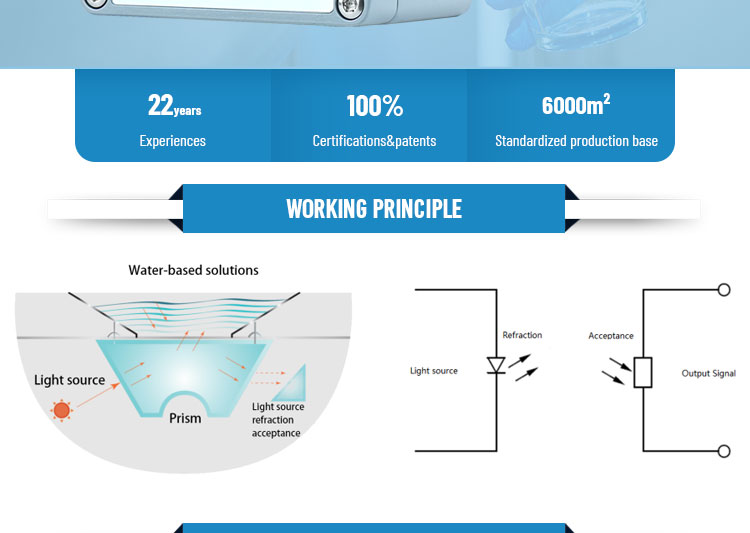

GND15-H series has the function of automatic temperature compensation according to the temperature of the tested medium , when the tested medium temperature changes , the Brix value ( soluble solids ) after temperature compensation is displays and the output changes accordingly . This product is designed for medium and high temperature (90~150 °C) applications . with a water cooling device, one is the water inlet pipe and the other is the water outlet pipe, through the water circulation to reduce the temperature of the liquid contacting our mirror, which can solve the impact of excessive temperature on the product accuracy and the damage to PCB .

Send inquiry Download PDF

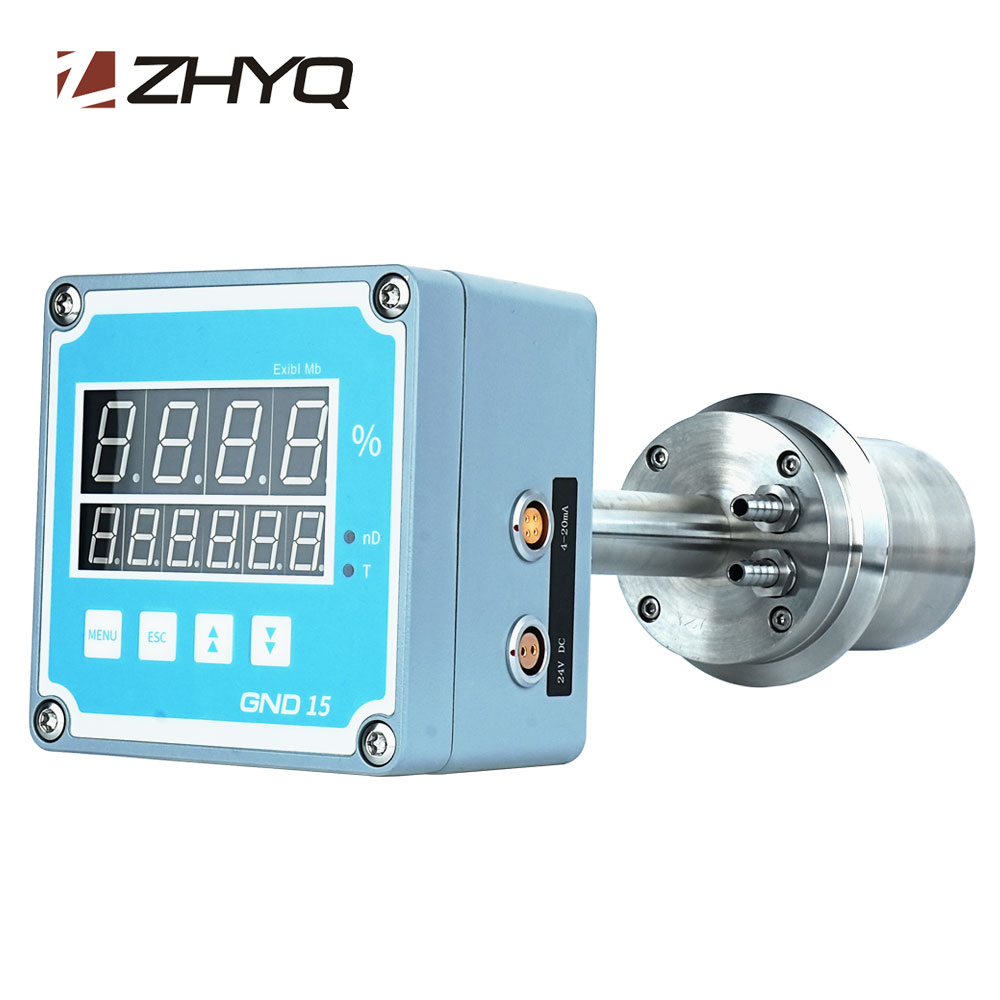

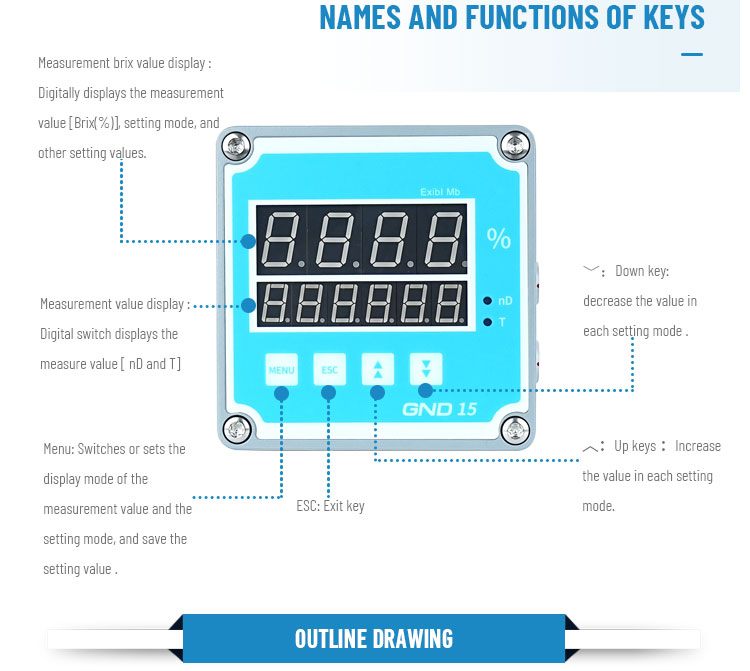

①  Measurement brix value display : Digitally displays the measurement value [Brix(%)], setting mode, and other setting values.

②  Measurement value display : Digital switch displays the measure value [ nD & T]

③   Menu: Switches or sets the display mode of the measurement value and the setting mode, and save the setting value.

④   ESC: Exit key

⑤   ︿:Up keys :Increase the value in each setting mode.

⑥   ﹀:Down key: decrease the value in each setting mode.

1.Automatic temperature compensation.

2.Lightweight , compact and easy to install on site .

3.LED display.

4.Easy to operate, easy to connect with other devices for automatic control.

5.Inline real-time monitoring and control of liquid substance concentration in various industries.

6.Suitable medium and high temperature (90~150 degrees C) applications.

1.Cutting oil , mold release agent , quenching liquid , cleaning liquid , emulsion in the machining industry

2.Chemicals and allied , pulp & paper , tobacco , environmental protection

3.Biorefining , Metals and mining

4.Food industry , Dairy , Beverage industry , Fruit and effect processing

5.Starch sweetener , Sugar and sweeteners

6.Water-based solutions

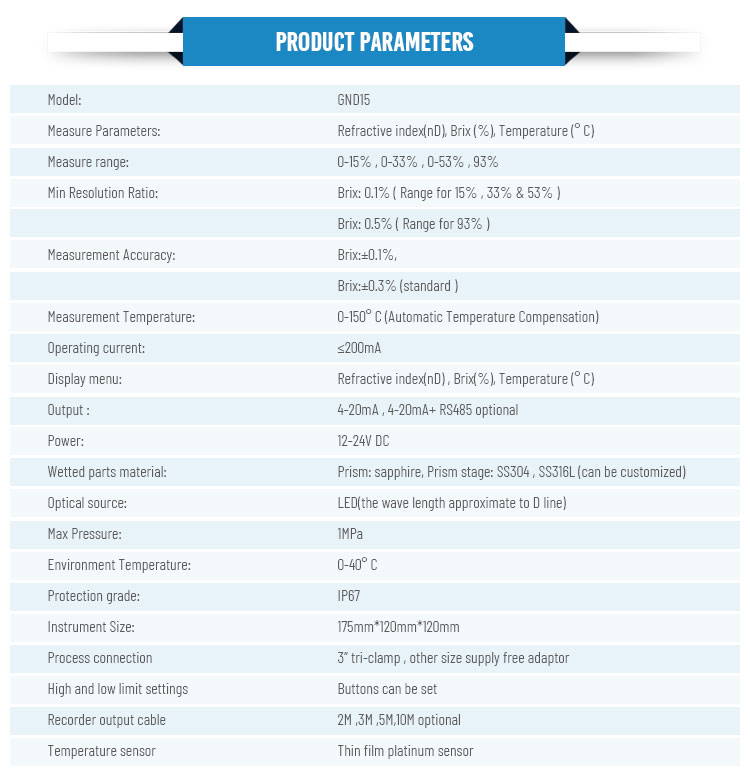

Model: GND15
Measure Parameters: Refractive index(nD), Brix (%), Temperature (° C)
Measure range: 0-15% , 0-33% , 0-53% , 93%
Min Resolution Ratio: Brix: 0.1% ( Range for 15% , 33% & 53% ) ,Brix: 0.5% ( Range for 93% )
Measurement Accuracy: Brix:±0.1%, rix:±0.3% (standard )
Measurement Temperature: 0-150℃(Automatic Temperature Compensation)
Operating current: ≤200mA
Display menu: Refractive index(nD) , Brix(%), Temperature (° C)

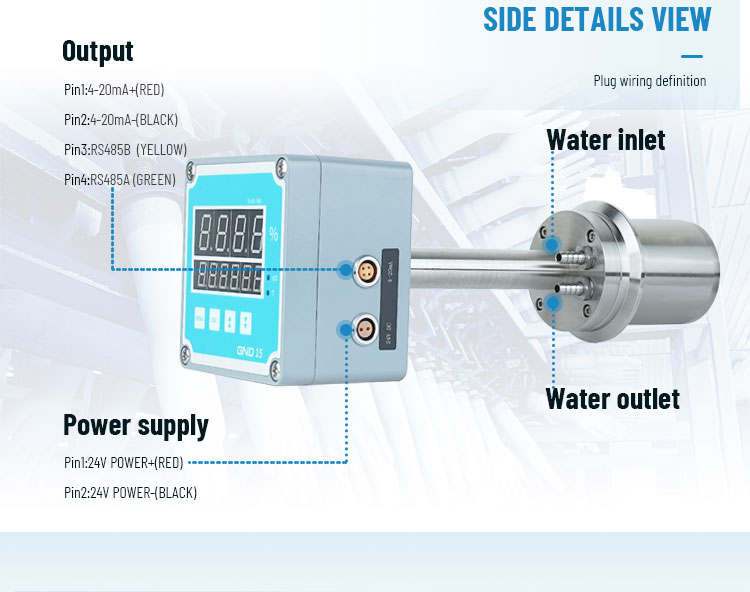

Output : 4-20mA , 4-20mA+ RS485 optional
Power: 12-24V DC

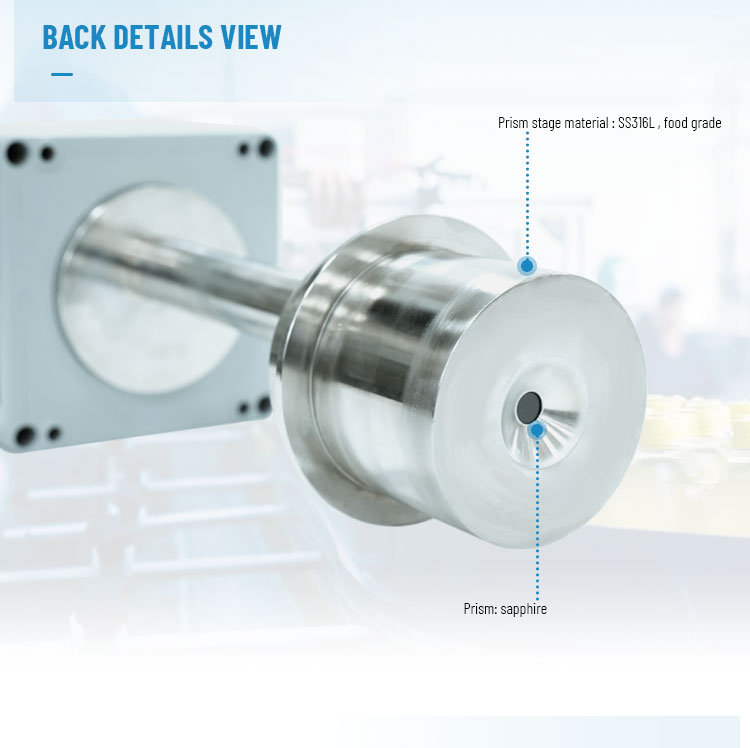

Wetted parts material: Prism: sapphire, Prism stage: SS304 , SS316L (can be customized)
Optical source: LED(the wave length approximate to D line)
Max Pressure: 1MPa
Environment Temperature: 0-120℃
Protection grade: IP67

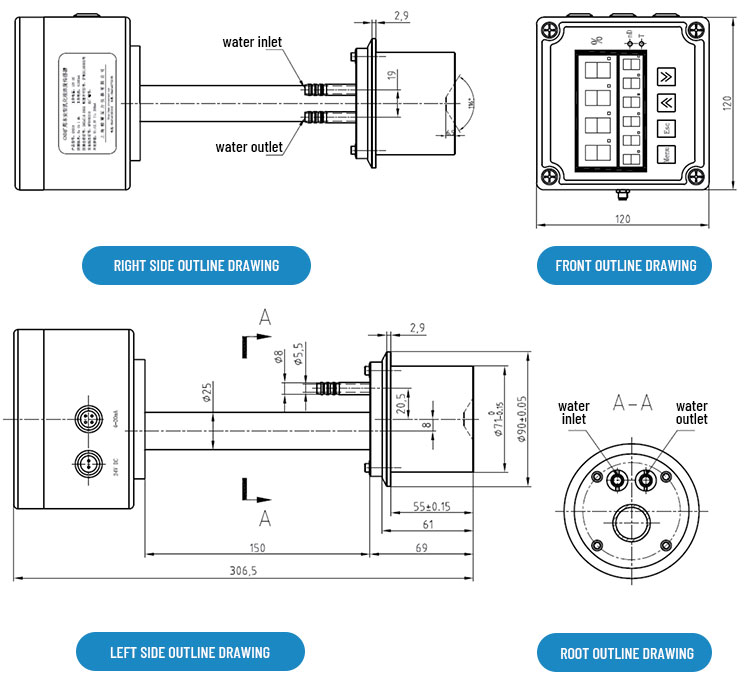

Instrument Size: 306.5mm*120mm*120mm
Process connection 3” tri-clamp , other size supply free adaptor
High and low limit settings Buttons can be set
Recorder output cable 2M ,3M ,5M,10M optional
Temperature sensor Thin film platinum sensor
