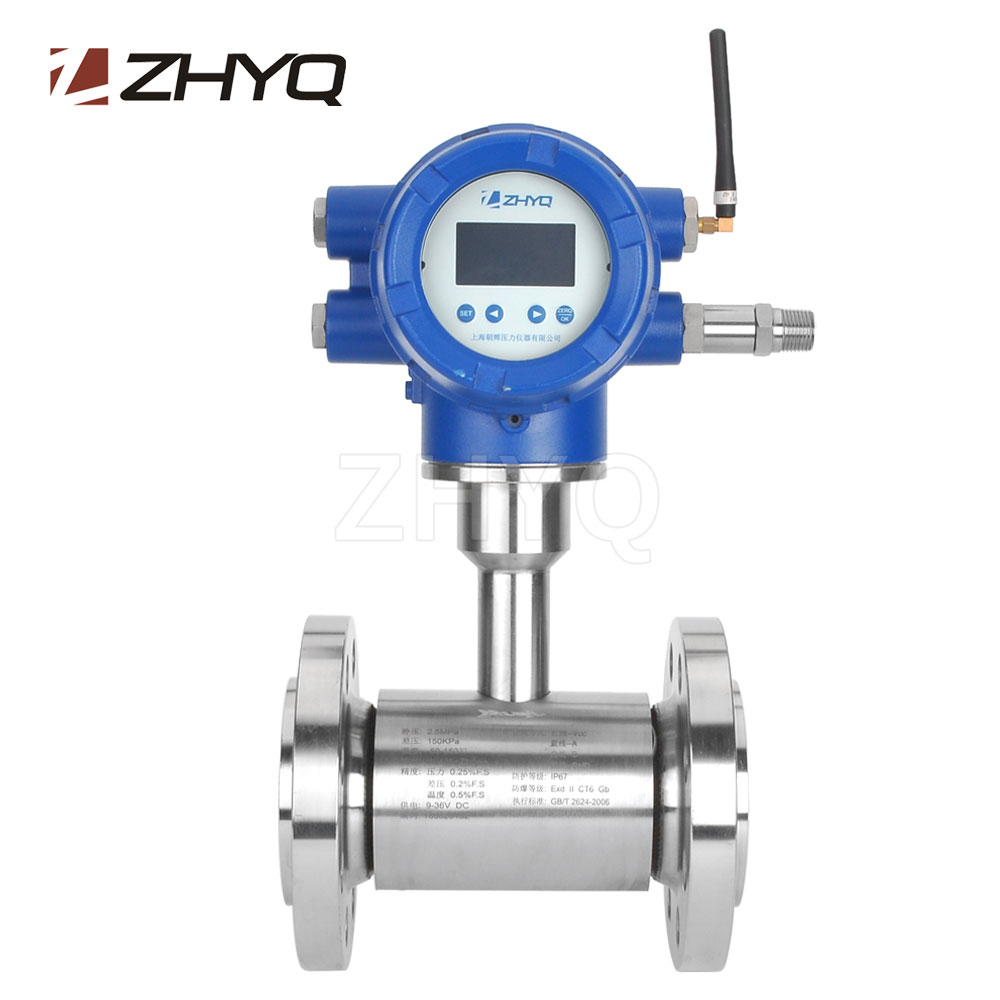

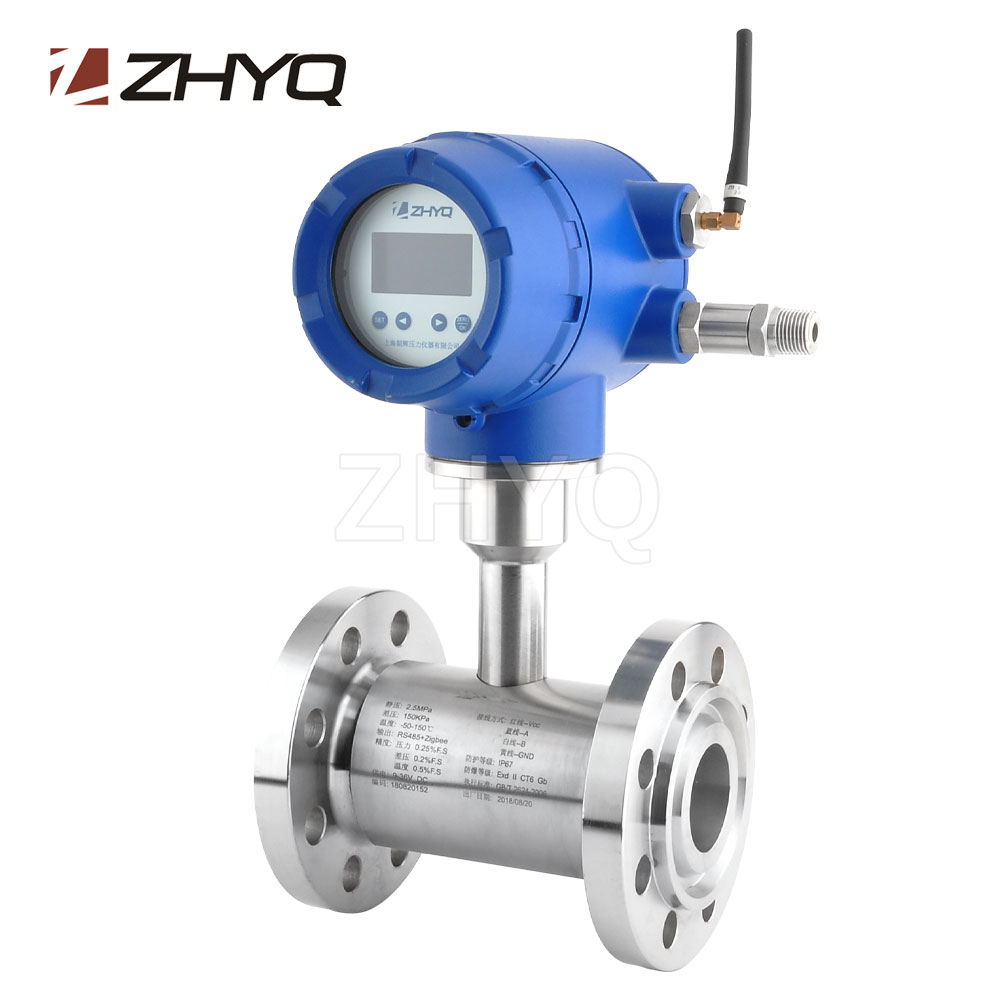

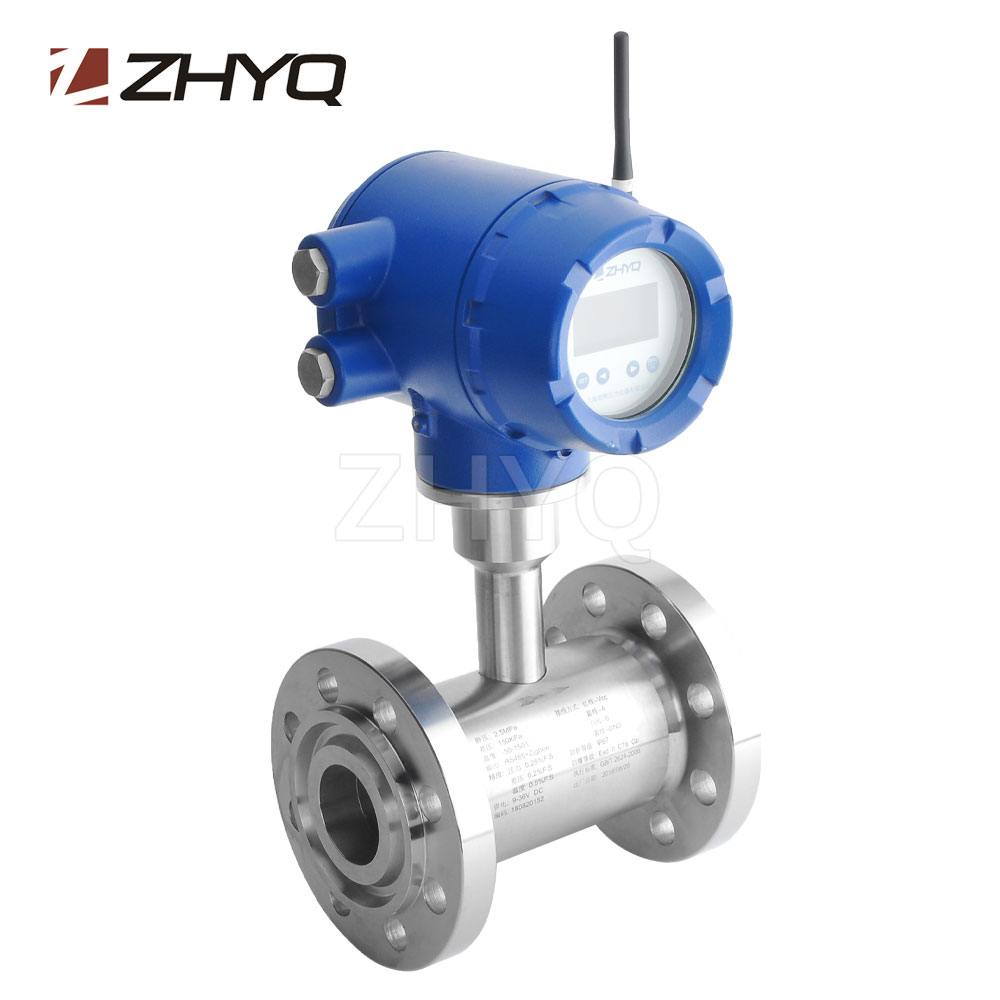

Multiphase digital flow meter
multiphase digital flow meter

Multiphase digital flow meter



The Multiphase liquid digital flow meter that integrates differential pressure, pressure, flow and temperature. Its multi-function monitoring parameters have greatly improved its application fields. The cylindrical structure can achieve a hard seal connection.

Send inquiry
  • Direct measurement of liquids, gases and steam
  • Easy installation and convenient operation
  • Flameproof design, high security
  • It is widely used in the field of petrochemical, steelworks, electricity and etc, for Multi-function monitoring of differential pressure, static pressure, flow and temperature.
Measurement type Differential pressure, static pressure, temperature
Measurement medium Liquid, gas, steam
Measurement range Differential pressure 0-150KPa; static pressure 0-2.5MPa;

Temperature: -55~150℃

Accuracy Differential pressure 0.2%FS; pressure 0.2%FS;


Nonlinear 0.2% FS
Reliability 0.2%FS
Output: RS485
Power supply 9~36VDC
Working temperature -20~150℃
Temperature compensation 0~65℃
Communication Modbus RTU
Wetted parts Stainless steel
Protection grade IP68
Process connection DN50, DN70 or customer tailor
