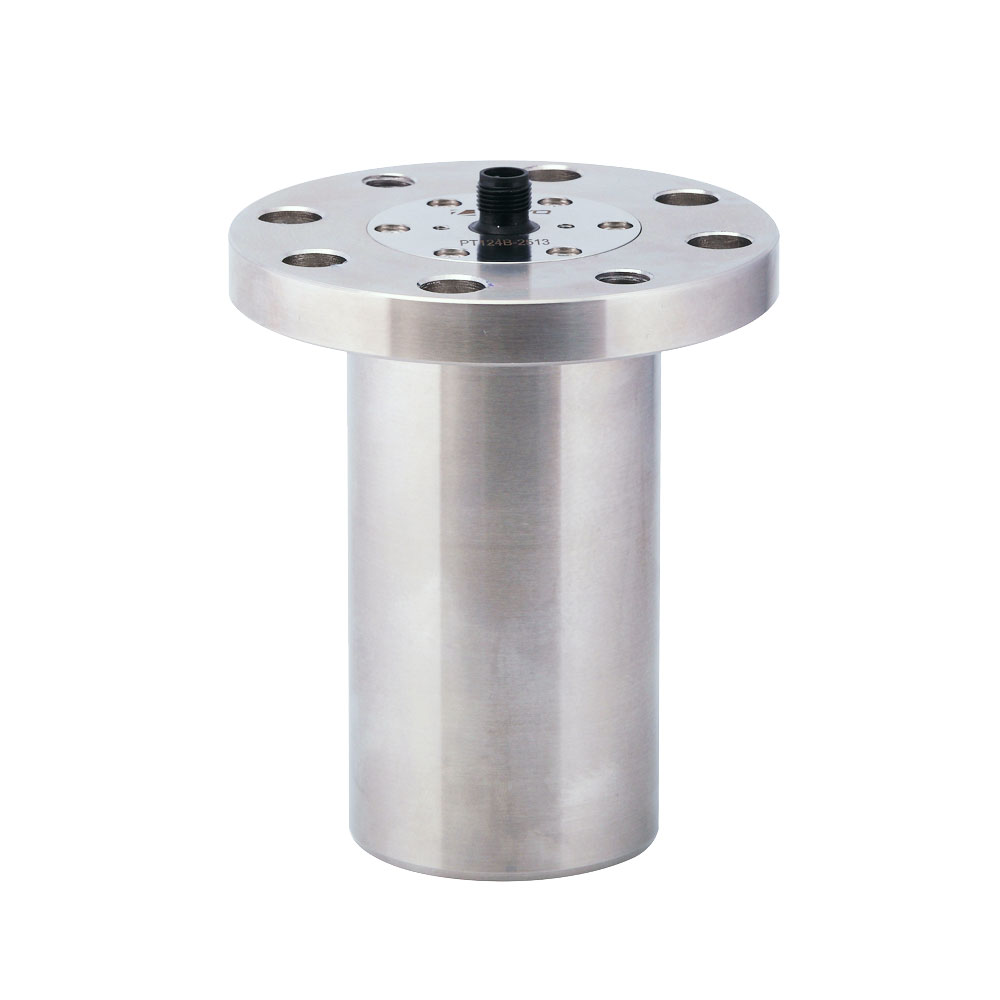

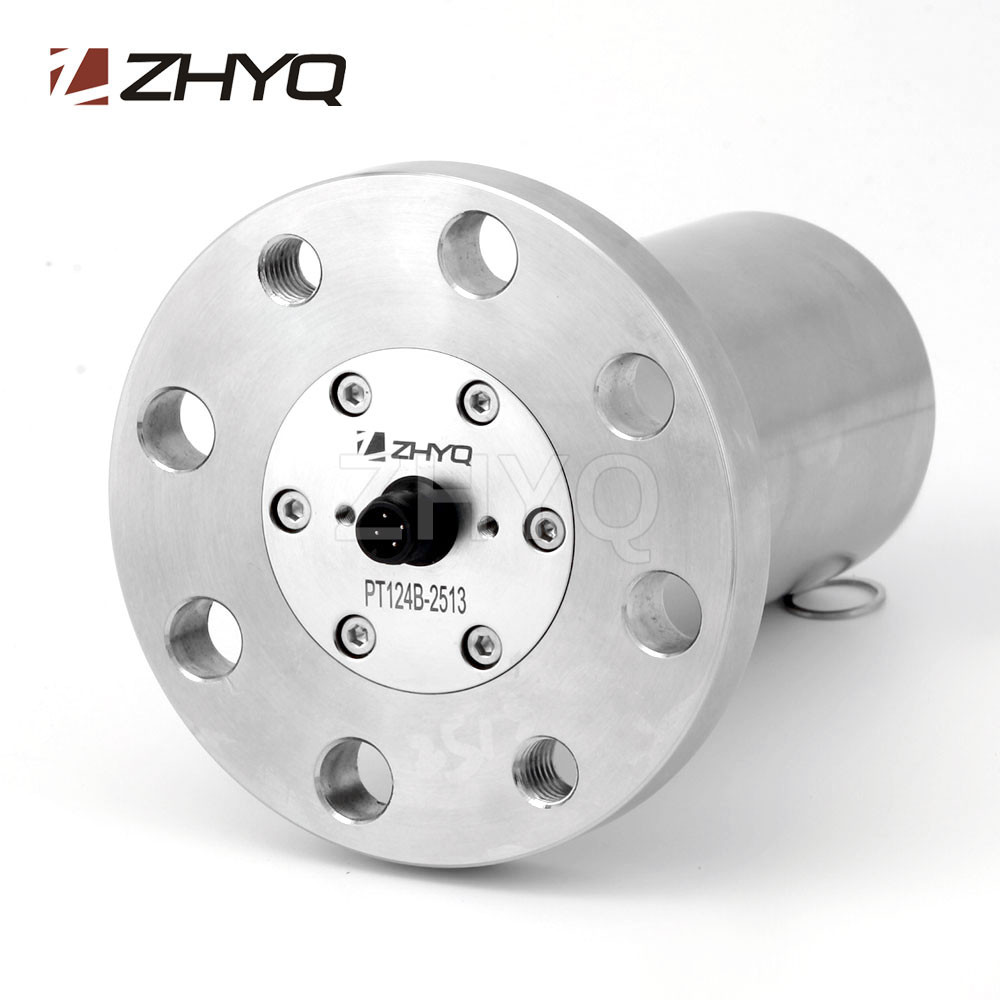

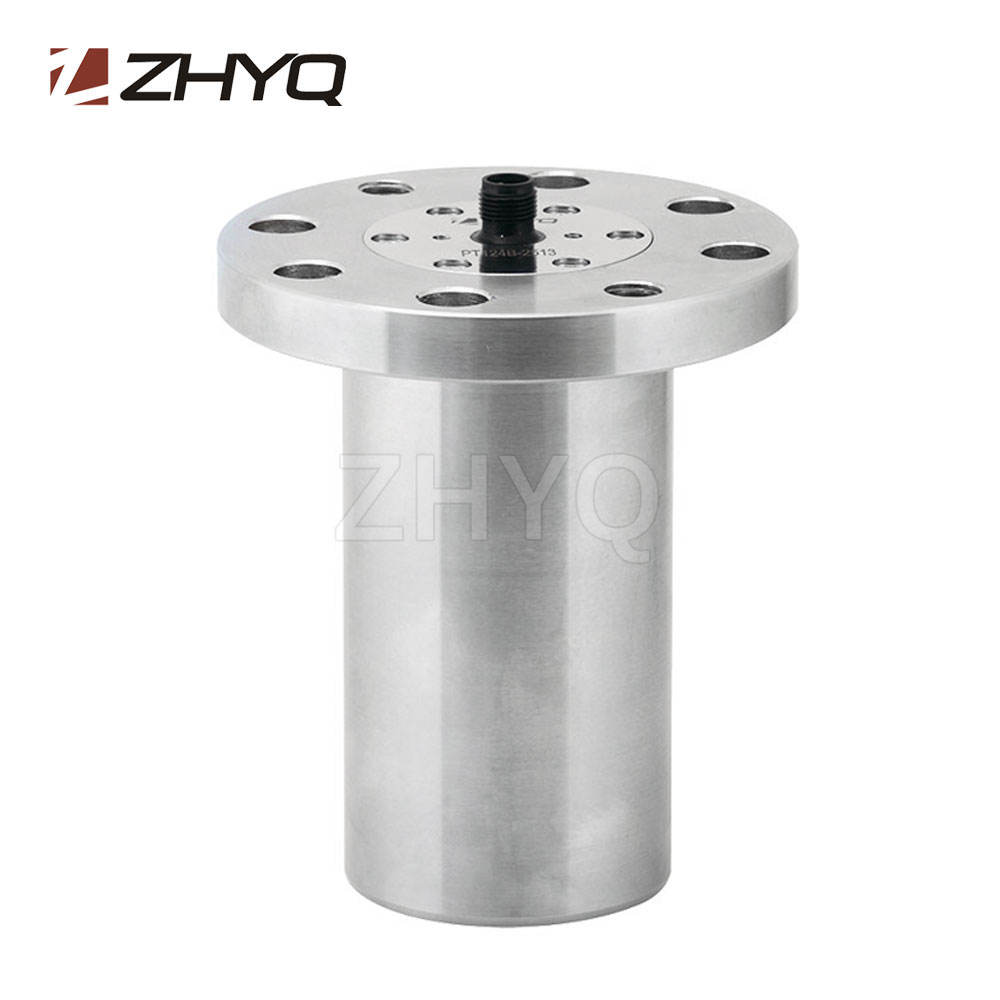

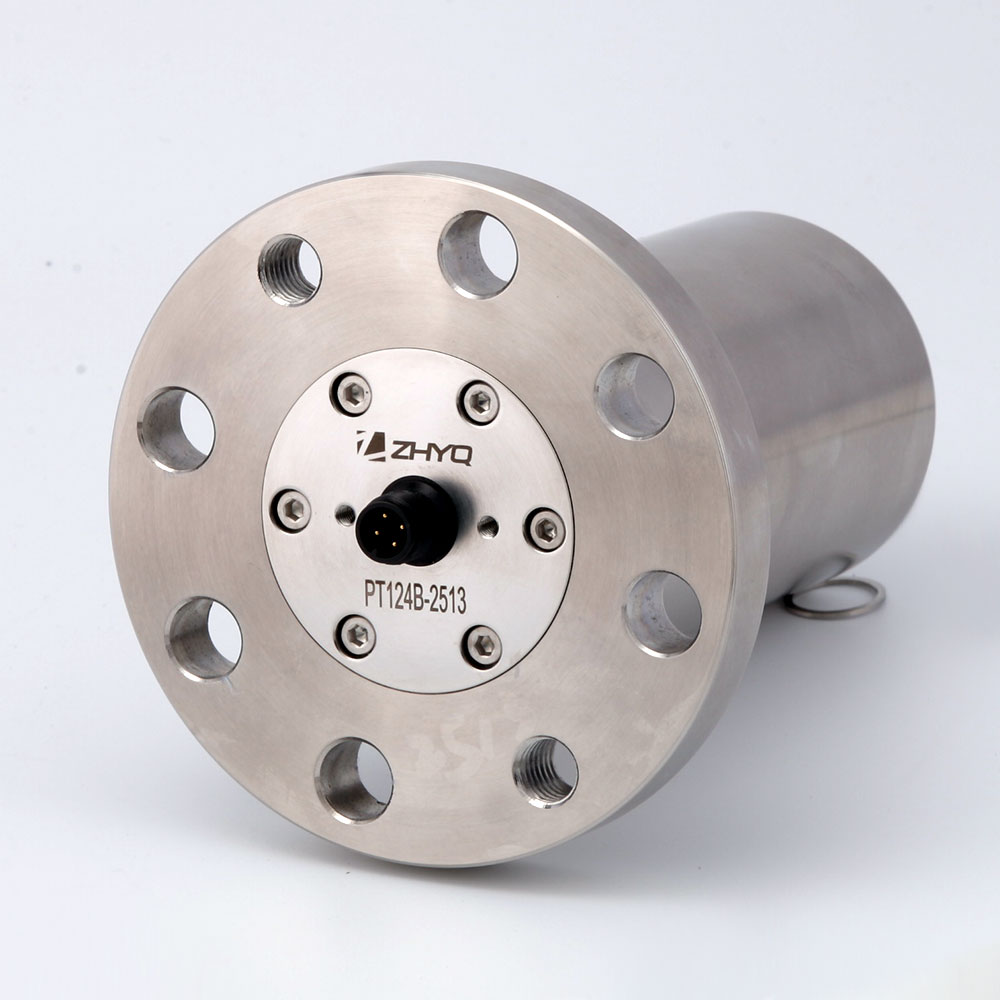

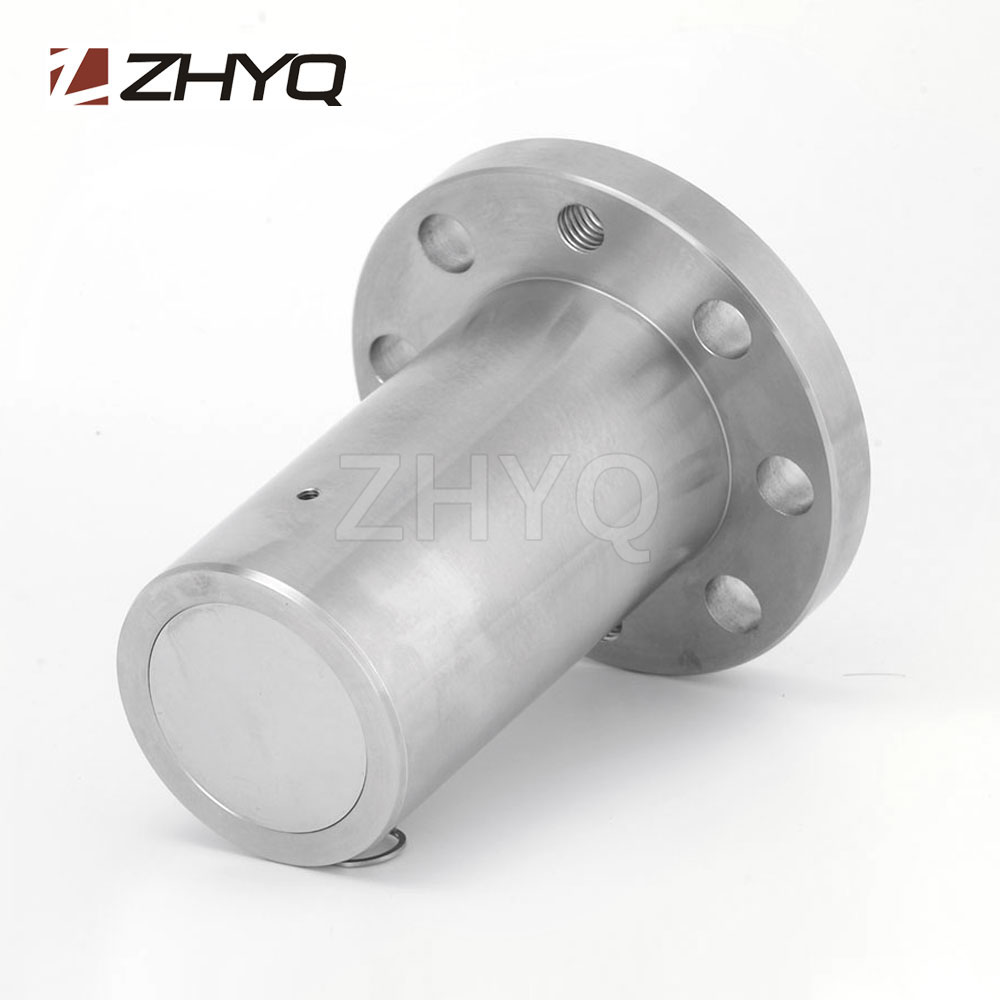

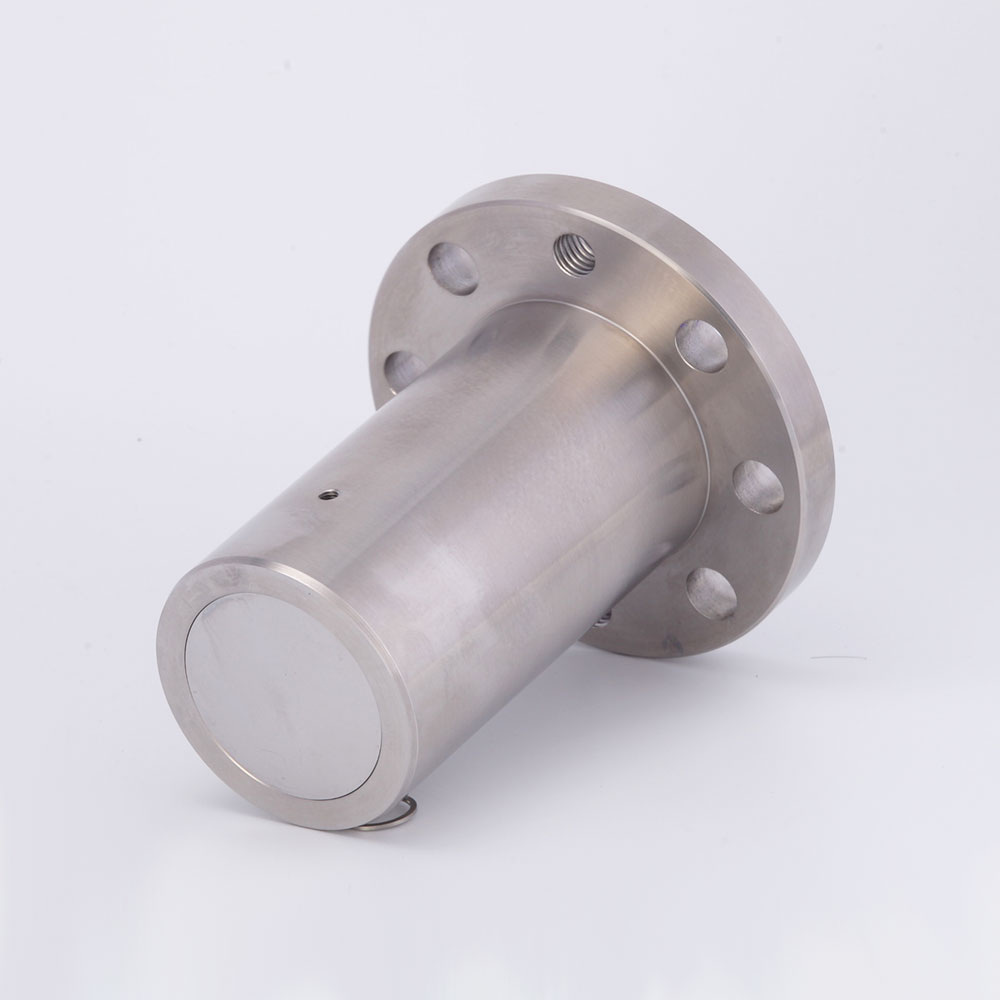

TBM pressure transmitter
Model:PT124B-2513
Description:
Tunnel boring pressure transmitter designed with skilled mechanics, consummate dynamics transfer configuration design to make the flush diaphragm no damaged by the hardness grit of the tested medium, make it suitable for hazardous locations.
Send inquiry Download PDFTags: Tunnel boring pressure transmitter, Shield pressure transmitter, Heavy duty pressure transmitter
- Special amplifying circuit
- Structure diversity, various signal output
- Adopt special material, flush diaphragm
- Compact construction, corrosion resistance
- Designed with anti blocking structure
- Good shock resistance, good abrasion resistance
- High precision measurement
- Mud measurement
- Shield tunnel machinery
- Loading machine
- Hydraulic machinery
- Brick-making machinery
- Irrigation works, petroleum exploration and etc
| Pressure range | 20bar, 50bar |
| Output | 4-20mA, 0-5V, 0-10V, 0.5-4.5V |
| Power supply | 12~36V DC |
| Protect grade | IP65 |
| Diaphragm material | 316L |
| Material of the house | 304, 316L |
| Load pressure | 150%FS |
| Response time | ≤1 (10%～90%)ms |
| Combined accuracy | 0.25%FS, 0.5%FS, 1.0%FS |
| Medium temperature | -25～85℃ |
| Compensation temperature | 0～50℃ |
| Electrical connector | 5PIN, 4PIN connector |
| Process connector | Pressing type |
