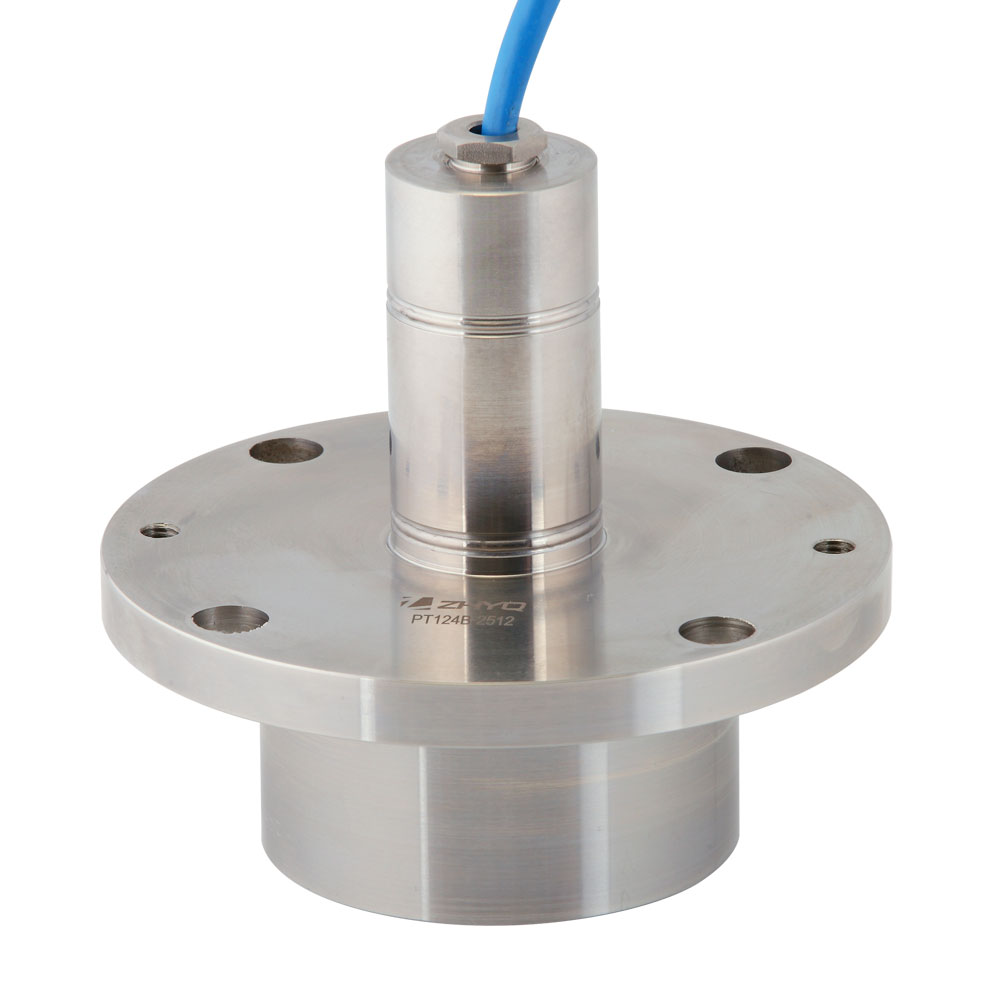

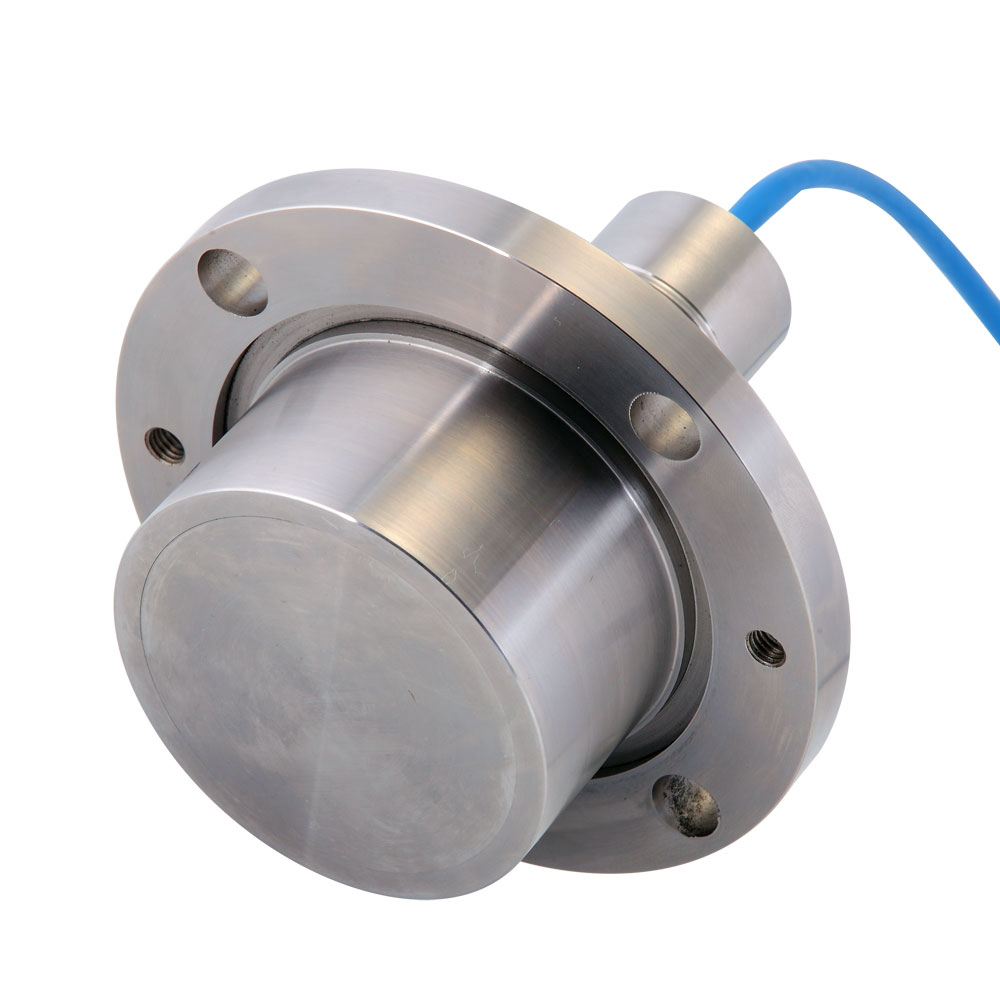

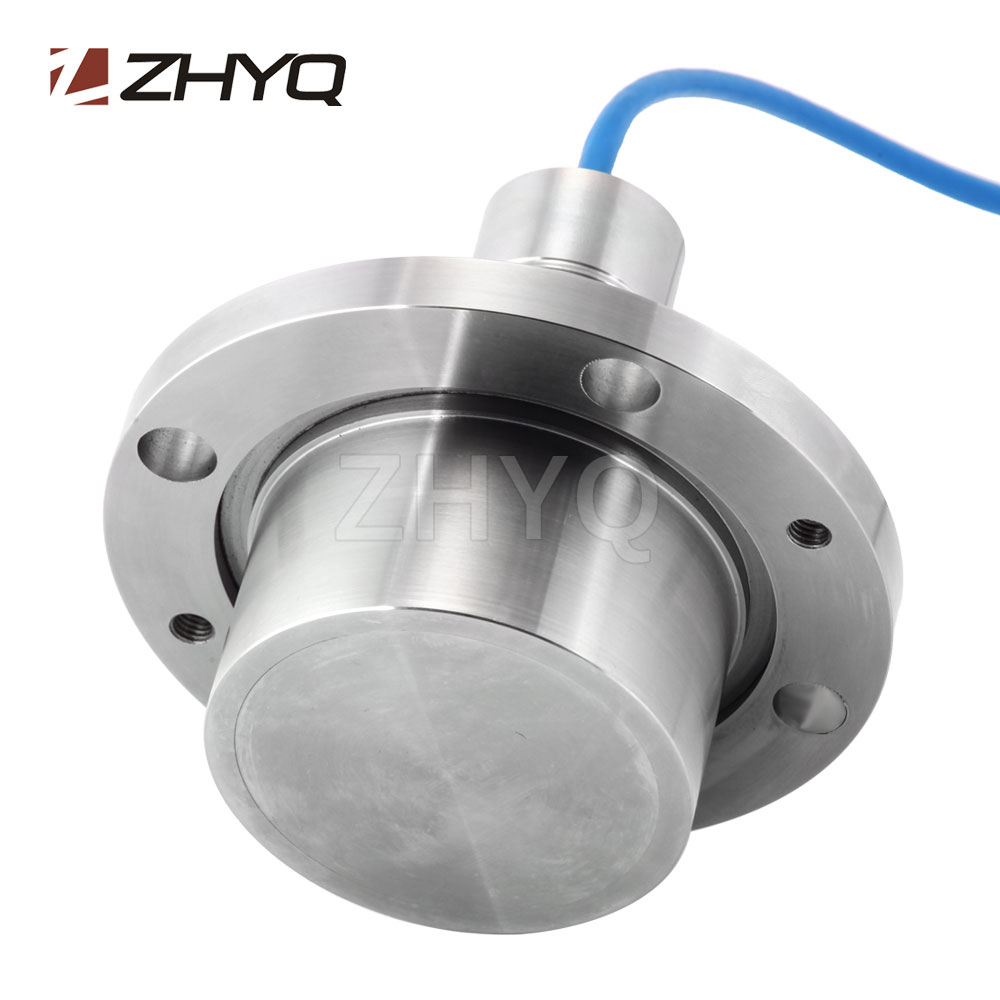

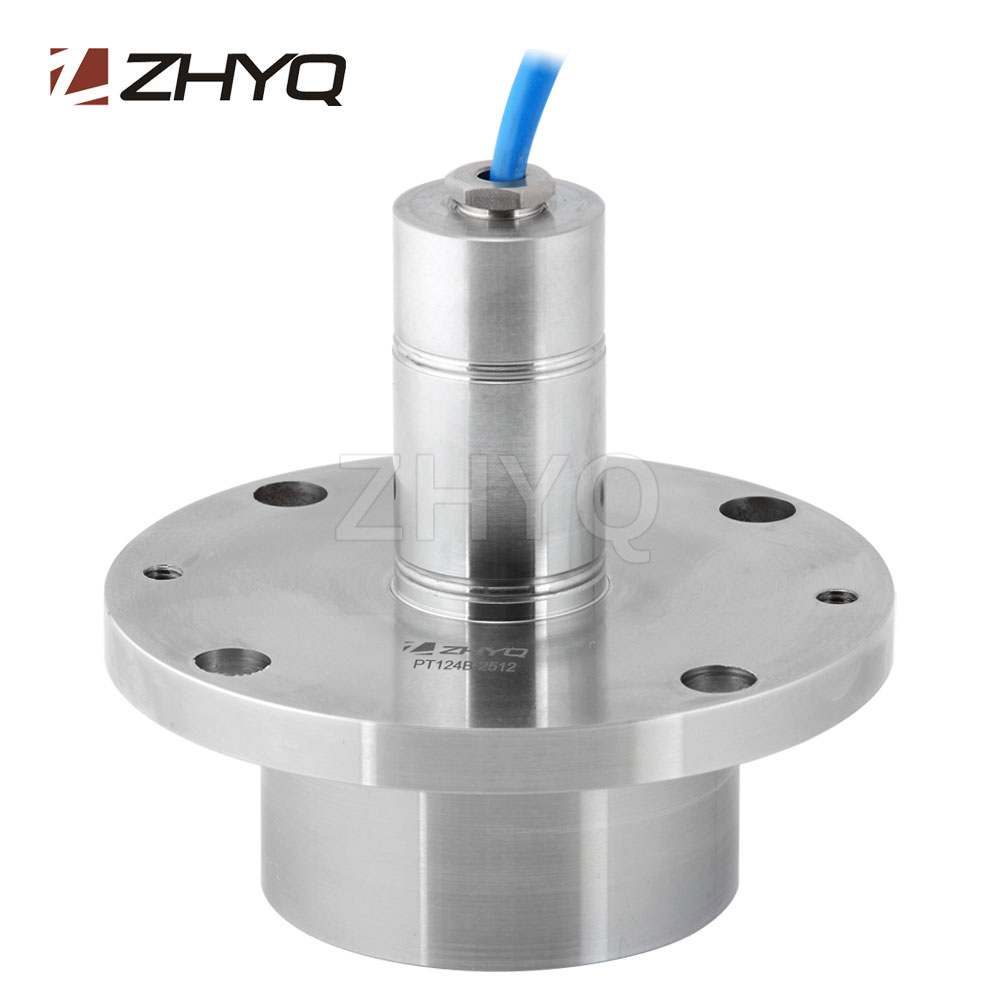

Shield machine pressure transmitter

Model:PT124B-2512

Description:

Shield machine pressure transmitter formed with special metal and technology, designed with skilled mechanics, consummate dynamics transfer configuration design to make the flush diaphragm no damaged by the hardness grit of the tested medium, make it suitable for hazardous locations.

Send inquiry Download PDF

Tags: Heavy duty pressure transmitter, Pressure transmitter for tunnel machine, Pressure transmitter for boring machine

  • Special amplifying circuit
  • Structure diversity, various signal output
  • Adopt special material, flush diaphragm
  • Compact construction, corrosion resistance
  • Designed with anti blocking structure
  • Good shock resistance, good abrasion resistance
  • High precision measurement
  • Mud measurement
  • Shield tunnel machinery
  • Loading machine
  • Hydraulic machinery
  • Brick-making machinery
  • Irrigation works, petroleum exploration and etc
Pressure range 20bar, 50bar
Output 4-20mA, 0-5V, 0-10V, 0.5-4.5V
Power supply 12~36V DC
Protect grade IP65
Diaphragm material 316L
Material of the house 304, 316L
Load pressure 150%FS
Response time ≤1 (10%~90%)ms
Combined accuracy 0.25%FS, 0.5%FS, 1.0%FS
Medium temperature -25~85℃
Compensation temperature 0~50℃
Electrical connector Direct cable
Process connector Pressing type
