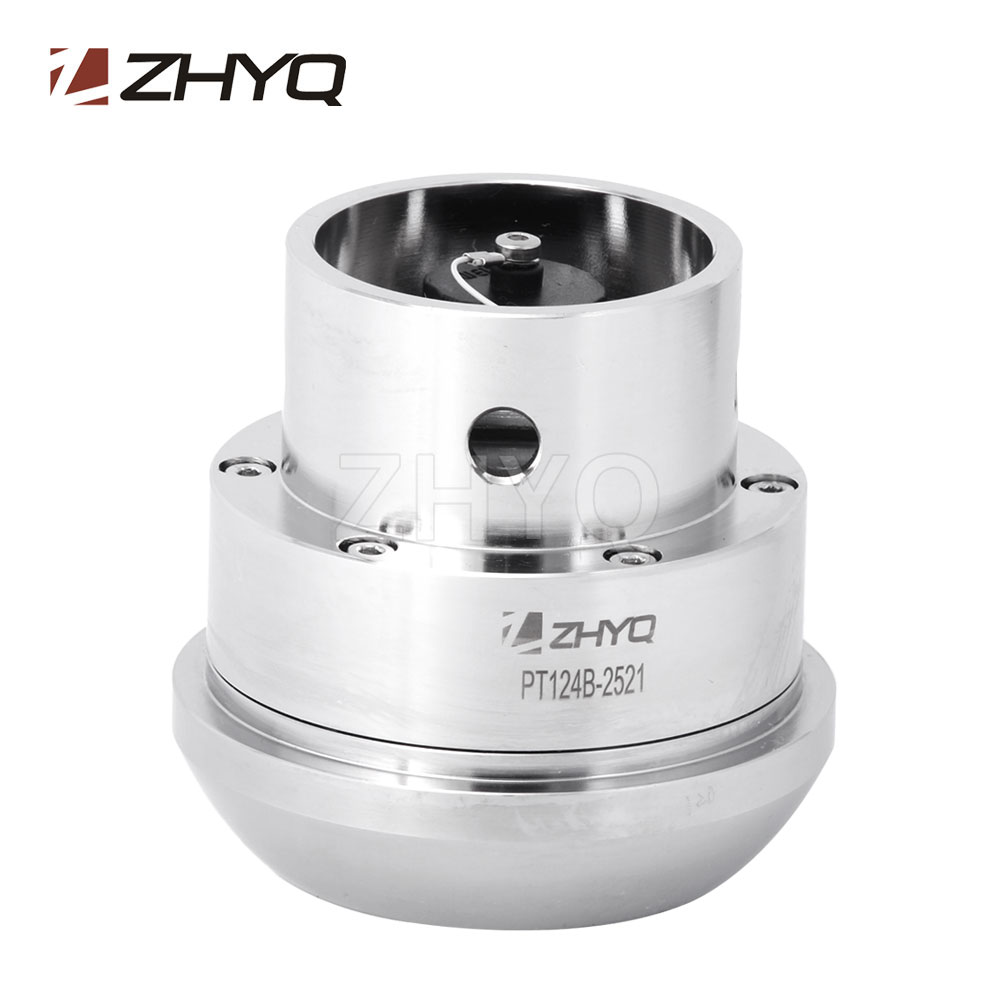

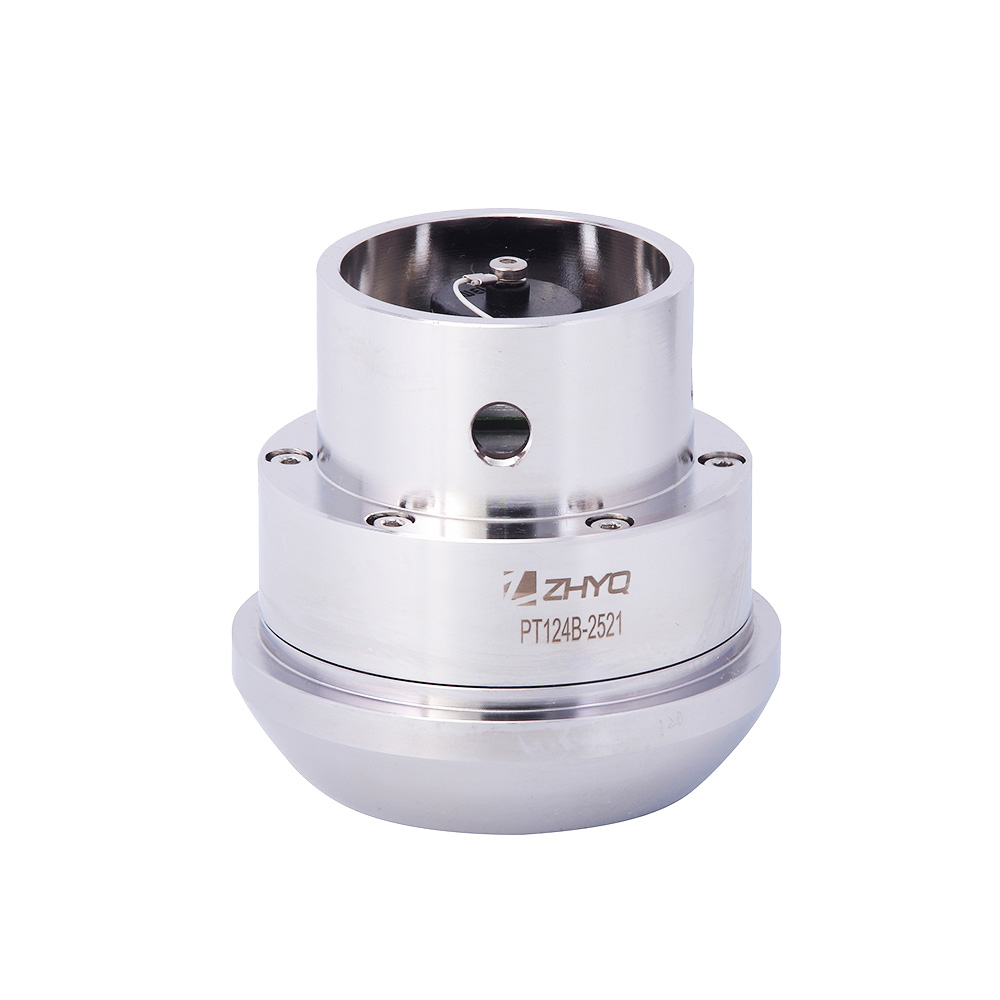

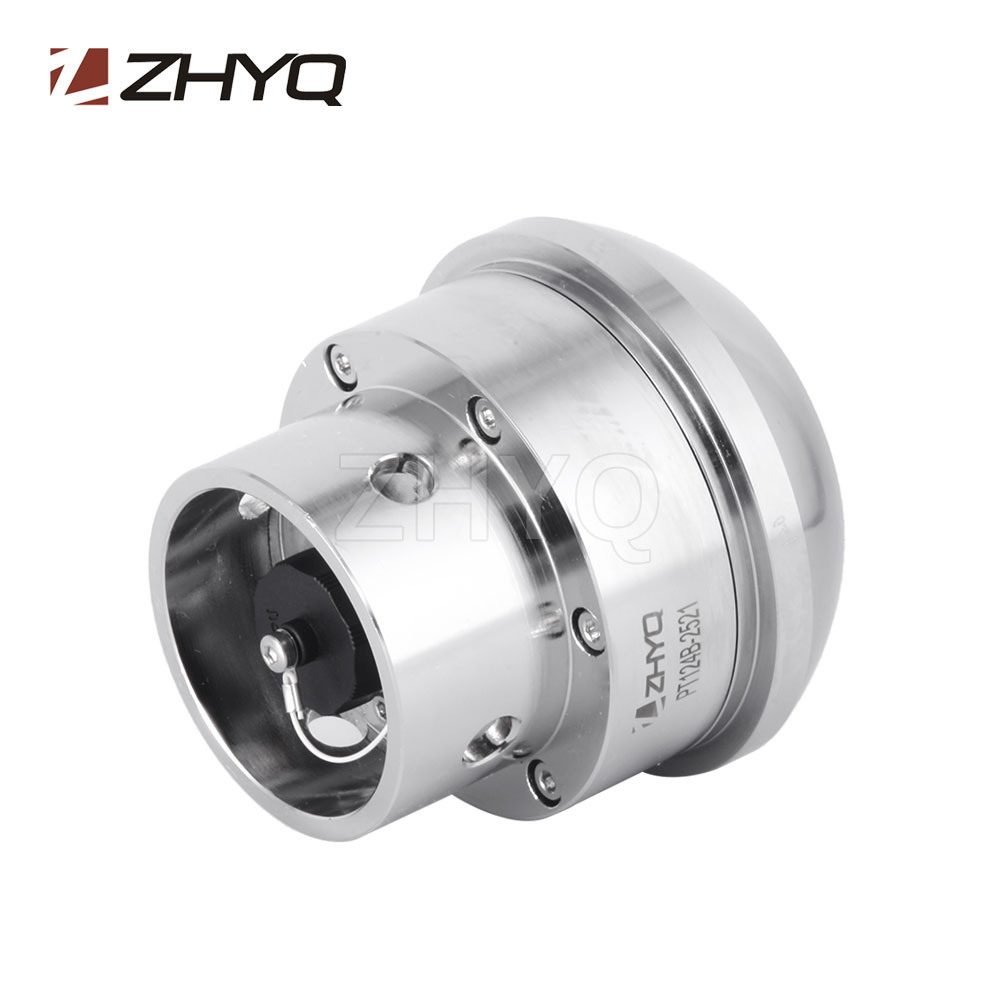

Hammer Union Pressure Transmitter

Model:PT124B-2521

Description:

PT124B-2521 Hammer Union Pressure Transmitter adopts the firm diaphragm with special treatment; consummate dynamics transfer configuration design to make the flush diaphragm no damaged by the hardness grit of the tested medium. This model has the character of compact configuration, corrosion resistance, shock proof, wide range temperature compensation.

Send inquiry
  • Wide range temperature compensation
  • Various standard output
  • Direct shield cables
  • Corrosion resistance, shock proof

Potential applications include drilling, acidizing, choke manifolds, extraction, fracturing and cementing, mud pumps, new well development, nitrogen injection, service and cement trucks, standpipe, stimulation and well head measurement.

Range 0….50mBar to 0….600Bar
Accuracy 0.5%FS; 1%FS
Linear 0.2%
Reliability 0.05%
Output 4-20mA; 0-5V; 0.5-4.5V ;1-5V
Input voltage 24(12~36)VDC
Operation Temperature -40~125℃
Temperature compensation 0~80℃
Over Pressure 150%FS
Medium Material 316SS
Electric connection Direct shield cable
Pressure Port Flange
