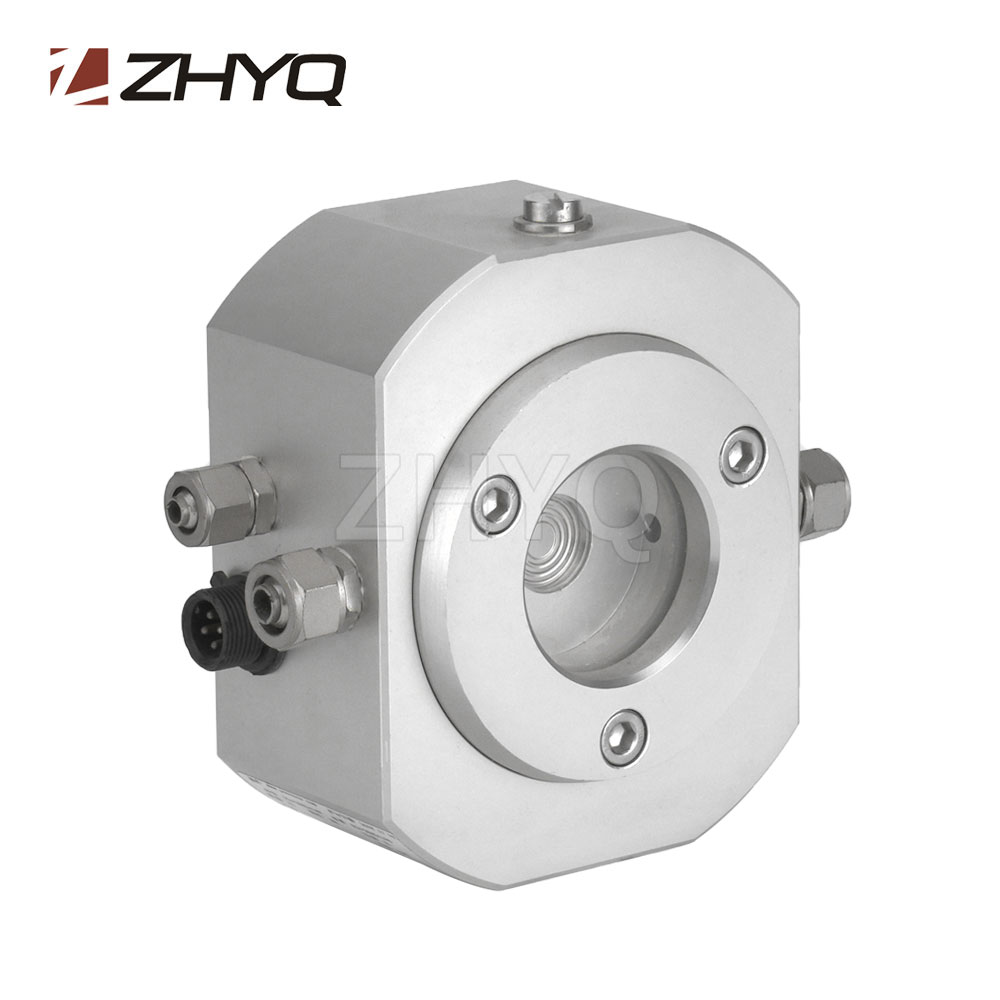

PT124B-226A

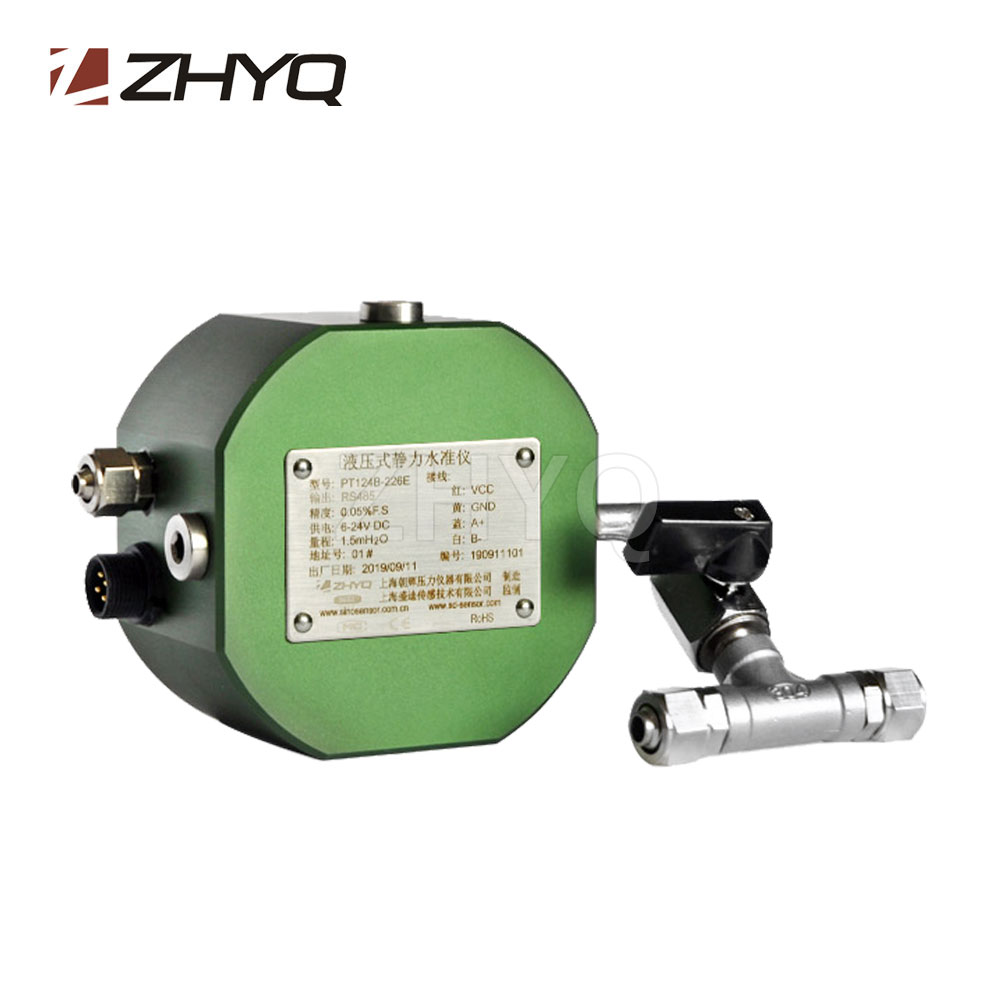

PT124B-226E

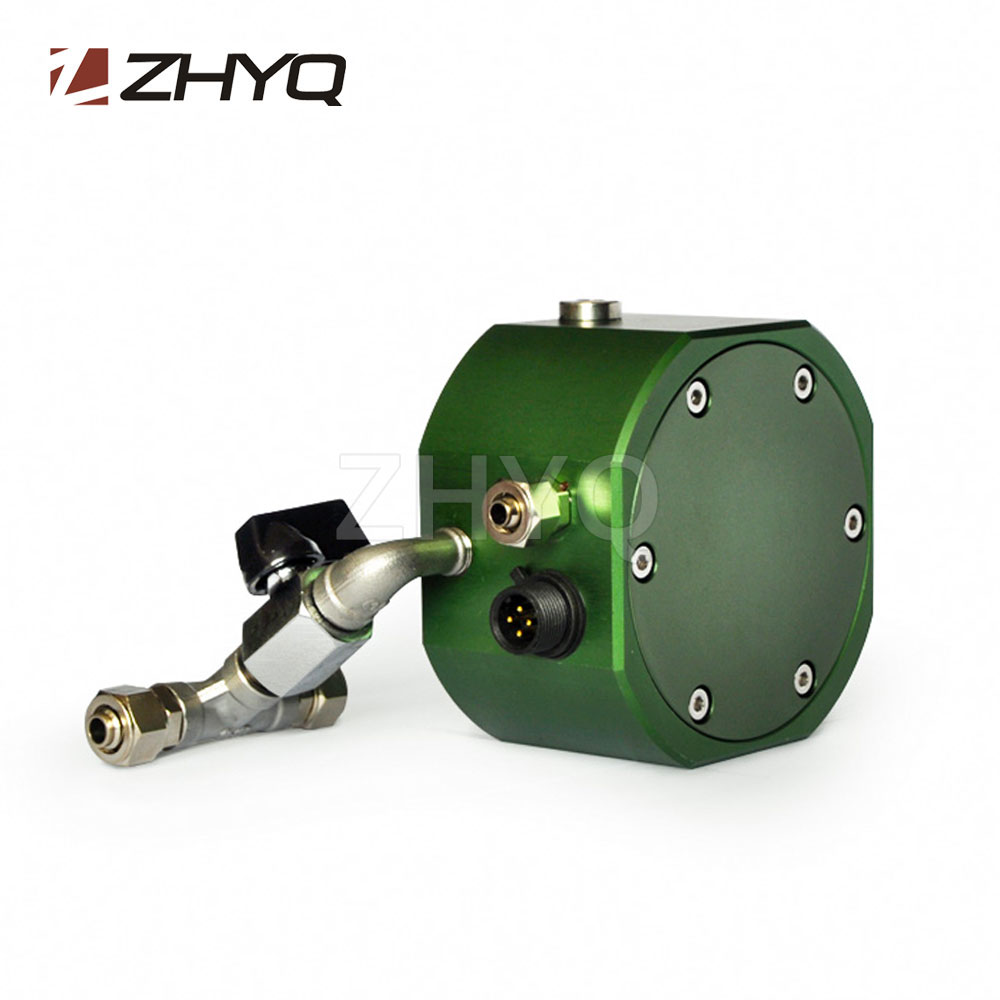

PT124B-226E.

Monocrystalline silicon hydro leveling sensor

Model:PT124B-226

Description:

Monocrystalline silicon hydro leveling sensor widely used to measure the settlement of building, bridge, underground and etc.

Send inquiry Download PDF
  • MEMS monocrystalline silicon technology
  • High accuracy and repeatability
  • Strong anti-jamming performance, automatic temperature compensation
  • IP66 protective, quickly suitable for various conditions
  • Independent IP, no need system
  • Standard interface, no need system calibration

It is the ideal choice for the vertical displacement and tilt monitor for dam, nuclear power station, high-rise building, tunnel, bridge, underground, geological settlement, dangerous building and etc.

Range 0-1500mmH2O
Combined accuracy 0.05%F.S
Stability 0.03%F.S/Yr
Output RS485
Power supply 7-12V DC
Operating temperature -20~85℃
Temperature compensation 0-60℃
Over load 150%
House material aluminum alloy with anodized surface
Electrical connector water proof 4PIN connector
Protection grade IP67
Installation vertical with exhaust valve upwards
