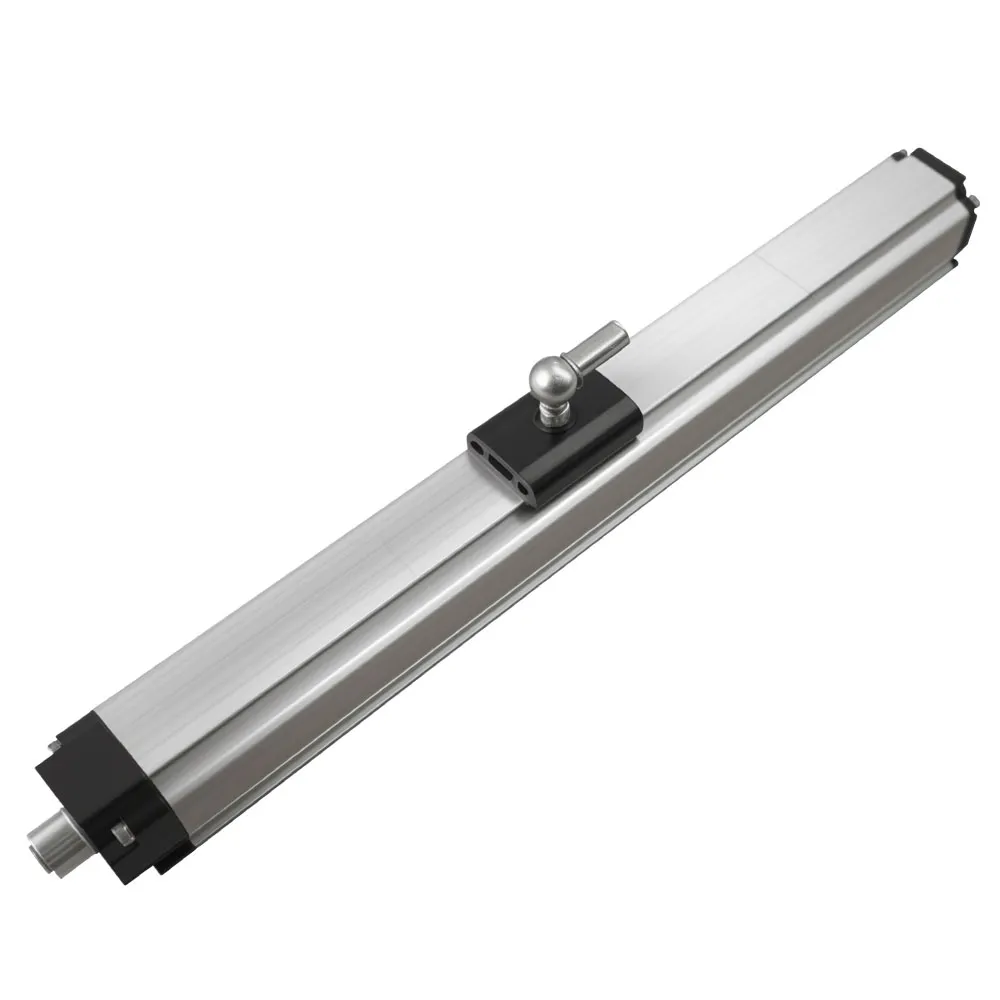

Description
Technical Parameters

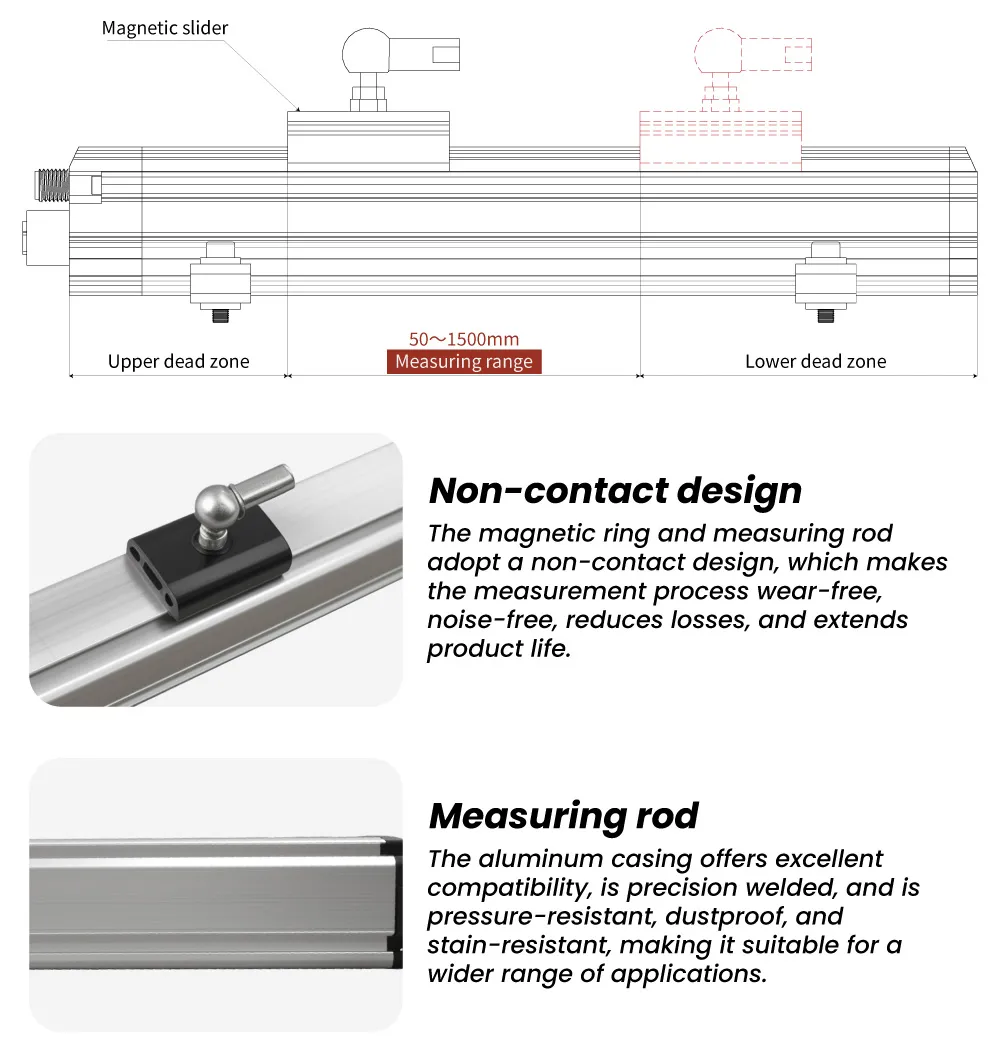

| Measurement range | 50~1500mm |
| Max detectable speed | 10m/s |
| Operating voltage | 24VDC±10% |
| Singal output | 0~10V\4~20mA\EtherCAT\CANopen.etc. |
| Operating current | ＜100mA |
| Nonlinear error | ＜±0.05%F.S. or 100μm(Use the max value as the standard) |
| Resolution | 10μm |
| Insulation resistance | ≥200MΩ |
| Repeatability error | ＜±0.002% F.S. or 10μm |
| Withstand voltage | ≥500 VDC |
| Reverse connection protection | Yes |
| Short circuit protection | Ground short-circuit protection |
| Temperature effect | ＜±0.007%F.S |
| Storage temperature | -40～+85℃ |
| Operating Temperature | -40～+85℃ |
| Housing Material | Aluminum (anodized) |
| Wiring method | EtherCAT（32 bit） |
| Protection | IP65 |
Features
Application
- Injection molding machine
- Die casting machine: Injection Cylinder and Mold Closing Cylinder
- Packaging Machinery: Wrapping, sealing, cutting, length setting, and web guiding system
- Blow Molding Machine: Adjusting mechanism, mold clamping device, etc.
- Extrusion Machinery: Feed screw stroke, pressure roller gap and die plate positioning
- Construction Machinery:Hydraulic Cylinder Position and Speed Monitoring
- Hydraulic Press / Press Machine: Main cylinder, press head positioning
- Steel Rolling Equipment: Downward pressure cylinder (controls the roller gap)
- Machine Tools and CNC: Tool magazine positioning, spindle Z-axis, hydraulic clamps
1. Positioning and measurement of industrial machinery and equipment;
2. Displacement feedback for automated slides, linear motors, and robot joints;
3. High-precision position detection for various hydraulic, pneumatic mechanisms, and new energy equipment.
