Vibration-Resistant Diaphragm Pressure Gauge

Description

Technical Parameters

Pressure range 0~0.6MPa~200MPa
Pointer accuracy ±1.6%FS ; ±2.5%FS
Overload 150%FS
Dial Filling Material Silicone oil
Dial Diameter 100mm
Max Diaphragm Temp. 125℃
Length of rod 33 ; 82mm
Process Connection M20*1.5 ; M18*1.5

Features

1. High cost performance and long service life
2. Easy to install and disassemble
3. Good shock resistance and corrosion resistance
4. Good stability and high reliability

Application

1. Liquids with high viscosity, easy to crystallize, and easy to solidify
2. Corrosive medium
3. Equipment in the alkali, chemical fiber, dyeing, pharmaceutical, food, and cheese industries

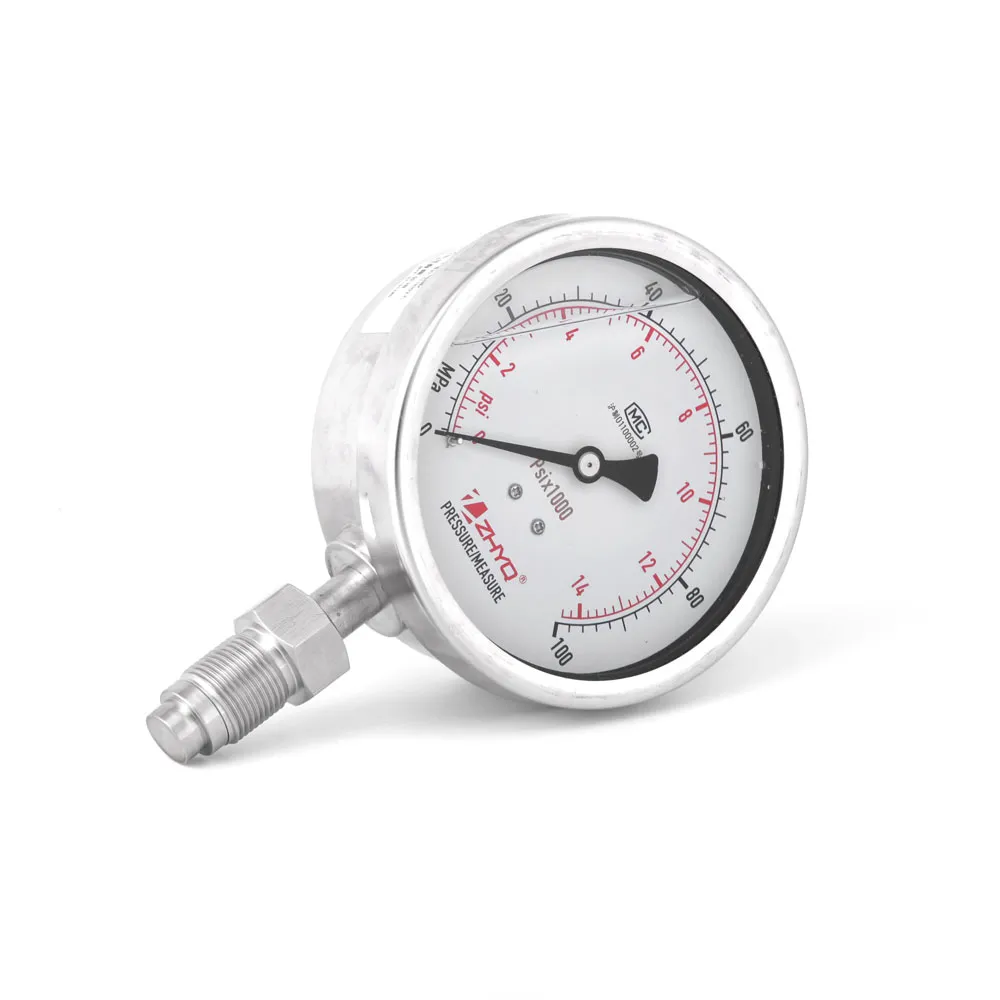

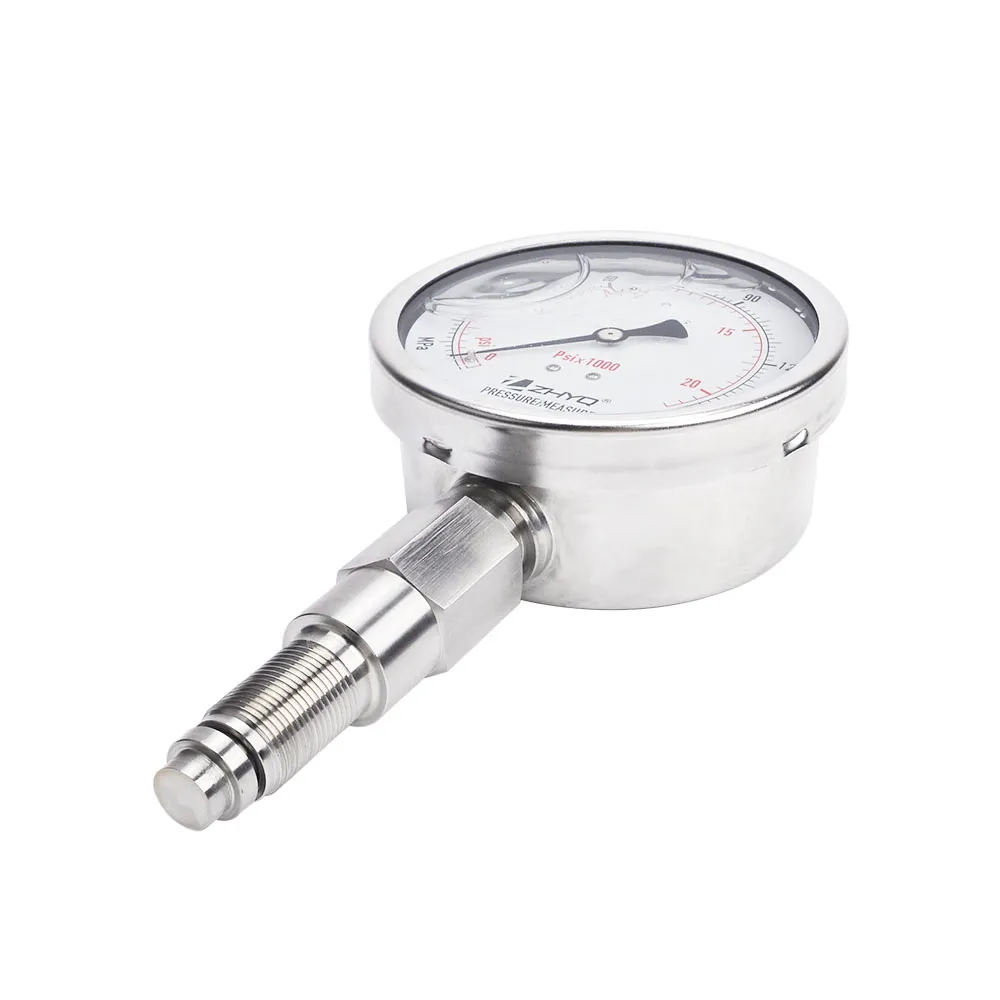

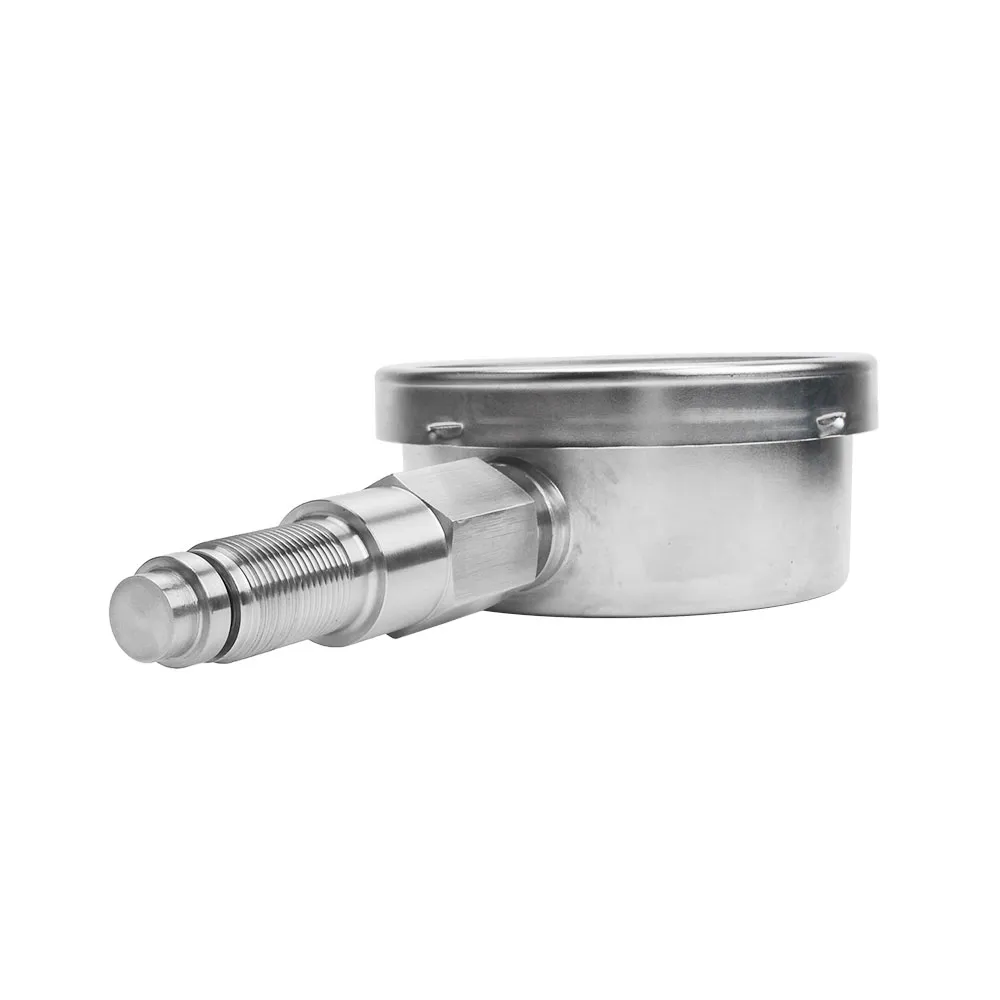

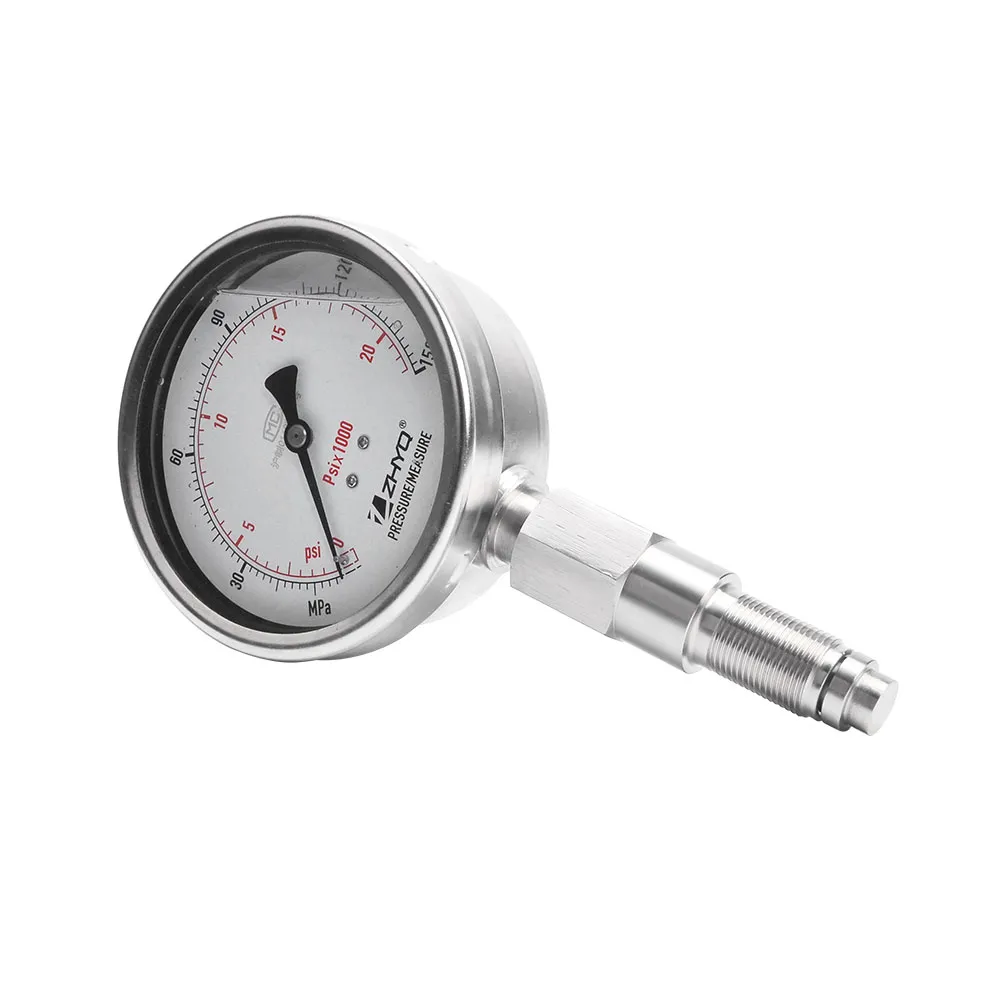

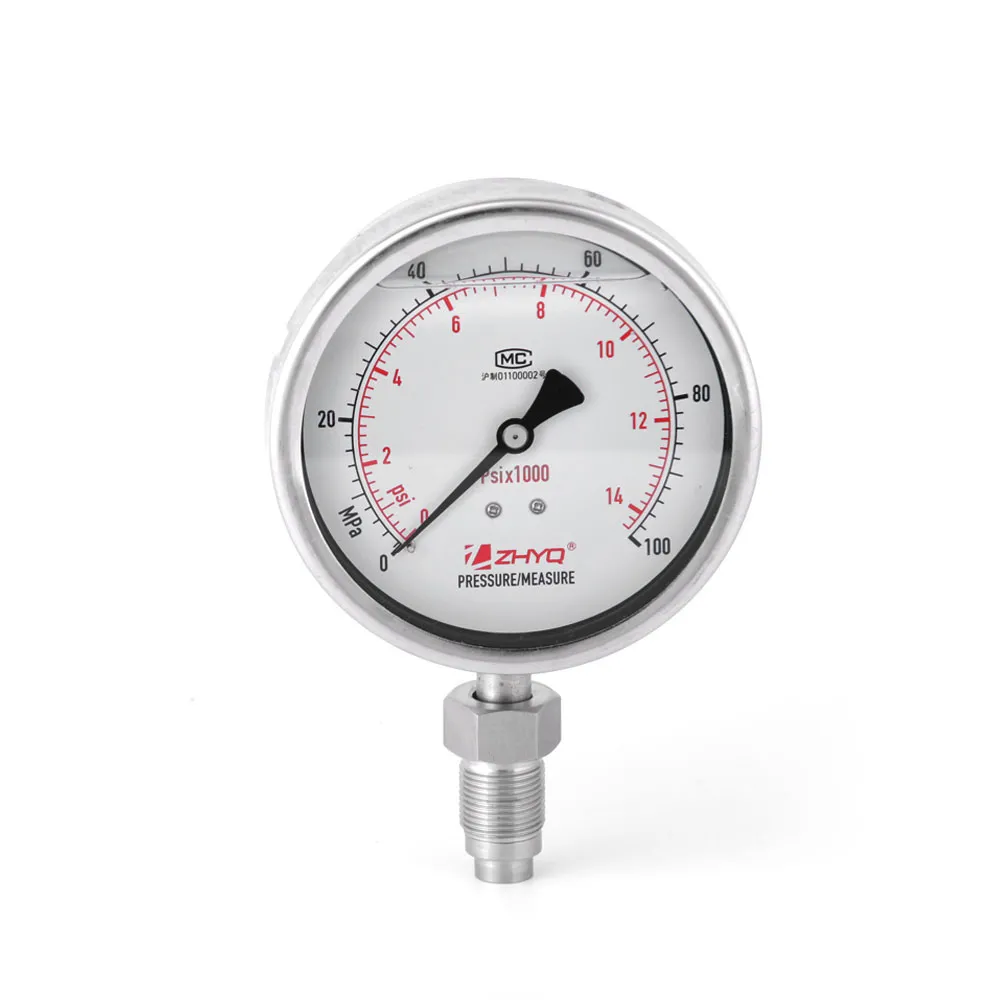

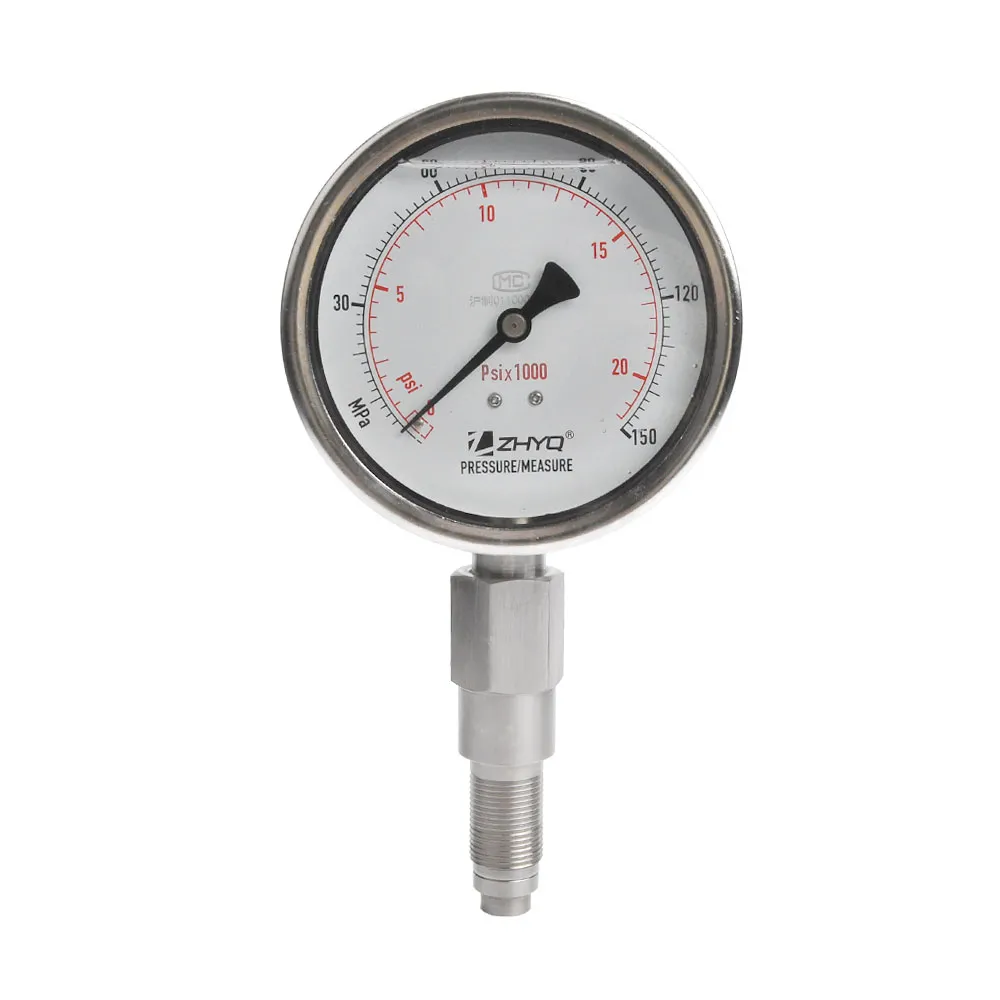

Vibration-Resistant Diaphragm Pressure Gauge

Model: PT124Y-620

PT124Y-620 standard diaphragm pressure gauge, in addition to the performance of general diaphragm pressure gauges, it also has good shock resistance and corrosion resistance.

This product uses a high-performance pressure core, stainless steel packaging, movable thread installation, and the dial can be adjusted 360° at will. It is mainly used to measure the pressure of high viscosity, easy to crystallize, easy to solidify liquids, corrosive media, petrochemical and alkali, chemical fiber, dyeing, pharmaceutical, food and cheese making and other industrial fluid media.
