Ultrasonic Cleaner for Inline Brix Refractometer

Description

Technical Parameters

Operating voltage 220V AC
Power 70W
Ultrasonic frequency 50KHz
Working model Manual/Automatic
Cleaning duration ≤5 minutes / each time
Cleaning temperature 10~50℃
Operating temperature -20~80℃

Features

1. Manual mode and automatic mode can be switched
2. Easy to operate and flexible to use
3. The probe has been specially treated to increase its service life
4. Automatic timing cleaning saves manpower and time costs

Application

Inline Refractometer

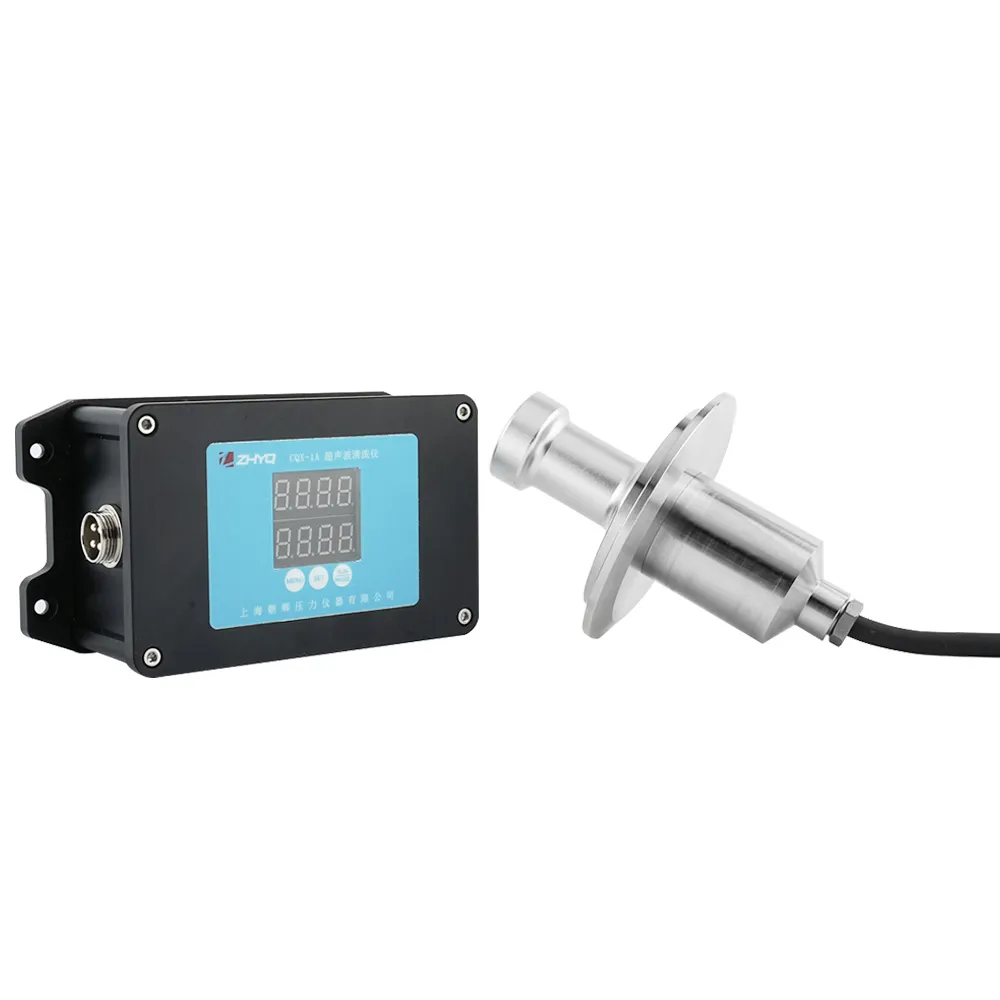

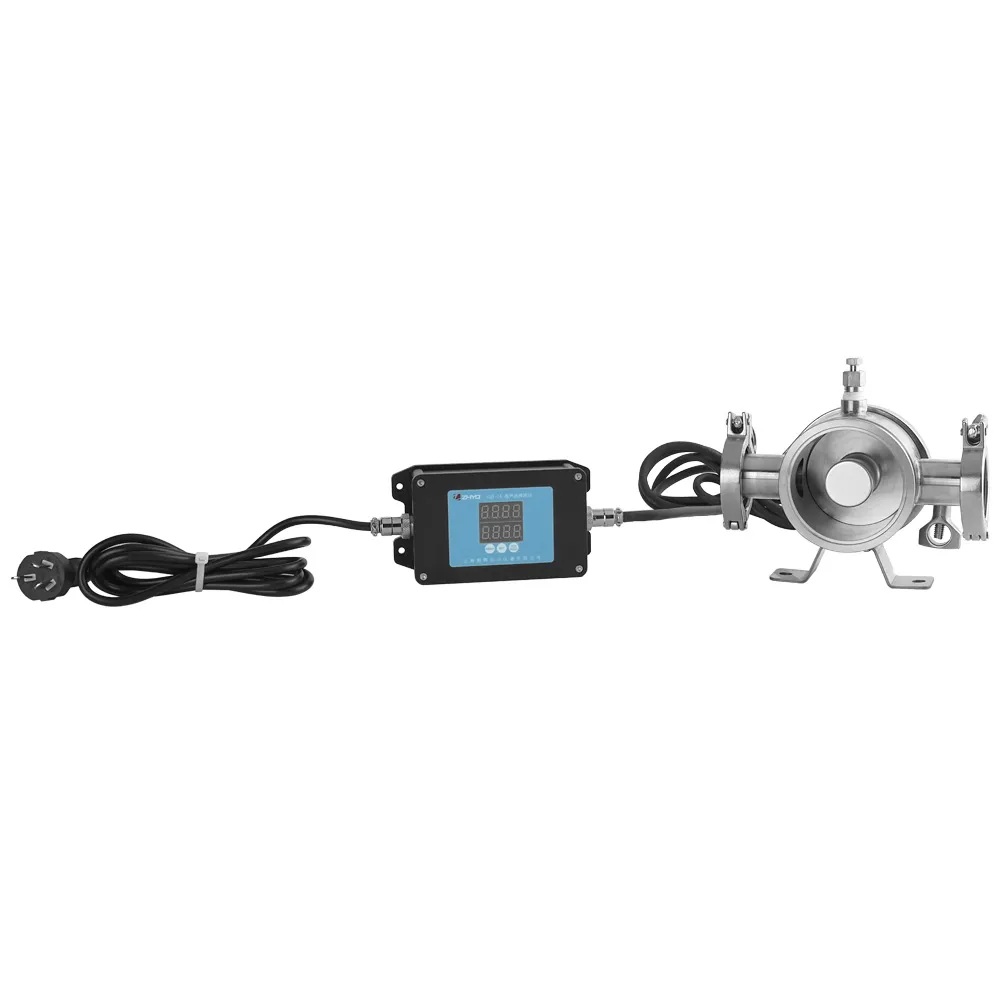

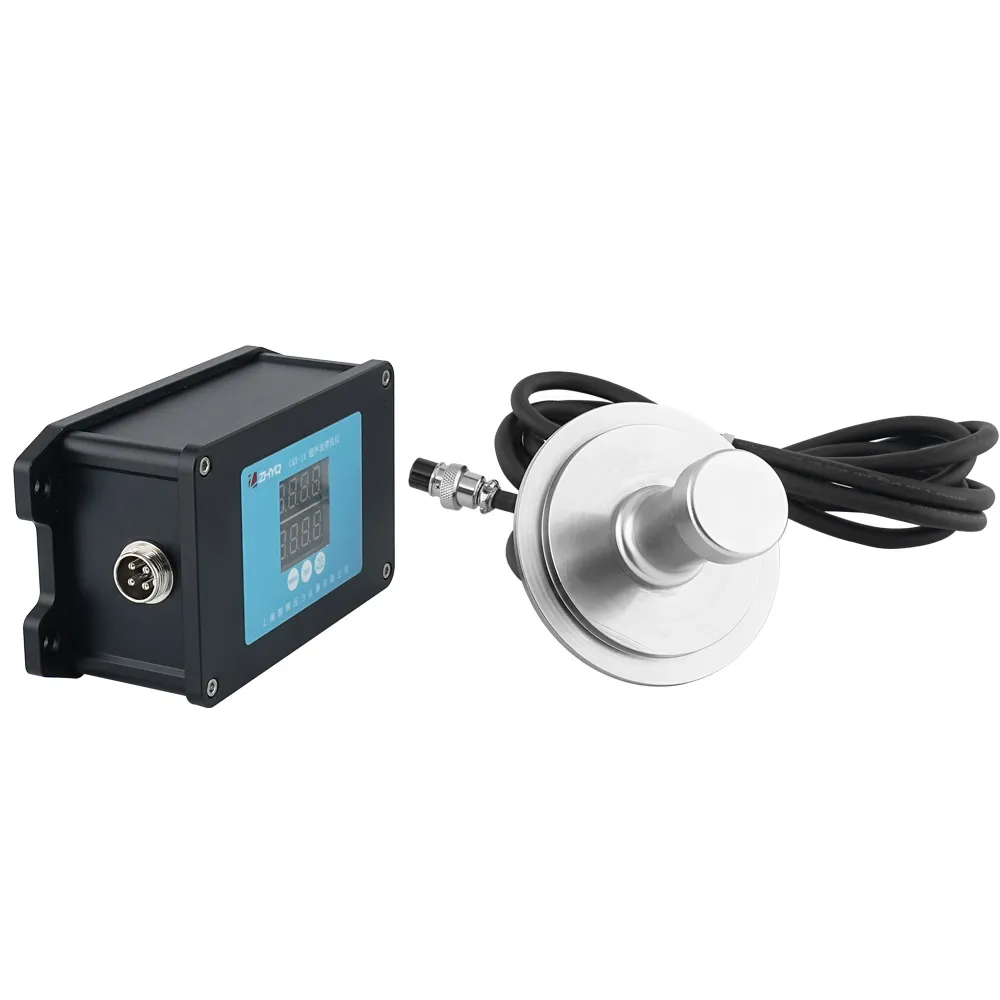

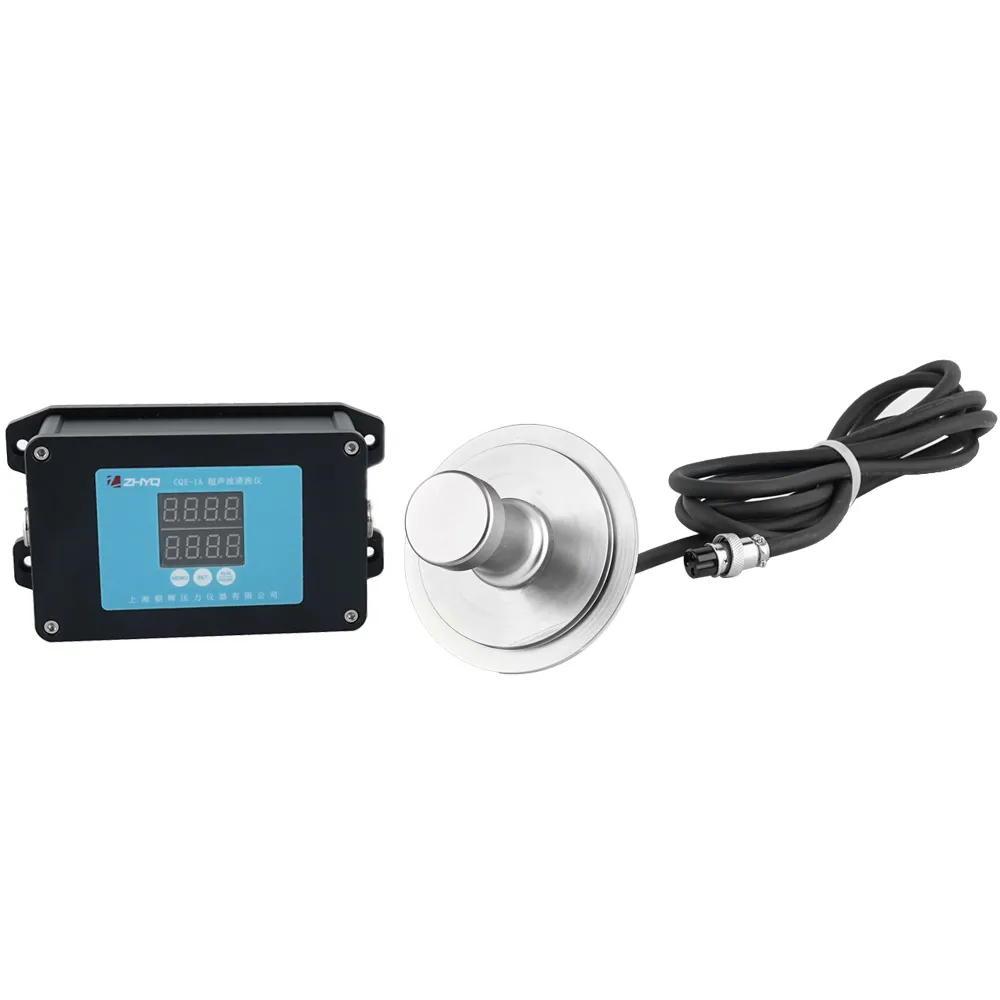

Ultrasonic Cleaner for Inline Brix Refractometer

Model:CQX-1A

The ultrasonic cleaner is an intelligent digital display cleaner that integrates cleaning, display, and timing control. The device uses a transducer to convert high-frequency mechanical oscillations and propagate them into the liquid, causing cavitation. During the cavitation, water molecule bubbles will cover the surface of the object being cleaned, generating a certain impact force, so that the dirt in the first-level gap on the surface of the object will be detached, thereby achieving the cleaning effect without causing any damage to the object. The ultrasonic cleaning probe is made of high-hardness aluminum alloy, and the surface is treated with insulating oxide sandblasting, which greatly increases the service life of the probe. The cleaner can achieve the purpose of timed automatic cleaning in a program-controlled manner, greatly reducing the operation frequency of on-site cleaning and saving time costs.
