Description
Technical Parameters

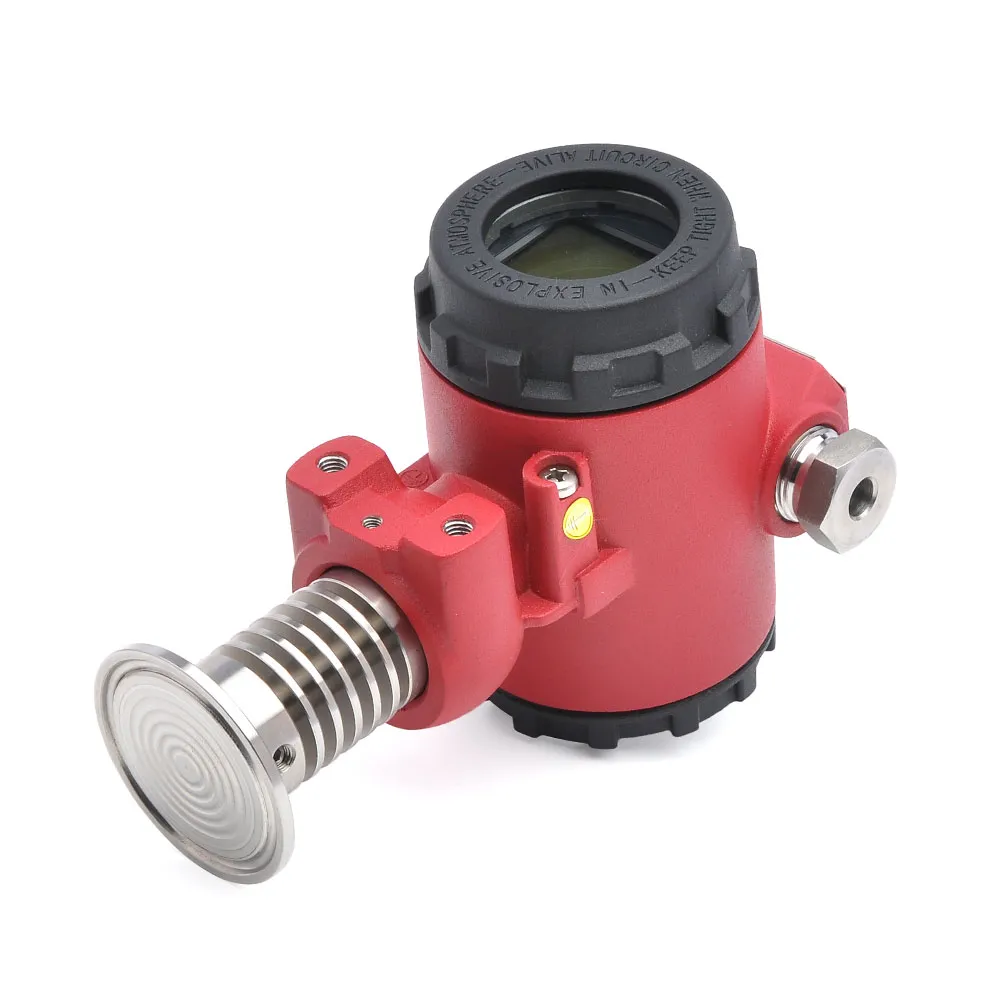

| Pressure range | -0.1～0～1MPa(Corrugated diaphragm) |
| Overload | 150%FS |
| Comprehensive accuracy | 0.5%FS ; 1%FS |
| Long term stability | ±0.2%FS/year |
| Non-linearity | 0.2%FS |
| Repeatability | 0.2%FS |
| Singal output | 4‐20mA ; 0‐5V ; 0‐10V ; RS485 |
| Power supply | 24(12~36V)DC |
| Storage temperature | ‐40～85℃ |

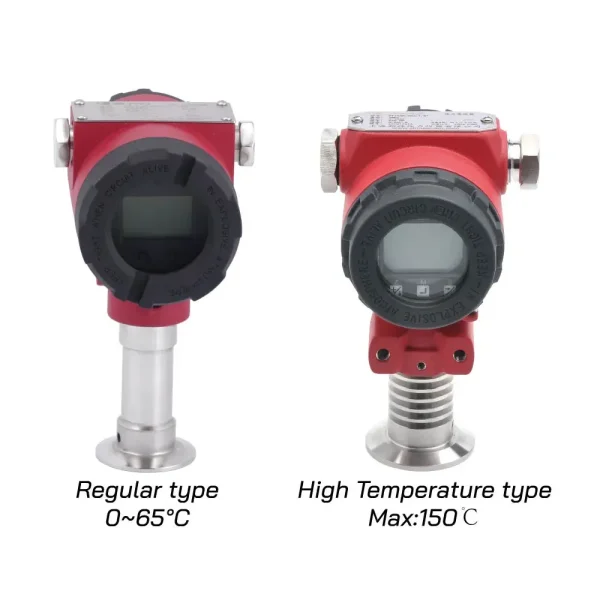

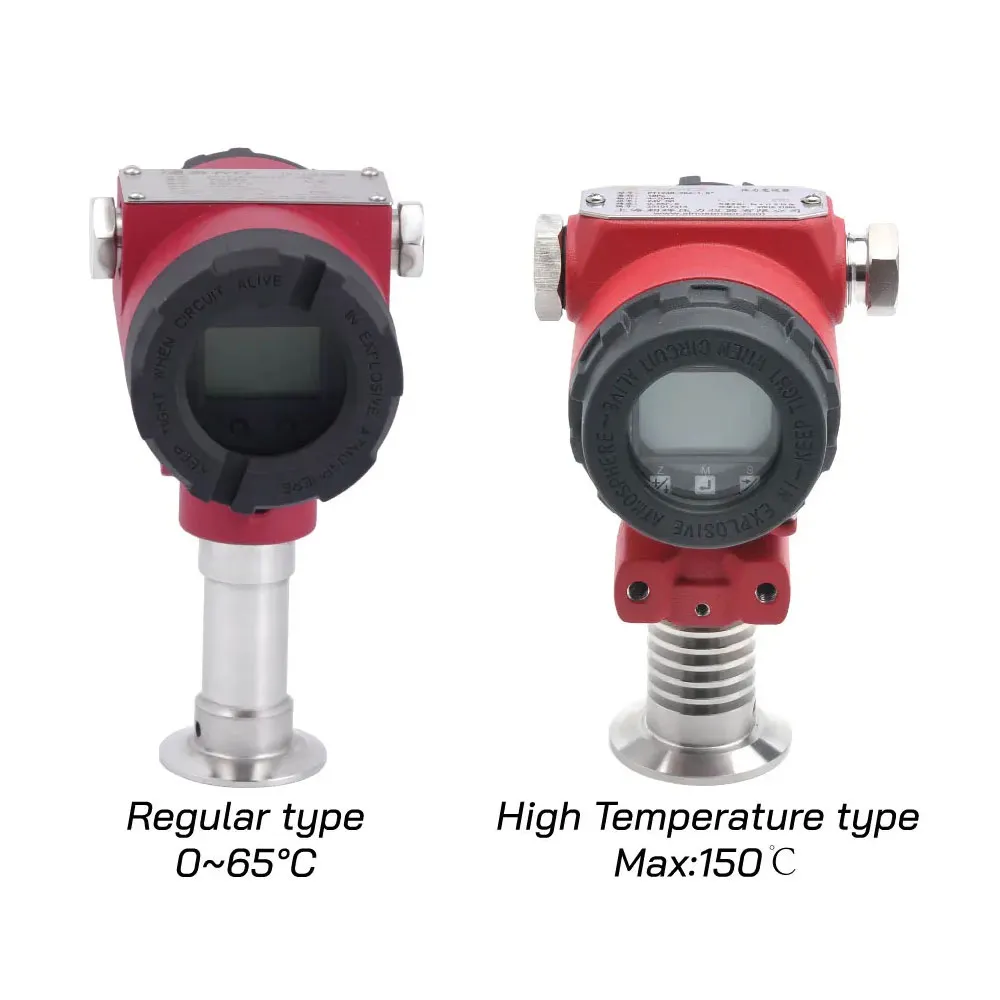

| Operating temperature | ‐20～85℃ (Typical type); ‐20～125℃(Medium to high temperature type) |
| Compensation temperature | ‐10～80℃ |

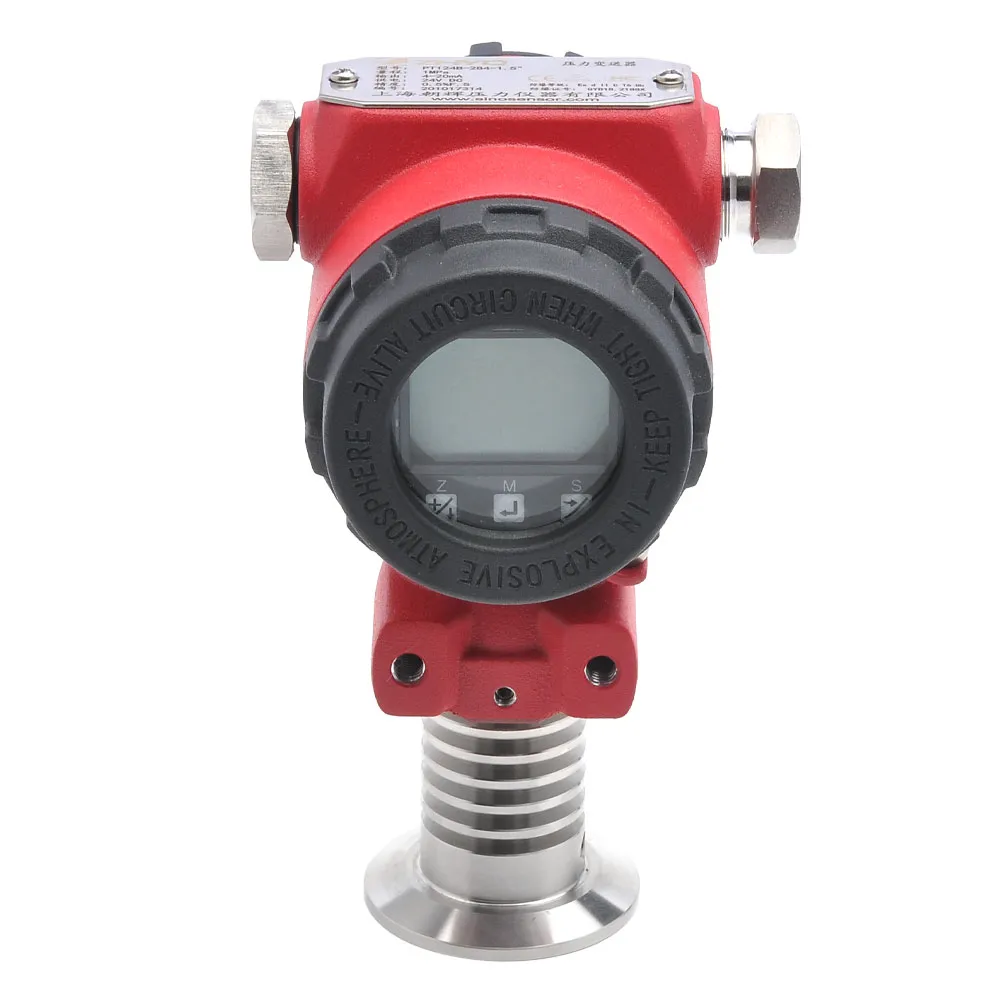

| On-site display | LCD digital display |
| Wetted material | SS304(customizable) |
| Housing material | Flameproof Aluminum housing ‐2088 |
| Protection grade | IP67 |
| Electrical Connection | Ex-proof metal gland ; M20*1.5 Ex-proof gland (external) ; M20*1.5 Ex-proof gland (internal) ; 1/2NPT Ex-proof gland (external) ; 1/2NPT Ex-proof gland (internal) ; G1/2Ex-proof gland (external) ; G1/2 Ex-proof gland (internal) ; M20*1.5 plastic gland |
| Process connection | 1.5 inch tri-clamp ; 2 inch tri-clamp |
Features
1. Dustproof, explosion-proof, fully sealed
2. With LCD display, corrosion-resistant
3. Use flameproof housing with LCD display
4. Wide range temperature compensation
Application
1. Polyurethane equipment
2. Papermaking industry
3. Paint manufacturing industry
4. Pharmaceutical industry
