Temperature & Pressure Measurement Capillary Melt Pressure Gauge with Singal Output

Description

Technical Parameters

Pressure range 0~5MPa~150MPa
Overload 150%FS
Power supply 24(12-36V) DC 5-12V DC
Signal output 4-20mA ; 0~10V 2mV/V ; 3.33mV/V
Display mode Pointer
Pointer accuracy ±1.6%FS ; ±2.5%FS
Signal accuracy ±1%FS ; ±1.5%FS
Dial diameter 100mm
Operating temperature Max 400℃
Rigid stem length 152 ; 200 ; 250 ; 305 ; 350 ; 400mm
Capillary length 460 ; 760 ; 1000 ; 1500 ; 2000mm
Temperature measuring element JKEPT100(optional)
Electrical Connection 6PIN ; 5PIN
Process connection 1/2”-20UNF ; M14*1.5 ; M18*1.5 ; M22*1.5

Features

1. Direct pressure display, with singal output
2.Added temperature sensor element to measure temperature & pressure at the same time
3. Easy installation, flange edge can be added
4. Maximum temperature resistance 400℃
5. Good stability and repeatability
6. Can be customized according to customer requirements

Application

1.Chemical fiber drawing equipment
2.Plastic and rubber manufacturing equipment
3.Medicine, food processing, packaging equipment
4.Pressure measurement and control of other high-temperature fluid equipment

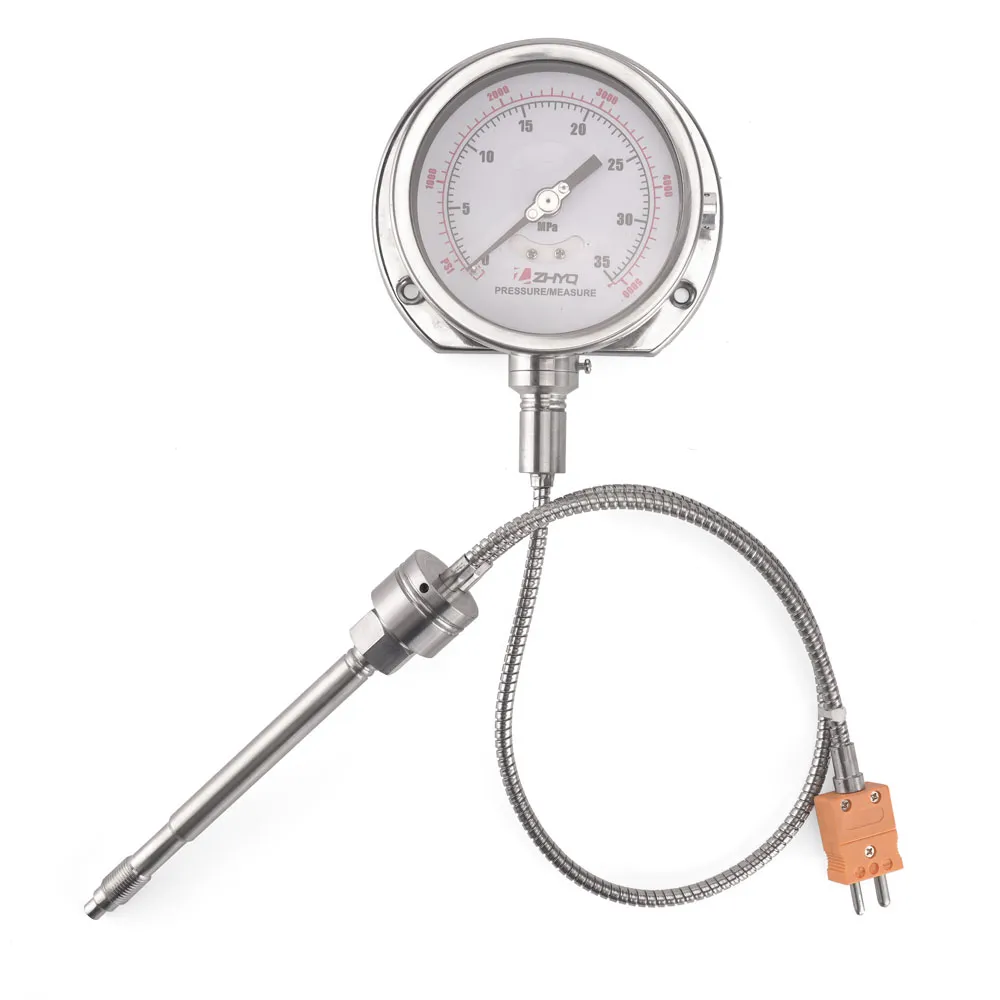

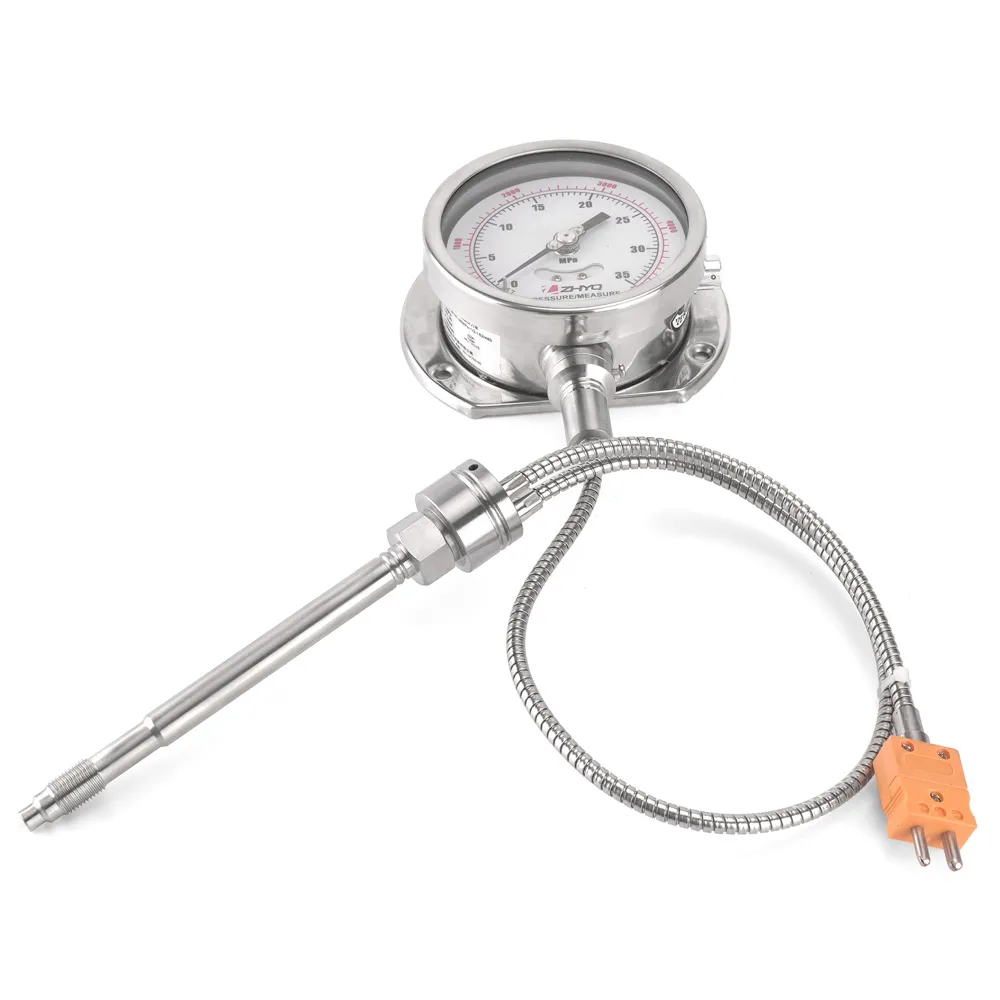

Temperature & Pressure Measurement Capillary Melt Pressure Gauge with Singal Output

Model:PT124Y-615T

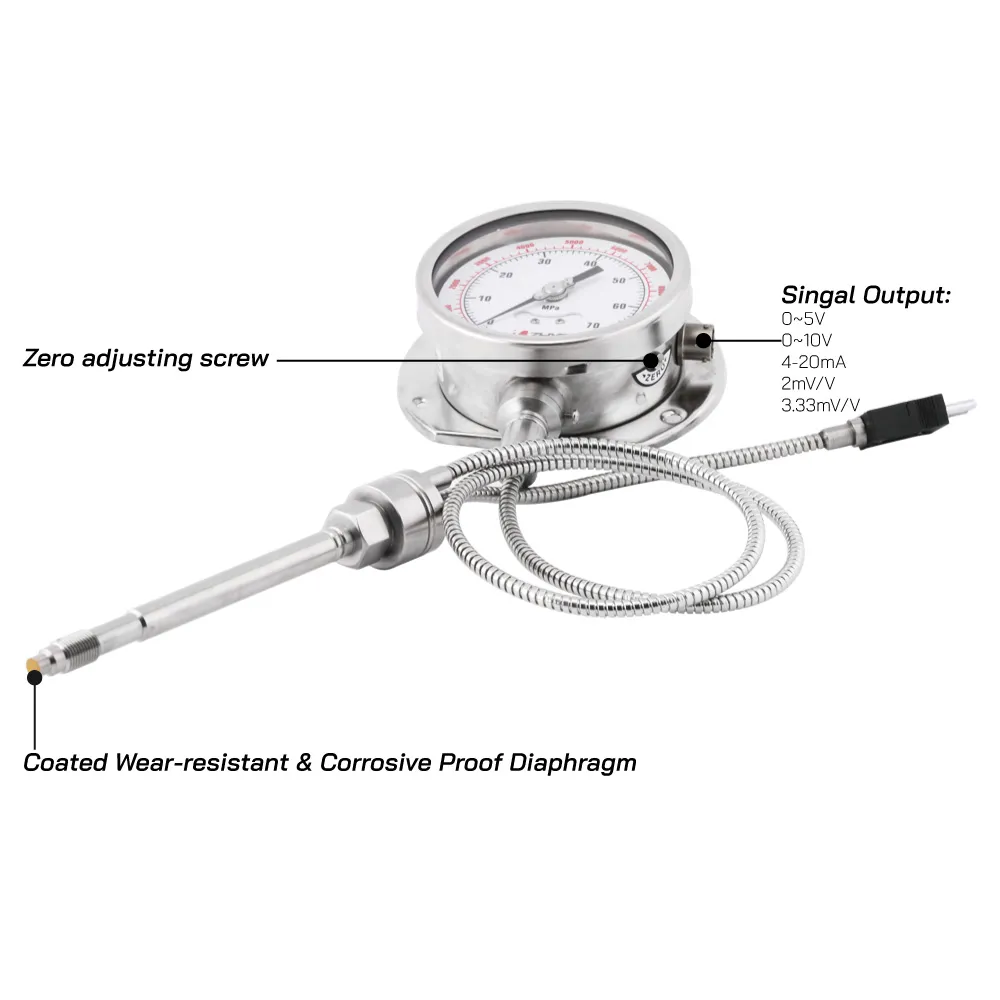

PT124Y-615T capillary melt pressure gauge adopts diaphragm isolation and pressure on-site pointer indication. The dial can be installed in both directions, and the case can be adjusted 360° to the best viewing angle.
It is equipped with a temperature sensor element to realize the power-on measurement of temperature and pressure. The instrument is equipped with high-precision pressure and temperature sensors to realize analog output.It is widely used in the measurement and control of high-temperature fluid pressure in chemical fiber textile, petrochemical, high-temperature steam, etc.
